EinScan Rigil
Product SKU: EinScan-Rigil
$6,999.00
Loading...
From now until July 25th, Buy an EinScan Rigil and get a Accessories Pro Kit for free!
Accessories Pro Kit Contains
- Bar Marker x 4
- Magnetic Ball Market x 10
- Magnetic Marker Card x 10
- Markers (inner diameter 6mm) x 1000
- Magnetic Markers (Inner diameter 6mm) x 200
- Turntable (30cm diameter) x 1
Just launched, estimated lead time is 30 days.

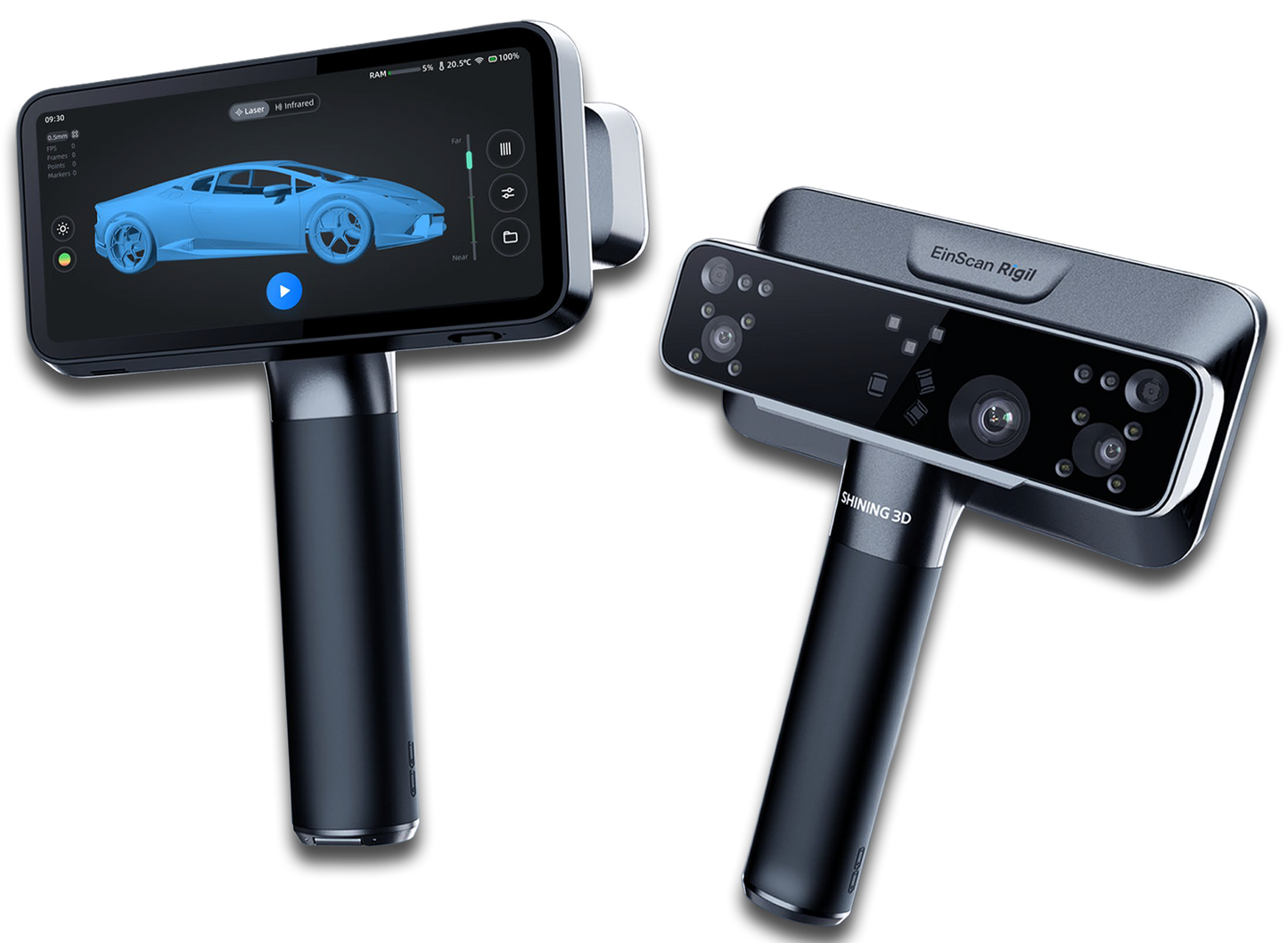

EinScan Rigil is the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with three working modes that effectively eliminates the traditional compromise between computing power and flexibility. It provides high quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05 mm. Its hybrid types of light sources — 19 crossed laser lines, 7 parallel blue laser lines, and infrared VCSEL — which paired with two separate groups of tailored cameras to ensure versatile performance and peak efficiency for objects of wide-range of sizes and surface types.
Hybrid Light Source
19 Crossed laser lines For high speed scanning, delivers top-tier efficiency and flexibility.
Resolution up to 0.05mm
7 Parallel Laser Lines For fine details that provides consistent results
IR Rapid
VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects, with eye safe portrait scanning.
Two Scanners in one
EinScan Rigil's 2 separate groups of cameras are specifically designed to capture different light sources, enables best adaptability to laser and IR light source respectively; to achieve better data recognition under strong environmental light, to ensure precise data captured even in complex lighting environments
Three Working Modes
Standalone Mode
All scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.
Wireless PC Mode
Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.
Traditional PC Mode
Maintaining availability and maximum stability in complex network environments or under restricted network conditions.
5MP Full Color Laser Scanning
EinScan Rigil is equipped with a 5MP high-definition camera that can restore high-quality texture details in both Blue Laser and IR rapid modes, allowing designers, engineers and artists to maintain a high fidelity of model during the digitization process, providing more precise information for subsequent analysis and creation.
For Prosumer, For Automotive
EinScan Rigil is designed to comprehensively address the 3D modeling needs prosumers in automotive aftermarket. It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions, and rich data editing functions
EXScan Rigil
EXScan Rigil is a dedicated PC software designed specifically for the EinScan Rigil scanner, covering the full spectrum of advanced professional scanning workflows—from calibration,scanning, data modification, closed surface generation, model editing, to export and sharing.When paired with the EinScan Rigil scanner, it delivers a seamless, flexible, and portablescanning experience that combines stability and high-quality results.
- Global Marker Alignment
- Dynamic Laser Switching
- Scan Rewind
- Global Optimization
- X-Y-Z System Alignment
- Multiple Types of Marker Supported 3/6/12 mm
- Auto Detecting Plane
- Resume Edited Data Scanning
- Auto Hole Filling
- Model Measurement
| Laser HD | IR Rapid | |
|---|---|---|
| Work Mode | Wireless Standalone | for extra computing resource: PC = Wireless / PC-Wired | |
| Scan Mode | Laser HD | IR Rapid |
| Light Source | 19 crossed laser lines | 7 blue laser parallel lines | IR VCSEL |
| Resolution | 0.05 ~ 10 mm | 0.2 ~ 10 mm |
| Scanning Speed | 4,400,000 points/s | 940,000 points/s | 1,600,000 points/s |
| Working Distance | 170 ~ 550 mm | 160 ~ 1500 mm |
| Alignment Mode | Global Markers / Markers / Features / Hybrid | Global Markers / Markers / Features / Texture / Hybrid |
| Volumetric Accuracy | Up to 0.04 + 0.06 mm/m | Up to 0.1 + 0.3 mm/m |
| Camera Resolution | 3D: 2.3MP*2 1.3MP*2; Texture: 5MP | |
| Output Formats | STL, OBJ, PLY, 3MF, ASC | |
| Laser Class | Class II | / |
| Hardware | CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM; 32GB DDR5 RAM; 6.4” 2K AMOLED Touch Screen | |
| Operation Conditions | Temperature -10℃ ~ 40℃ | |
| Certifications | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 | |
| Recommended Configurations for PC | Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB | |
| Interface & Power Source | USB Type-C Battery: 6000mA*2; Support 60W-PD3.0 Charger | |
| Dimension | (H*D*W) 233 × 180 × 72.8 mm | |
| Net Weight | 870 g (batteries included) | |
