Formlabs Form Cure L V2

Formlabs Form Cure L V2

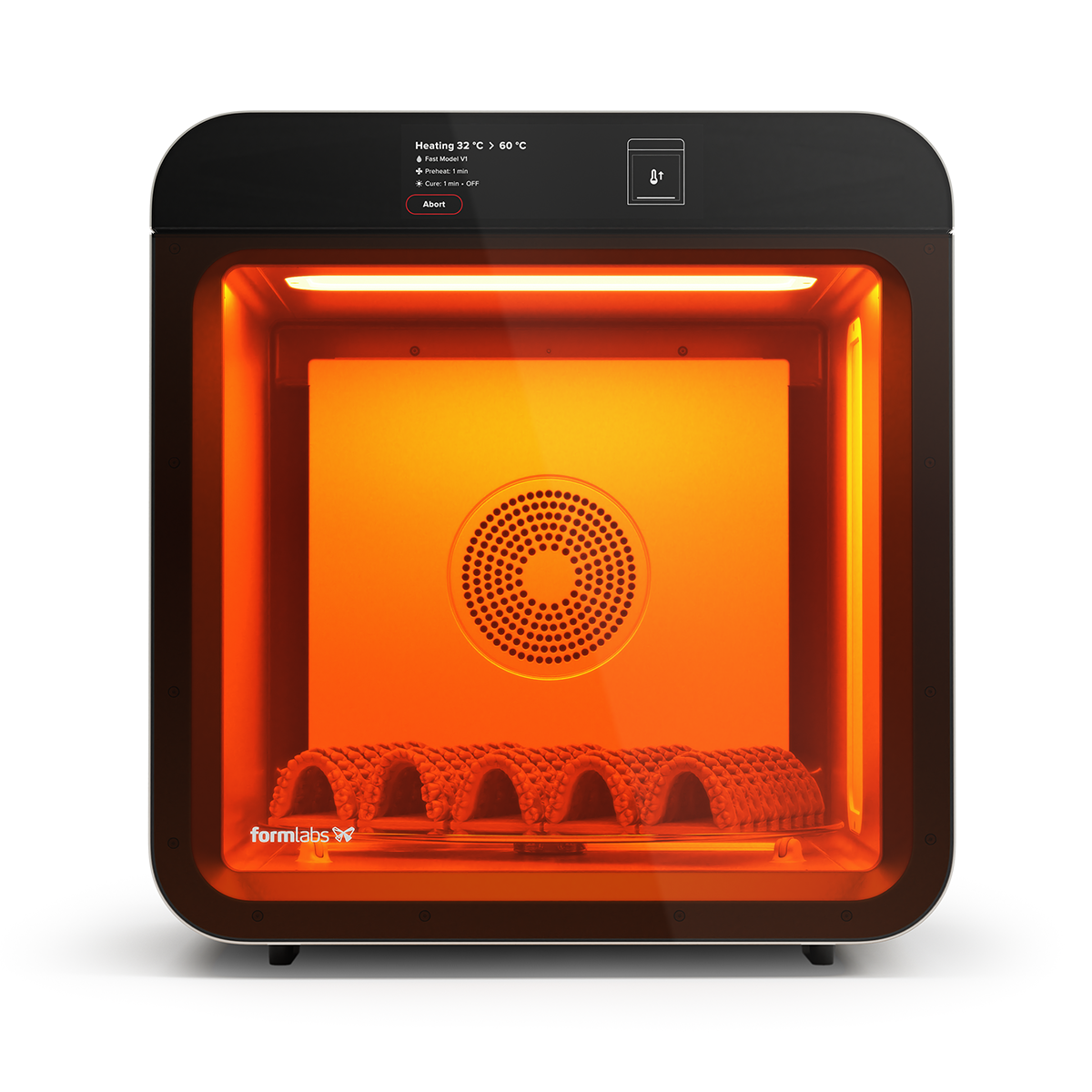

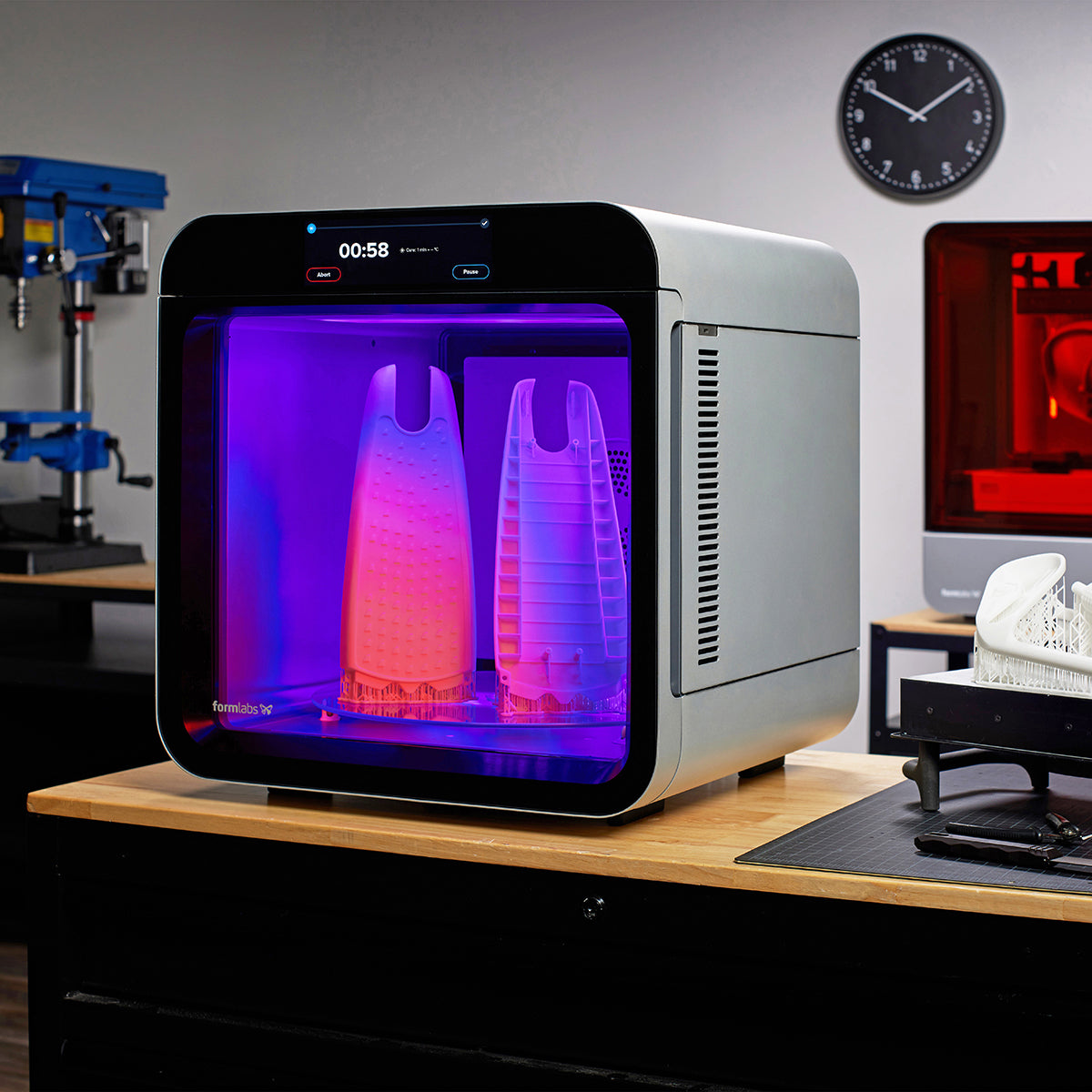

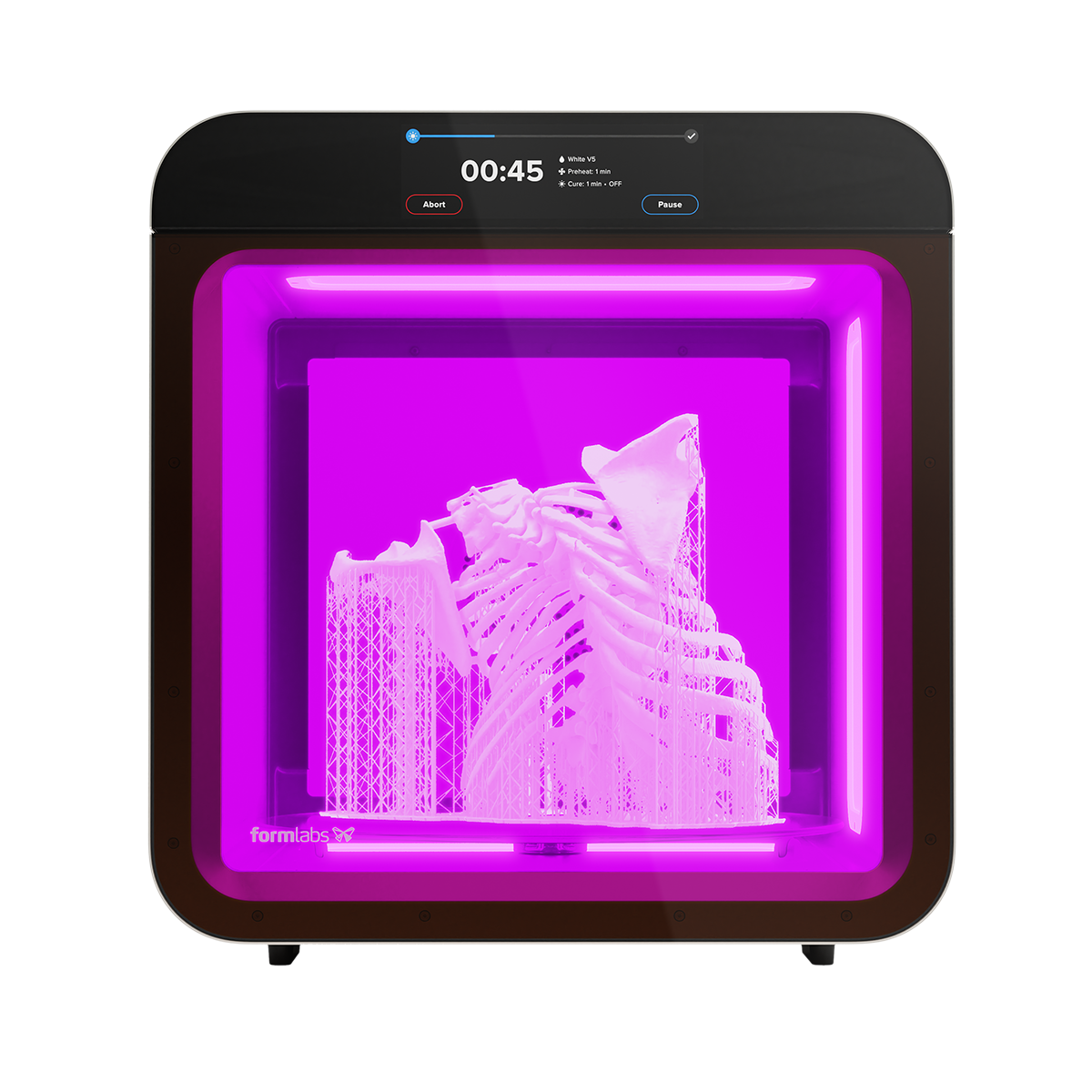

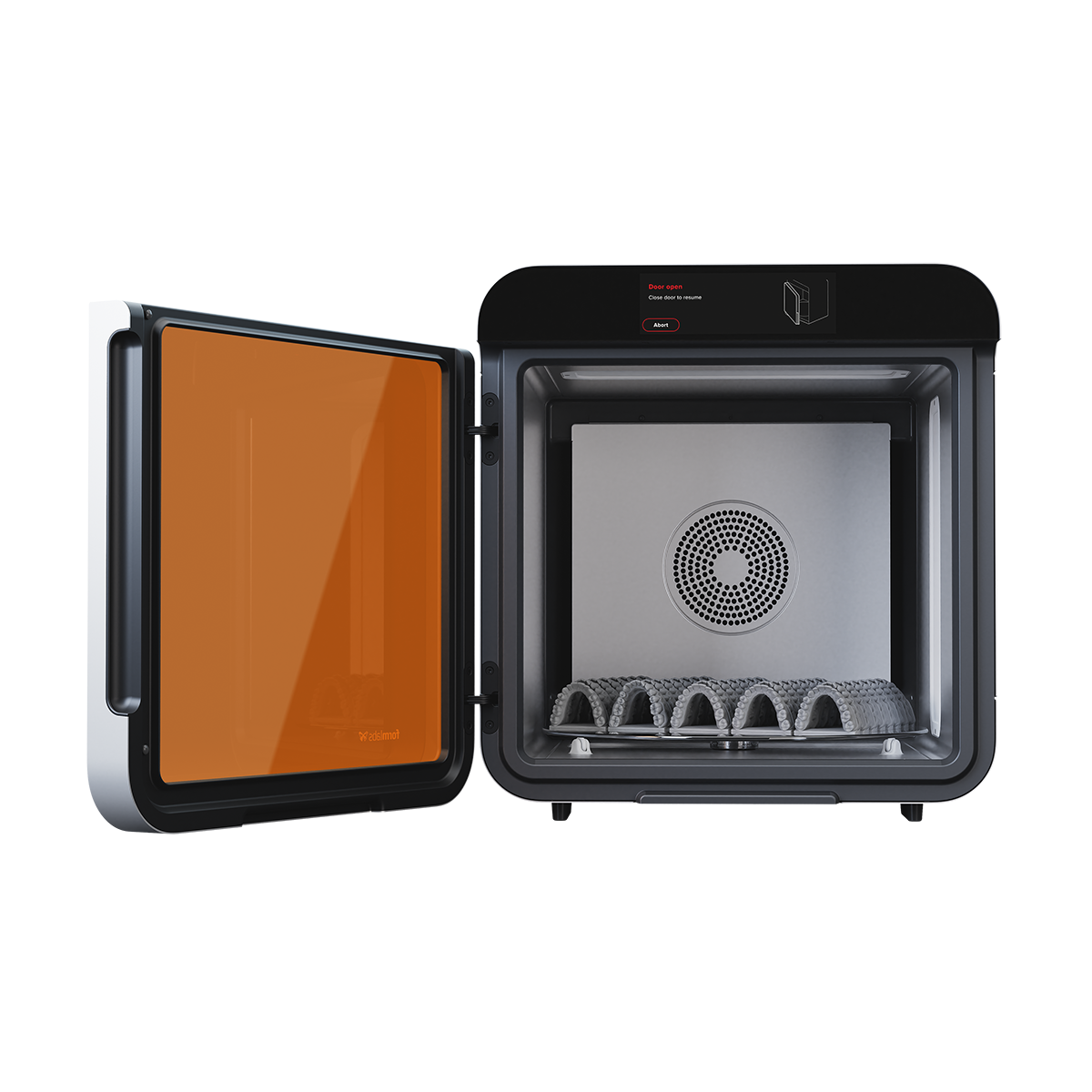

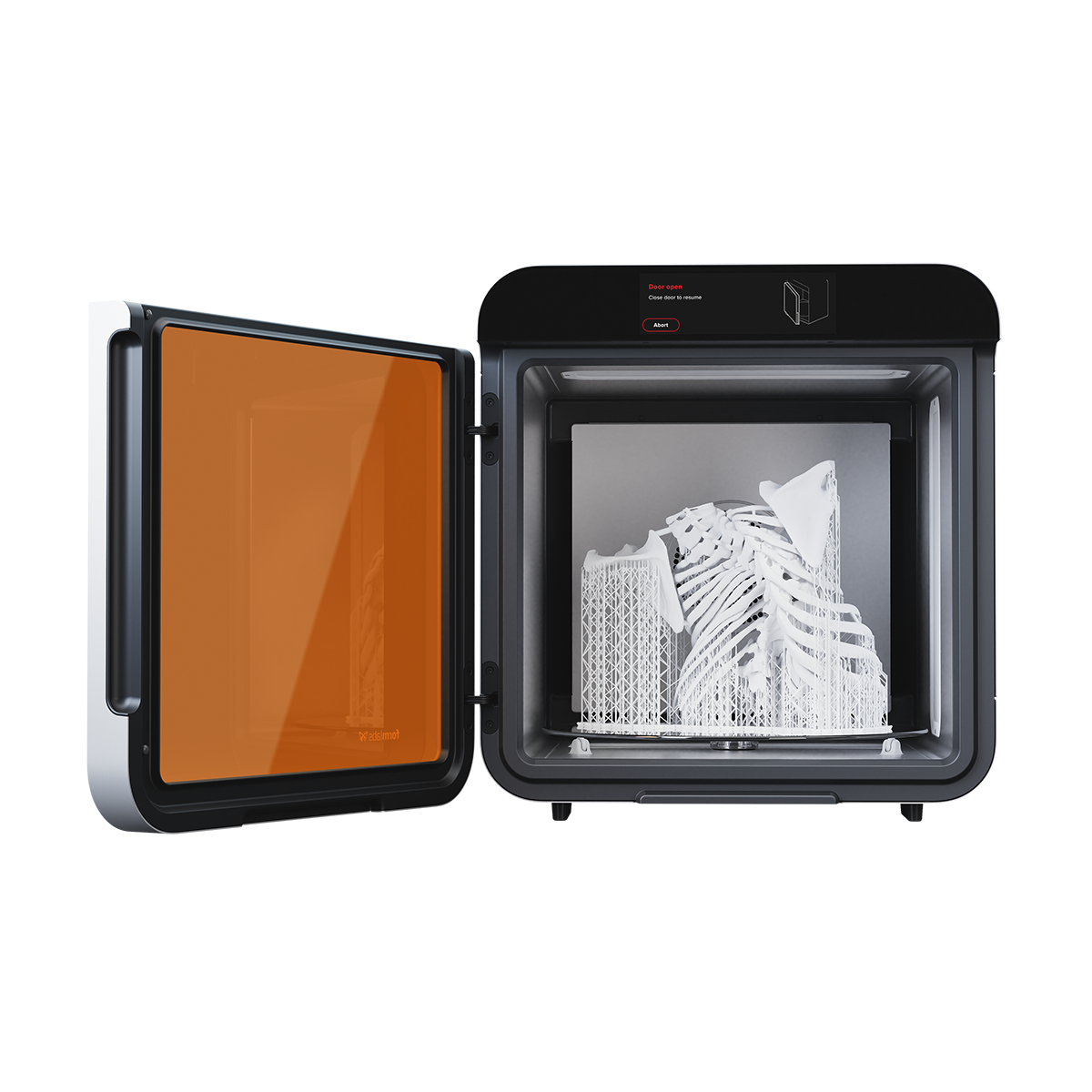

Large-format UV curing station for optimizing strength and performance of Formlabs SLA parts.
SKU:FHL-CU-120V-02
Regular price $6,399.00 CAD
Sale
Sold out
Sale price

Price

$6,399.00 CAD Regular price
Free Delivery does not apply for this order.

Stock

Quantity

Shipping Instructions

Free Delivery does not apply for this order. Contact Us for Shipping Estimates.

Product Details

Formlabs Form Cure L V2 is a professional post-curing system designed to maximize the mechanical properties, accuracy, and surface quality of large SLA 3D printed parts. Using controlled heat and 500W multi-directional UV LEDs, it provides consistent curing conditions to achieve optimal material performance across Formlabs resin families. Designed for efficient production workflows, the Form Cure L V2 supports repeatable post-processing for prototypes, functional parts, and end-use components. Form Cure V2 precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs. Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface.

Technical Specs

Overview
Technology SLA
Function Reliable, Professional Post-Curing
Box Size 28x25.5x26"
Net Weight 40.0 kg 88.2 lb
Power
Maximum Power Consumption Input (NA): 100 – 125 VAC, 50–60Hz, 15 A
Input (EU): 220 – 240 VAC, 50–60Hz, 8 A
Safety and Compliance
Certifications CSA C22.2#61010-1-12:2012 Ed.3 +U1;U2;A1 & CSA C22.2#61010-2-010:2019 Ed.4

Notes

For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.

Product Highlights

Top Features

Consistent, Validated Results

Optimized for reliable and repeatable curing performance.

  • Convection heating system that reaches temperatures up to 100 °C
  • 96 multi-directional LEDs that provide a uniform irradiance of 14.5 mW/cm2

Post-Cure Large Parts

Designed to fit everything from the largest Form 4L parts to full production batches.

  • 353 mm x 196 mm x 365 mm
  • 404 mm diameter rotating turntable
  • Maximum part height 365 mm

Easier Than Ever

Sleek new design and a compact footprint make curing as easy as pushing a button.

  • 45+ pre-programmed cure profiles
  • Easy-to-clean glass turntable
  • 26% smaller footprint while curing 19% larger parts

Formlabs Form Cure L V2 is a professional post-curing system designed to maximize the mechanical properties, accuracy, and surface quality of large SLA 3D printed parts. Using controlled heat and 500W multi-directional UV LEDs, it provides consistent curing conditions to achieve optimal material performance across Formlabs resin families. Designed for efficient production workflows, the Form Cure L V2 supports repeatable post-processing for prototypes, functional parts, and end-use components.
