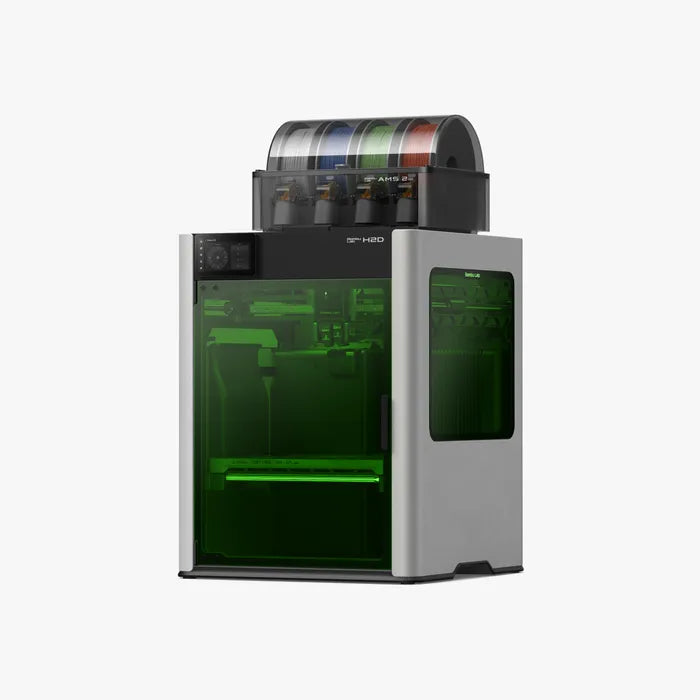

Bambu Lab H2D - Laser (w/ESA/SGS Certification)

Bambu Lab H2D - Laser (w/ESA/SGS Certification)

Bambu Lab H2D - Laser (w/ESA/SGS Certification)

Dual-nozzle 3D printer with laser attachment.
Laser Option
SKU: PF003-M+SA007-US-SL001
$2,899.00 CAD
Sale
Sold out

Price

$2,899.00 CAD $3,939.00

Stock

Request a Quote | Email This Page | Add to Wishlist
Alert: Very Limited Stock.

Product Details

The Bambu Lab H2D is a dual-nozzle FDM 3D printer for multi-material and multi-colour printing, with a build volume of up to 350x320x325mm, a 350°C all-metal hotend, a 65°C heated chamber, and high-flow printing up to 600mm/s. An optional 10W or 40W laser module adds engraving and cutting—a desktop manufacturing platform, not just a printer.

Technical Specs

Overview
Technology Fused Deposition Modeling, FFF
Function Laser Cutting/Engraving
Build Volume / Work Area (L× W× H) Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Number of Extruders Dual Extruder (2)
Box Size 24.5 x 24.5 x 30 (inches) | 622.3*622.3*762mm (Note: Laser Module ships in a separate box).
Net Weight 31 kg
Material Compatibility
Compatible Materials PLA, PETG, ABS, ASA, PC, PA (Nylon), TPU, and various carbon-fiber or glass-filled composites.
Material Diameter / Thickness 1.75mm
Performance
Layer Thickness Maximum Cutting Thickness: 10W: 5 mm; 40W: 15mm (Basswood Plywood)
Speed & Productivity
Maximum Speed 1000 mm/s
Typical Operating Speed 20,000 mm/s²
Maximum Acceleration 20,000 mm/s²
Maximum Throughput / Flow Rate 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Working Area & Optics
Laser Spot Size 10W Laser Module: 0.03 mm × 0.14 mm. 40W Laser Module: 0.14 mm × 0.2 mm
Features
Maximum Nozzle Temperature 350 °C
Filament Cutter Built-in, Supported
Auto Leveling / Calibration Material CodeSync: The H2D automatically scans the QR code on your material to load the perfect preset.*

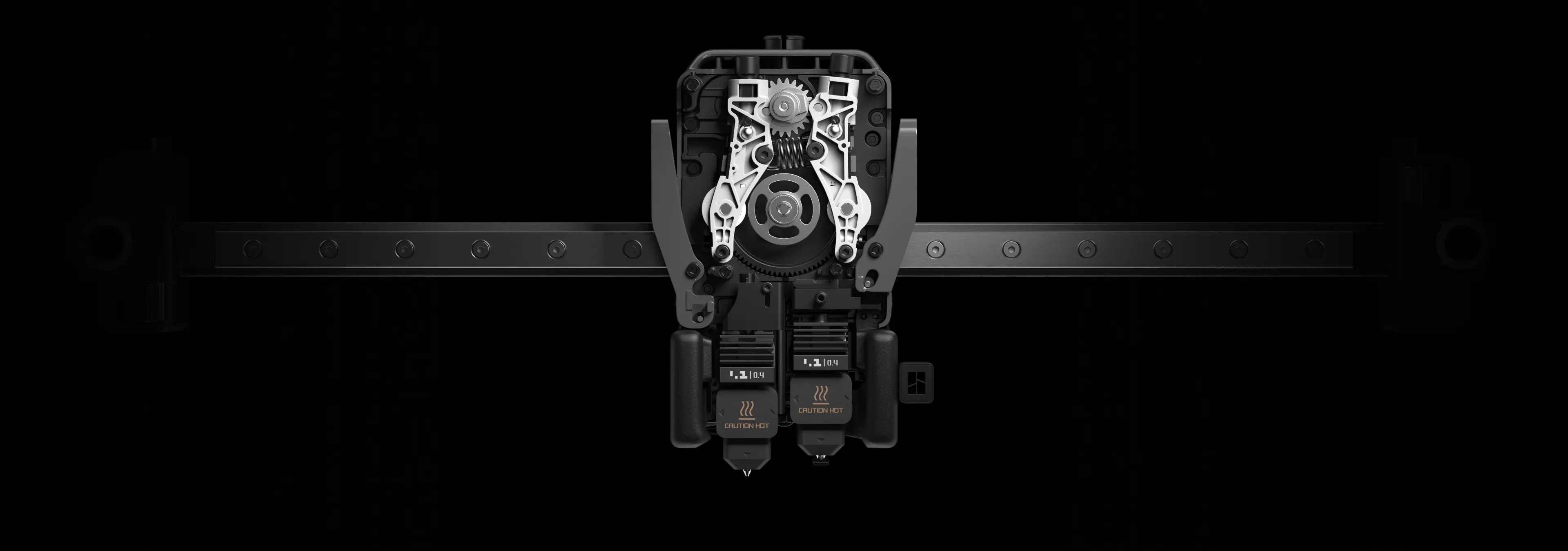

Extruder Type Closed-loop Servo Extruder
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor
Supported Nozzle Diamete 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Platform & Motion System
Included Build Plate Textured PEI Build Plate
Heated Bed Supported
Maximum Bed Temperature 120 ℃
Temperature Control
Chamber Type Laser Safety Windows - Equipped on Laser Edition
Chamber Heating 65°C Heated Chamber
Sensors & Monitoring
Camera The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

The H2D’s BirdsEye camera, combined with computer vision algorhtims, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*
Filament Detection Supported
Power Loss Recovery Supported
Auto Calibration Full-auto Calibration: A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.
Number of Sensors

SOTA Filament Monitoring

15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.
Software & Workflow
Supported File Types .3MF / .STL / .STEP / .STP / .OBJ / .SVG / .AMF
Connectivity
Wi-Fi WPA2-Enterprise Wi-Fi Authentication
USB Built-in 8 GB EMMC and USB Port
Connectivity The H2D offers convenient cloud connectivity for remote control from any device. For security-sensitive applications, it also provides full offline functionality, ensuring complete physical isolation. Users can operate the printer, send files, and update firmware without an internet connection.
Remote Monitoring The H2D offers convenient cloud connectivity for remote control from any device.
Power
Input Voltage 100-120 VAC / 200-240 VAC, 50/60 Hz
Typical Power Consumption 200 W@220 V / 200 W@110 V (Single Nozzle Printing PLA)
Maximum Power Consumption 2200 W@220 V / 1320 W@110 V
Safety and Compliance
ESA Certification ESA/SGS Certification
Certifications ESA/SGS Certification
Air Filtration Air Assist Pump (Equipped on Laser Edition, normal H2D can upgrade through the Laser Upgrade Kit).
Three-stage filtration system: G3 pre-filter, H12 HEPA Filter, and a coconut shell activated carbon filter.
Pre-filter Grade: G3
HEPA Filter Grade: H12
Activated Carbon Filter Type: Granulated Coconut Shell
VOC Filtration: Superior
Particulate Matter Filtration: Supported
Safety Features

Laser Safety Windows, Laser Safety Class for Laser Module (Class 4), Overall Laser Safety Class* (Class 1), Air Purifier (purchased separately),and Emergency Stop Button supported.
Emergency Stop Supported
Warranty and Support
Manufacturer Warranty 1-Year Manufacturer Warranty
Shop3D Training

Included at an additional cost.

Documentation

Links

3D Printer

FFF Technology

Laser Cutter

CSA Certified

Meets safety, environmental, and operating performance standards.

Product Highlights

Top Features

  • Dual-nozzle printing system for faster multi-color printing and cleaner multi-material workflows.
  • Large 350 × 320 × 325 mm build volume for bigger prototypes and functional parts.
  • Optional 10W/40W laser and cutting modules for engraving, cutting, and expanded fabrication workflows.
  • 350°C hotend + 65°C active heated chamber for high-performance engineering materials.
  • Closed-loop servo extruder with intelligent extrusion control and real-time monitoring.
  • 5 μm optical motion calibration with Vision Encoder technology for precise movement accuracy.
  • High-speed CoreXY architecture with up to 1000 mm/s toolhead movement.
  • Advanced filament monitoring with sensors tracking material flow and extrusion performance.
  • AMS compatibility for automated multi-color and multi-material printing.
  • AI-powered monitoring for improved reliability and print failure detection.
  • Enclosed design with filtration system for cleaner operation with advanced materials.

A Hard Core Laser Machine

High Power 455nm Laser

Cut 5mm plywood with the 10W laser, and 15mm plywood with the 40W laser.

Air Assist

Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

Contact-less 3D Mesh

*Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Rotary Attachment

Expand your capabilities with the rotary attachment, allowing laser engraving on cylinders, spheres, and rings. Rotary Attachment is an optional equipment

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles.

Air Purifier

An optional air purifier ensures clean air, even during indoor laser operations.* Air Purifier is an optional equipment

Product Videos

Product FAQs

Can the H2D print two materials at once?

Yes—its dual-nozzle system combines flexible and rigid materials in one print, or reserves one nozzle for dedicated support material.

What is the build volume?

350x320x235mm (13.8x12.6x12.8inches)

Does the laser come with the printer?

The 10W/40W laser and cutting module is optional; the base H2D is an FDM 3D printer.

Is it suitable for production or just hobby use?

Both. A 350°C nozzle, 65°C heated chamber and dual-nozzle efficiency support engineering materials and small-batch production, while one-tap calibration keeps it approachable.
