Mayku FormBox - Desktop Vacuum Former (Certified)

Mayku FormBox - Desktop Vacuum Former (Certified)

Mayku FormBox - Desktop Vacuum Former (Certified)

Certified desktop vacuum former for creating molds, prototypes, and custom formed parts.
SKU:FBA180112US
Title
$965.00 CAD
Sale
Sold out

Price

$965.00 CAD

Stock

Request a Quote | Email This Page

Product Details

Mayku FormBox - Desktop Vacuum Former (Certified) is a compact, professional desktop vacuum forming machine designed for creating detailed molds, prototypes, packaging, and custom parts quickly and efficiently. Using thermoforming technology, the FormBox allows users to shape plastic sheets over existing models to produce accurate, repeatable forms with excellent surface detail. Its simple workflow makes it ideal for product development, education, makerspaces, and small-batch manufacturing applications where fast prototyping and custom fabrication are required. The certified FormBox provides a reliable benchtop solution for transforming digital designs and physical models into functional formed components.

Technical Specs

Overview

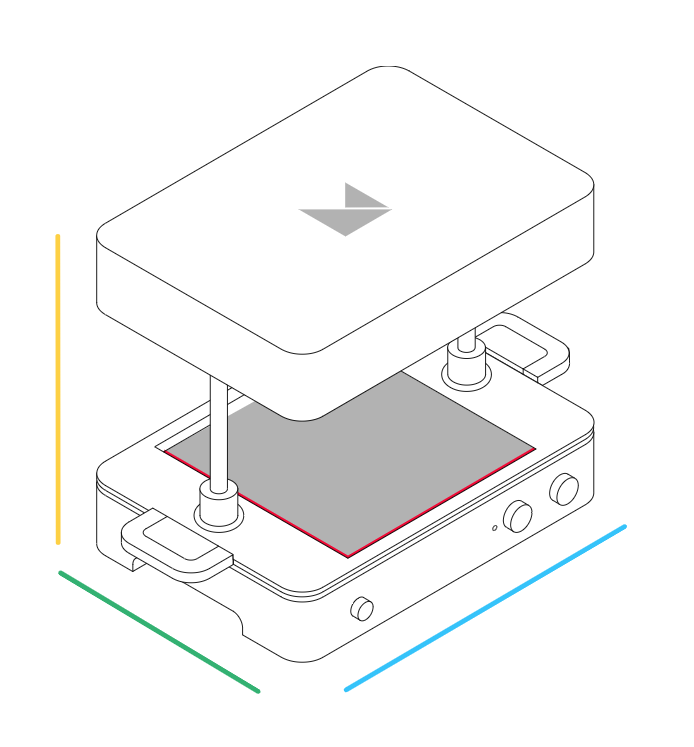

Footprint (L× W× H) Height - 315mm / Length (With Handles) - 466mm / Width - 274mm
Net Weight 13kgs
Platform & Motion System
Forming Area 200mm x 200mm / Draw Depth - 130mm
Power
Input Voltage The Unit ships with the North American 110V Model.
Safety and Compliance
Certifications Only Shop3D.ca's Mayku Formbox's are CSA Certified. We get all our units certified before making them available for sale.

Product Information

Compatible Materials

The Mayku FormBox works best with thermoplastic sheets of 0.25 - 1.5mm in thickness. Here are the technical terms:

  • PETg (Commonly found in: Food safe molds)
  • HIPS (Commonly found in: Disposable cups)
  • ABS (The stuff lego is made from)
  • Polystyrene (Commonly found in: Product packaging)
  • Polycarbonate (Commonly found in: Drinks bottles)
  • Polyethylene (Commonly found in: Sheet and foamed sheet)
  • Acrylic PMMA (Commonly found in: Light up signs)

Temp range of the built-in heater is 160C - 340C.

What's in the Box

  • Mayku FormBox Vacuum Former
  • 20 - 0.5mm Cast/Clear Sheets
  • 20 - 0.5mm Form Sheets
  • 3 Project Templates
  • Mayku two-year extended warranty
  • A Hose & Two Adaptors (for Vacuum)

Links

Safety

Special Notes & Warnings

Required:  Vacuum Cleaner that is lower than 2000 watts


Heater

  • The metal can get quite hot, so to keep you safe, the front and back top edges are lined next to the heater with two silicone strips. Heating elements can reach up to 340C, do not let children under age use without direct adult supervision.

Safety

  • Supportive guide rails have been added on each side of the ceramic heater for safety in transit.

Product Highlights

Top Features

The Mayku FormBox puts the power of making in your hands. Attach a vacuum (sold separately) to act as a pump, it works with a world of materials and helps you to make your ideas real. Whether you’re crafting by hand or partnering with your 3D printer, the FormBox is your very own desktop production line.

  • Prototype Speed

Rapidly create product prototypes with high quality finishes to show your clients your vision, in real life.

  • 3D printing and FormBox

Pioneer the future of desktop manufacturing. Partner the FormBox with your 3D printer to create professional batches of products from your studio.

  • Small footprint, big power

The FormBox gives you advanced manufacturing technology in a space no larger than a laptop, giving you and your business space you need to grow.  The ceramic heater has a range of 160c to 340c, preparing your plastic to form whilst carefully placed fans keep the FormBox running cool.

  • Precision control

Take control over your making with precise time and temperature
settings - for consistent mold making, every time.

  • Making, made simple

The FormBox has been meticulously designed to make a complex
process as simple as possible, leaving you to focus on your ideas. It’s making, made simple. With a click-in tray and comfortable handle design, using the FormBox is as easy as possible.

A desktop-sized vacuum former great for packaging mockups, soap molds, chocolate molds, plaster molds, and other DIY projects.
Mayku FormBox - Desktop Vacuum Former (Certified) is a compact, professional desktop vacuum forming machine designed for creating detailed molds, prototypes, packaging, and custom parts quickly and efficiently. Using thermoforming technology, the FormBox allows users to shape plastic sheets over existing models to produce accurate, repeatable forms with excellent surface detail. Its simple workflow makes it ideal for product development, education, makerspaces, and small-batch manufacturing applications where fast prototyping and custom fabrication are required. The certified FormBox provides a reliable benchtop solution for transforming digital designs and physical models into functional formed components.
