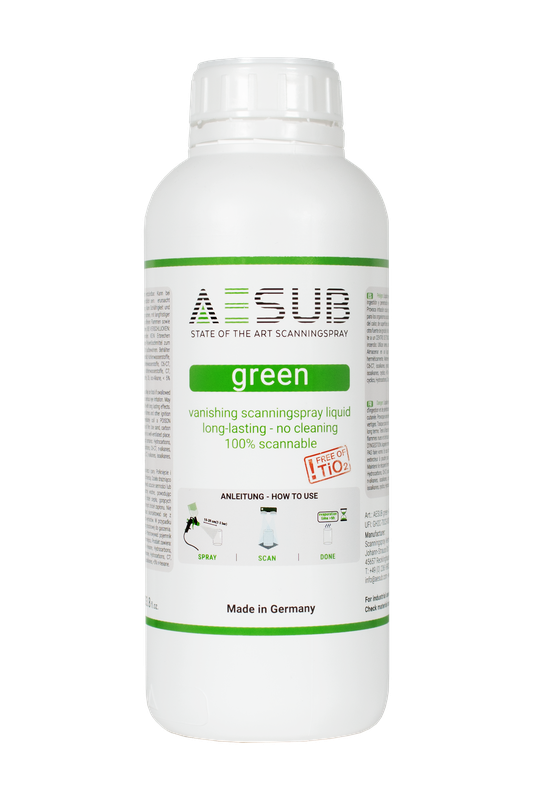

AESUB Green Scanning Spray (1L) (Refill for Spray Gun)
Product SKU: AESUB-Green
$64.00
Loading...
AESUB Green is a vanishing spray/aerosol for surface matting for optical digitization (3D scanning) that is contained in a bulk liquid format to be used with a spray gun with 0.80mm or larger nozzle aperture. Portable, battery-operated spray guns are available for purchase. AESUB Green sprays on smoothly and lasts longer than the original AESUB Blue disappearing formula. AESUB Green is perfect for large scale and automated 3D scanning applications.
Using AESUB Green, a temporary, optically ideal surface is created to quickly and precisely capture even complex surfaces (transparent, translucent, reflective,..). AESUB Green forms a homogeneous, grip-resistant layer with minimal layer thickness on which even reference points adhere. AESUB Green is free of pigments and evaporates completely after application. Subsequent cleaning of the scan objects is thus no longer necessary.
Aesub Product Range | Scanning Sprays
| Product | AESUB Blue  |
AESUB Orange  |
AESUB White  |
AESUB Transparent  |
AESUB Green  |
AESUB Yellow  |
| Delivery From: |
 aerosol can 400 ml |
 bulk 1L, 5L, 200L |
 bulk 200 ml |
|||
| Measurement Volume: | S-M | S-L | S-XL | S-M | L-XL | XS-S |
| Application: |
 |
 |
 |
|||
| Spraying Distance: | 15-20 cm | 5-10 cm | ||||
| Coating: | vanishing | vanishing | permanent | vanishing | vanishing | vanishing |
| Effective Scan Time: | 1-2 h | 4-8 h | permanent | 1-2 h | 1-2 h | 2-4 h |
| Sublimation time: | 4 h | 12-24 h | -- | 4 h | 6 h | 4-6 h |
| Colour | white | white | white | transparent | white | white |
| Contain pigments: | no | no | yes | no | no | no |
| Contain titan dioxide: | no | |||||
| Layer Thickness | 8-15 μm | 2-6 μm | 7 μm | 15-20 μm | 10-20 μm | 0.5-1 μm |
| Adhesion of Reference Points: | yes | yes | no | yes | yes | yes |
| Coverage Area: | 4 m² / can | 4 m² / can | 4 m² / can | 4 m² / can | 15 m² / L | 20 mm² / ml |
| Optimal Processing Temperature: | 21°C (69.8°F) | |||||
| Shelf Life: | 5 years | |||||
| Packaging Unit: | 12 / box | 12 / box | 12 / box | 12 / box | 6 x 1L / box 5L 200L |
12 x 200 ml / box |
