EinScan Trak - Wireless Marker-Free Tracking 3D Scanning System

EinScan Trak - Wireless Marker-Free Tracking 3D Scanning System

EinScan Trak - Wireless Marker-Free Tracking 3D Scanning System

World's first wireless, dual-form, marker-free 3D tracking & scanning system.
SKU:C011724
$9,925.00 CAD
Sale
Sold out

Price

$9,925.00 CAD $9,925.00
This item is available for pre-order. Please contact us for lead times.

Stock

Request a Quote | Email This Page

Until Sept 25th, 2026, when you purchase a Shining3D Scanner along with a ExModel Pro License or subscription, save 20% off the software automatically. Enjoy reverse engineering!

Product Details

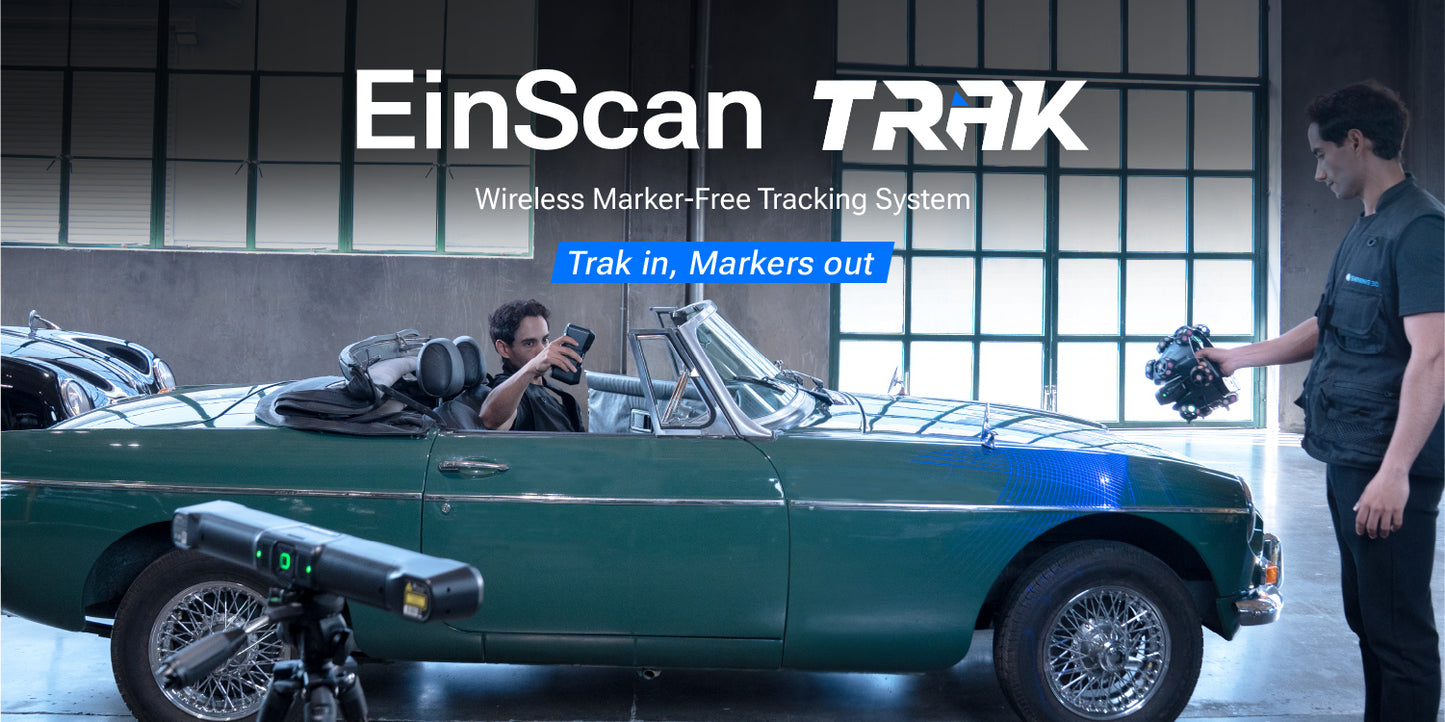

EinScan Trak is the world's first wireless, dual-form, marker-free tracking 3D scanning system from Shining3D, built for efficient reverse engineering, cultural heritage preservation, automotive customization, and large-object digitization. "Trak in, markers out" - the wireless Tracker unit locks onto the scanner in real time so you can capture geometry across a tracking volume of up to 15 m3 without applying a single physical marker, protecting delicate, reflective, or valuable surfaces. One system covers two work modes: use the detachable scanner handheld for close-up detail, or mount it for tracked, large-scale scanning. Three scanning workflows - single-station tracking, hybrid leapfrog multi-station, and transit-station scanning - make EinScan Trak adaptable to parts of virtually any size.

3D Scanner

Technical Specs

Overview
Technology Wireless dual-form marker-free tracking + laser 3D scanning
Function Wireless, marker-free tracking and 3D scanning for reverse engineering and large-object digitization
Net Weight Tracker: 1.02 kg | Spherical Scanner: 1.46 kg | Handheld Scanner: 0.48 kg
Laser Class Class 2
Scan Mode Tracking Mode : Laser | Handheld Scanner Mode: Laser
Performance
Volumetric Accuracy Up to 0.1 mm
Scan Resolution 0.05 ~ 10 mm
Speed & Productivity
Scanning Speed Up to 2,630,000 points/s
Working Area & Optics
Field of View Tracking Mode: 4796 x 4174 mm @ 4000mm | Handheld Mode: 547 x 463 mm @ 500mm
Mode / Laser Type Tracking Mode | Handheld Scanner Mode
Operation Conditions Operation Conditions Temperature: -10°C ~ 40°C
Sensors & Monitoring

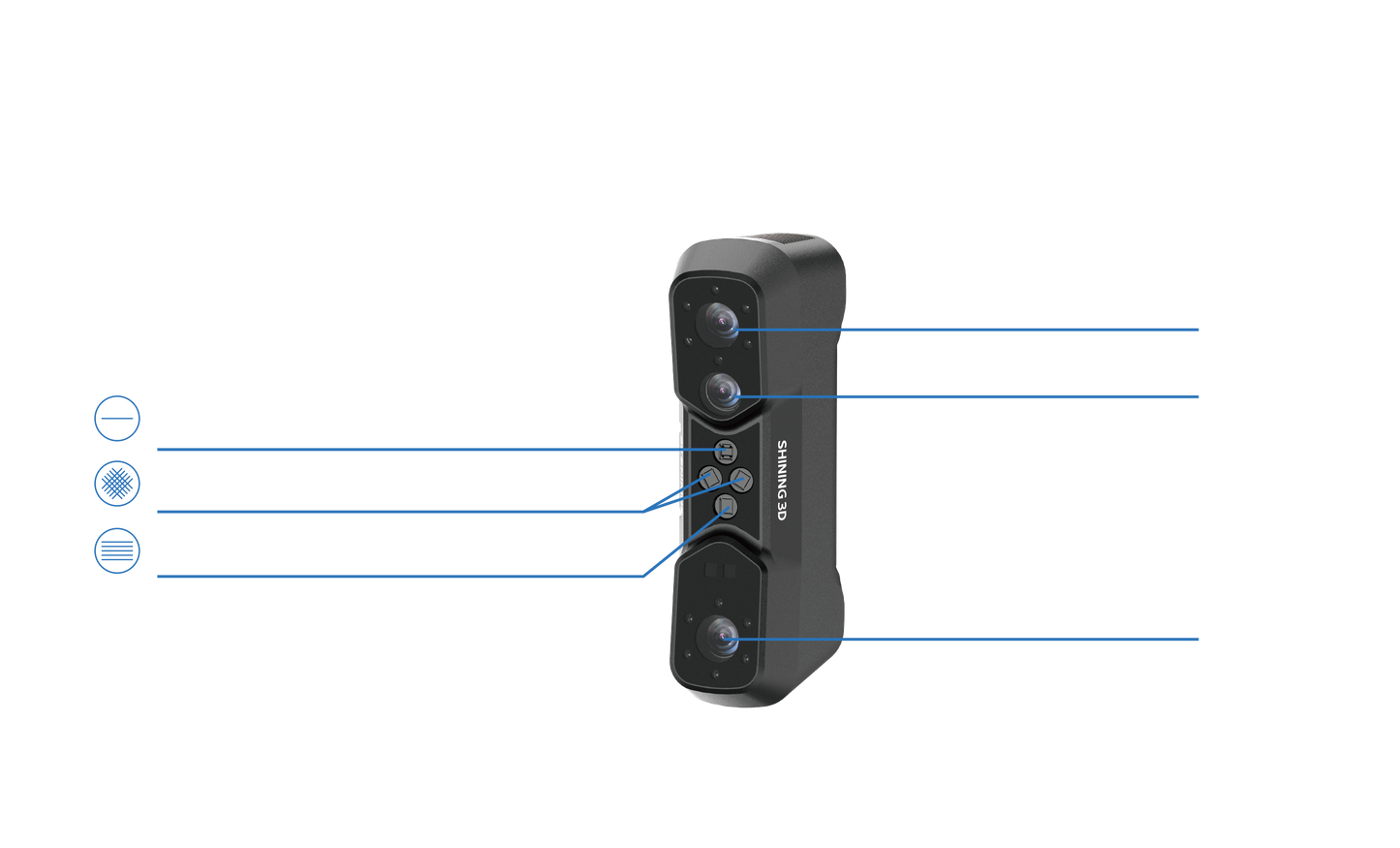

Camera Texture Camera: 5MP
Software & Workflow
Included Software

EXScan Trak (acquisition & scanning software)
Additional Software
  • EXMeasure (1-year Pro license, a $992 CAD value, included)
  • EXModel (reverse engineering optional)
  • BlueStar Mapping (texture mapping, optional)
  • Polyworks Inspector (compatible)
  • Geomagic Control X (compatible)
  • Geomagic Design X (compatible)
Supported File Types Output Formats: STL, OBJ, PLY, 3MF, ASC
Connectivity
Wi-Fi Yes - wireless Tracker-to-scanner connectivity
USB USB type-C * 2 |USB type-C * 1
Power
Input Voltage Battery Life: (Tracking Mode:) Up to 5.5 hours | (Handheld Scanner Mode:) 3.5 hours
Safety and Compliance
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Warranty and Support
Manufacturer Warranty 1 year Manufacture's warranty
Shop3D Training

Shop3D or Manufacturer Training Sessions Optional

What's in the Box

  • EinScan Trak Tracker
  • Spherical Scanner
  • Handheld Scanner

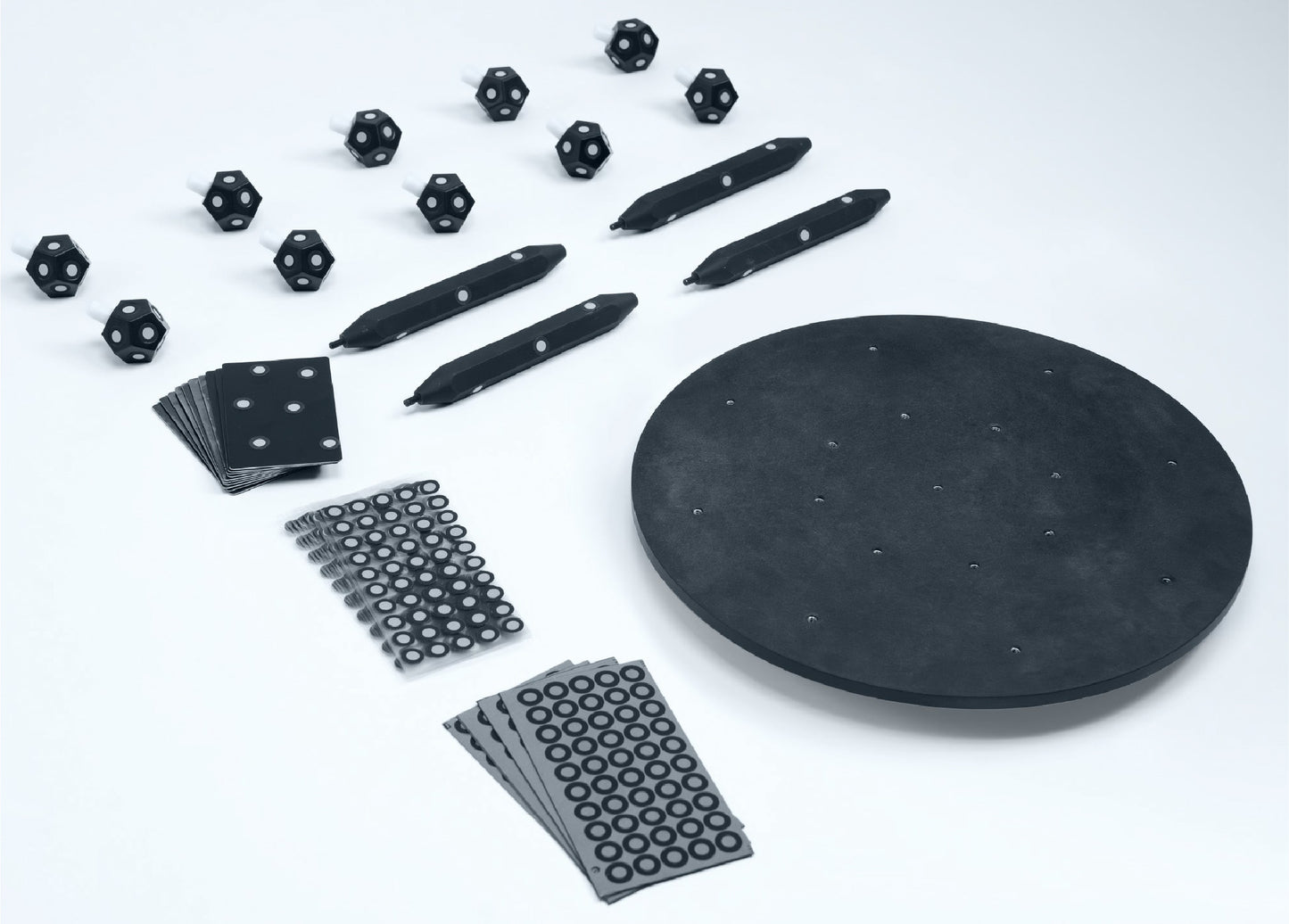

  • Accessories Pro Kit: 6mm magnetic marker balls, adhesive markers, marker cards, fixture columns, 300mm turntable

Links

Interactive 3D scan example (automotive): https://sketchfab.com/models/b3a0c2c035864038b4bca2460a66ba9d

Interactive 3D scan example (heritage/sculpture): https://sketchfab.com/models/e2ac6b28e7c74c57b4c17c075e45d18a

Interactive 3D scan example: https://sketchfab.com/models/23b5755fd32c4586b8c6b99eacbe6208

Notes

EinScan Trak includes a complimentary 1-year EXMeasure Pro license for measurement and inspection workflows. Backed by Shining3D's 20+ years of 3D scanning experience and 300+ patents.

Product Highlights

Top Features

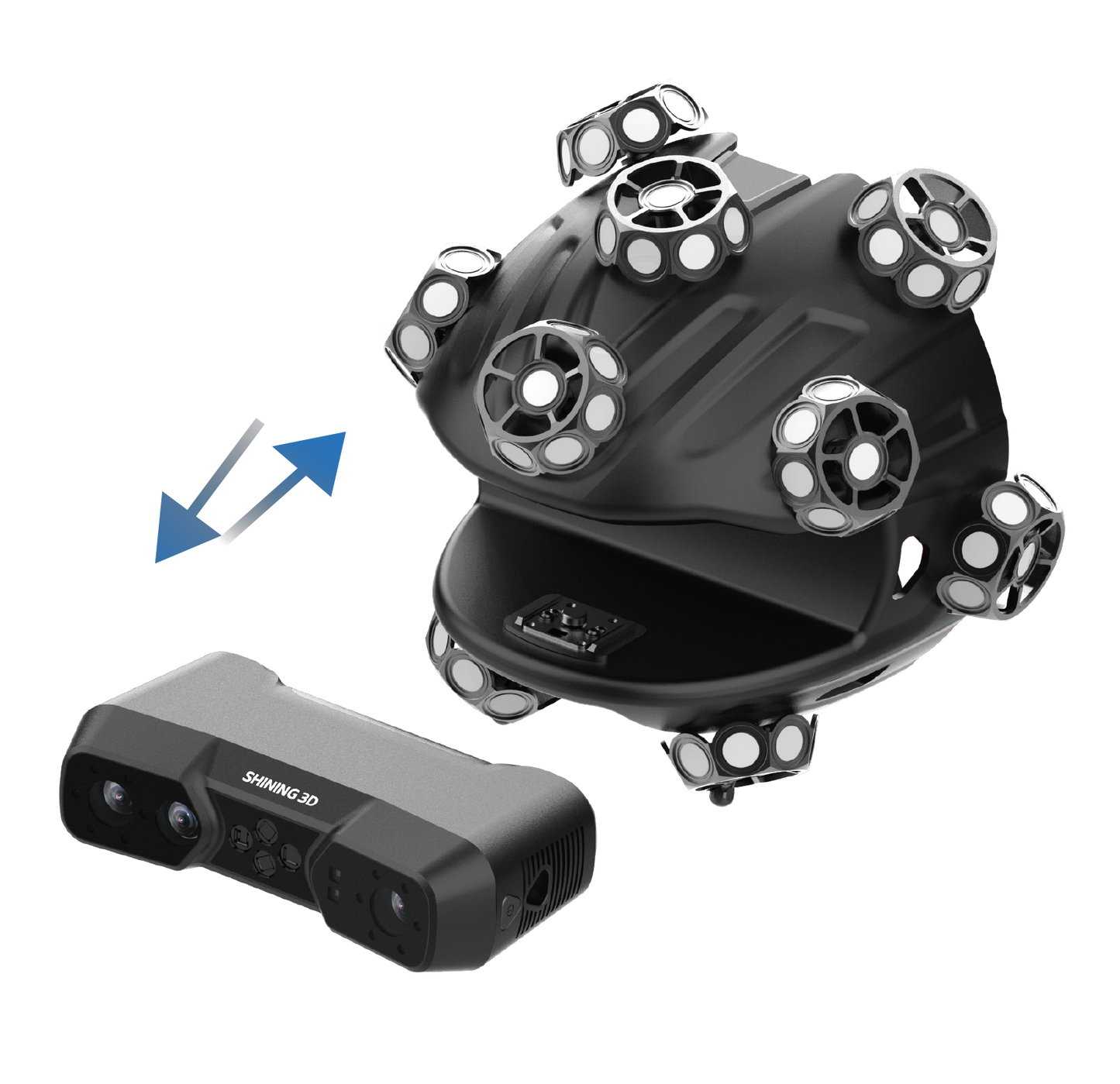

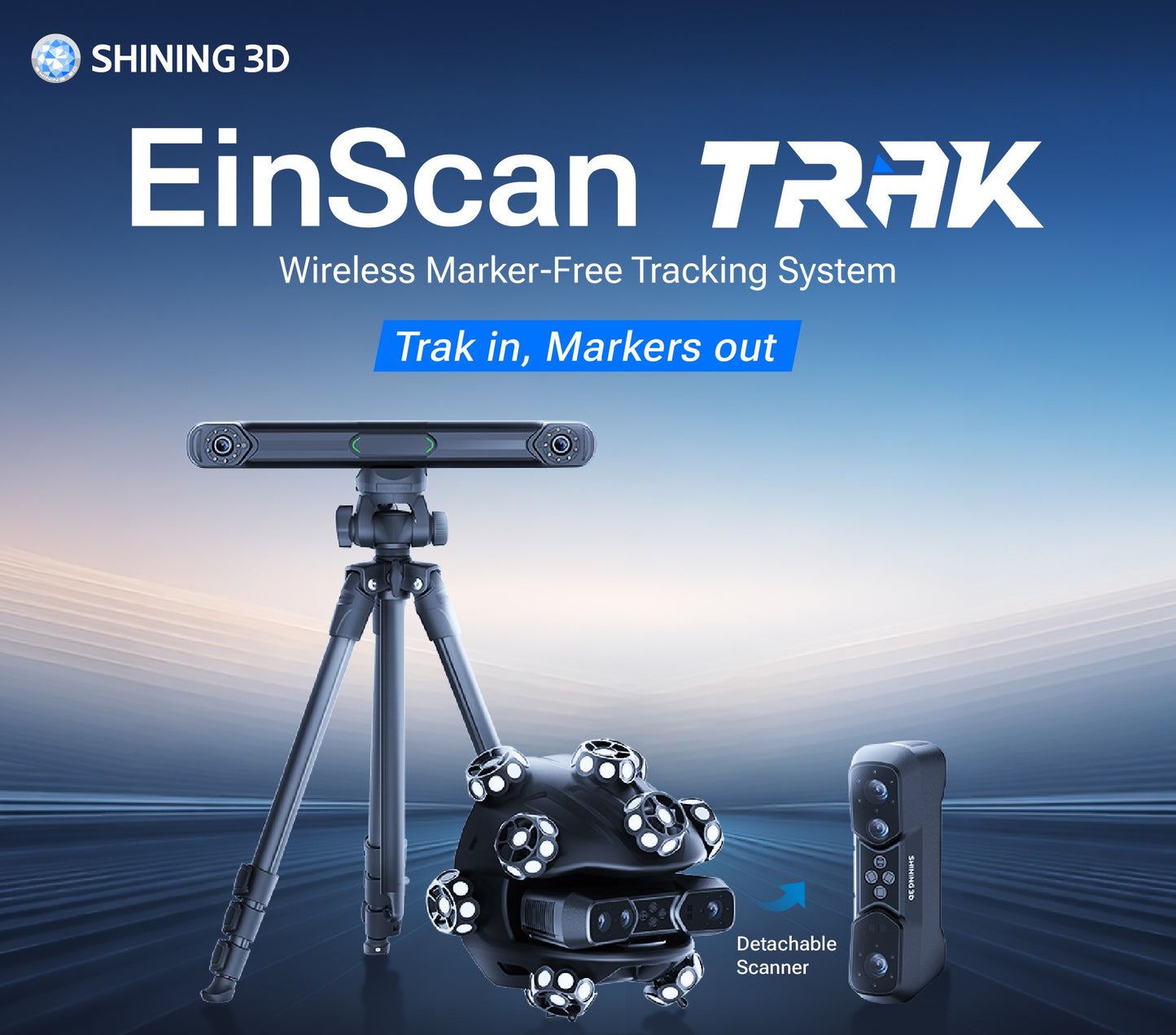

Detachable Scanner - Swap between wireless handheld and spherical tracking-mounted scanning without extra tools.

Wireless Connectivity - The Tracker communicates with the scanner wirelessly, eliminating tethered cables during large-object capture.

Marker-Free Technology - No physical markers required for alignment, protecting delicate surfaces like sculptures and artifacts.

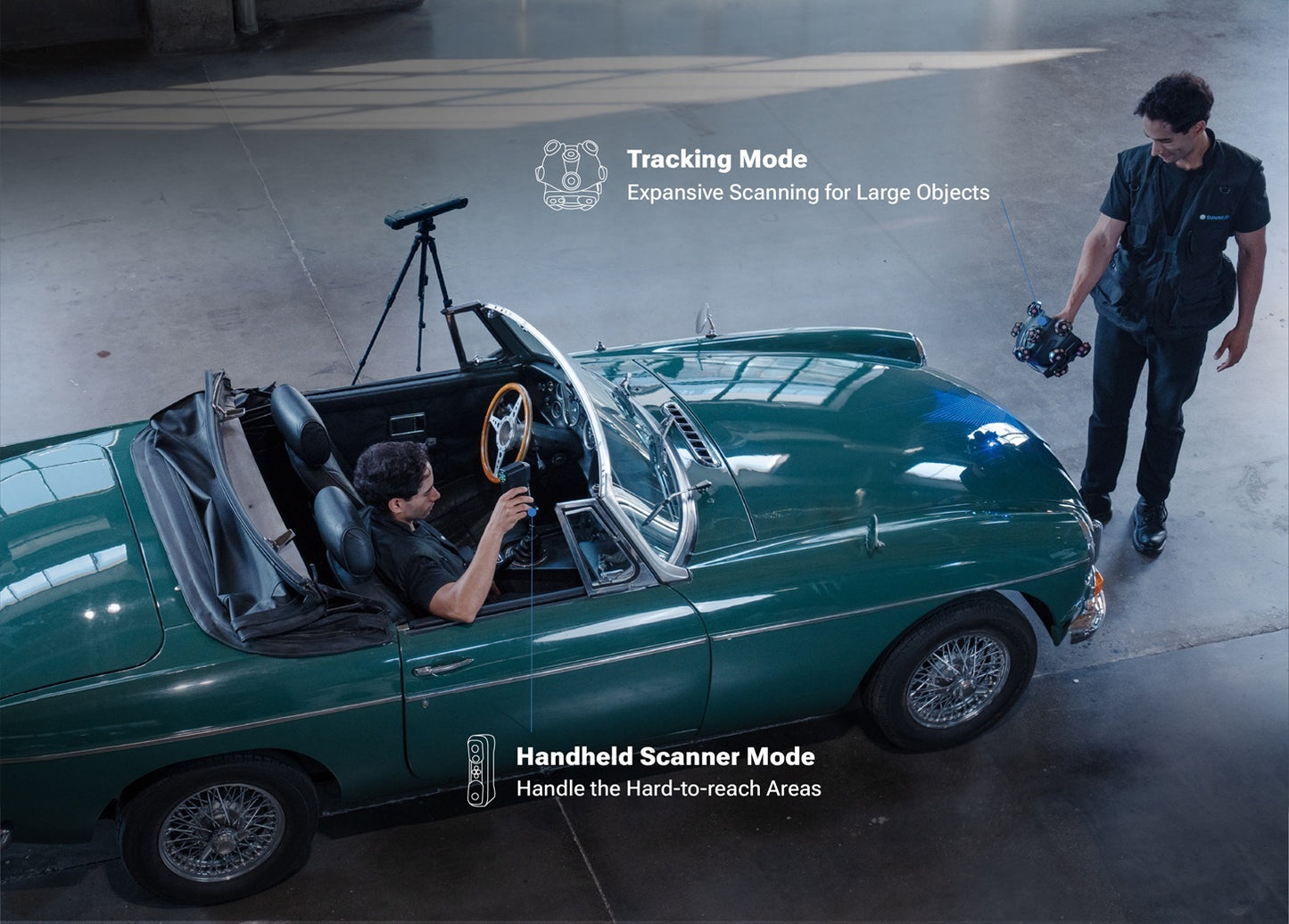

One System, Two Work Modes - Combine handheld scanning with tracked scanning in a single connected workflow.

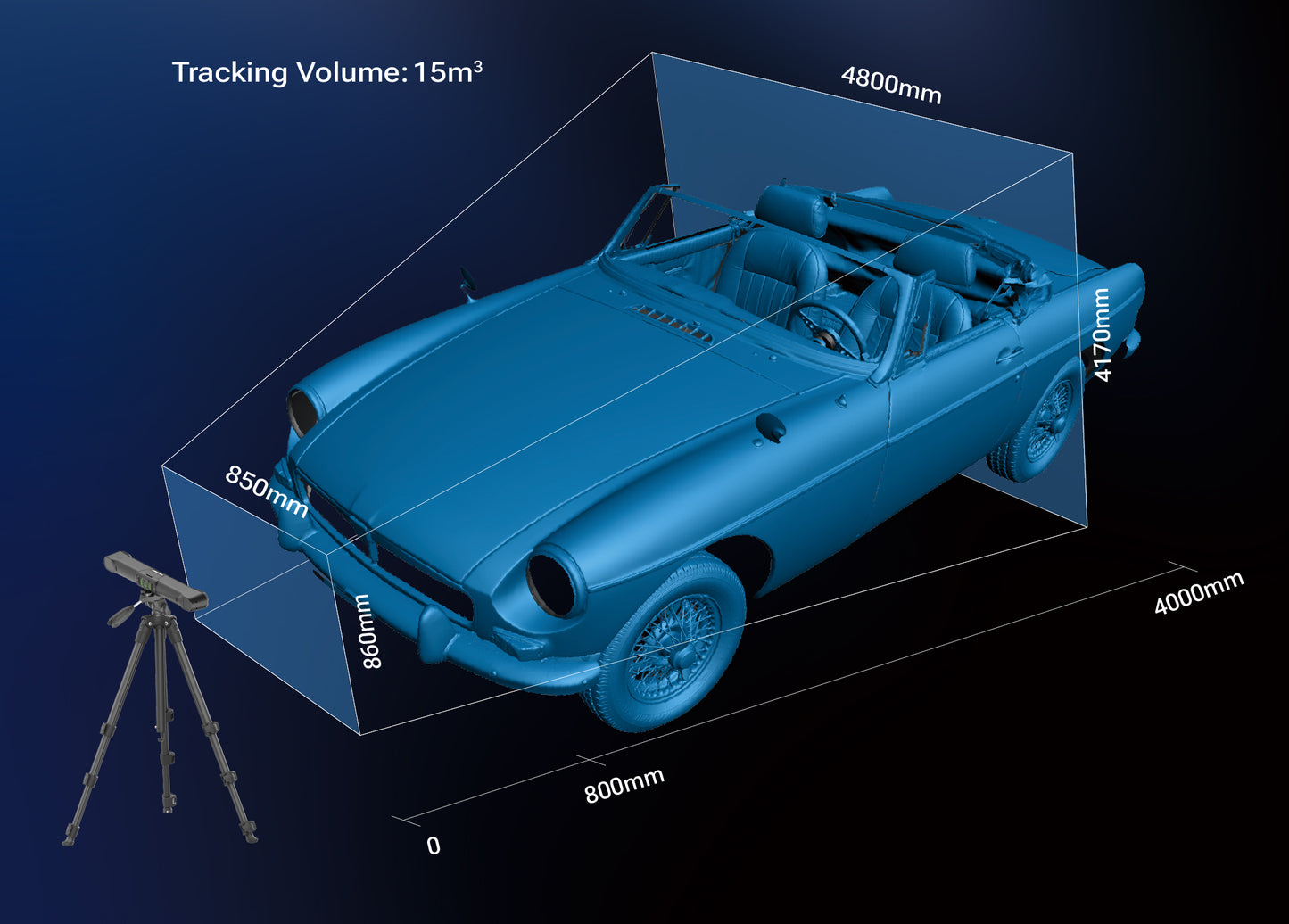

Wireless Freedom, Higher Efficiency - Up to 15 m3 tracking volume for large-object and multi-station capture.

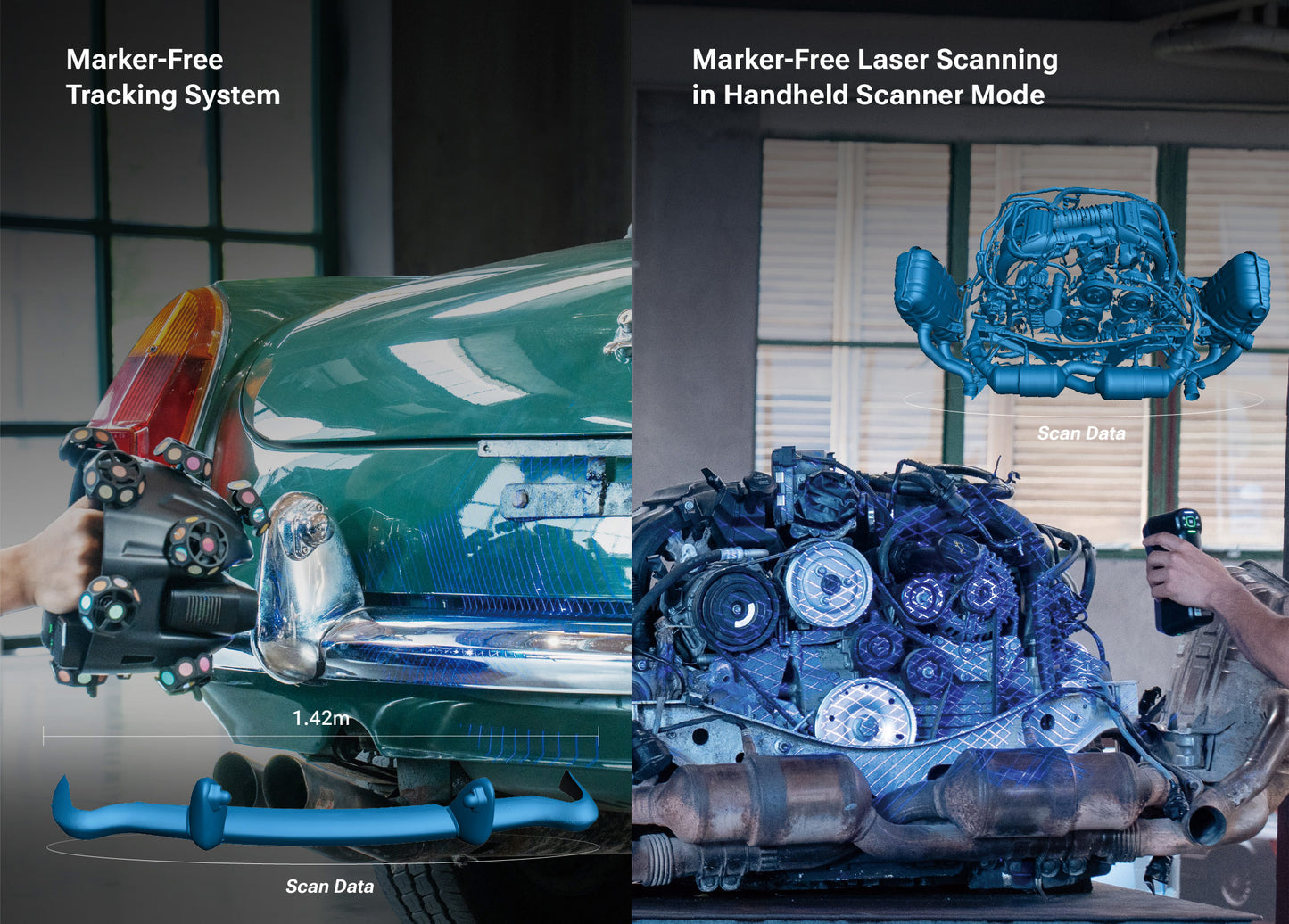

All-Scenario Marker-Free 3D Scanning - Scan reflective, dark, or delicate surfaces without applying markers.

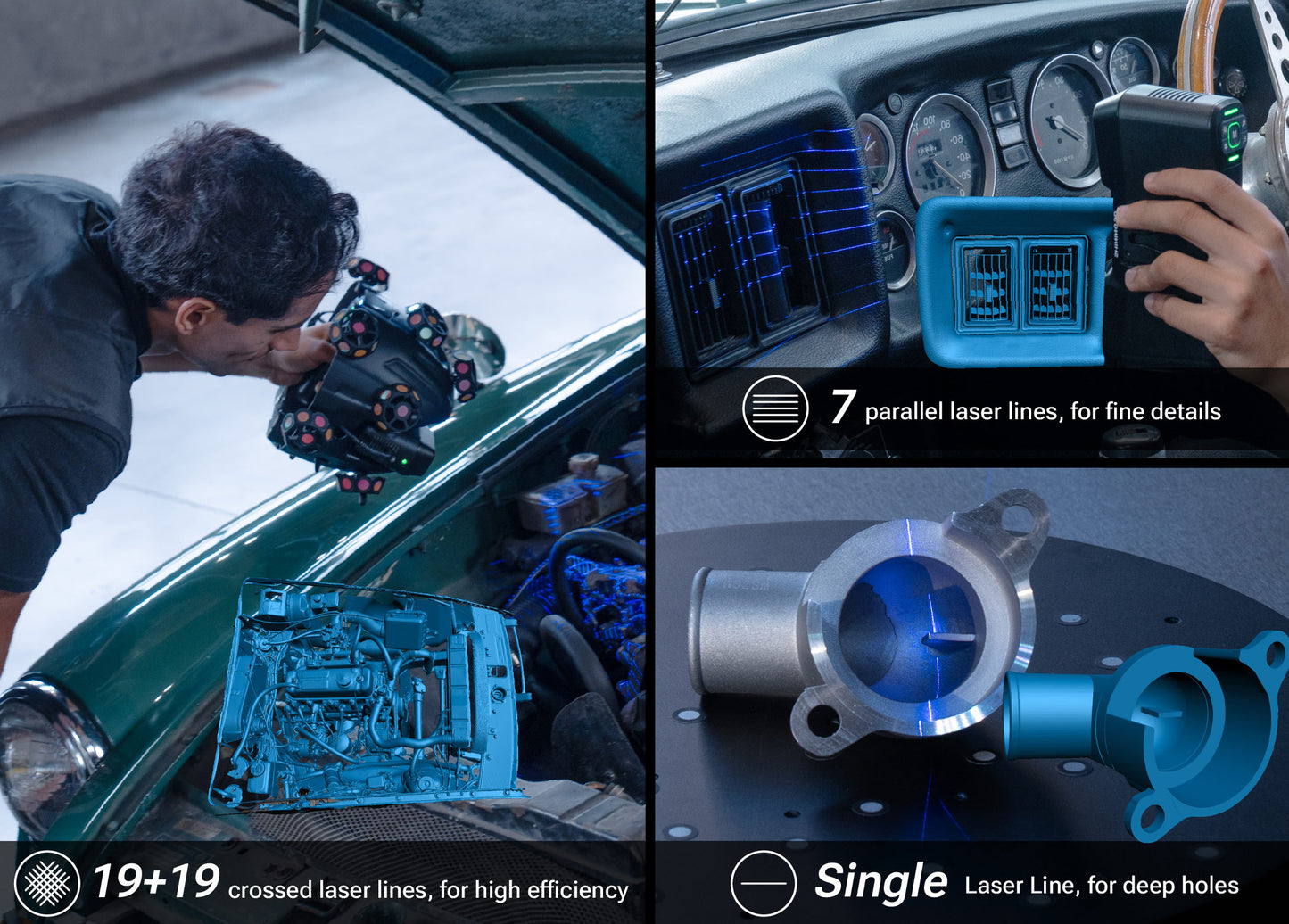

Three Scanning Modes for Diverse Needs - Single-station tracking, hybrid leapfrog multi-station, and transit-station scanning for objects of any size.

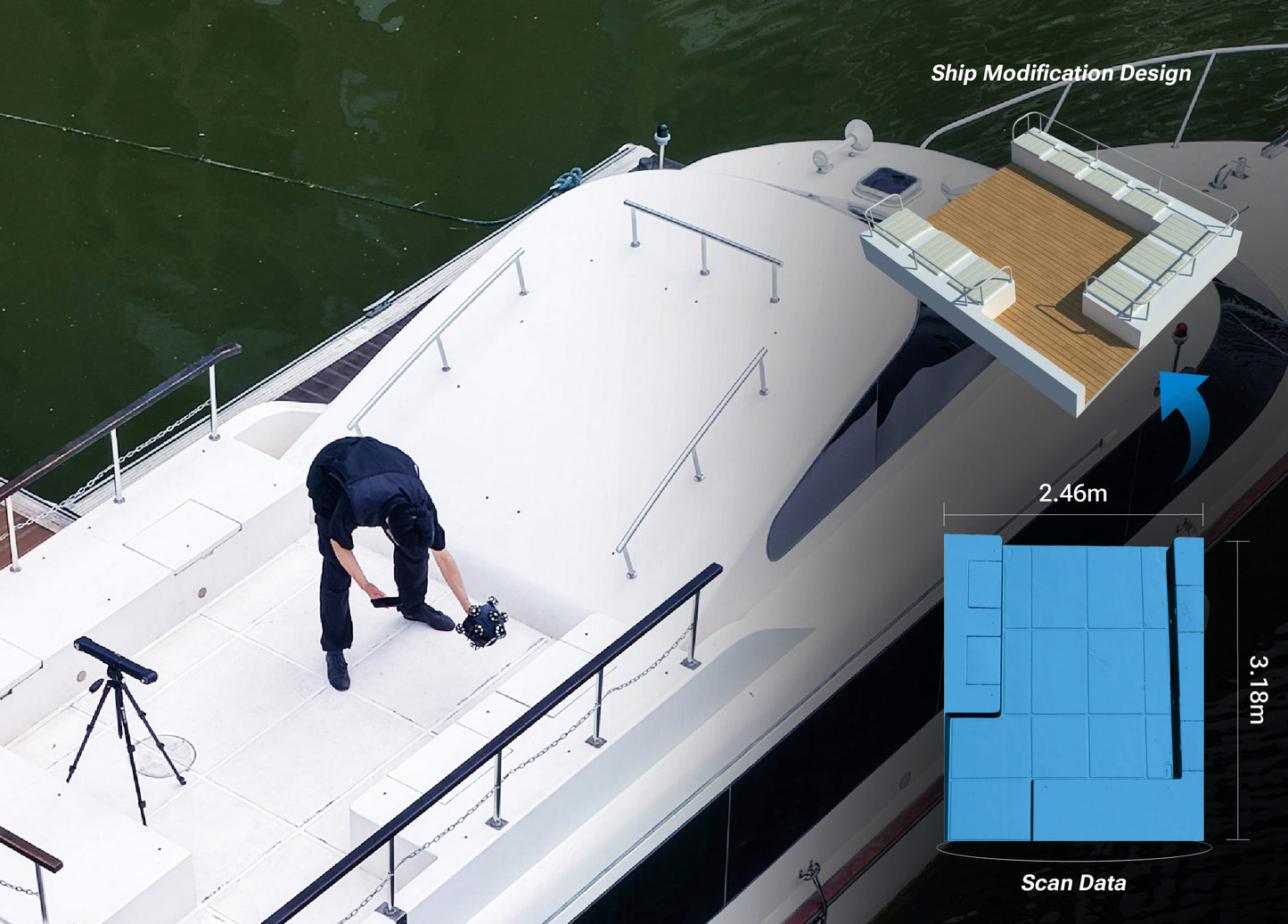

Adaptable to Every Task - Switch configurations for small parts up to large industrial components.

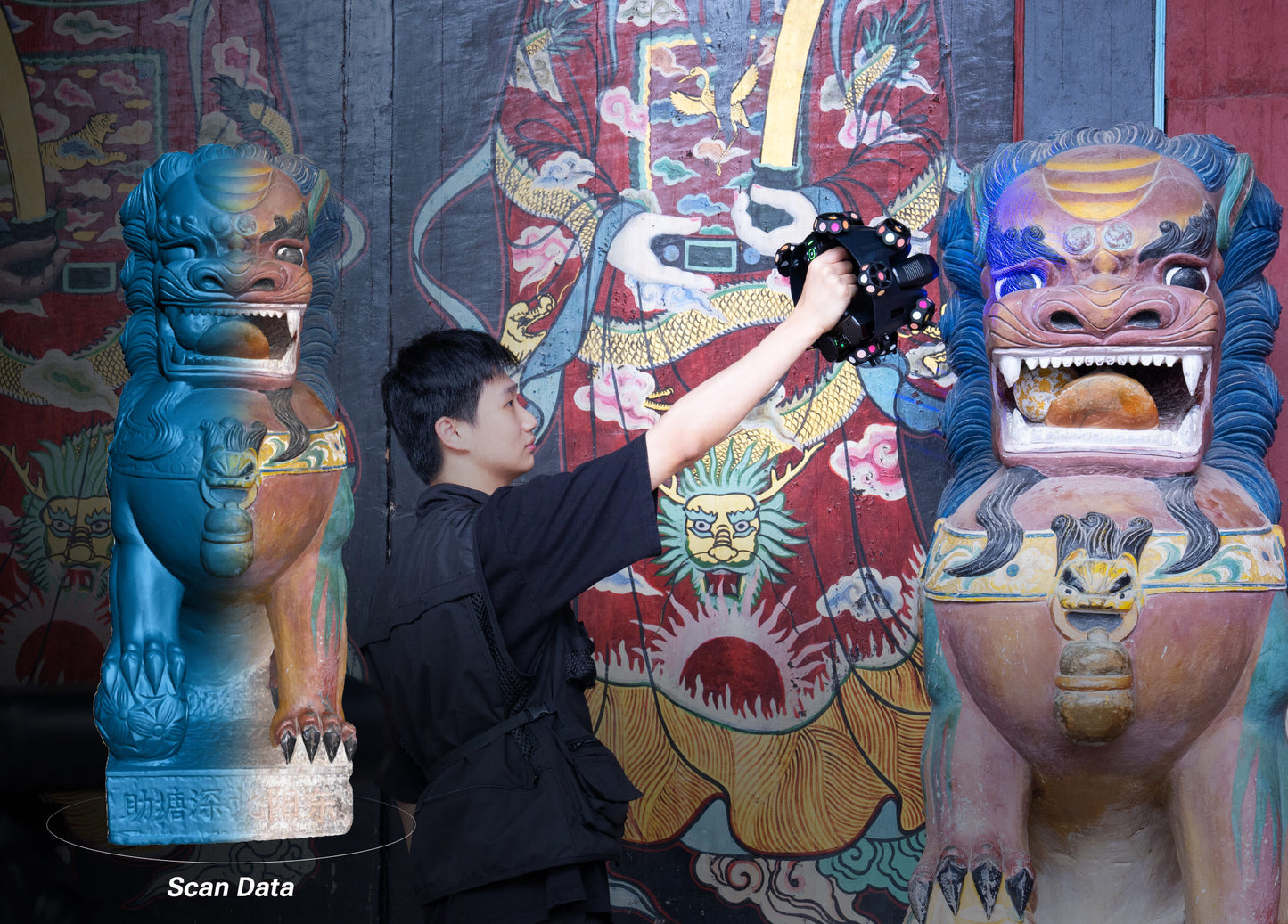

High-Definition, True-Color Capture - 5MP texture camera captures accurate color data alongside geometry.

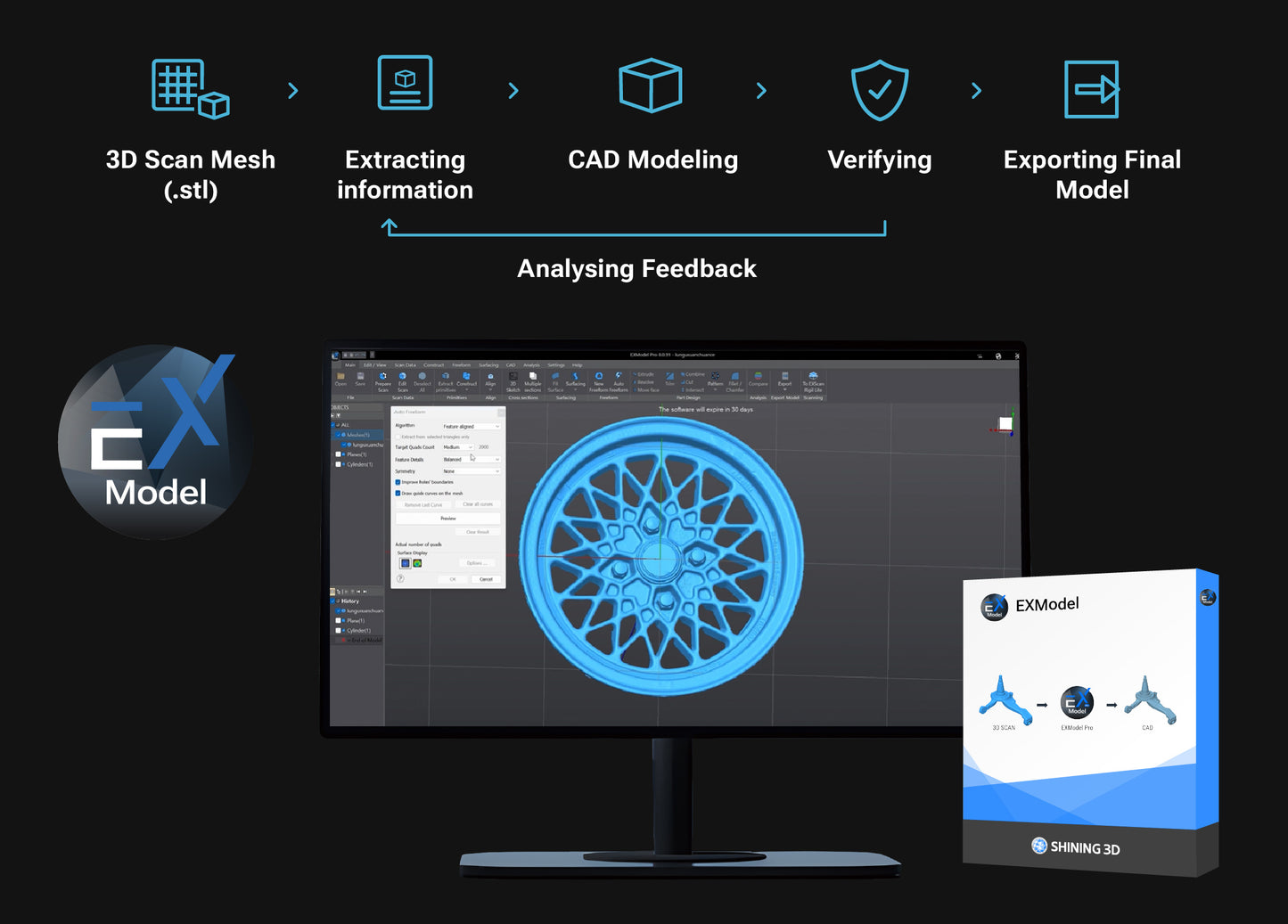

Streamlined Reverse Engineering - Integrates with EXModel and Geomagic Design X for CAD-ready output.

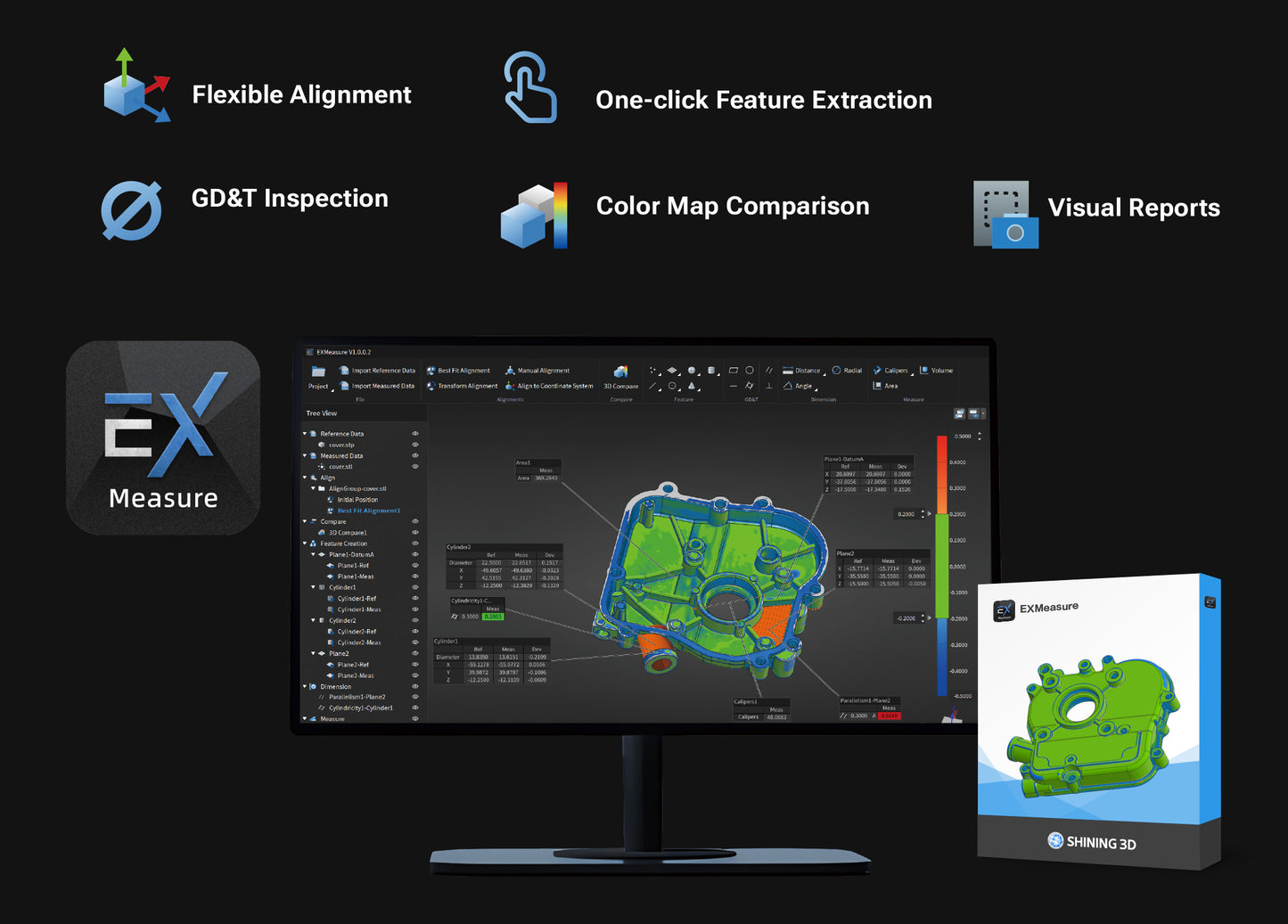

Precise Measurement - Pairs with EXMeasure and Polyworks Inspector for dimensional inspection.

EinScan Trak is the world's first wireless, dual-form, marker-free tracking 3D scanning system from Shining3D, built for efficient reverse engineering, cultural heritage preservation, automotive customization, and large-object digitization. "Trak in, markers out" — the wireless Tracker unit locks onto the scanner in real time so you can capture geometry across a tracking volume of up to 15 m³ without applying a single physical marker, protecting delicate, reflective, or valuable surfaces.

One system covers two work modes: use the detachable scanner handheld for close-up detail, or mount it for tracked, large-scale scanning. Three scanning workflows — single-station tracking, hybrid leapfrog multi-station, and transit-station scanning — make EinScan Trak adaptable to parts of virtually any size. A 5MP texture camera captures high-definition, true-color data alongside geometry at up to 0.1 mm volumetric accuracy, and the system integrates directly into reverse engineering and inspection workflows with EXScan Trak, EXModel, EXMeasure, and Geomagic software.
