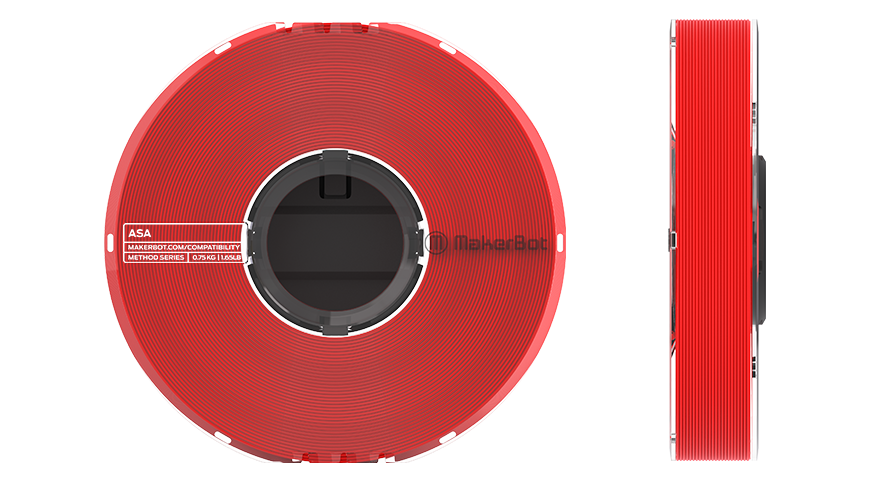

ASA Precision Material

MakerBot Precision ASA is a weather-resistant 3D printing material designed to provide high-performance functional prototypes and end-use parts in demanding outdoor environments. Different from ABS, ASA has a thermoplastic formulation with a high UV resistance, which helps retain gloss, color and mechanical properties when exposed to outdoor elements. Ideal for demanding applications in the automotive, power and utilities, agriculture, oil & gas and mass transit industries. Compatible with SR-30 dissolvable support material.

Spool Type

Smart Spool™ provides valuable information including material type, color, and amount remaining via an RFID chip directly to MakerBot Print, while a desiccant in the spool maintains a low moisture level inside the drawer bay.

Storage Environment

Store in the included a vacuum-sealed metalized polyester bag to avoid moisture absorption from air; long-term exposure to humidity can compromise material quality and performance. Make sure the built-in desiccant is in the spool to absorb any moisture exposure during the material loading process.

Dimensions And Weight

• Spool Diameter: 21.8 cm (8.6 in)
• Spool Width: 4.2 cm (1.65 in)
• Material Diameter: 1.75 mm

Material Data

• Heat Deflection @ 66 psi - ASTM 648: 96°C (204°F)
• Flexural Strength (Method 1, 0.05”/min): 78 MPa (11,000 psi)
• Flexural Modulus (Method 1, 0.05”/min): 2300 MPa (330,000 psi)
• Tensile Strength at yield (Type 1, 0.125”, 0.2”/min): 49 MPa (7,100psi)
• Tensile Modulus (ISO 527): 2,100 MPa (310,000 psi)
• Strain at Yield - Elongation (%): >6%
• Notched Impact Strength (ASTM D256): 140 J/m (2.6 ft-lb/in)
