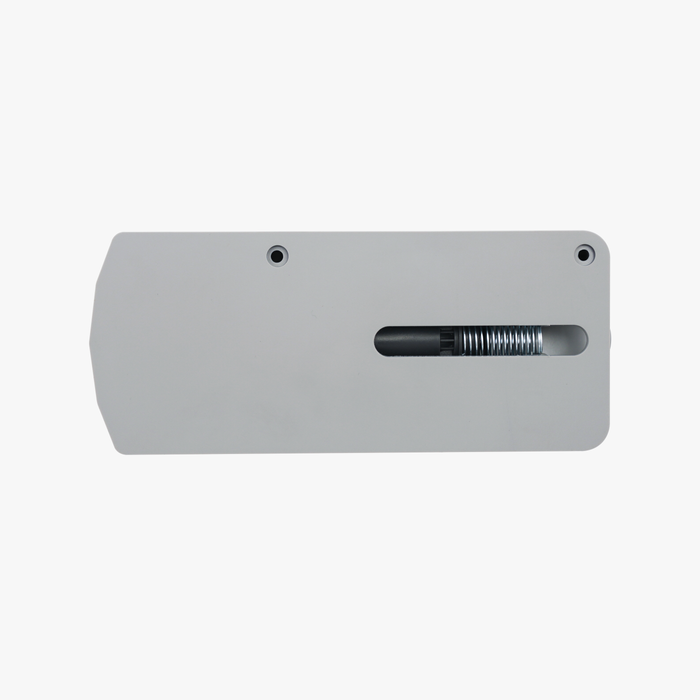

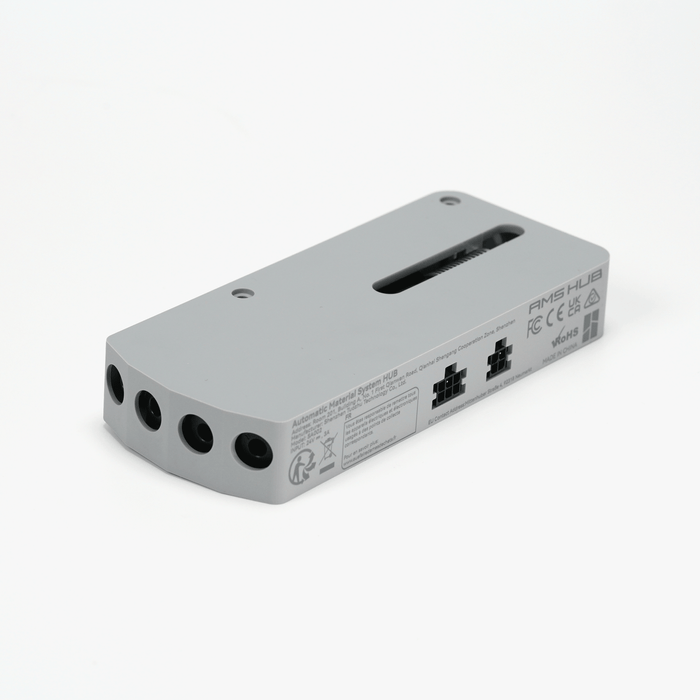

Bambu Lab - AMS Hub

Product SKU: SA002-N

Available Stock:
Bambu Lab - AMS Hub

The AMS Hub is used to expand the number of AMS connected to Bambu X1/P1 series printers from 1 AMS unit (4 channels) to a maximum of 4 AMS units (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal.

*The Bambu Lab AMS Hub includes the necessary accessories to connect 2x AMS units to the printer. If you wish to add more AMS units, you need to order additional Bus cable and PTFE Tube. To use 4x AMS units, you need to order additional 2x Bus cable (6pin) and 2x 2m PTFE Tube.

**The picture is for reference only, try to place the AMS on the left side of the AMS Hub when actually printing, otherwise the filament in the PTFE tube is easy to get stuck.

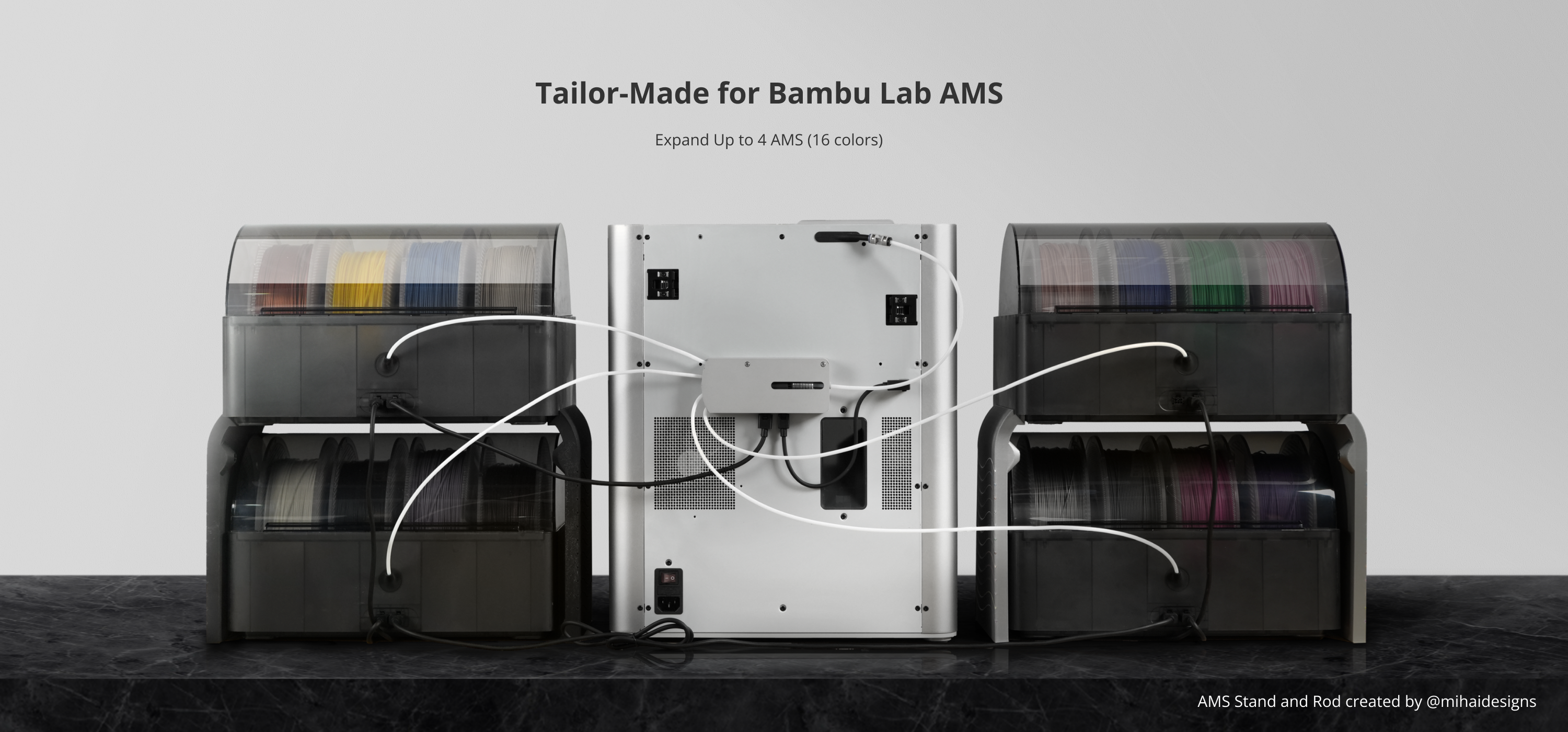

Expand Your AMS Options

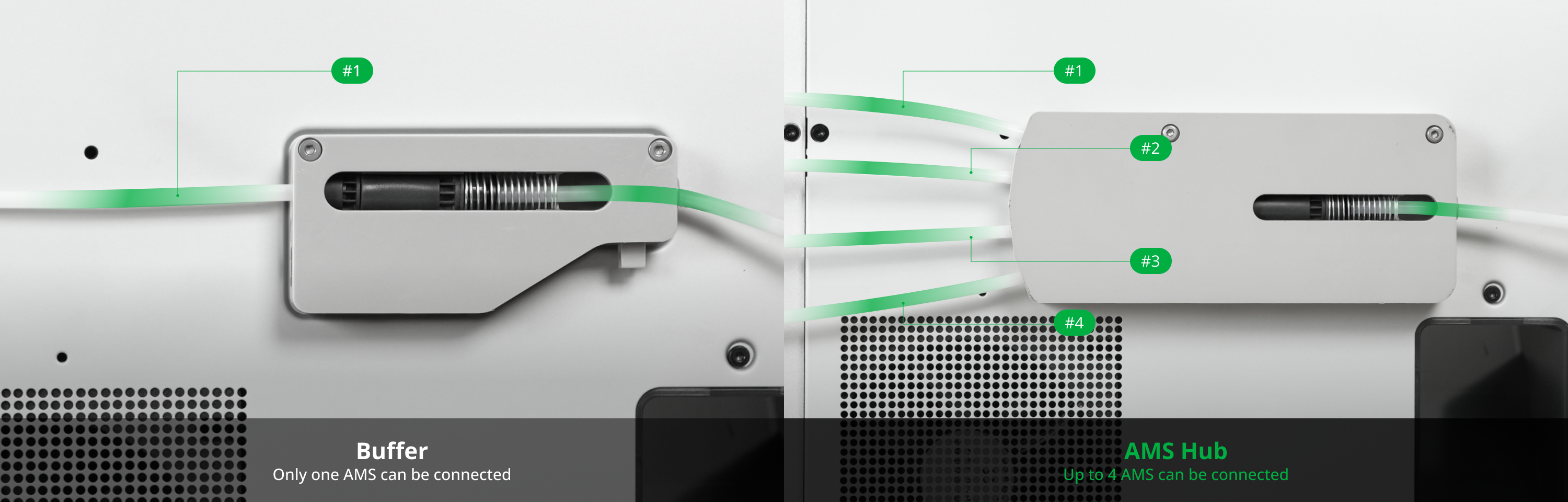

The built-in buffer of the printer can only be connected to 1 AMS. When replaced with AMS Hub, the printer will be able to connect up to 4 AMS.

How-to Video

Check out the Wiki article for more help - Connect AMS Hub and Multi-AMS

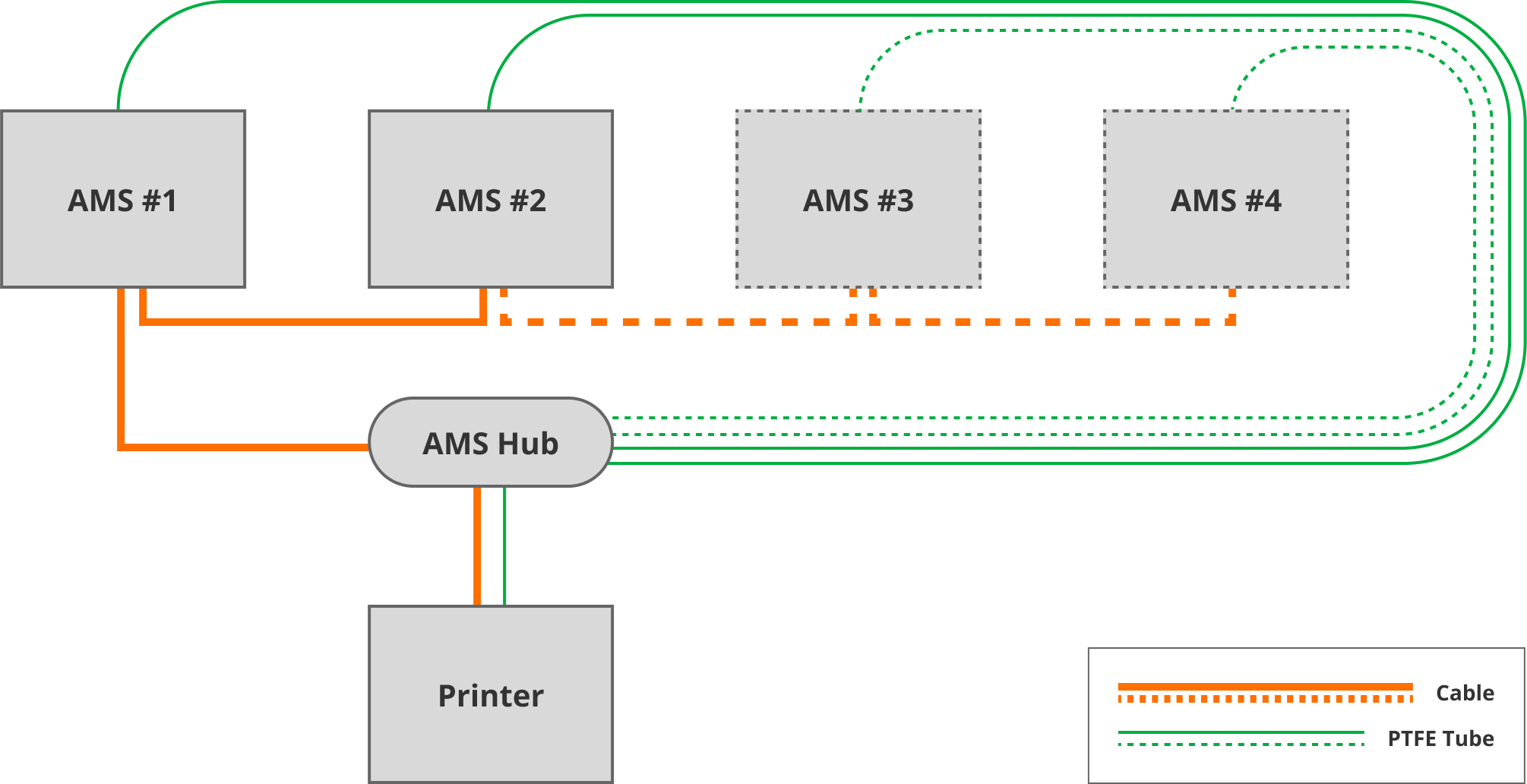

  • Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series.
  • Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance.
  • According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.
What's In The Box
  • AMS Hub
  • Bus Cable - (2x)6pin(1.5m)
  • PTFE Tube
  • M3*28 Screw (x2)
AMS Hub Tech Specs
  • Product Size: 140*60*22 mm
  • Package Size: 235*167*40 mm
  • Product Weight: 84 g
  • Gross Weight: 321 g
  • Material: Plastic, metal, printed circuit board
  • Input: 24V 3A
  • Color: Gray
