Bambu Lab - PVA (1.75mm) 0.5kg

Bambu Lab - PVA (1.75mm) 0.5kg

A water-dissolvable support material that provides reliable support for complex designs.
SKU: S04-Y0-1.75-500-SPL
Regular price $50.99 CAD
Sale
Sold out
Sale price

Price

$50.99 CAD Regular price

Stock

Quantity

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Bambu PVA is a water-dissolvable support material. It provides reliable support for complex designs and overhangs, which can be easily dissolved in water after printing. Compatible with various filaments, it simplifies post-processing and reduces the risk of damaging the printed object during support removal.

Documentation

Support Material

Made for dual nozzle printing

Technical Specs

Notes

Printing Tips

  • Drying conditions: 80 °C for 12 hrs. To achieve optimal printing performance, it is recommended further drying before use and after storage.
  • Please carefully read PVA Printing Guide before starting the printing process.
  • PVA is suitable for use with AMS and AMS lite in a dry state. If the filament becomes soft or sticky due to moisture, it must be dried again before use to prevent issues such as feeding failure, nozzle clogging, and low print quality.
  • PVA may darken in color after extended storage or multiple drying cycles, but it won't affect its printing performance or support capabilities.
  • Recommend to use normal support instead of tree support. Tree support is more likely to collapse during printing.
  • Use warm water to speed up the dissolving process. But if supporting PLA, the maximum water soaking temperature should not exceed 50°C to prevent deformation of the main model.
  • Waiting for complete dissolution is not necessary when soaking and dissolving PVA support. You can manually remove the partially dissolved PVA support to reduce the waiting time.
  • When dissolving supports in water, some parts of the main model may leak in water.

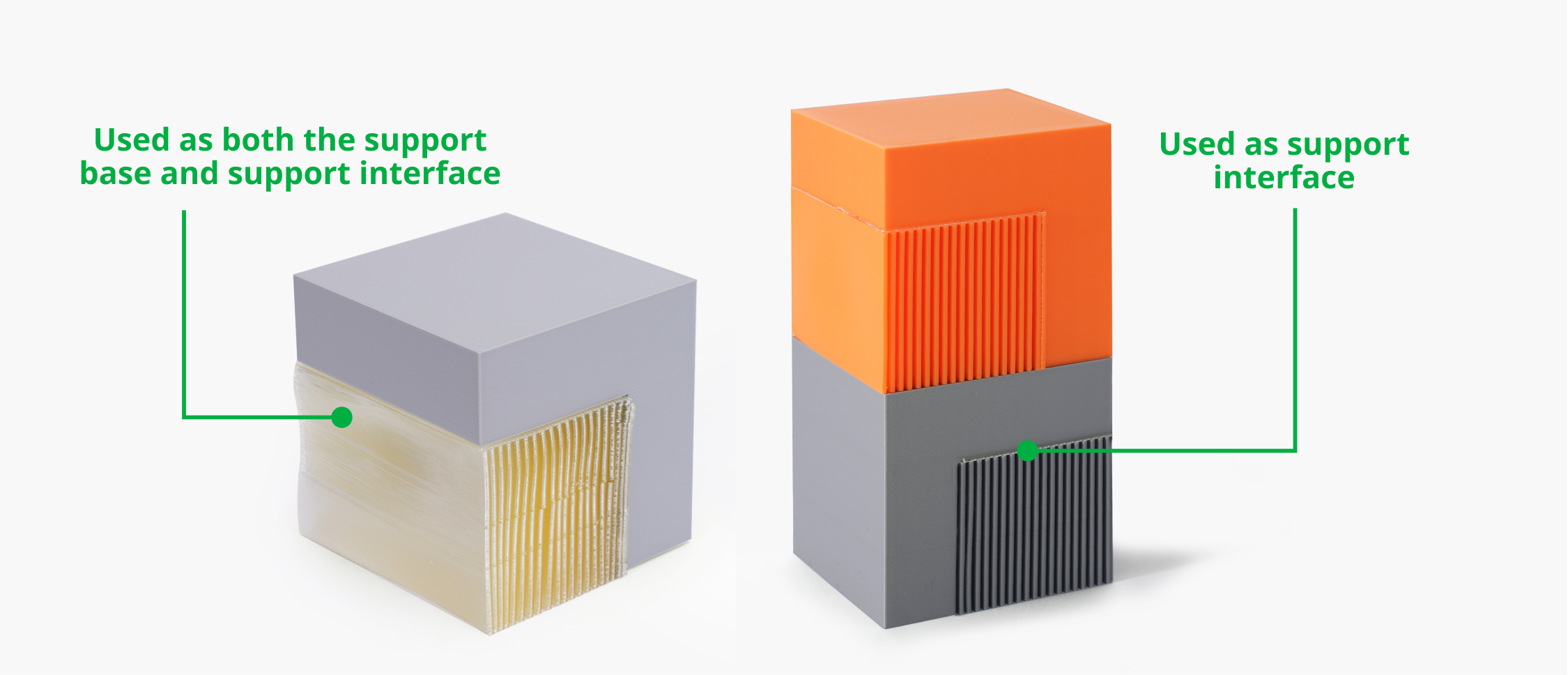

  • Depending on the use case, Bambu PVA can also be used solely for printing the support interface to minimize material waste and printing time.

Product Highlights

Top Features

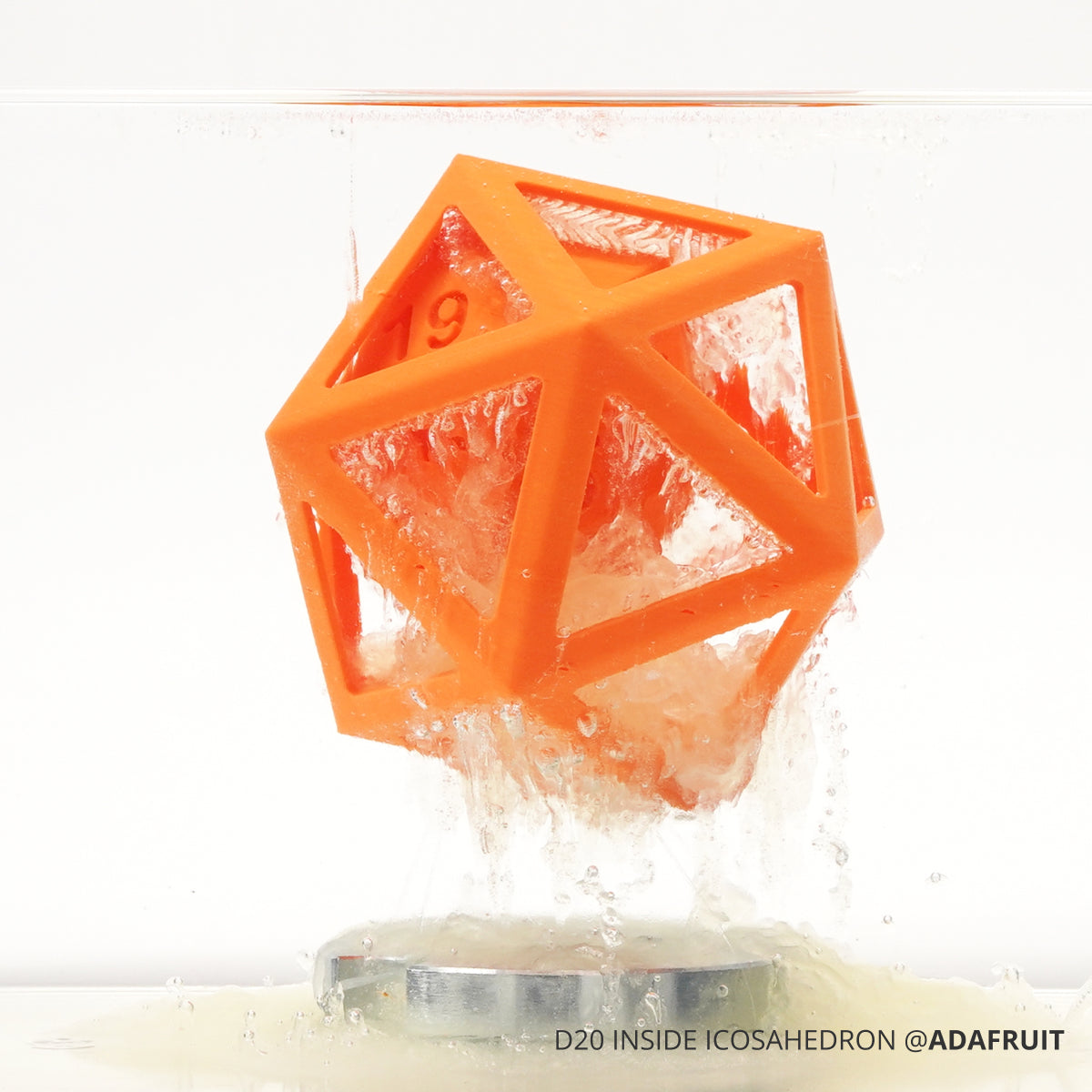

Soak and Dissolve for Supporting Intricate Details

Bambu PVA possesses the ability to dissolve in water, penetrating deep into the intricacies to provide support where regular supports fall short. With Bambu PVA you can design and print models that were previously impossible.

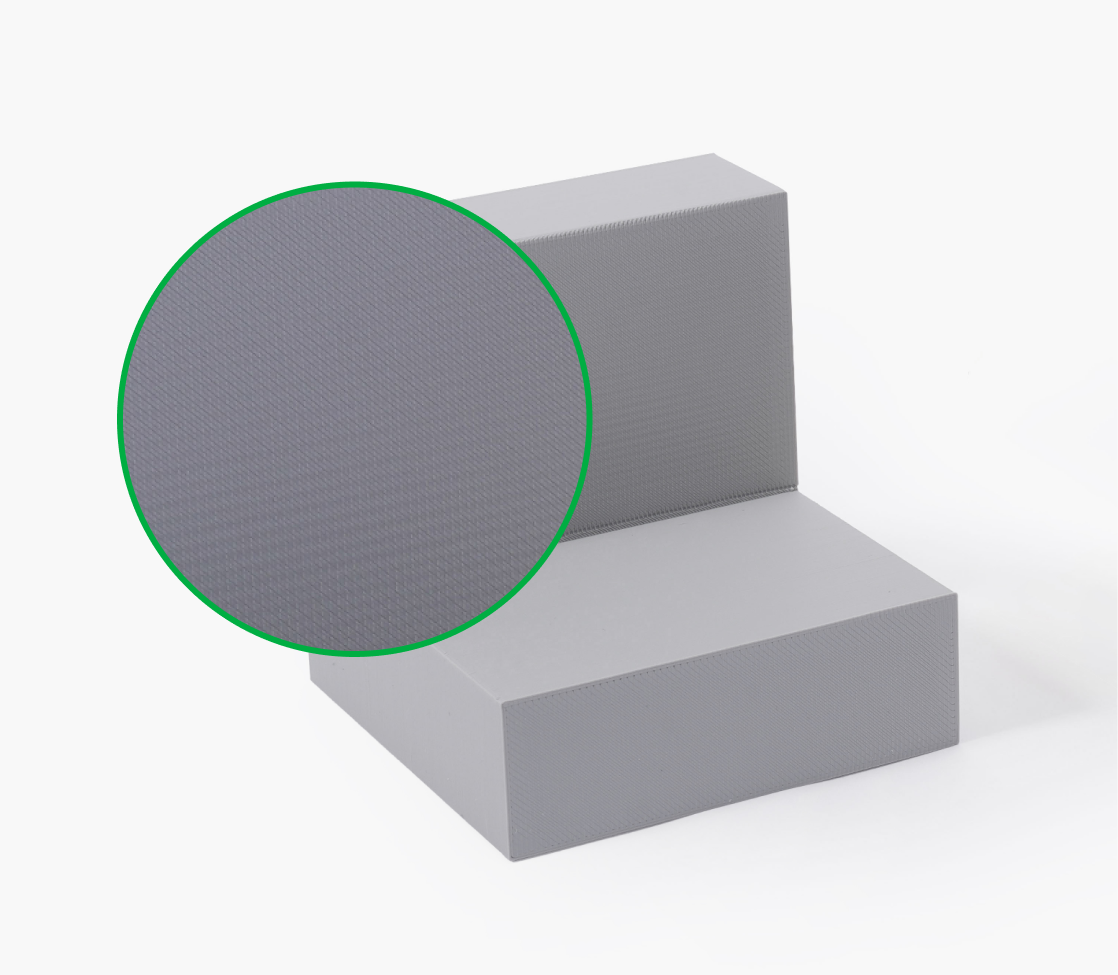

Seamless Support Interface Surface

Water-soluble support material can accommodate zero top interface spacing, guaranteeing a seamless bond with the print surface, resulting in precise and smooth support contact surfaces for your prints.

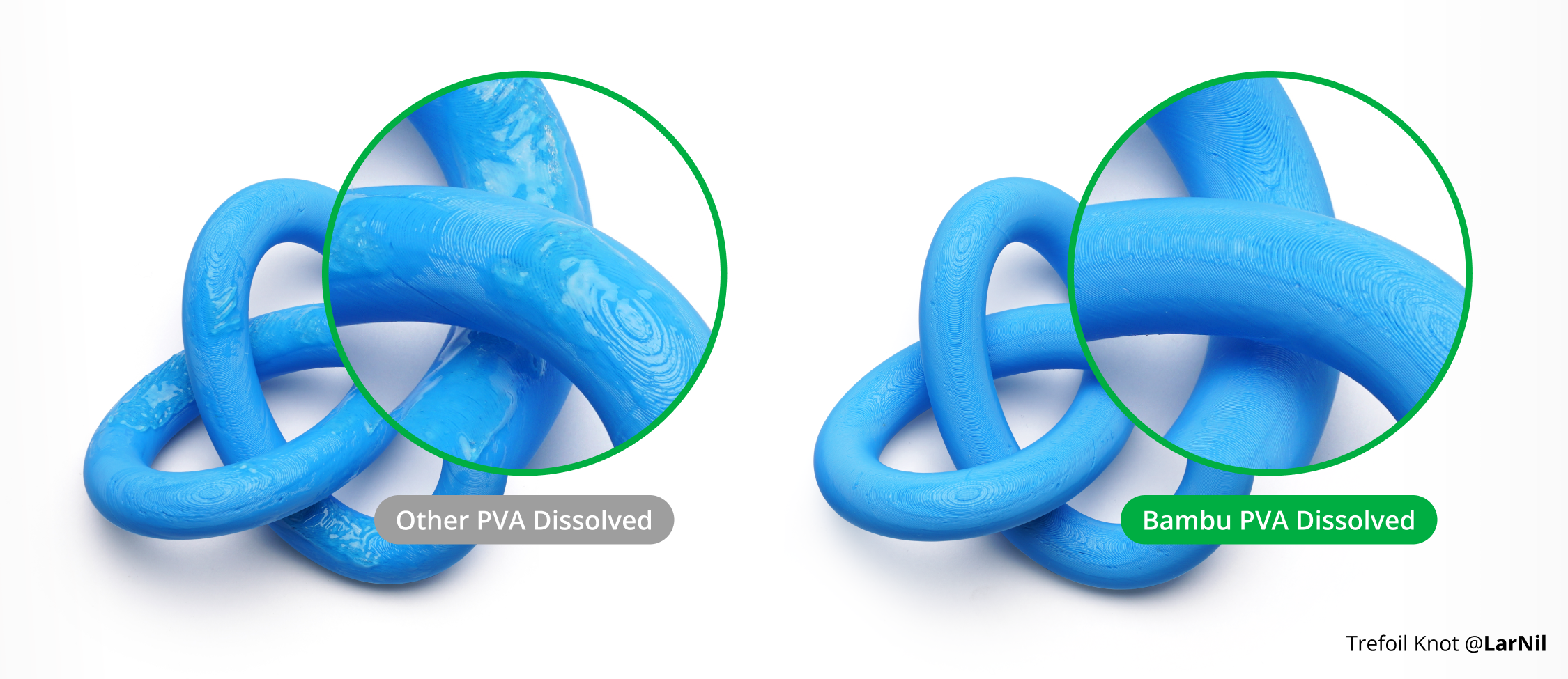

Thorough and Clean Dissolution

Bambu PVA utilizes a high-quality formula that dissolves easily and thoroughly in water, effortlessly removing support material and eliminating the hassle of manual cleaning.

Reccomended Print Settings

  • Drying Settings (Blast Drying Oven): 80 °C,12 h
  • Printing and Keeping Container's Humidity: < 20% RH (Sealed, with Desiccant)
  • Nozzle Temperature: 220 - 250 °C
  • Bed Temperature (with Glue): 35 - 45 °C
  • Printing Speed: < 200 mm/s

Physical Properties

  • Density: 1.27 g/cm³
  • Vicat Softening Temperature: NA
  • Heat Deflection Temperature: NA
  • Melting Temperature: 202 °C
  • Melt Index: 7.2 ± 1.1 g/10 min

Accessory Compatibility

  • Build Plate: Cool Plate, High Temperature Plate or Textured PEI Plate
  • Hotend: All Size / Material
  • Glue: Bambu Liquid Glue / Glue Stick
