BASF | Ultrafuse® Natural Nylon (PA) - 2.85mm - 750g - Shop3D.ca

Forward AM | Ultrafuse® Natural Nylon (PA) - 750g

Engineering-grade nylon filament with excellent toughness, wear resistance, and durability.

SKU:50677232

Filament Diameter

2.85 1.75

$67.00 CAD

Sale

Sold out

Price

$67.00 CAD ~~$67.00~~

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.

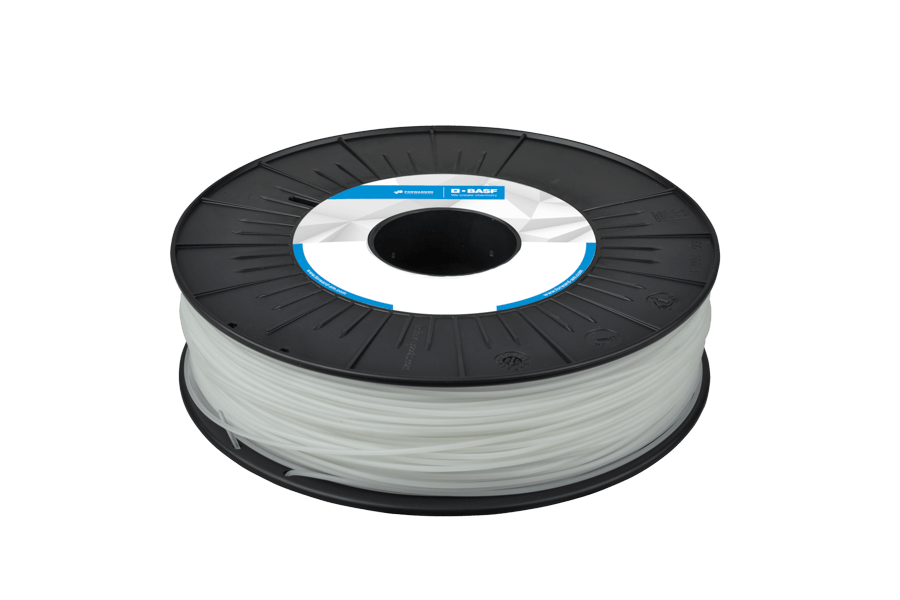

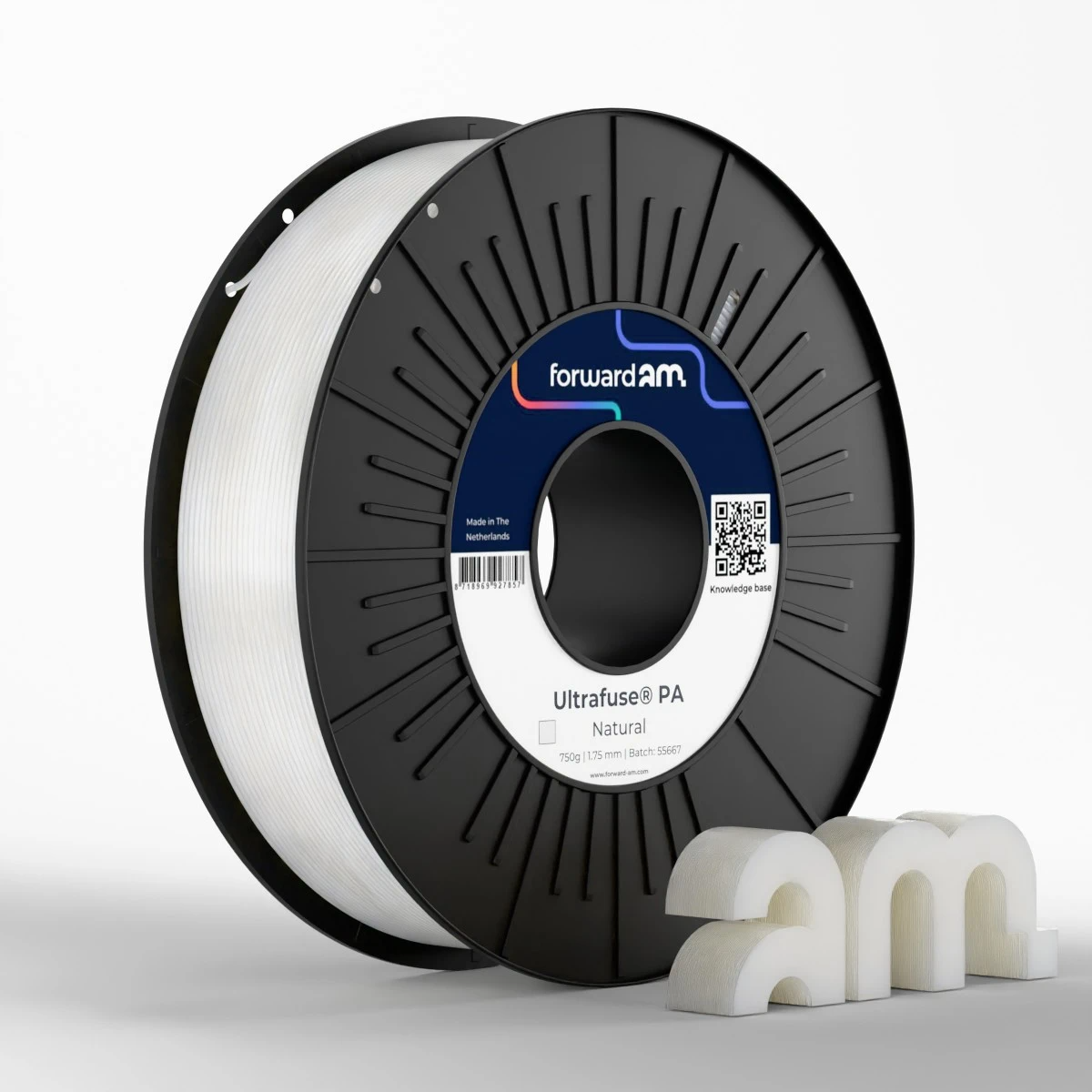

BASF Forward AM Ultrafuse® Natural Nylon (PA) 750g is an engineering-grade nylon filament based on Forward AM's proven Ultramid® polyamide technology. Designed specifically for 3D printing, it offers exceptional toughness, wear resistance, and durability while maintaining excellent mechanical performance across a wide temperature range. Its combination of strength, low friction, and chemical resistance makes it an ideal choice for demanding functional prototypes, industrial tooling, and end-use components.

Applications

Gears and bushings
Bearings and wear-resistant components
Mechanical assemblies
Functional prototypes
Industrial jigs and fixtures
Robotics components
Automotive parts
Manufacturing aids
Snap-fit components
Replacement parts
End-use engineering components
Parts requiring low friction and high durability

Documentation

Technical Data Sheet

Prone to Shrinking.

See TDS for Details

Advanced Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Heated Chamber Recommended

Needs elevated chamber temperatures

Technical Specs

Show advanced specs

Overview
Net Weight	750g
Material Compatibility
Material Diameter / Thickness	2.85mm \| 1.75mm

Links

View Printing Profiles Here

Notes

This is an industrial-grade material that requires experienced 3D printing knowledge. Please consult the technical data sheet. It is recommended to print with an enclosure.

For optimal performance and longevity for this filament. Keep in a dry sealed bag with desiccant or PrintDry container when not in use.

Forward AM Ultrafuse PA filament should be stored at 15 - 25°C in its originally sealed package in a clean and dry environment. If the recommended storage conditions are observed the products will have a minimum shelf life of 12 months.

Safety

Recommended: Process materials in a well ventilated room, or use professional extraction systems. For further and more detailed information please consult the corresponding material safety data sheets.

Print Settings

Nozzle Temperature

220 – 250 °C

Build Platform Temperature

90-120°C

Layer Height

0.20 mm

Printing Speed

30 – 60 mm/sec

Drying Settings

80 °C for at least 40 hours

Adhesion

Recommended

Product Highlights

Top Features

The key features of Forward AM Ultrafuse PA are the high strength and high modulus. Furthermore, Ultrafuse PA shows a good thermal distortion stability.

Forward AM Ultrafuse® PA is the translation of Forward AM s Ultramid® to the 3D printing space. It is based on a copolyamide 6/66 grade of intermediate viscosity. With Forward AM Ultrafuse® PA, it is possible to print semi-flexible thin parts; however, it is very rigid at higher thicknesses.

It has a lower melting temperature than PA6 and PA66, meaning it can be printed at a lower temperature and also has better impact resistance versus PA6 and PA66, opening up a whole new application field for end-users.

Print Settings

Print Speed 30 – 60 mm/sec
Nozzle temperature 220 – 250 °C
Nozzle: ≥ 0.4 mm diameter
Bed temperature > 90 – 120 °C
Bed modification: Clean glass + PVA glue stick / Kapton tape / PA adhesive

Key Properties

Suitable for a wide range of different components and machine elements, such as high-grade electrical insulation material
Good fatigue resistance
High mechanical strength
Low melting point makes it printable for many FFF printers
Good wear resistance / lubricity
Good impact resistance at low temperatures
