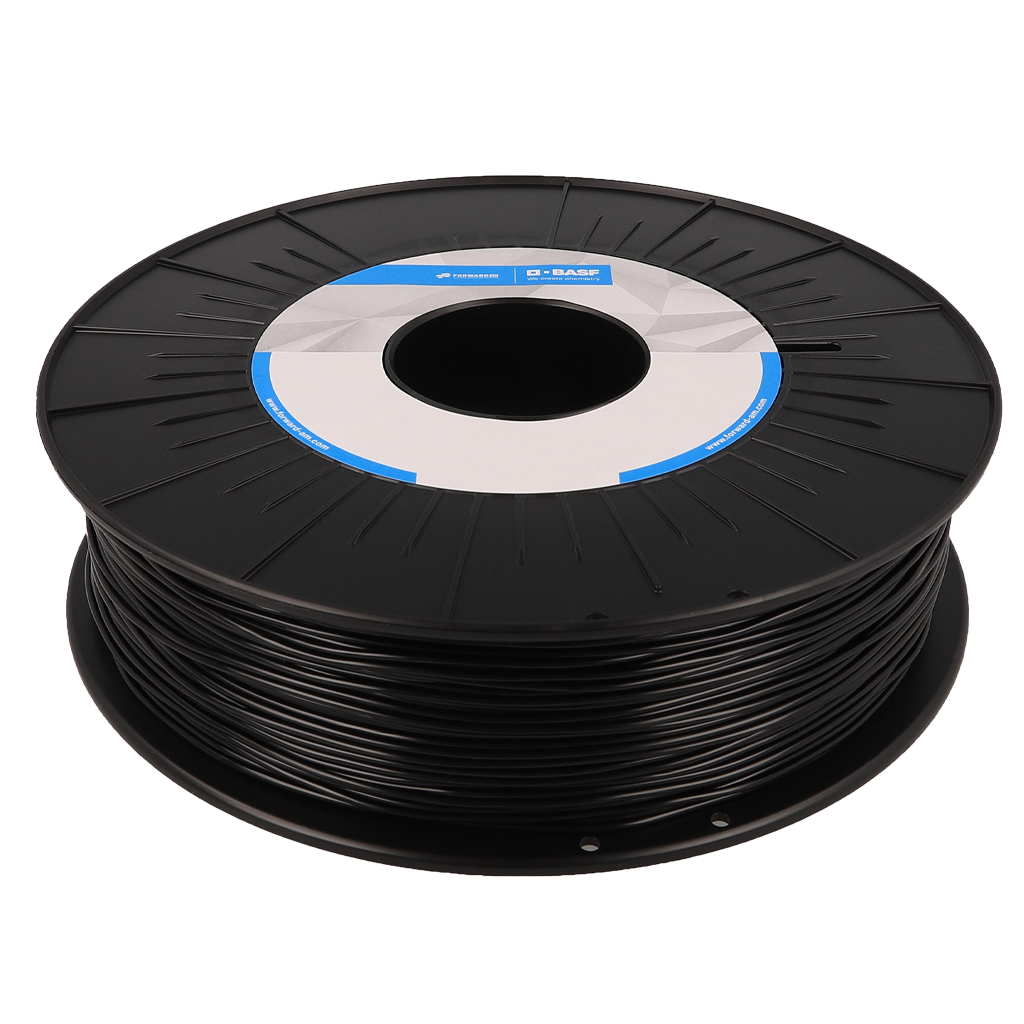

Forward AM | ULTRAFUSE® TPU 64D Filament - 750g

Forward AM | ULTRAFUSE® TPU 64D Filament - 750g

Forward AM | ULTRAFUSE® TPU 64D Filament - 750g

Semi-rigid TPU filament with high durability, abrasion resistance, and engineering performance.
SKU:50744051
Size
Color
$61.00 CAD
Sale
Sold out

Price

$61.00 CAD $61.00

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
BASF Forward AM Ultrafuse® TPU 64D Filament (750g) is an engineering-grade thermoplastic polyurethane designed for applications requiring a balance of flexibility and rigidity. With a Shore hardness of 64D, it offers excellent abrasion resistance, impact strength, tear resistance, and chemical resistance while maintaining enough stiffness for structural flexible parts. Ideal for demanding industrial applications, TPU 64D delivers reliable performance for functional components exposed to repeated stress and wear.
Applications
  • Functional flexible parts
  • Wear and tear application

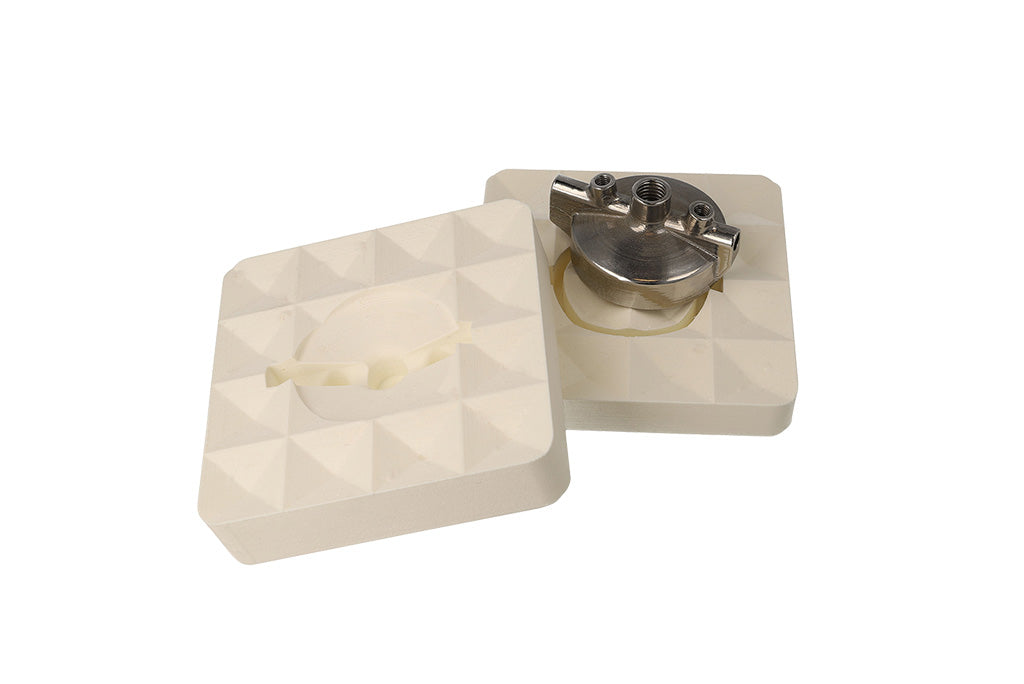

  • Tooling, jigs and fixtures

Intermediate Material

See TDS for information

Technical Specs

Overview
Net Weight 750g
Material Compatibility
Material Diameter / Thickness 2.85mm

Product Highlights

Top Features

Ultrafuse® TPU 64D combines the best of two worlds by being a strong yet flexible filament for Fused Filament Fabrication, suitable for all FFF technologies. Building on BASF‘s decades of experience in flexible materials, this material is based on the established thermoplastic polyurethane Elastollan, standing for maximum reliability, consistent product quality and cost efficiency. Ultrafuse® TPU 64D is easily compatible with water soluble support. Thanks to its property profile, Ultrafuse® TPU 64D presents an excellent alternative to rubber and ABS for the manufacturing of tools, jigs and fixtures.

Ultrafuse® TPU 64D is easy to print on direct drive and bowden style printers and is compatible with soluble BVOH support to realize the most complex geometries.

Benefits at a Glance

  • High resistance to oils, greases, oxygen and ozone
  • High wear and abrasion resistance
  • High impact resistance
  • Compatible with water soluble support
  • Printable on direct drive and bowden style printers
  • Biocompatible

Material Properties

  • Shore D Hardness: 58
  • Abrasion Resistance: 43mm3
  • Compression set at 23°C, 72h: 25%
  • Stress at Break: 37 MPa (XY), 19 MPa (ZX)
  • Elongation at Break: 399 % (XY), 115% (ZX)
  • Tear Strength: 66 kN/m (XY), 37 kN/m (XZ), 79 kN/m (ZX)

Printing Guidelines*

  • Nozzle Temperature: 230-255 °C
  • Bed Temperature: 40°C - 60°C
  • Bed Material: Glass
  • Nozzle Diameter: ≥ 0.4 mm
  • Print Speed: 30- 112** mm / s

* The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.

** To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.4mm nozzle and 0.2mm layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.
