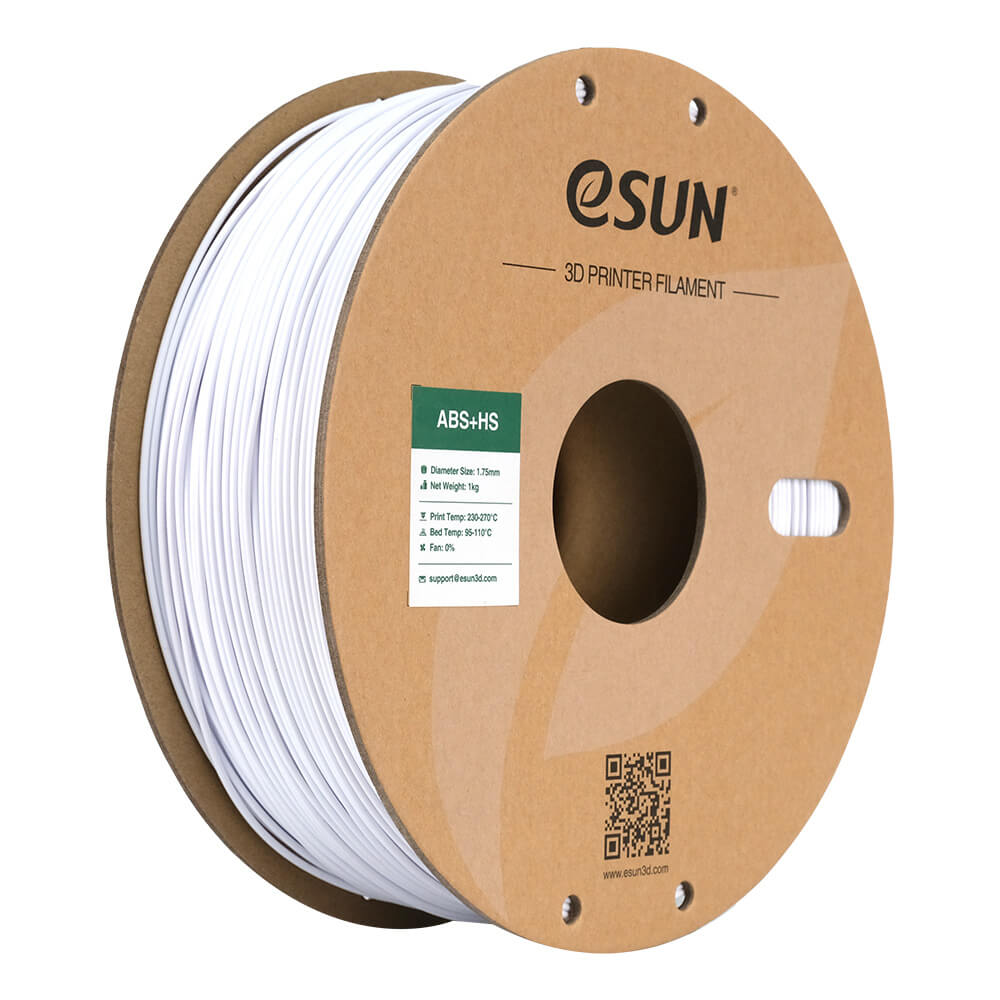

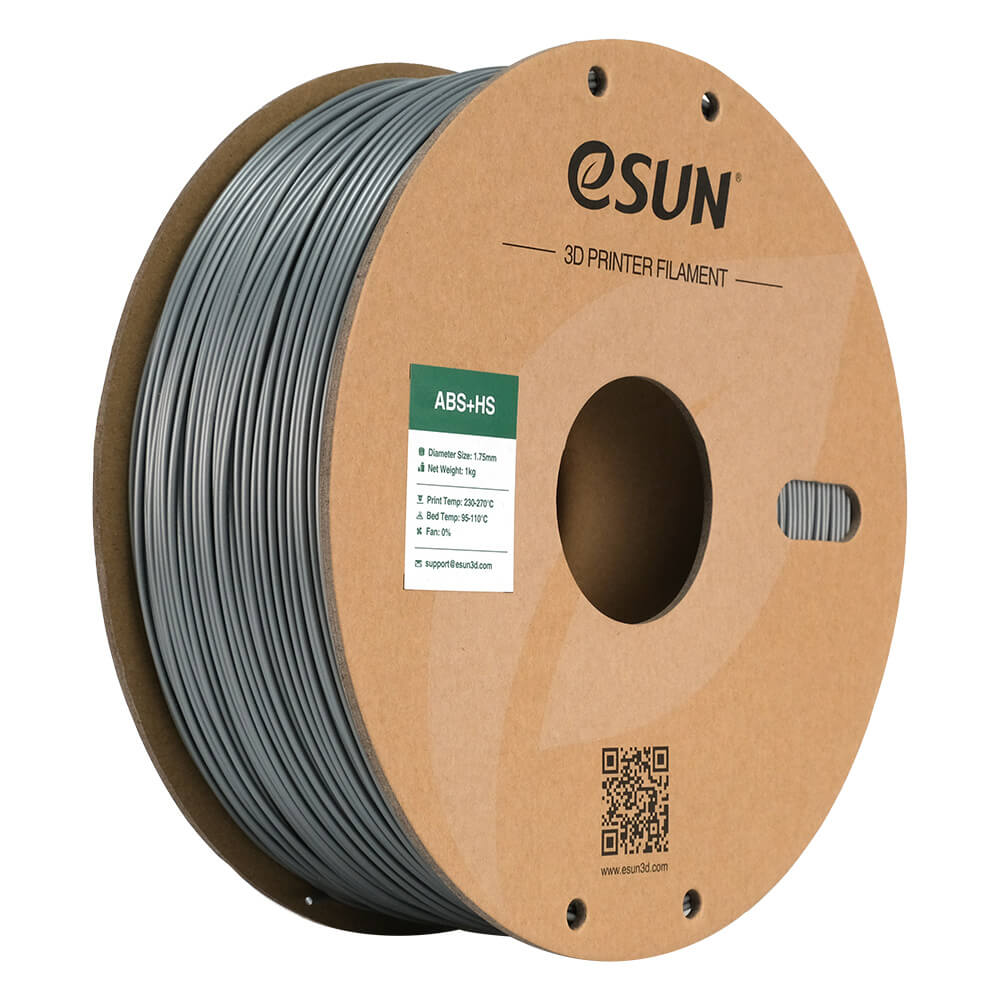

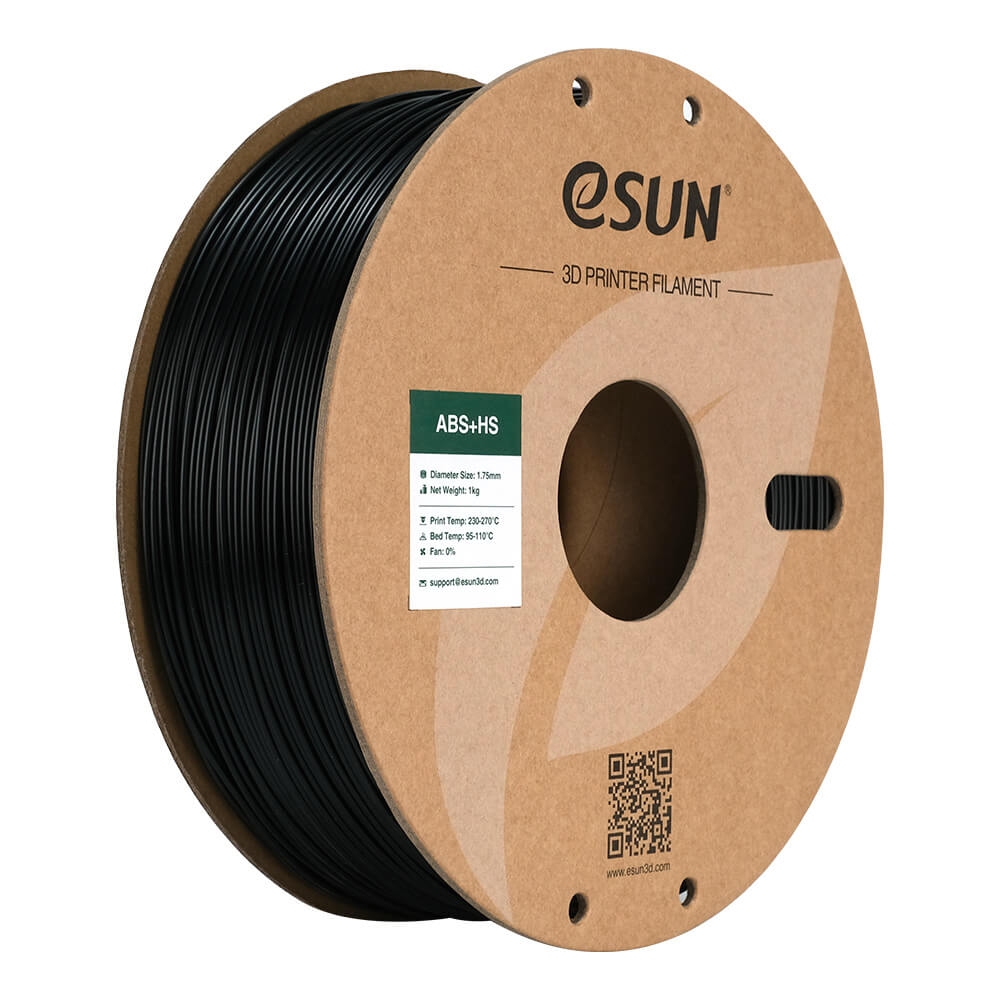

eSun ABS+HS (High Speed) Filament - 1.75mm (1kg)

eSun ABS+HS (High Speed) Filament - 1.75mm (1kg)

eSun ABS+HS (High Speed) Filament - 1.75mm (1kg)

High-speed ABS+ filament with improved toughness, strength, and reduced warping.
$24.99 CAD
Sale
Sold out

Price

$24.99 CAD $32.50

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
ABS+HS is a modified version of ABS material. Compared to conventional ABS, it exhibits lower shrinkage and superior interlayer adhesion, reducing the likelihood of warping and cracking during printing. It contains low VOC (Volatile Organic Compounds) components, resulting in a reduced odor during the printing process, making it more comfortable and stress-free. This material is optimized for high-speed printing, maintaining its performance even at higher speeds, providing an excellent printing experience. Additionally, it can be acetone polished to eliminate layer lines and further enhance the print quality.（This product has been discontinued and is currently out of stock. If you have large customization requirements, please leave a message.）

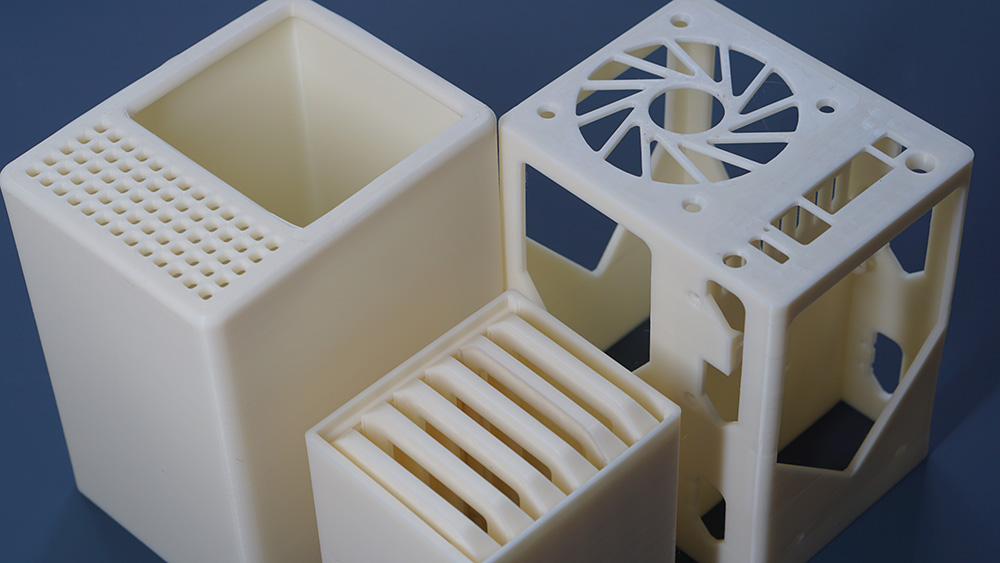

Applications
  • Functional prototypes
  • Mechanical parts and assemblies
  • Tool housings and enclosures
  • Automotive components and interior parts
  • Industrial fixtures and jigs
  • Snap-fit parts and brackets
  • Protective covers and cases
  • Electronics housings
  • Structural components requiring durability
  • Replacement parts and repair components
  • End-use production parts
  • High-strength models requiring improved toughness and impact resistance

Prone to Shrinking.

See TDS for Details

Intermediate Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Heated Chamber Recommended

Needs elevated chamber temperatures

Technical Specs

Overview
Net Weight 1kg
Material Compatibility
Material Diameter / Thickness 1.75mm

Notes

  • The shrinkage rate of ABS+ material is large, so you should pay attention to heat preservation when printing, and print in a printer with a closed chamber.
  • The cooling of ABS+ is slightly worse. You can turn on a fan to improve the printing effect, or reduce the drape angle structure in the model; or try to reduce the speed to print.

Product Highlights

Top Features

Features

  • Heat resistance
  • Low odor
  • Low shrinkage rate
  • Strong performance and toughness
  • High speed printing
  • Acetone polishing is available
  • Excellent printability

Parameter information

  • Density (g/cm³): 1.04
  • Melt Flow Index: 6 (220℃/10kg)
  • Heat Distortion Temp (℃, 0.45MPa): 89
  • Tensile Strength (MPa) (XY): 41.64
  • Tensile Strength (MPa) (Z): 27.08
  • Elongation at Break (%) (XY): 5.14
  • Elongation at Break (%) (Z): 3.4
  • Flexural Strength (MPa) (XY): 46
  • Flexural Strength (MPa) (Z): 44.5
  • Flexural Modulus (MPa) (XY): 2349.32
  • Flexural Modulus (MPa) (Z): 1934.88
  • IZOD Impact Strength (kJ/㎡) (XY): 25.94
  • IZOD Impact Strength (kJ/㎡) (Z): 3.14
  • Extruder Temperature (℃): 230–270℃
  • Bed Temperature (℃): 95–110℃
  • Fan Speed (%): 0%
  • Printing Speed (mm/s): 50–300 mm/s
  • Heated Bed: Need
  • Printing Suggestions: Sealed box printing
