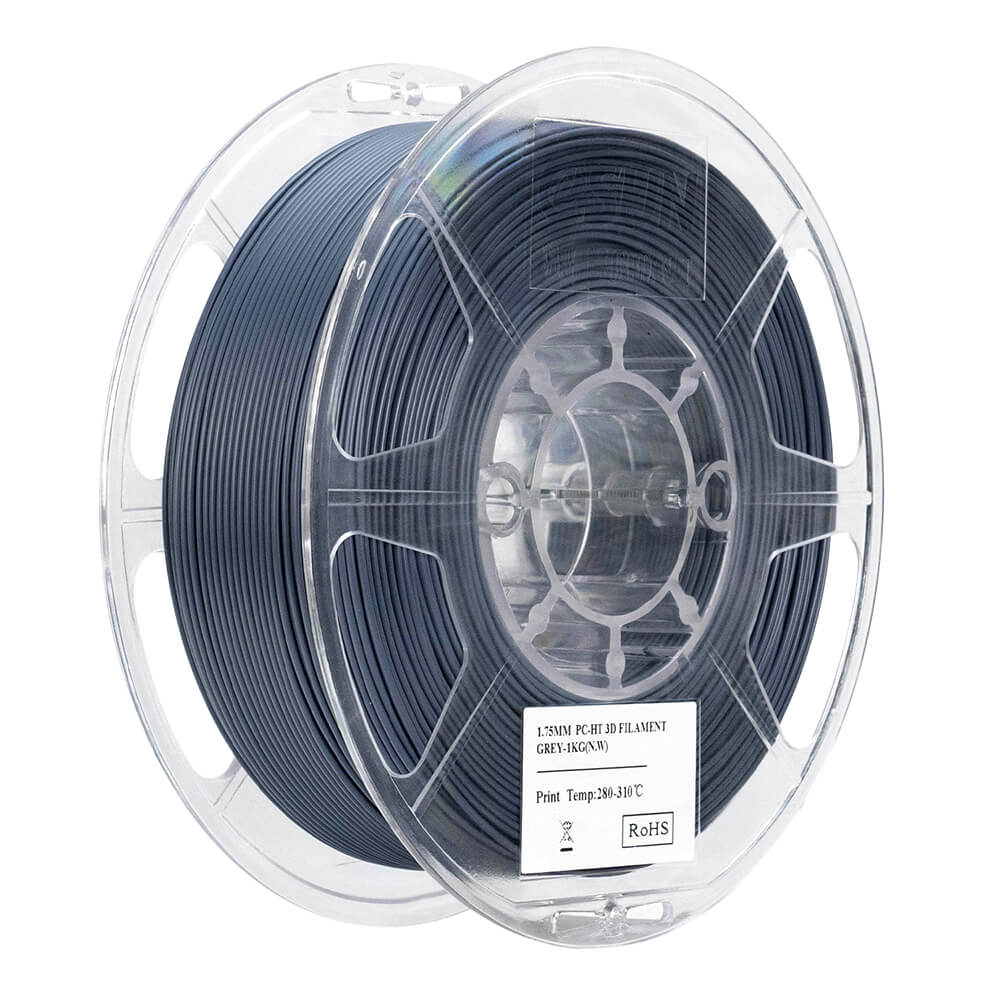

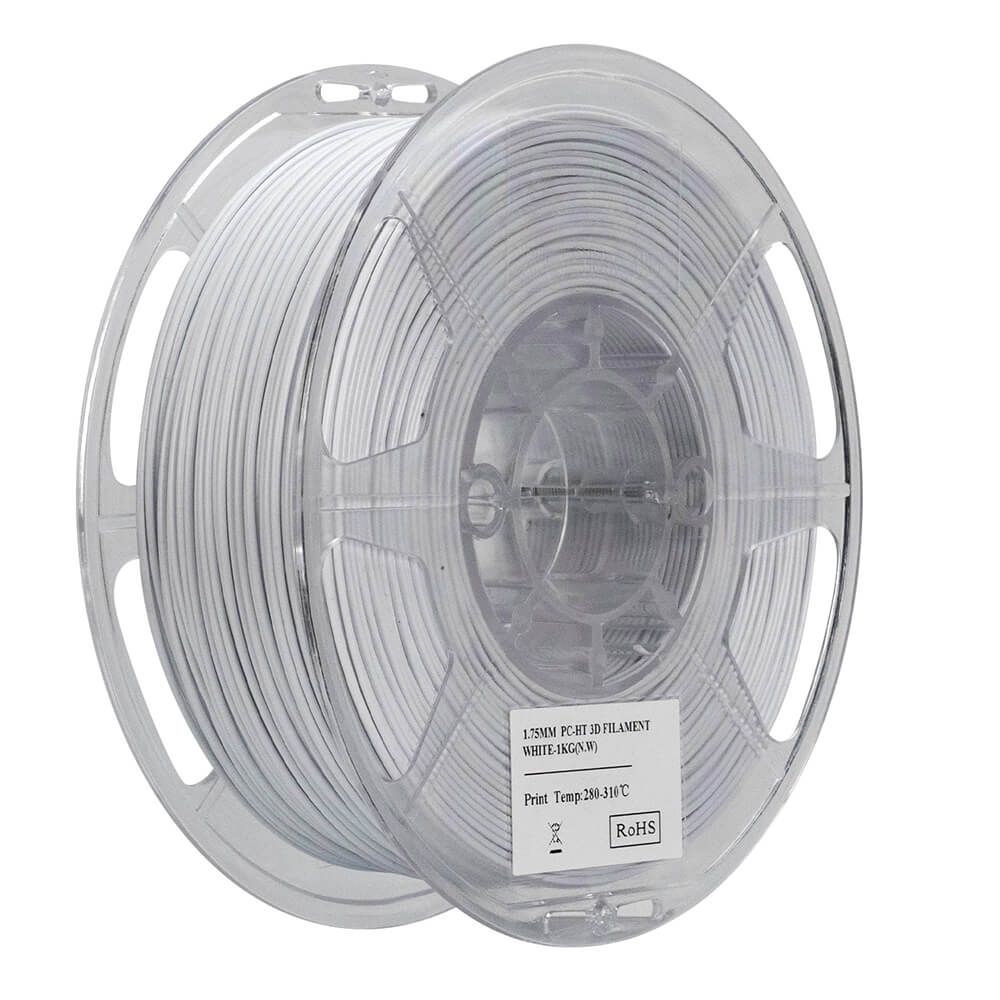

eSun 3D Printing PC-HT Filament - 1.75mm (1kg)

eSun 3D Printing PC-HT Filament - 1.75mm (1kg)

eSun 3D Printing PC-HT Filament - 1.75mm (1kg)

A high-performance temperature-resistant material, ideal for high-temperature (>100°C) scenarios.
$45.00 CAD
Sale
Sold out

Price

$45.00 CAD

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
PC-HT is a temperature-resistant material that inherits the excellent toughness and impact resistance of PC, with enhanced heat resistance, interlayer strength, and printing stability. It is suitable for environments with temperatures above 100°C and features low warping and anti-stringing properties.
Applications
  • Electronics and Electrical Appliances
  • Medical EquipmentEnclosures

Documentation

UV resistant

See TDS for Details

Advanced Material

See TDS for information

Adhesion aid Required

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Technical Specs

Overview
Net Weight 1kg
Material Compatibility
Material Diameter / Thickness 1.75mm

Product Highlights

Top Features

Parameter Information

  • Density (g/cm³): 1.23
  • Melt Flow Index: 39.6 (300℃ / 1.2kg)
  • Heat Distortion Temp (℃, 0.45MPa): 113.6 ±10%
  • Tensile Strength (MPa) (XY): 67.6
  • Tensile Strength (MPa) (Z): 50.6
  • Elongation at Break (%) (XY): 7.3
  • Elongation at Break (%) (Z): 4.9
  • Flexural Strength (MPa) (XY): 97.2
  • Flexural Strength (MPa) (Z): 76.3
  • Flexural Modulus (MPa) (XY): 2353.5
  • Flexural Modulus (MPa) (Z): 2340.6
  • IZOD Impact Strength (kJ/㎡) (XY): 13.6
  • IZOD Impact Strength (kJ/㎡) (Z): 2.4
  • Extruder Temperature (℃): 290–300℃
  • Bed Temperature (℃): 100–110℃
  • Fan Speed (%): 0–20%
  • Printing Speed (mm/s): <200 mm/s
  • Heated Bed: Needed

Printing Suggestions

  • Drying at 70℃ for >6h, sealing and printing
