Formlabs Form Wash L (2nd Generation)

Formlabs Form Wash L (2nd Generation)

Formlabs Form Wash L (2nd Generation)

Automated large-format resin washing system for efficient Formlabs SLA post-processing.
Style
SKU: FHL-WA-02
$6,299.00 CAD
Sale
Sold out

Price

$6,299.00 CAD
Free Delivery does not apply for this order.

Stock

Request a Quote | Email This Page

Product Details

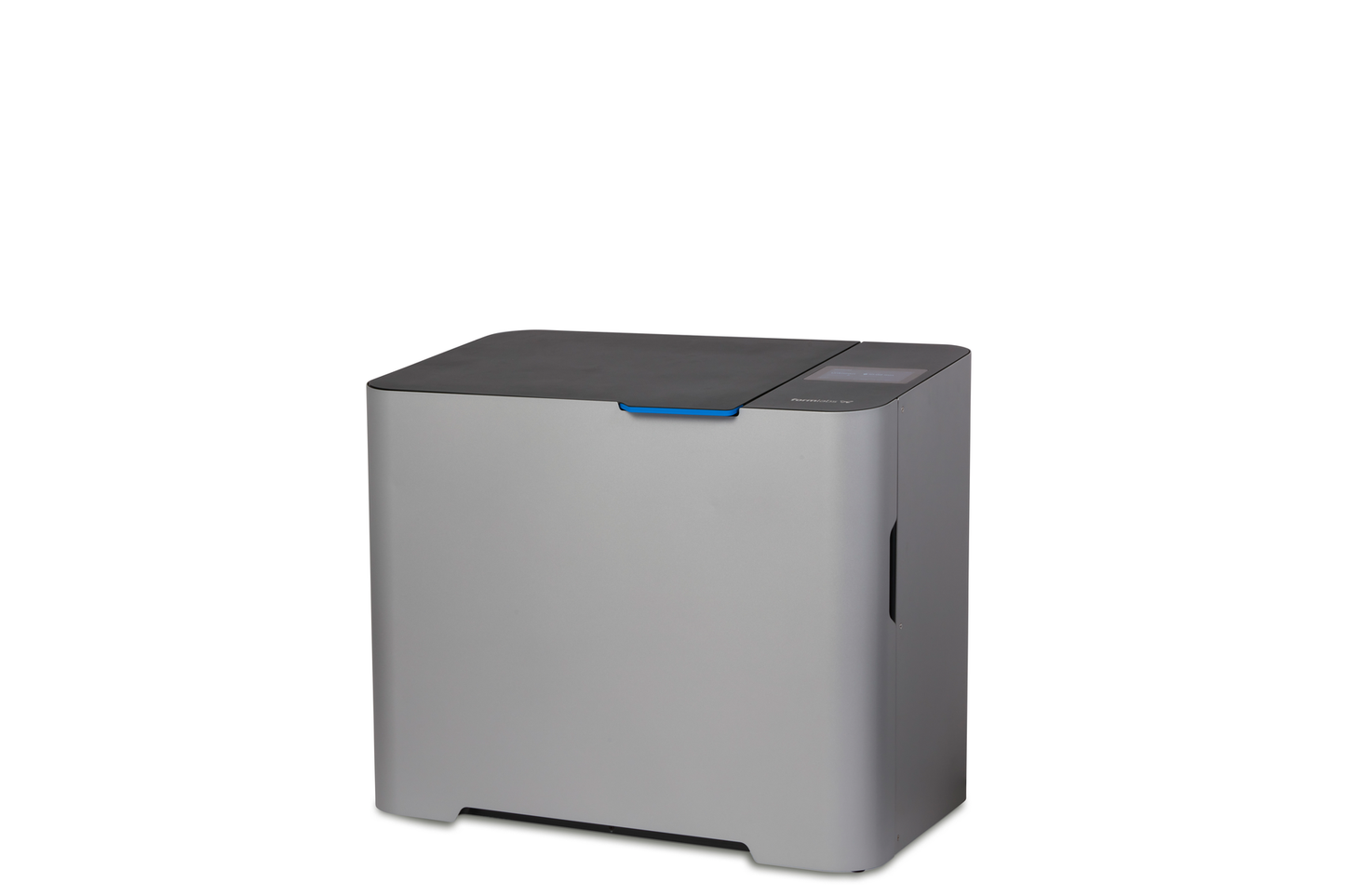

Formlabs Form Wash L (2nd Generation) is an automated washing system designed to streamline post-processing for large-format SLA 3D printed parts. It uses optimized solvent circulation and timed washing cycles to remove uncured resin quickly and consistently, helping produce clean, high-quality parts with minimal manual handling. Designed for compatibility with Formlabs large-format printers, the Form Wash L simplifies workflows for professional prototyping, manufacturing, and production environments.

Technical Specs

Overview
Technology SLA
Function Automate Cleaning
Box Size 37x24x32.5"
Net Weight 56.7 kg (without solvent) 125 lb (without solvent)
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
  • Form 3
  • Form 3L
  • Form 3B
  • Form 3BL
  • Form 2
Power
Maximum Power Consumption Input (NA) 100-120 VAC, 50-60 Hz, 1 A
Input (EU) 220-240 VAC, 50-60 Hz, 1 A
Safety and Compliance
Certifications CSA C22.2#61010-1-12:2012 Ed.3 +U1;U2;A1

Product Information

All SLA 3D printed parts require washing to remove residual resin. Form Wash L (2nd Generation) automates this process, leaving you with smooth, clean, high-quality parts every time. The Form Wash L can hold up to 37.9L of IPA.

What's in the Box

  • Form Wash L (2nd Generation)
  • Build Platform Adapter
  • Solvent Pump

Documentation

Links

Formlabs.com - Wash L V2 Product Page

Shipping Instructions

Free Delivery does not apply for this order. Contact Us for Shipping Estimates.

Product Highlights

Top Features

Set It And Forget It

Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.

Informed Maintenance

The embedded solvent monitor and cycle counter help you maintain peak cleaning performance by notifying you when it’s time to replace the solvent.

One Size Fits All

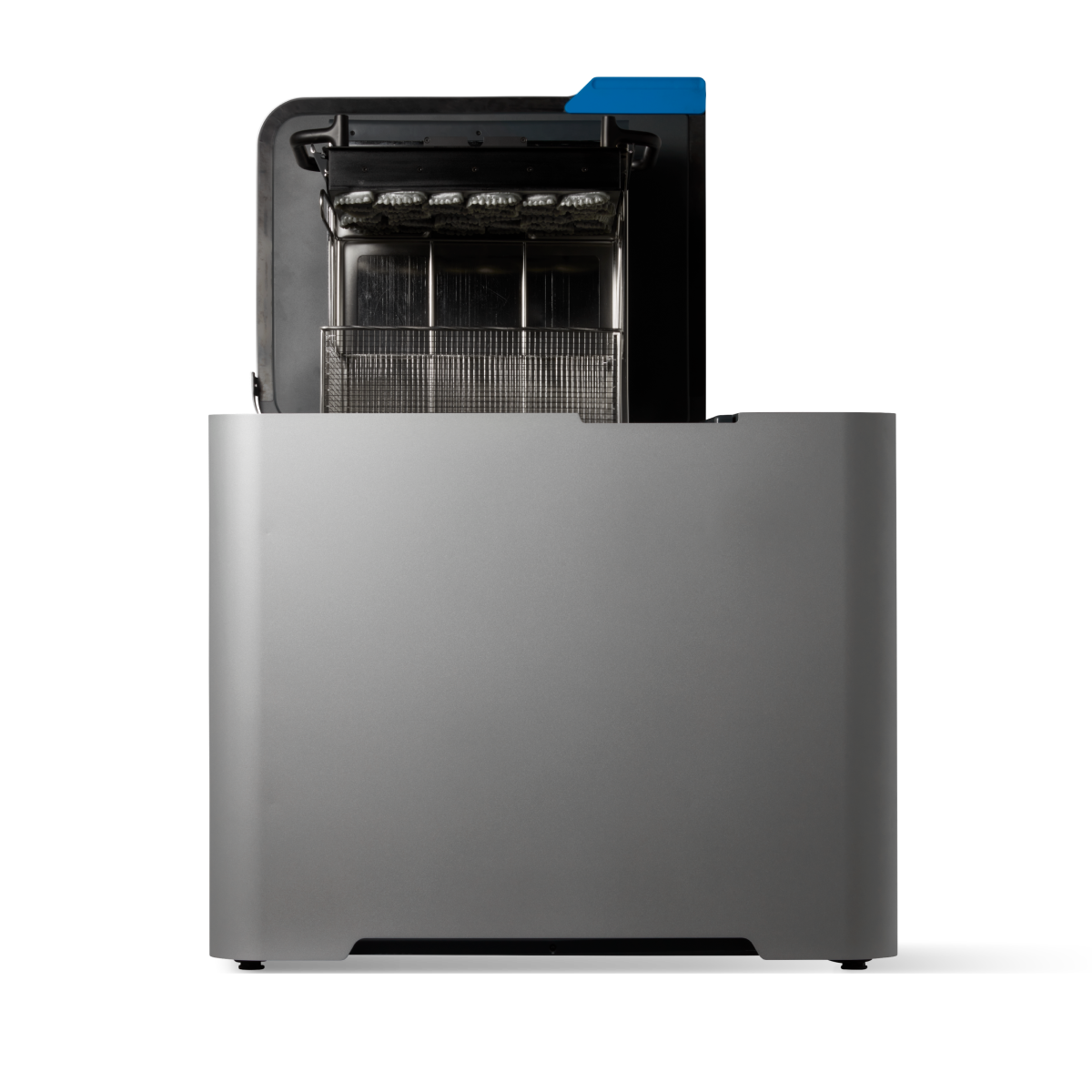

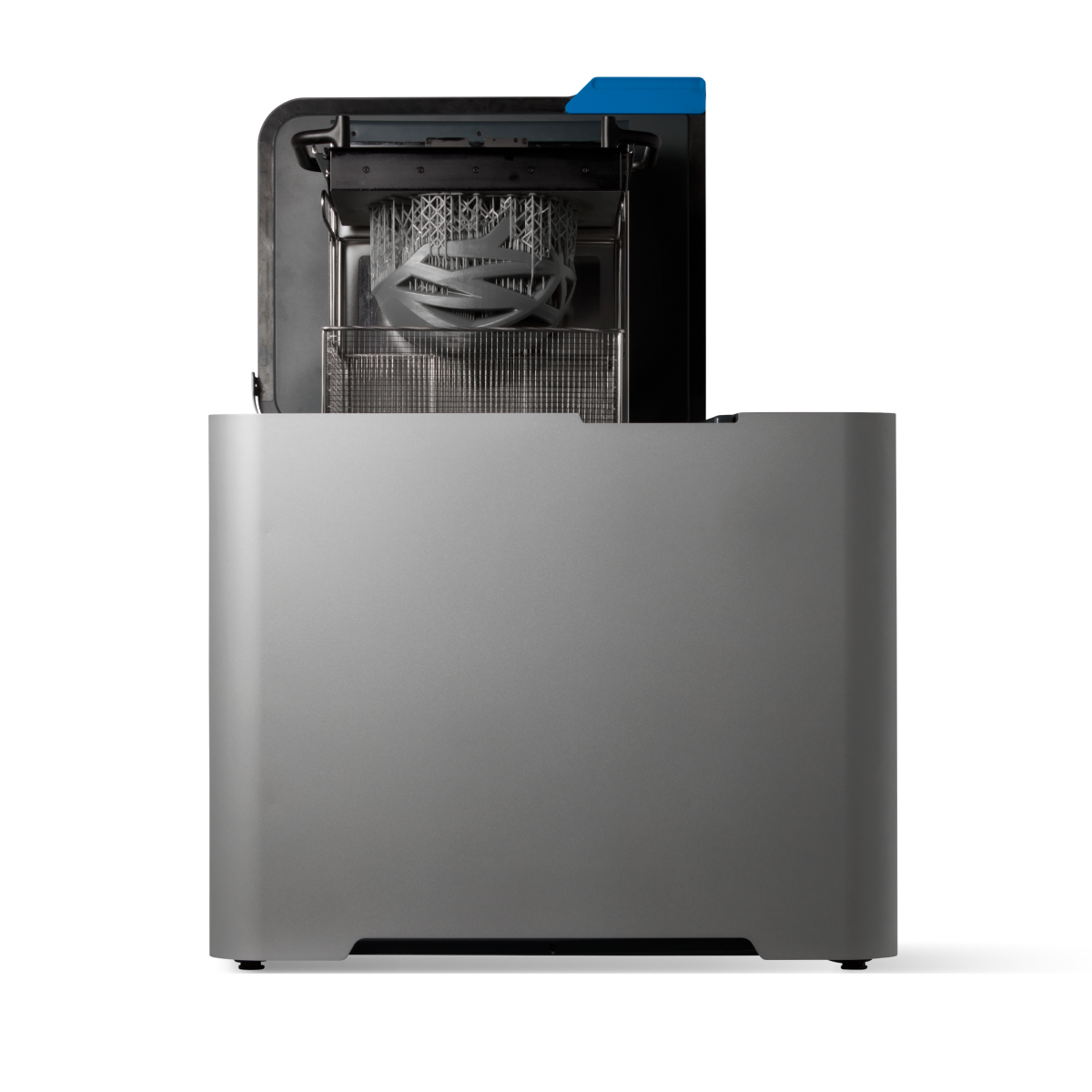

Wash one Form 4L Build Platform or two Form 3/B/+ or Form 4/B Build Platforms with adjustable platform mounts.

Automate Cleaning With Form Wash L

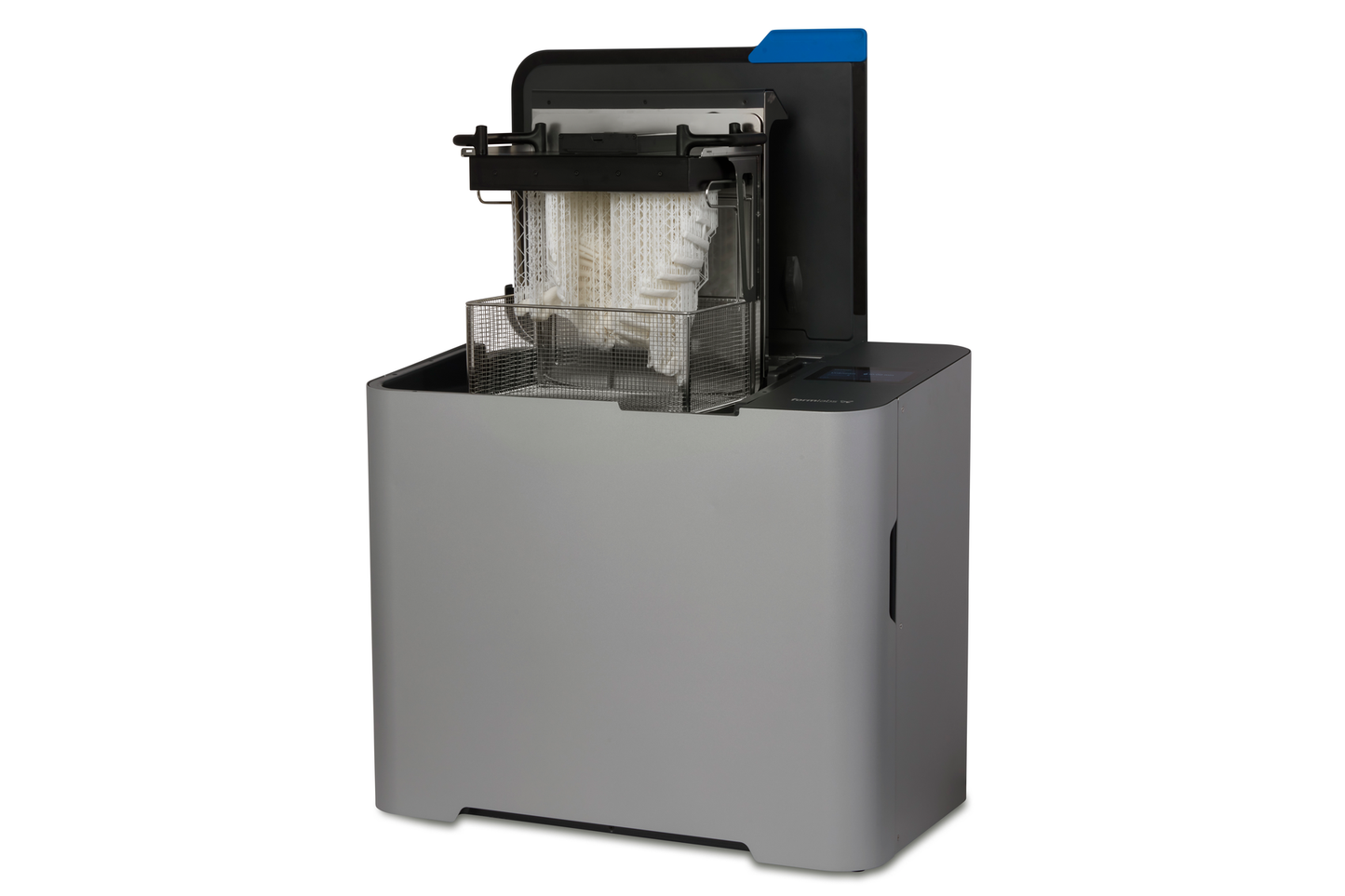

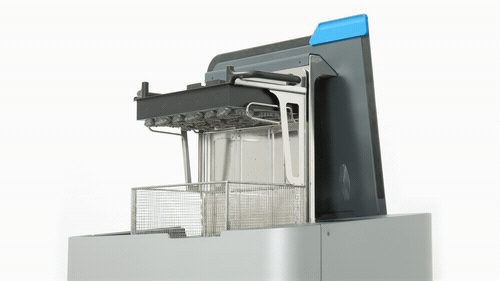

Once washing completes, parts are lifted out of the solvent to air dry, avoiding over-soaked, warped prints. The embedded solvent monitor helps you maintain peak cleaning performance by notifying you when it’s time to replace your solvent.

Use Form Wash L with all of your Formlabs SLA 3D printers. Wash one Form 4L build platform or two Form 4 build platforms with the included build platform adapter.

Compatible With All Formlabs Materials

Select your material from a list and let Form Wash L auto-clean your parts for the appropriate time.

Improved Agitation

Clean your parts thoroughly with 1.5x more agitation than the previous generation.

Adaptable to Build Platforms

Seamlessly switch between build platforms with adjustable platform mounts, configurable at various heights and widths.

Formlabs Form Wash L (2nd Generation) is an automated washing system designed to streamline post-processing for large-format SLA 3D printed parts. It uses optimized solvent circulation and timed washing cycles to remove uncured resin quickly and consistently, helping produce clean, high-quality parts with minimal manual handling. Designed for compatibility with Formlabs large-format printers, the Form Wash L simplifies workflows for professional prototyping, manufacturing, and production environments.
