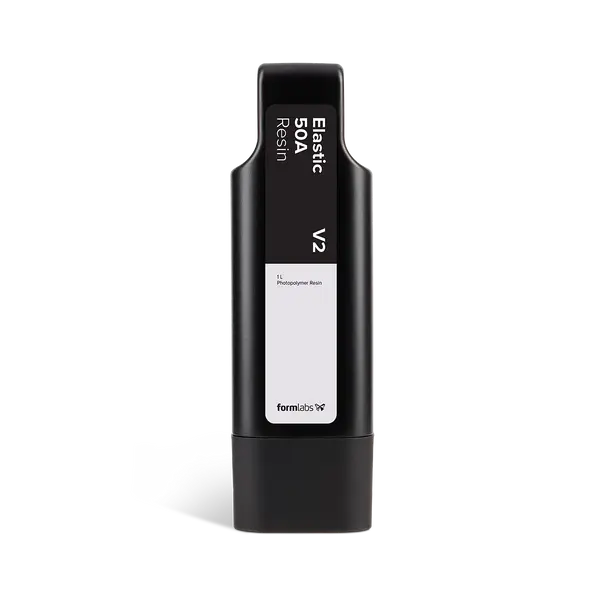

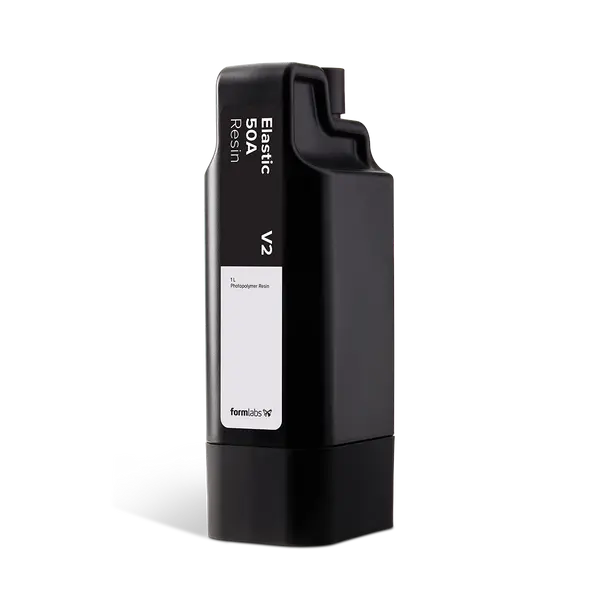

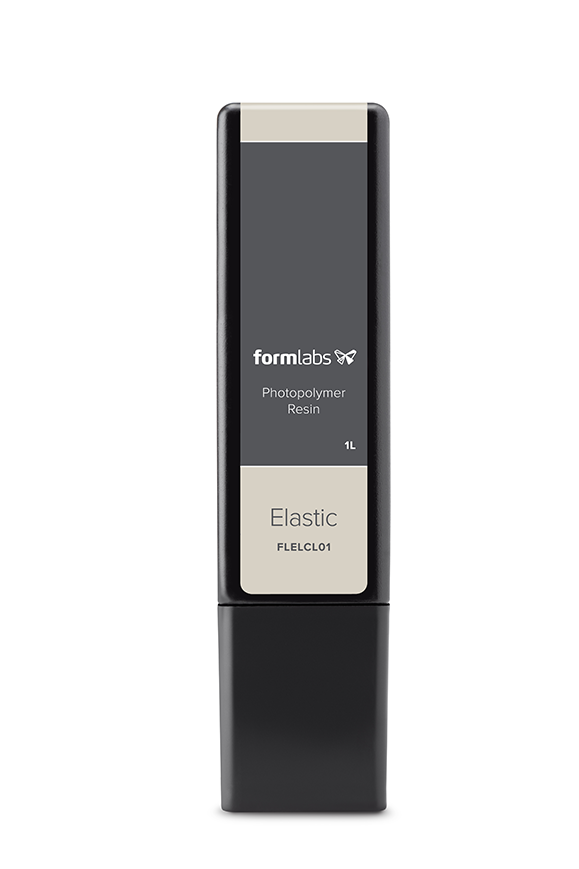

Formlabs Elastic 50A Resin Cartridge V2 (1 Litre OEM)

Formlabs Elastic 50A Resin Cartridge V2 (1 Litre OEM)

Formlabs Elastic 50A Resin Cartridge V2 (1 Litre OEM)

For parts that will bend, stretch, compress, and hold up to repeated cycles without tearing.
SKU:RS-C2-ELCL-02
Printer Compatibility
$286.00 CAD
Sale
Sold out

Price

$286.00 CAD

Stock

Request a Quote | Email This Page

This product is exclusively for use with the Formlabs Form 4

This resin requires Post Curing

Bend, Stretch and Compress with Formlabs Elastic Resin
Choose Elastic Resin for parts that will bend, stretch, compress, and hold up to repeated cycles without tearing. Formlabs' softest Engineering Resin, this 50A Shore durometer material is suitable for prototyping parts normally produced with silicone.

Resin Details

Choose Elastic Resin for parts that will bend, stretch, compress, and hold up to repeated cycles without tearing. Formlabs' softest Engineering Resin, this 50A Shore durometer material is suitable for prototyping parts normally produced with silicone.
Applications

Soft flexible parts, robotics compliant features, wearables, medical models, SFX props

Documentation

Elastomeric

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
  • Form 3
  • Form 3L
  • Form 2
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • Form 4 Resin Tank, Form 4L Resin Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Material Properties
Ross Flexing Fatigue 800 cycles (notched, 60° bend, 100/min)
Elongation at Break 160%
Ultimate Tensile Strength 3.4 MPa

Resin Cheat Sheet

Product Elastic 50A Resin V1
Cure Temperature 60 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2)
Wash Time 10 minutes + 10 minutes**
Special Notes

Wash

  • Wash Elastic 50A Resin for 10 minutes on the build platform. Remove parts from the build platform, then wash for 10 more minutes using fresh solvent.
  • Avoid washing Elastic 50A Resin for longer than 20 minutes, as this may degrade parts.
  • Formlabs does not recommend using Resin Washing Solution to wash parts printed in this resin.

** Parts with two wash times require two wash cycles. For the second wash cycle, use clean solvent. The first wash cycle removes the bulk of the resin, while the second cycle fully cleans the parts.

Cure

  • For parts printed in an engineering-focused resin (such as those in the Rigid, Tough & Durable, and Flexible & Elastic families), post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. There is only one recommended post-curing time for Elastic 50A Resin V1.
Extra Abrasive to Tanks --

Notes

Formlabs Engineering resins come in a resealable and refillable 1 Litre Cartridge.

Resins should be handled in accordance with Formlabs protocols.

A new resin tank should be used per Resin colour/type for your Form 4.

Never mix the use of resin colours or types with a resin tank.
