Formlabs Flame Retardant Resin V1.1 1Kg (0.84L OEM)

Formlabs Flame Retardant Resin V1.1 1Kg (0.84L OEM)

Formlabs Flame Retardant Resin V1.1 1Kg (0.84L OEM)

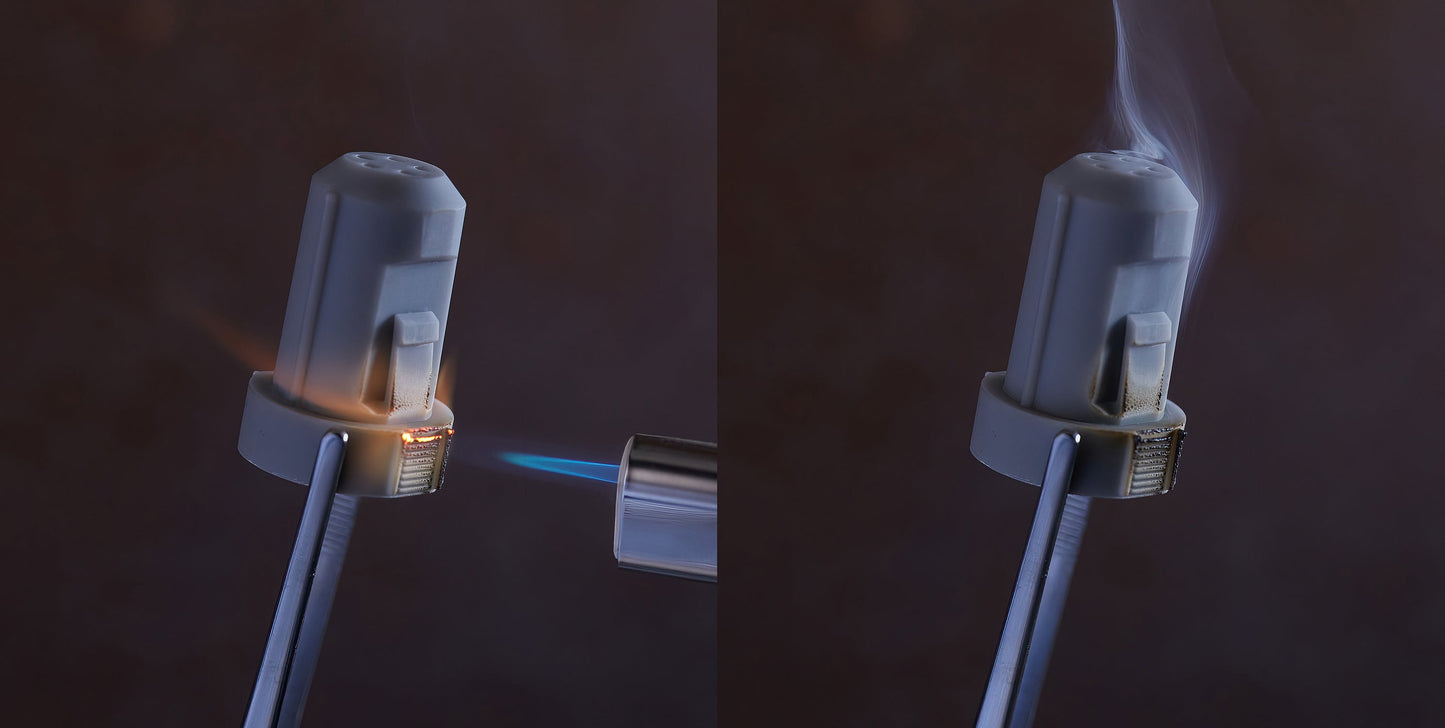

Self-extinguishing and halogen-free SLA material with a UL 94 V-0 certification.
SKU:RS-C2-FRGR-01
Printer Compatibility
$358.00 CAD
Sale
Sold out

Price

$358.00 CAD

Stock

Request a Quote | Email This Page

This product is exclusively for use with the Formlabs Form 4

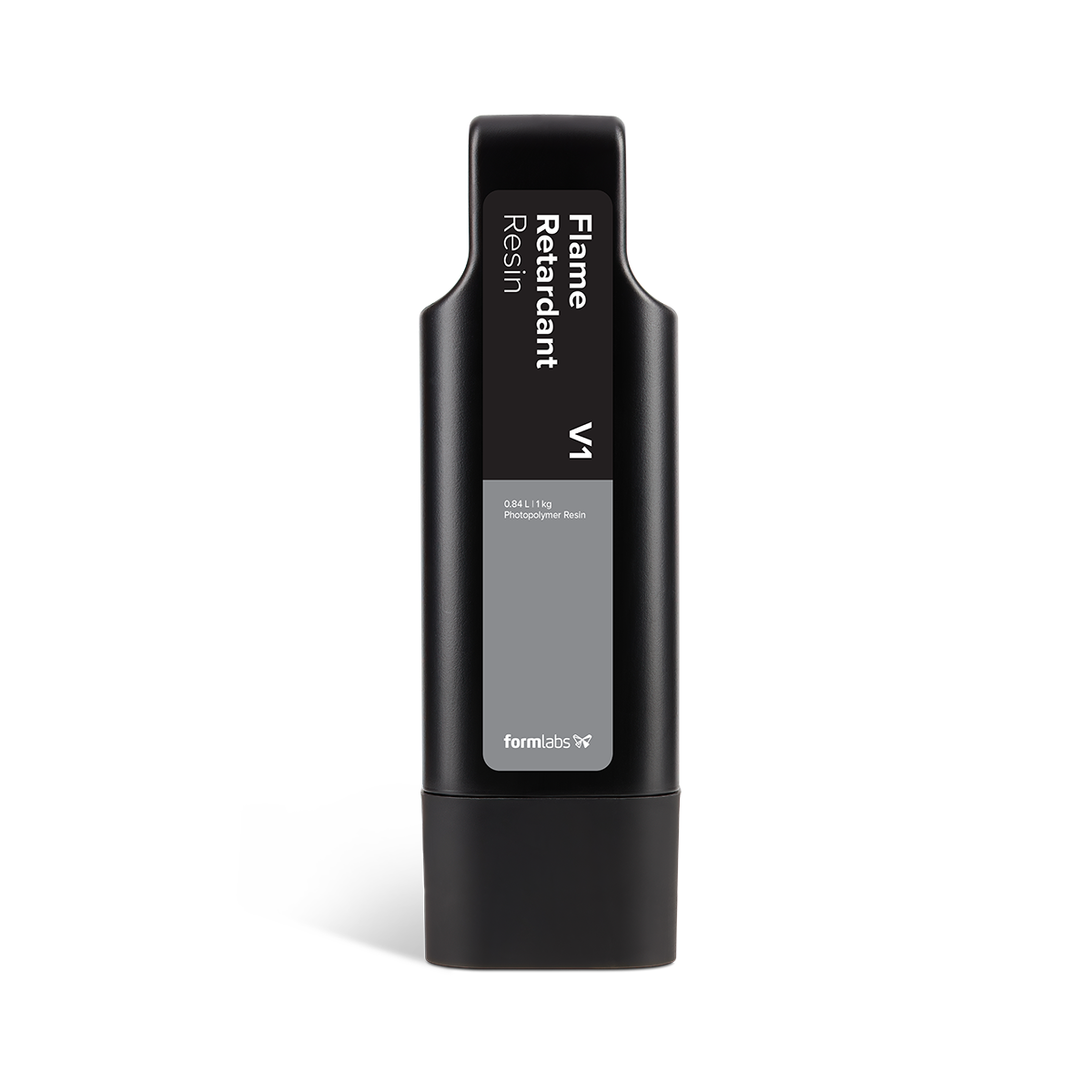

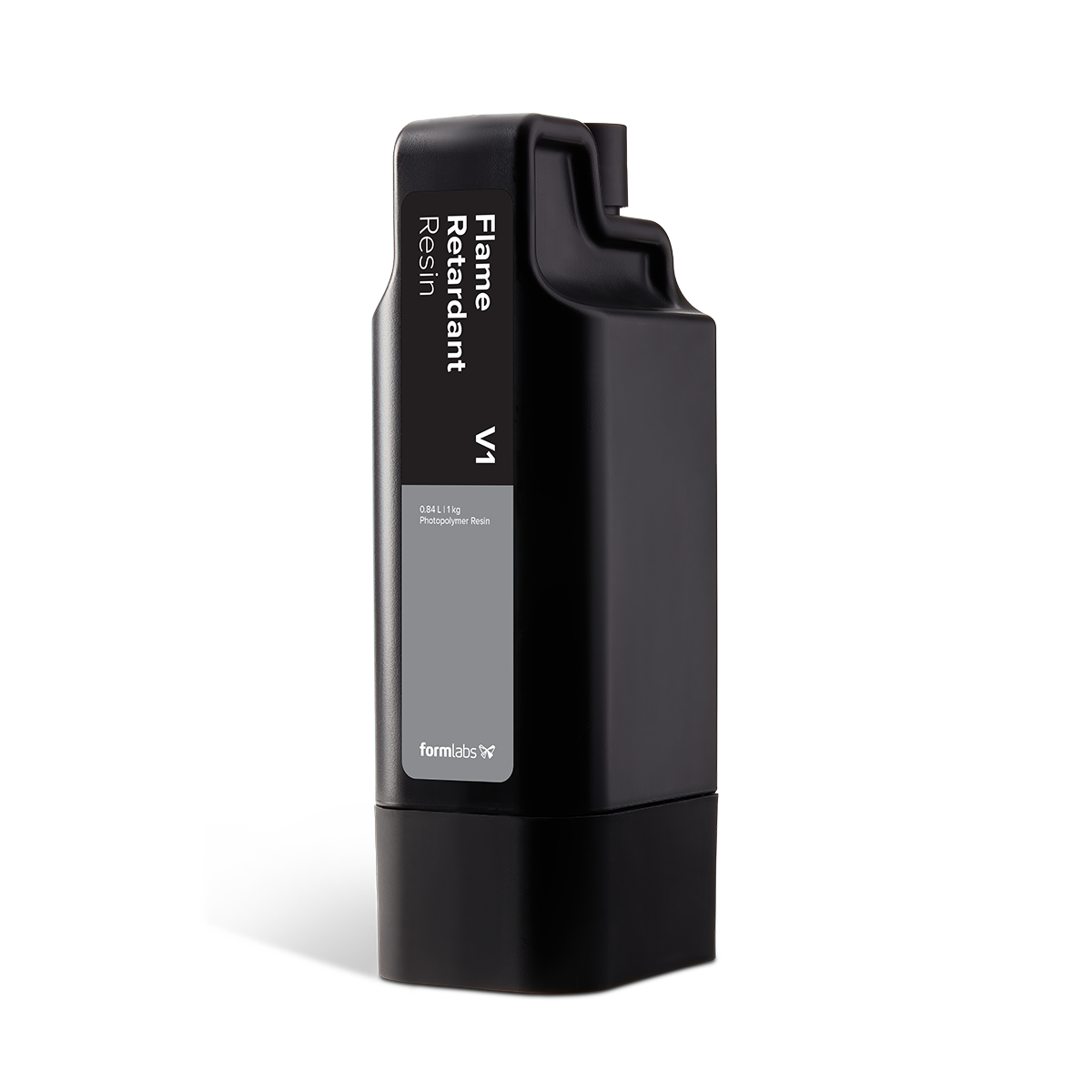

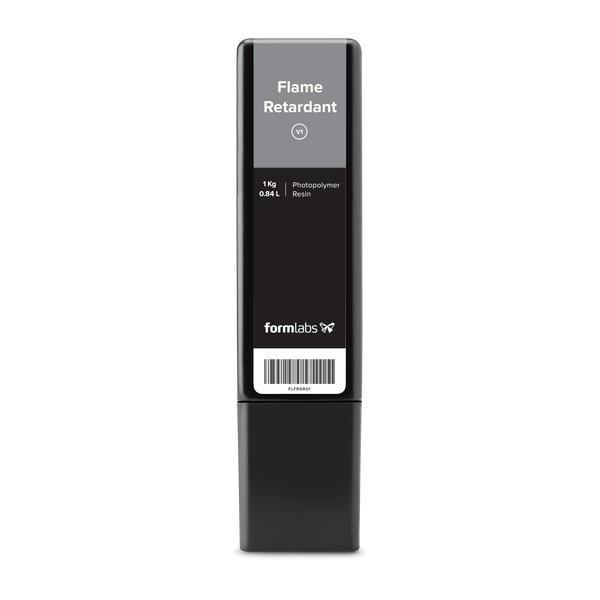

Formlabs Flame Retardant Resin 1Kg (0.84L)

Drive innovation more quickly, safely, and efficiently with Formlabs’ new self-extinguishing and halogen-free SLA material with a UL 94 V-0 certification and favorable flame, smoke, and toxicity (FST) ratings. Use FR Resin to easily 3D print flame retardant, heat-resistant, stiff, and creep-resistant parts that will perform well long-term in indoor and industrial environments with high temperatures or ignition sources.



Resin Details

Drive innovation more quickly, safely, and efficiently with Formlabs’ new self-extinguishing and halogen-free SLA material with a UL 94 V-0 certification and favorable flame, smoke, and toxicity (FST) ratings. Use FR Resin to easily 3D print flame retardant, heat-resistant, stiff, and creep-resistant parts that will perform well long-term in indoor and industrial environments with high temperatures or ignition sources.
Applications

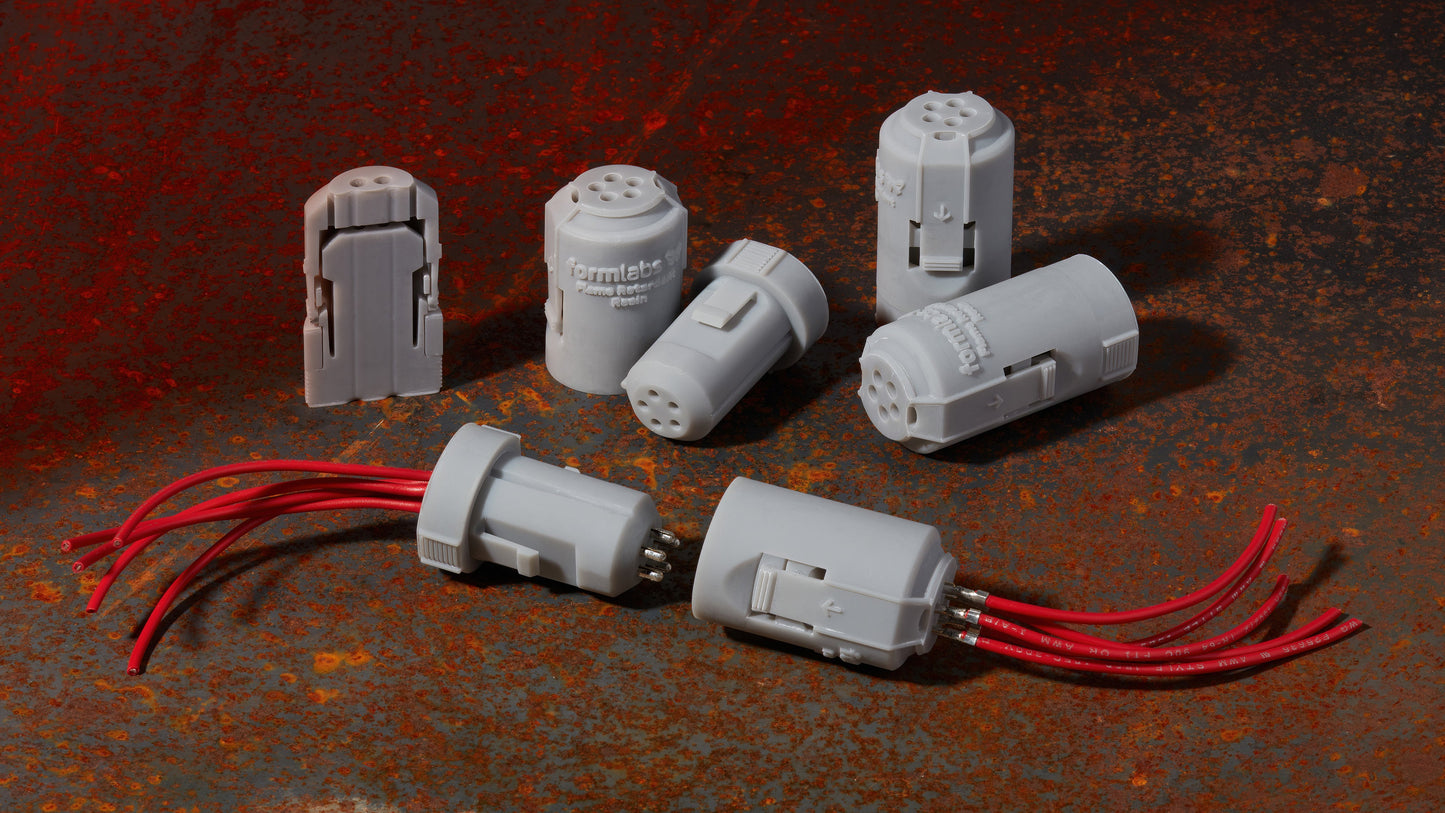

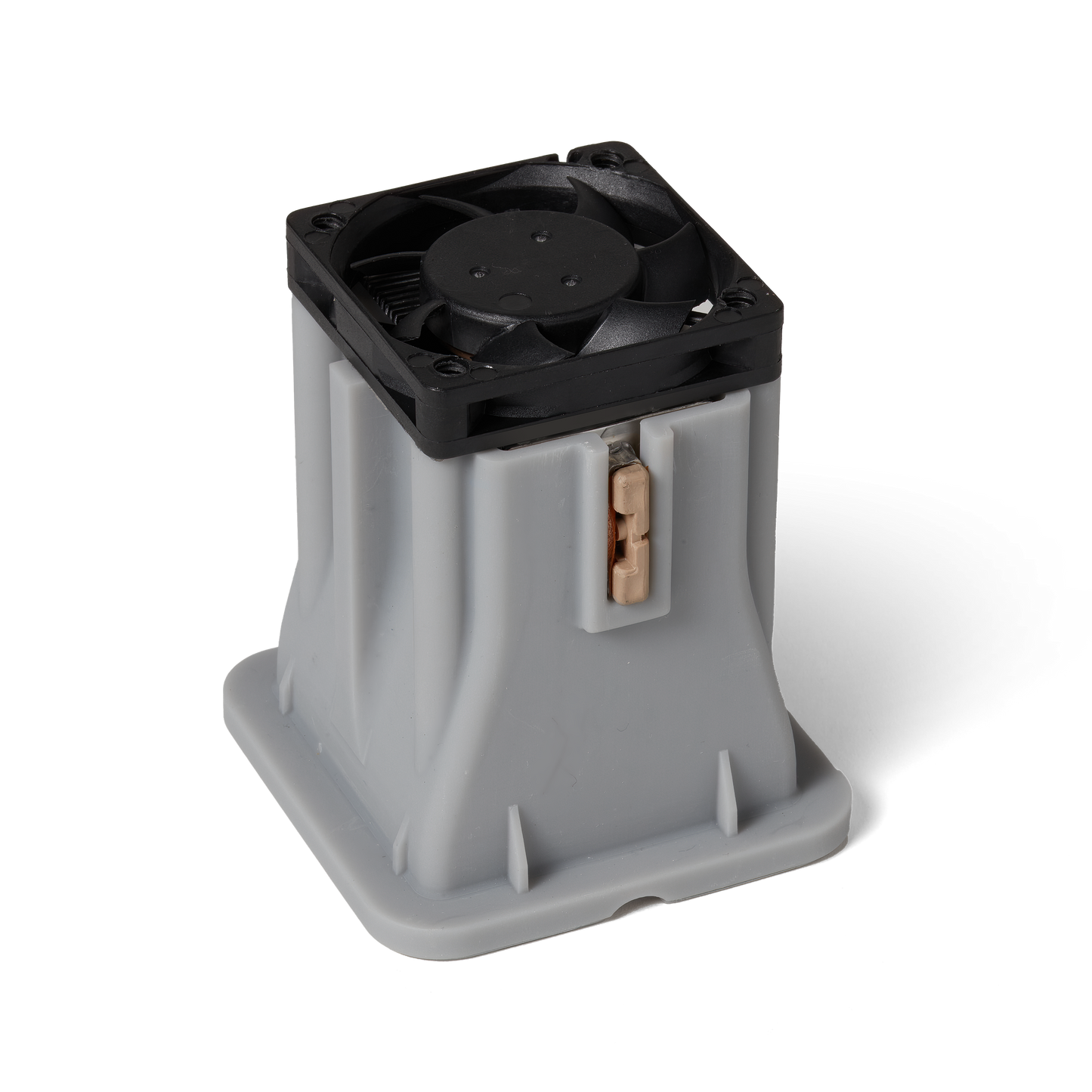

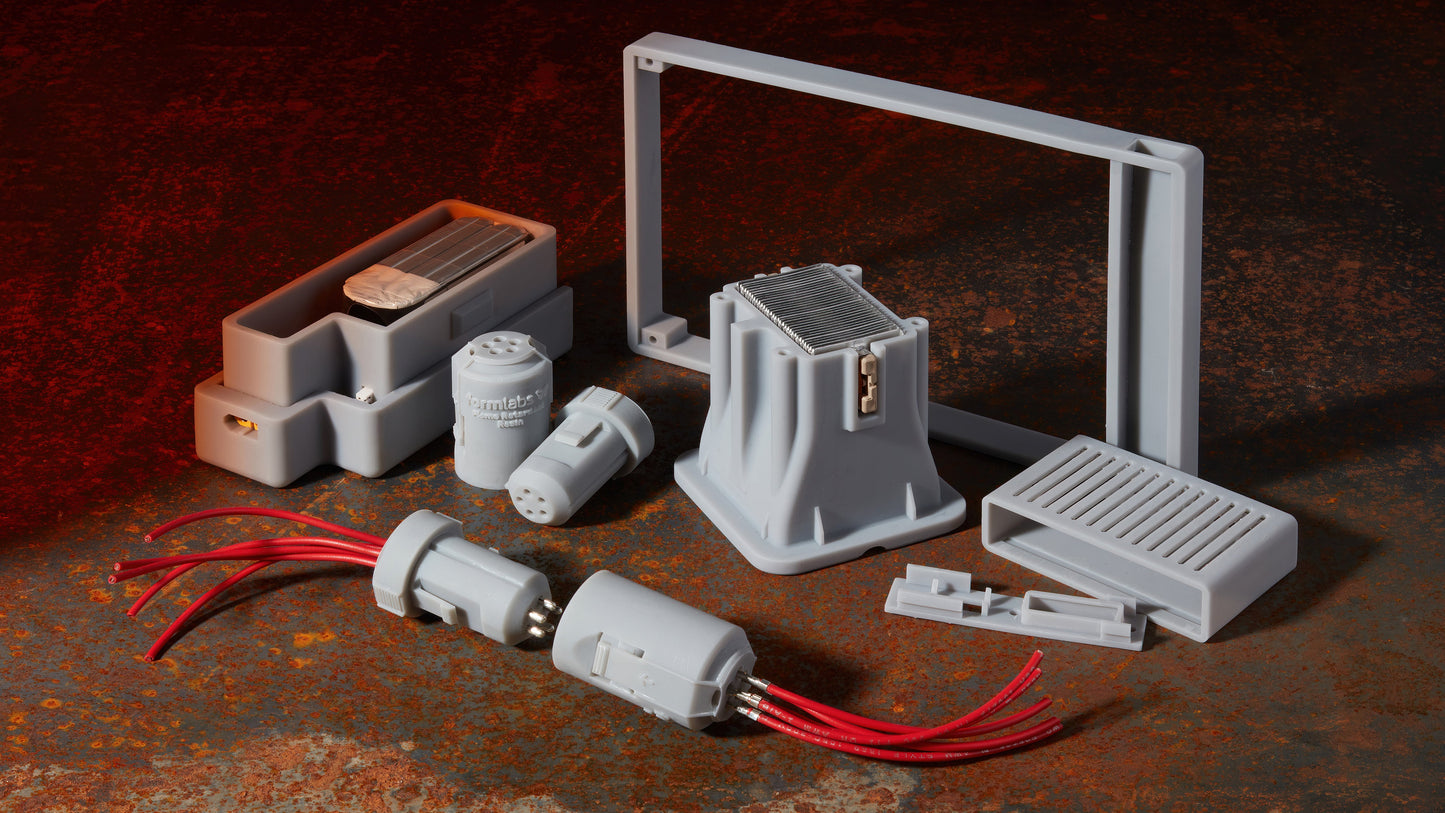

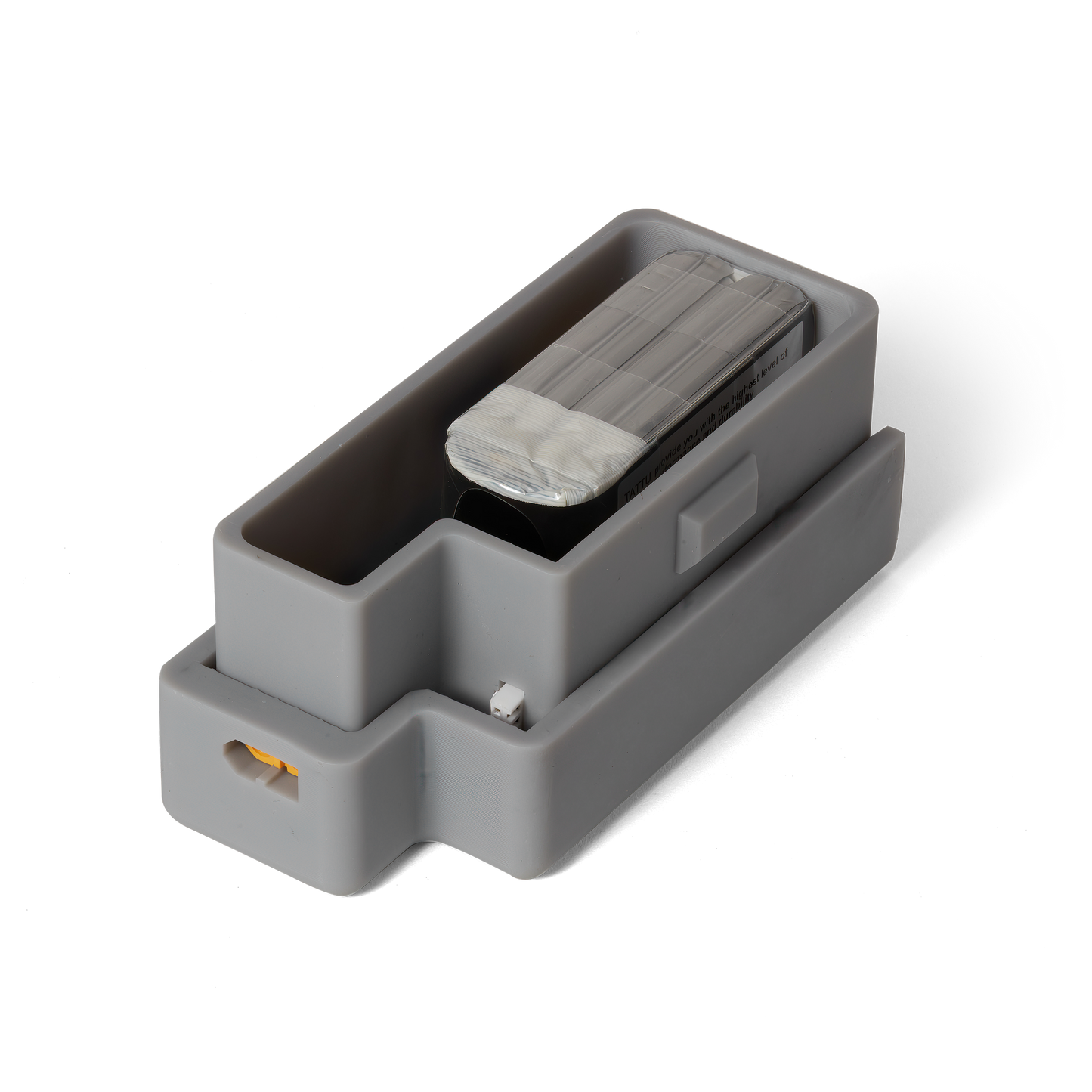

Flame Retardant (FR) Resin is a cost and time-effective solution for fabricating self-extinguishing parts.

Documentation

High Stiffness

Temperature Resistance

Specialty

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
  • Form 3
  • Form 3L
  • Form 3B
  • Form 3BL
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • Form 4 Resin Tank, Form 4L Resin Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Material Properties
Unnotched Izod 257.0 J/m
Thermal Expansion 68.1 μm/m/°C
Heat Deflection Temp. @ 0.45 MPa 111.0 °C
Notched Izod 22.0 J/m
Flexural Modulus 2700.0 MPa
Tensile Modulus 3100.0 MPa
Elongation at Break 7.1 %
Ultimate Tensile Strength 41.0 MPa

Resin Cheat Sheet

Product Flame Retardant Resin
Cure Temperature Cure V1: 70 or 80 °C | Cure V2: 100 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 5 / 10 min
Wash Time 10 min (IPA) 15 min (TPM)
Special Notes

Wash

  • Small negative features may be difficult to fully clean due to the resin’s high viscosity. Make sure to clean your parts thoroughly before post-curing. Consider using pressurized air for better cleaning.
  • Formlabs does not recommend using Resin Washing Solution to wash parts printed in this resin.

Cure

  • Form Cure V1: Flame Retardant Resin V1 has two post-cure settings. Post-curing at 70 ℃ for 60 minutes yields an HDT of 94 ℃ at 0.45 MPa and an elongation at break of 9%. Post-curing at 80 ℃ for 120 minutes yields an HDT of 111 ℃ at 0.45 MPa and an elongation at break of 7%.
  • Form Cure V2: Place parts inside the Form Cure and pre-heat for five minutes at 100 °C with the lights off. Post-cure for 10 minutes at 100 °C.
Extra Abrasive to Tanks --
