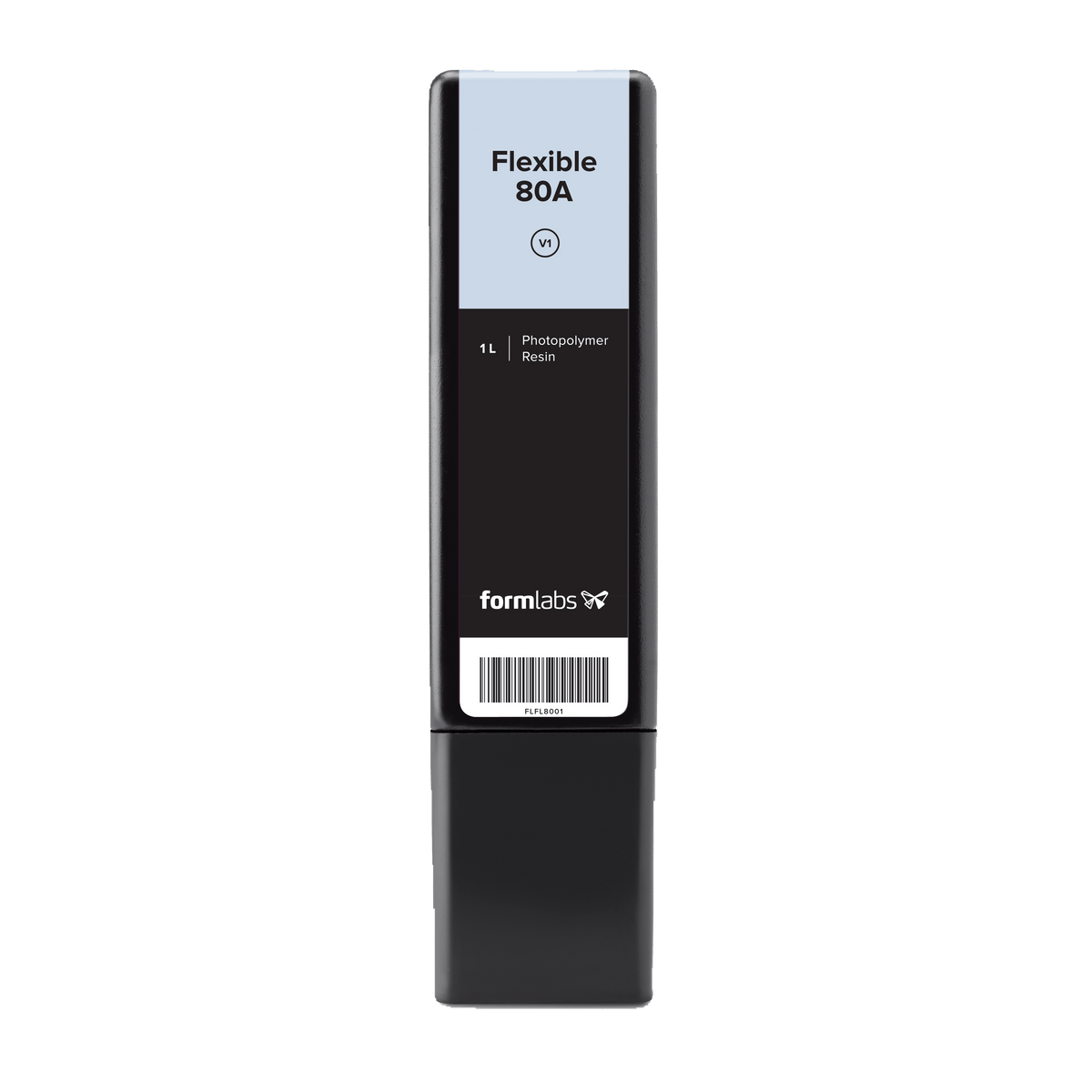

Formlabs Flexible 80A Resin Cartridge (1 Litre OEM)

Formlabs Flexible 80A Resin Cartridge (1 Litre OEM)

Flexible 80A Resin can withstand bending, flexing, and compression, even through repeated cycles.
SKU:RS-F2-FL80-01
$286.00 CAD
Sale
Sold out

Price

$286.00 CAD

Stock

Request a Quote | Email This Page
Formlabs Flexible 80A Resin for Hard Flexible Prototypes

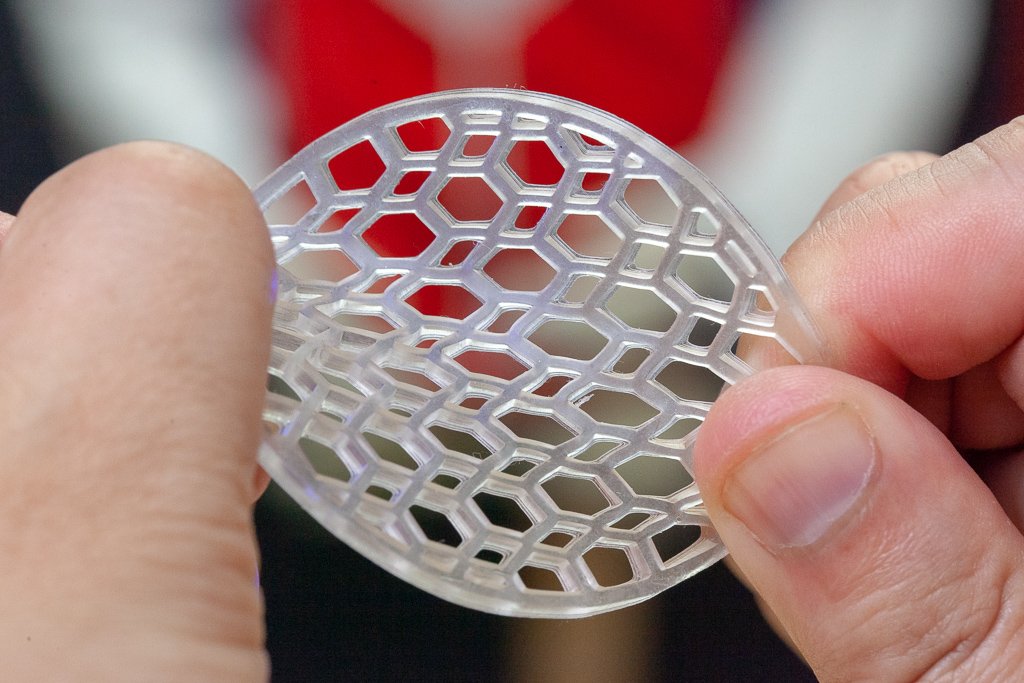

Flexible 80A Resin is the most stiff soft-touch material in our library of Flexible and Elastic Resins, with an 80A Shore durometer to simulate the flexibility of rubber or TPU. Balancing softness with strength, Flexible 80A Resin can withstand bending, flexing, and compression, even through repeated cycles. This material is well-suited for cushioning, damping, and shock absorption.

Resin Details

Applications

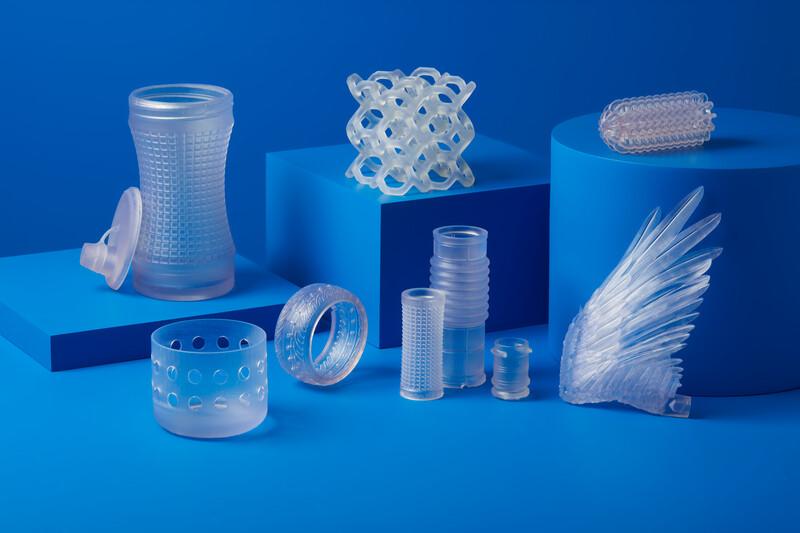

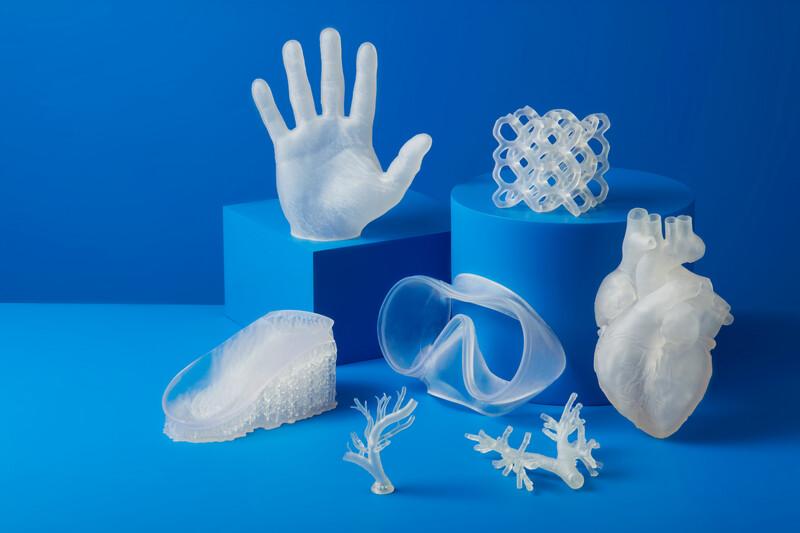

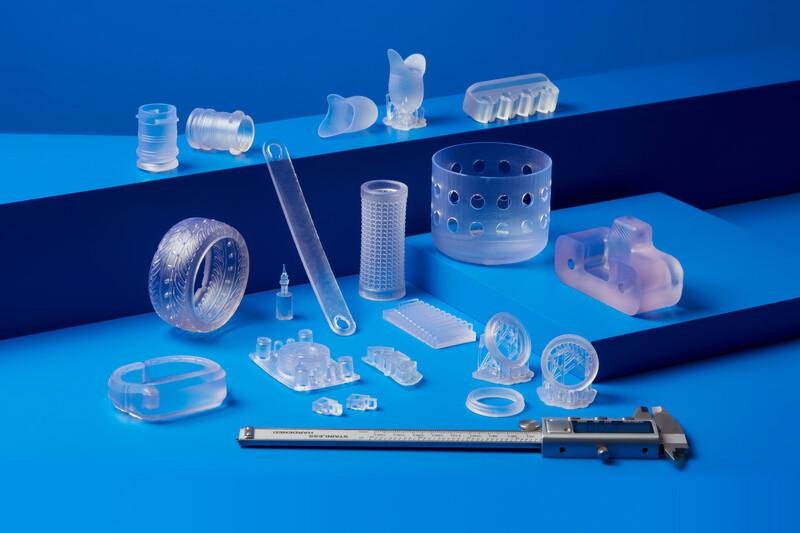

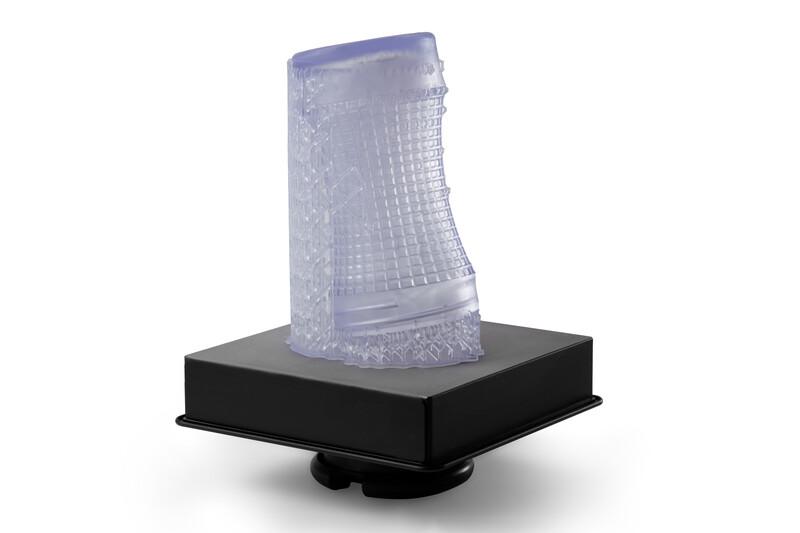

Handles, grips, overmolds; seals, gaskets, masks; cushioning & shock absorption (80A Shore)

Documentation

Elastomeric

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 3L
  • Form 3
Tank Compatibility
  • F2 LT
  • F3
  • F3L

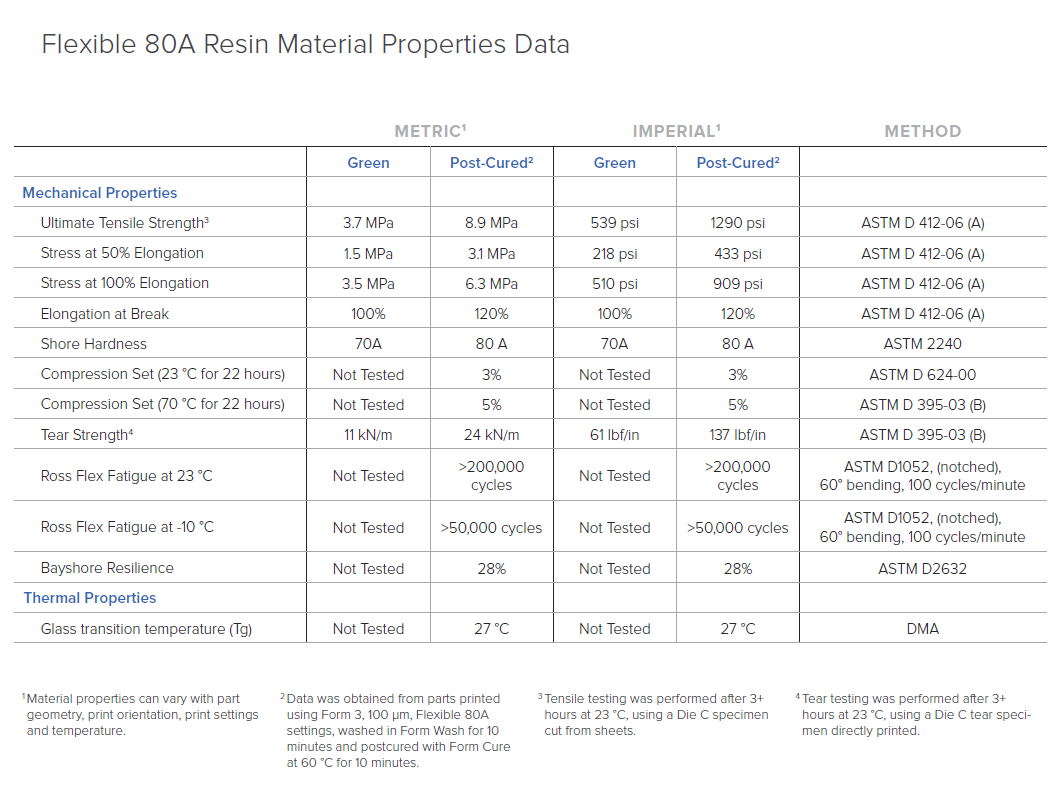

Material Properties
Ross Flexing Fatigue >200,000 cycles (notched, 60° bend, 100/min)
Elongation at Break 120%
Ultimate Tensile Strength 8.9 MPa

Resin Cheat Sheet

Product Flexible 80A Resin V2
Cure Temperature Cure V1: N/A > 70 °C | Cure V2: N/A > 80 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 5 > 5 min
Wash Time 5 minutes + 5 minutes**
Special Notes

Wash

  • Wash parts printed in Flexible 80A Resin V2 in two cycles, preferably using fresh solvent for the second wash.
  • Formlabs does not recommend using Resin Washing Solution to wash parts printed in this resin.

** Parts with two wash times require two wash cycles. For the second wash cycle, use clean solvent. The first wash cycle removes the bulk of the resin, while the second cycle fully cleans the parts.

Cure

  • Form Cure V1: Place dry parts in a glass beaker (or other UV-transparent container) and completely submerge the parts in room temperature water. Place the container inside the Form Cure and post-cure for 5 minutes with no heat. Remove the parts from the container, dry them, then post-cure in air for 5 minutes at 80 °C.
  • Form Cure V2: Place dry parts in a glass beaker (or other UV-transparent container) and completely submerge the parts in room temperature water. Place the container inside the Form Cure and post-cure for 5 minutes with no heat. Remove the parts from the container, dry them, then post-cure in air for 30 minutes at 70 °C.
Extra Abrasive to Tanks --

Notes

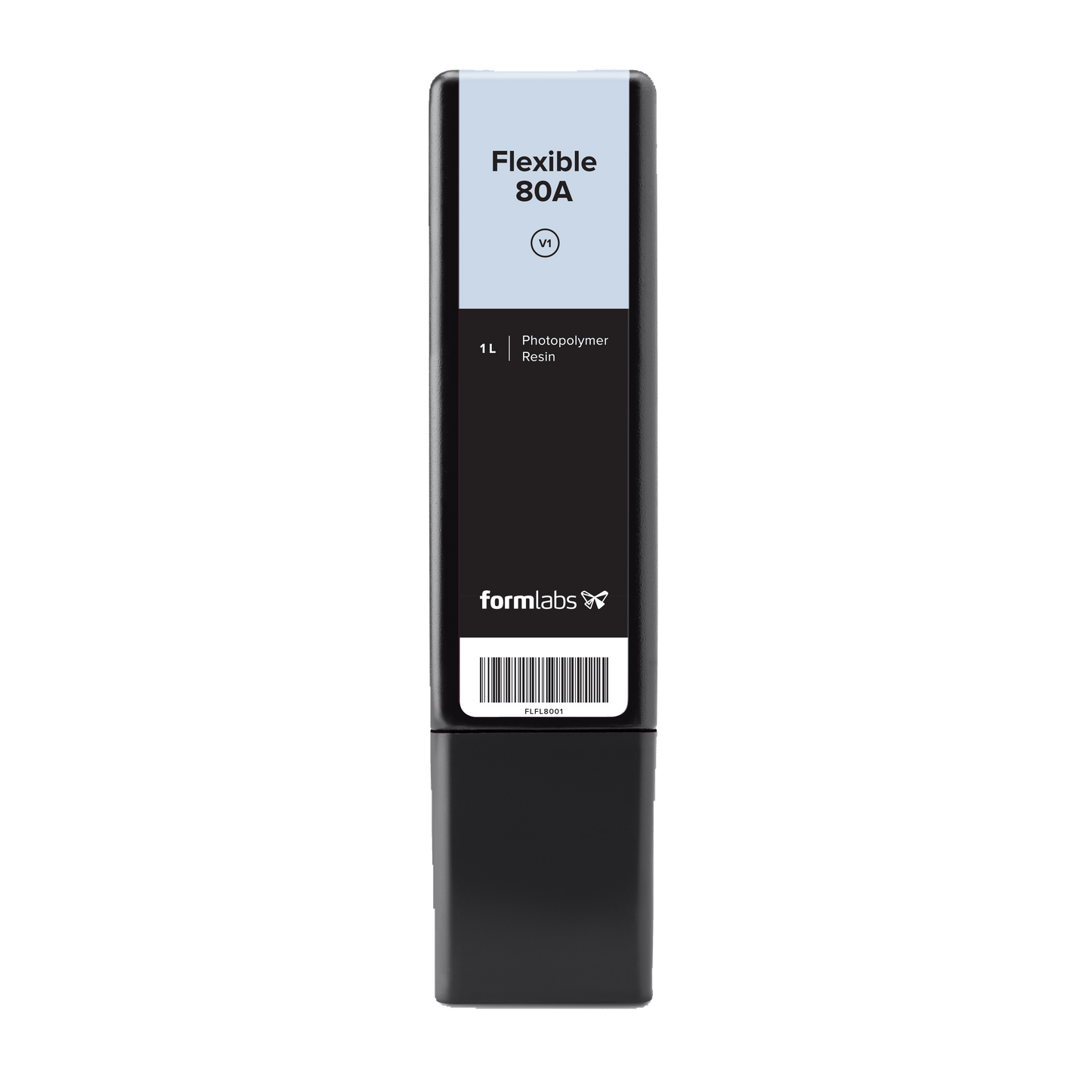

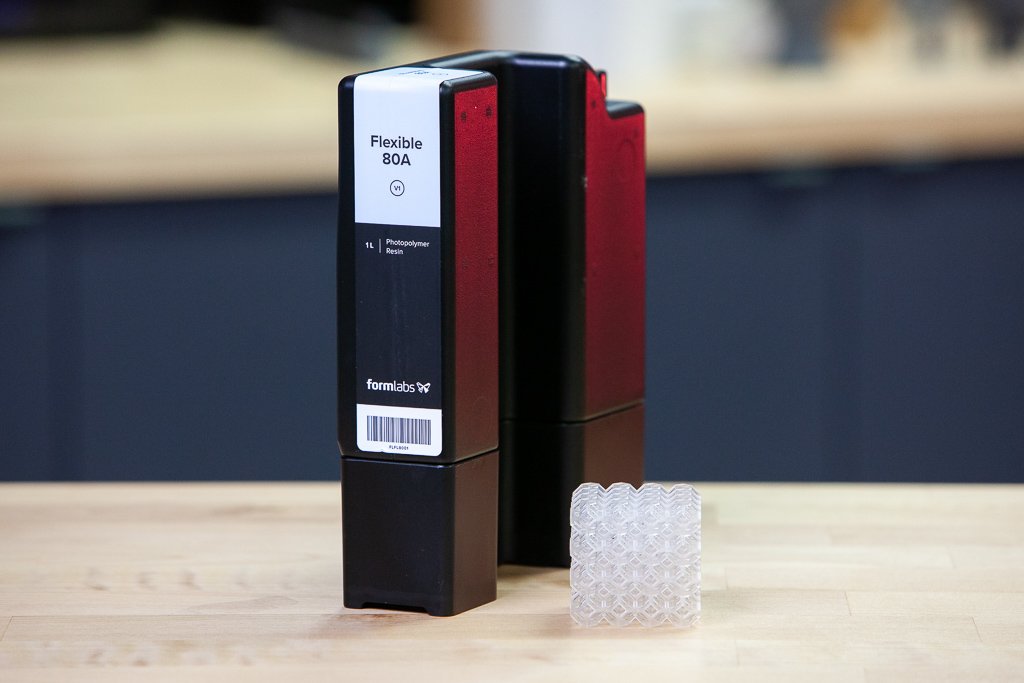

Formlabs Engineering resins come in a resealable and refillable 1 Litre Cartridge.

Resins should be handled in accordance with Formlabs protocols.

A new resin tank should be used per Resin colour/type for your Form 3 or Form 3B.

Never mix the use of resin colours or types with a resin tank.

Purchase additional resin tanks here.

Product Highlights

Top Features

Improvements & Differences over Flexible V2

  • 2x tear strength
  • 1.5x elongation at break
  • >5x number of flexing cycles
  • Does not dryout or crumble over time

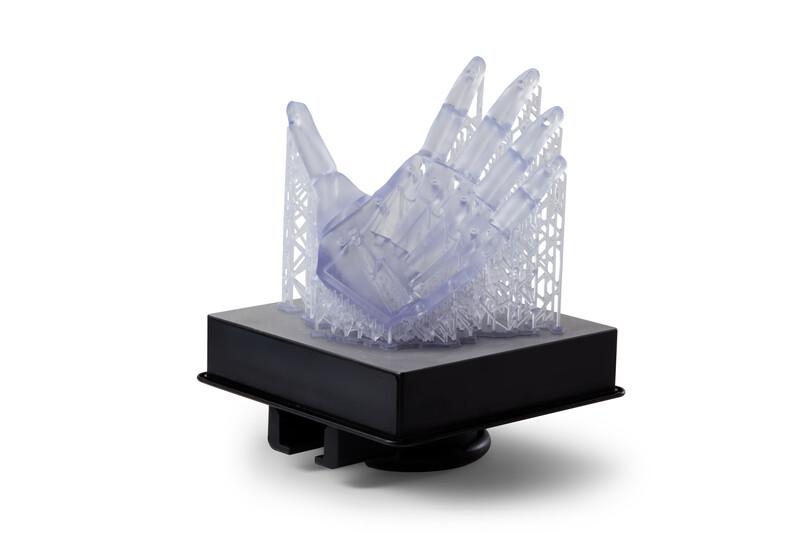

  • x4 smaller support touch tips
  • Clear colour
  • Shorter washing and curing times
  • Supports Print Resolutions: 100 and 50 microns
