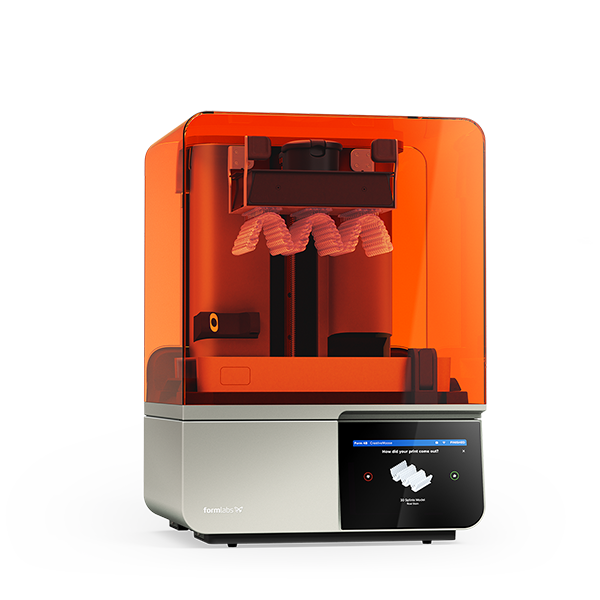

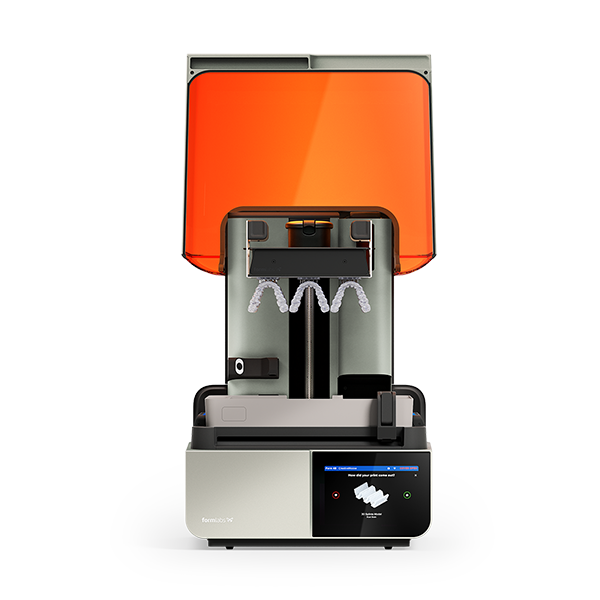

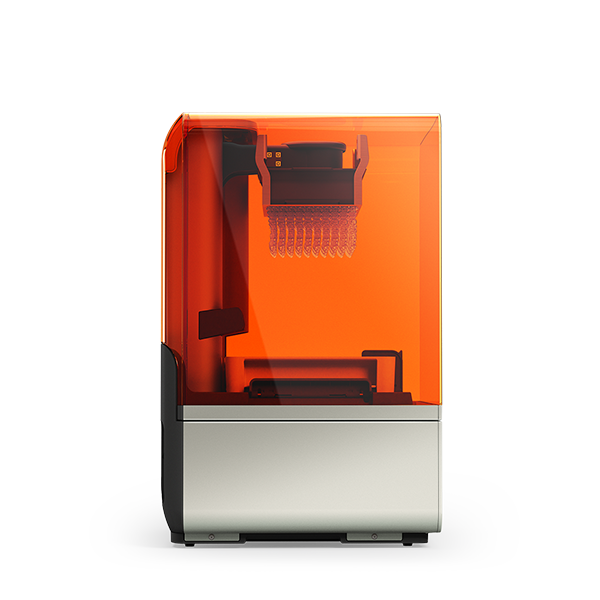

Formlabs Form 4B Starter Medical Package

Formlabs Form 4B Starter Medical Package

Formlabs Form 4B Starter Medical Package

Medical resin 3D printer for fast, accurate biocompatible healthcare applications.
SKU: PKG-F4B-WSVC-BASIC
$10,779.00 CAD
Sale
Sold out

Price

$10,779.00 CAD

Stock

Request a Quote | Email This Page

Product Details

The Formlabs Form 4B Basic Medical Package is a professional medical resin 3D printing solution designed for healthcare, dental, and biomedical workflows. Built around Formlabs’ fast Low Force Display™ (LFD) print engine, it delivers precise, reliable production of anatomical models, surgical guides, and medical devices with a streamlined workflow and access to a wide range of biocompatible materials.

Technical Specs

Overview
Technology SLA | Low Force Display (LFD)
Build Volume / Work Area (L× W× H) 20.0 x 12.5 x 21.0cm | 7.9 x 4.9 x 8.3 in
Footprint (L× W× H) 39.8 x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9in
Box Size 51 x 53 x 71 mm | 21 x 20 x 28 in
Net Weight 18.3kg | 40.4lb
Material Compatibility
Compatible Materials Form 4B Resins
Performance
Layer Thickness 25–200 microns 0.001–0.008 in
Dimensional Tolerance 1-30 mm features: ±0.15% (lower limit: ±0.02 mm) 31-80 mm features: ±0.3% (lower limit: ±0.06 mm) 81-150 mm features: ±0.3% (lower limit: ±0.15 mm)
Speed & Productivity
Maximum Speed 100 mm/hr
Platform & Motion System
Included Build Plate Formlabs Form 4 Build Platform
Build Plate Compatibility Form 4 Build Platform/ Form 4 Flex Build Platform
Temperature Control
Chamber Heating Resin Heater
Sensors & Monitoring
Camera Yes
Filament Detection Resin Detection: Yes
Door Sensor Yes
Power Loss Recovery No
Number of Sensors

(6)Ultrasonic Resin Level Sensor
Printer Leveling Sensor
Cartridge Load Cell
High-Speed Infrared Temperature Sensor
Z-Axis Force Sensor
Integrated camera

Software & Workflow
Included Software

PreForm
Additional Software

Open Material Mode
Supported File Types STL, OBJ, 3MF
Connectivity
Wi-Fi 2.4 GHz and 5 GHz) compatible with IEEE 802.11 b/g/n/ac protocol
Ethernet Ethernet (1000 Mbit)
USB USB C port with a USB C-A cable
Connectivity Formlabs Dashboard
Remote Monitoring Yes
Power
Input Voltage 100-240 VAC at 50/60 Hz
Maximum Power Consumption 480 Watt
Safety and Compliance
ESA Certification CSA C22.2#62368-1:2019 Ed.3+U1
Certifications https://support.formlabs.com/s/article/Certifications-and-standards-hardware?language=en_US
Warranty and Support
Manufacturer Warranty 1 year, 3 years or 5 years

What's in the Box

  • 1 x Formlabs Form 4B 3D Printer
  • 1 x Formlabs Form 4 Resin Tank
  • 1 x Formlabs Form 4 Mixer
  • 1 x Formlabs Form 4 Build Platform Flex
  • 1 x Formlabs Form 4 Finish Kit
  • Open Material License for Form 4B

Documentation

Product Highlights

Top Features

  • Medical-focused MSLA resin 3D printer designed for healthcare and dental applications.
  • Low Force Display™ (LFD) print engine for fast, consistent, high-quality prints.
  • 200 × 125 × 210 mm build volume (5.25 L) for medical models, guides, and devices.
  • 50 μm XY resolution with pre-tuned anti-aliasing for smooth surfaces and fine details.
  • 25–300 μm layer thickness range for balancing speed and detail.
  • ±0.15% dimensional accuracy for reliable, repeatable medical parts.
  • Supports 38 Formlabs materials, including 15 biocompatible materials and Open Material Mode compatibility.
  • Automatic resin handling for simplified operation.
  • Includes Form 4B printer, resin tank, mixer, Flex Build Platform, finish kit, and Open Material License.
  • Designed for applications including anatomical models, surgical guides, dental workflows, and medical devices.

Speed Meets Medical Precision

The Form 4B delivers rapid medical-grade resin printing with the reliability professionals expect. Its LFD print engine cures each layer quickly while maintaining fine details, smooth finishes, and consistent accuracy across the build platform.

Built for Healthcare Applications

With a dedicated medical material ecosystem and support for biocompatible materials, the Form 4B enables teams to create patient-specific models, surgical guides, and medical devices with confidence. Its precision and repeatability make it suitable for demanding healthcare workflows.

A Streamlined Medical Printing Workflow

The Basic Medical Package includes the essential tools needed to start printing right away. Combined with Formlabs’ ecosystem of materials, software, and post-processing solutions, it simplifies the path from digital design to finished medical part.
