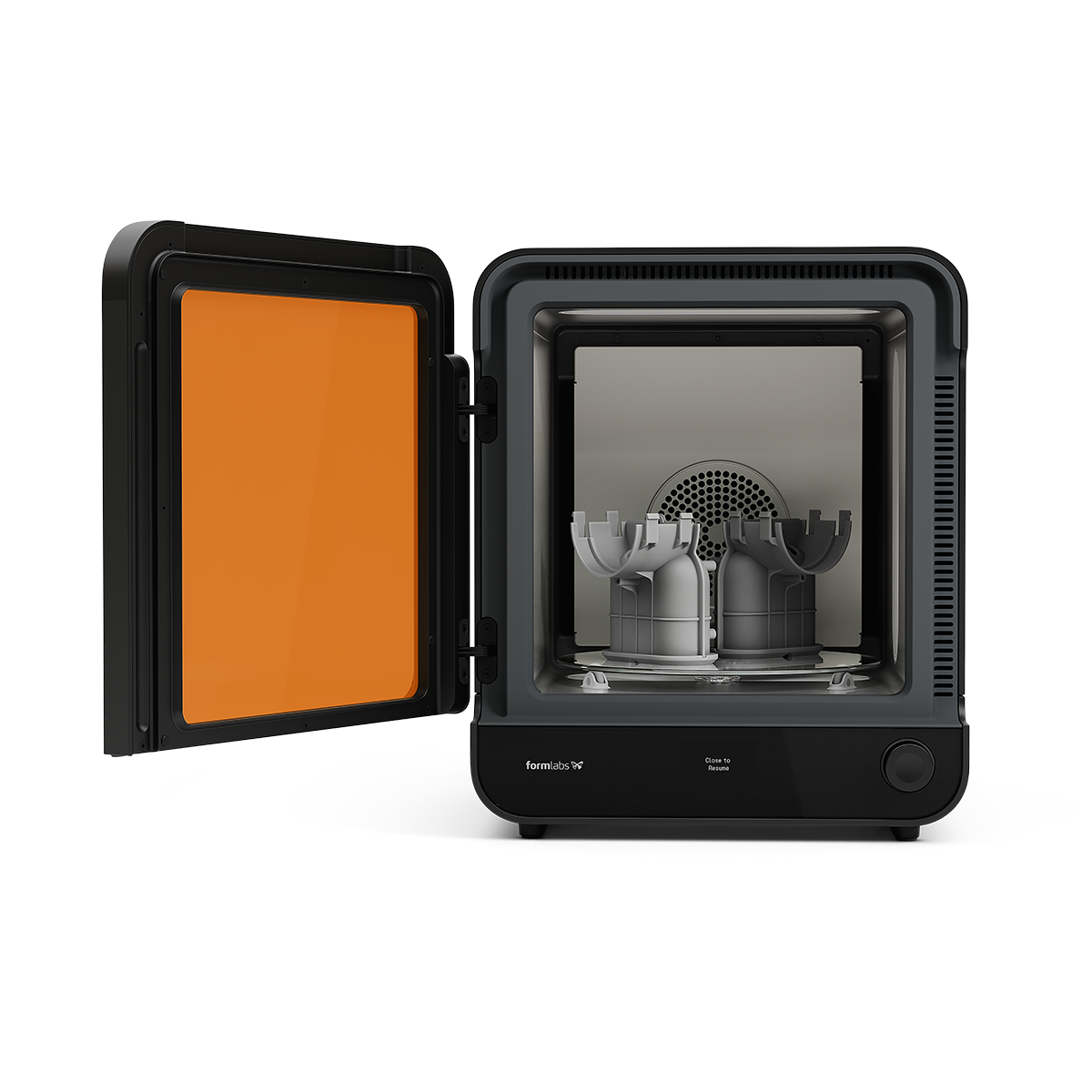

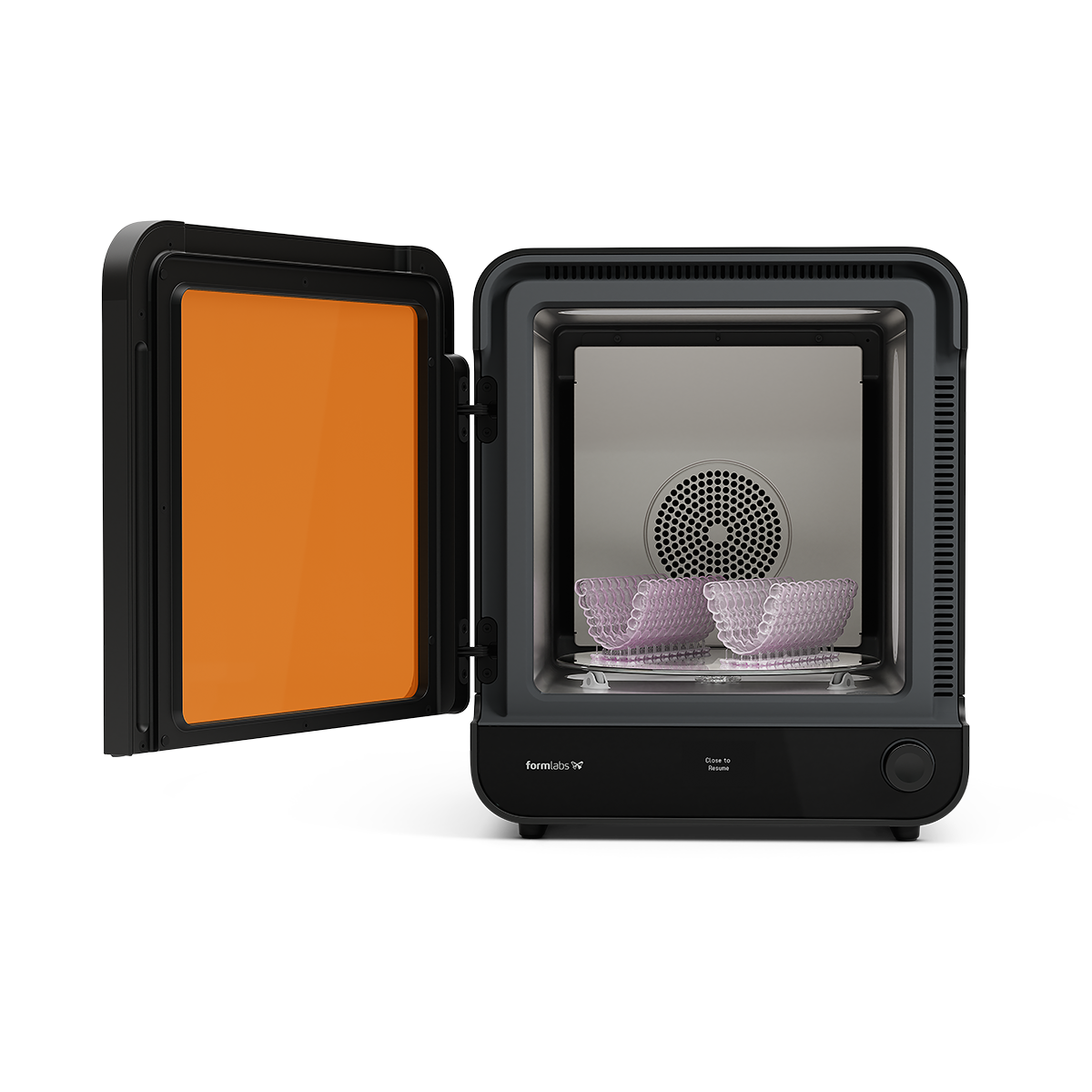

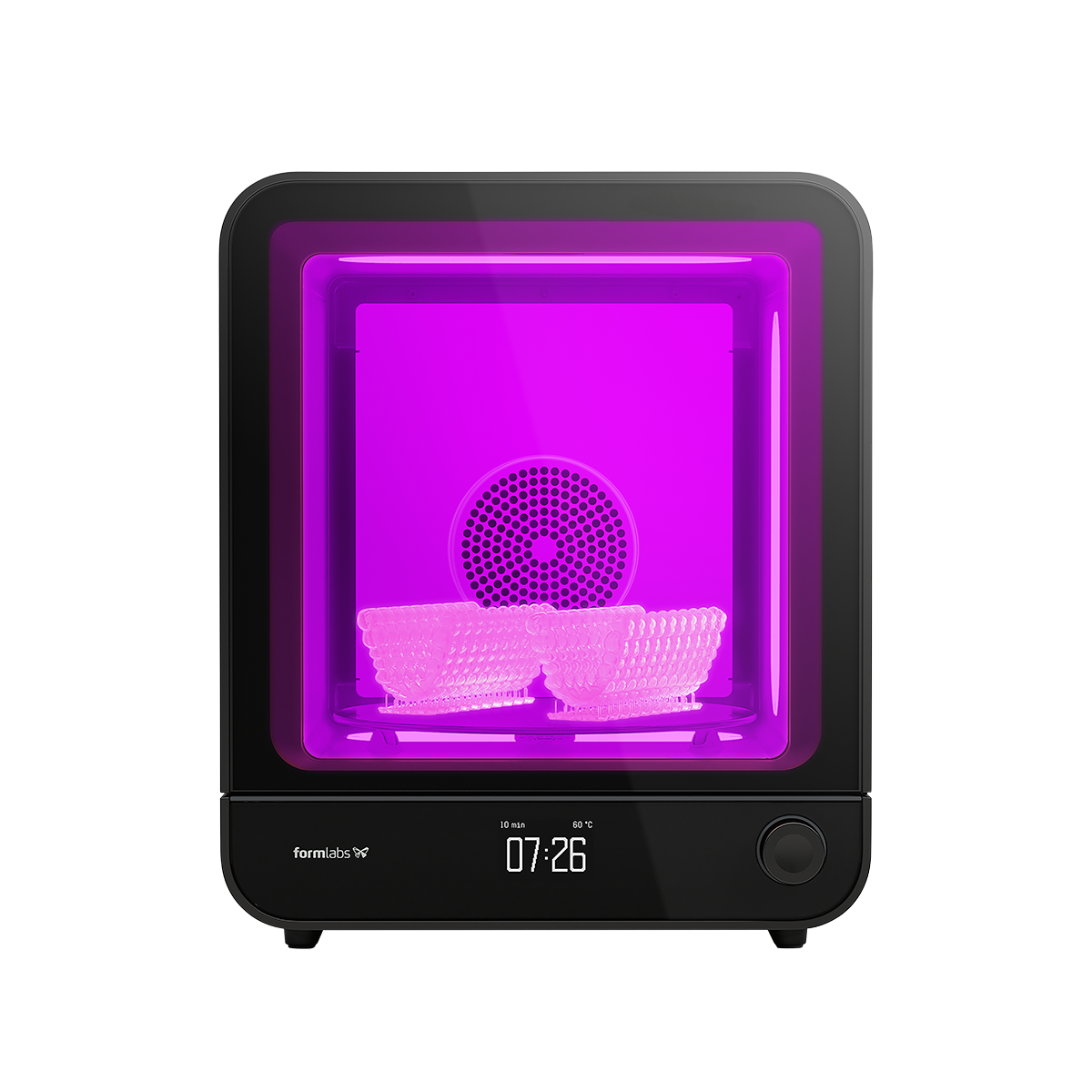

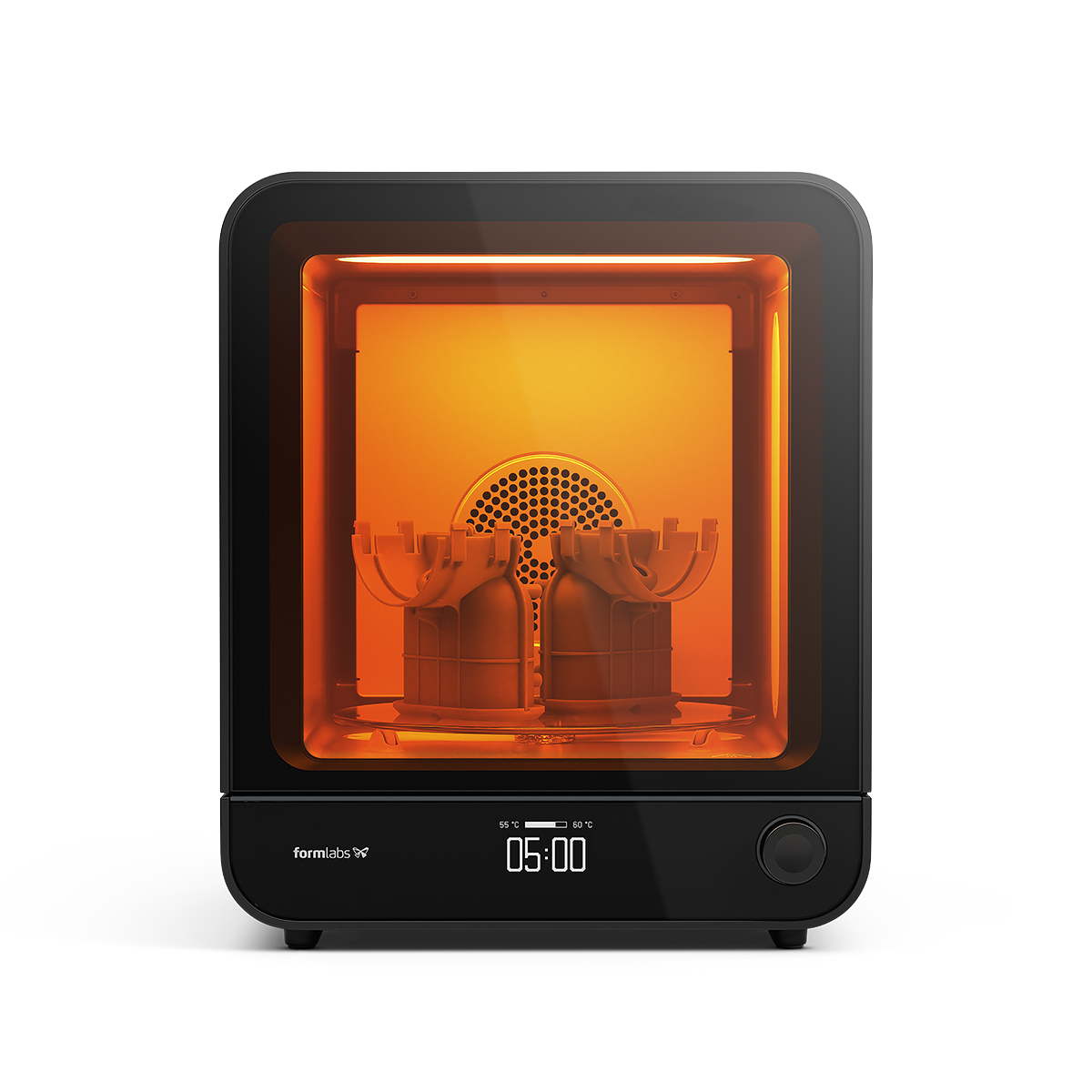

Formlabs Form Cure (2nd Generation)

Formlabs Form Cure (2nd Generation)

Formlabs Form Cure (2nd Generation)

Blazing Fast Post-Curing.
SKU: FH-CU-120V-02
$1,448.55 CAD
Sale
Sold out

Price

$1,448.55 CAD

Stock

Request a Quote | Email This Page | Add to Wishlist

Product Details

Form Cure V2 precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs. Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface. For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.

Technical Specs

Overview
Technology SLA
Function Post-cures resin 3D printed parts after printing and washing.
Box Size 19.5" x 20" x 19.5"
Net Weight 12.1 kg 26.7 lb
Maximum Power Consumption Input (NA) 100 - 120 V
VAC, 50-60 Hz, 15 A
Input (EU) 220 - 240 V
VAC, 50-60 Hz, 8 A
Safety and Compliance
Certifications CSA C22.2#62368-1:2019 Ed.3

Documentation

Links

Formlabs.com - Form Cure V2 Product Page

Material: Resin

Notes

For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.

Product Highlights

Top Features

Consistent, Validated Results

Optimized for reliable and repeatable curing performance.

  • Convection heating system that reaches temperatures up to 100 °C
  • 48 multi-directional LEDs that provide a uniform irradiance of 14.5 mW/cm2

Fully Compatible With Form 4

Designed to fit an entire Form 4 build, anything from large parts to full production batches.

  • 235 mm rotating turntable
  • 245 mm maximum part height

Easier Than Ever

Sleek new design and a compact footprint make curing as easy as pushing a button.

  • 45+ pre-programmed cure profiles
  • Easy-to-clean glass turntable
  • Side-hinged door to allow easy access

Formlabs Form Cure (2nd Generation)

Form Cure automatically post-cures resin 3D printed parts after printing and washing, improving strength and performance. After washing, place parts into the Form Cure, close the door, and select your resin to begin curing at an appropriate temperature for a pre-configured duration. With this 2nd Generation Form Cure, many cure cycles are now as fast as one minute.

Advanced users can edit the cure cycle to ensure complex parts come out right every time, and can save their preferences with custom settings.

For biocompatible materials, curing is necessary to achieve the safety standards determined by regulatory agencies, and users should follow the indications specified for each material.

Performance

How fast is Form Cure (2nd Generation)?

The Form Cure (2nd Generation) 230V heats up to 60℃ in <90 seconds, 80℃ in <180 seconds, and 100℃ in <270 seconds. The Form Cure (2nd Generation) 120V heats up to 80℃ in <180 seconds, 80℃ in <270 seconds, and 100℃ in <270 seconds. Then once the printer is up to temperature;

Material Time on Form Cure (1st Gen) Time on Form Cure (2nd Gen) Speed Increase
Grey Resin V5 5 Min 1 Min 5x
BioMed Amber Resin 30 Min 5 Min 6x
Tough 2000 Resin 60 Min 7 Min 8.6x
High Temp Resin 120 Min 15 Min 8x

Full List of cure times will be updated

Features

Blazing Fast Curing, Nearly Instant Heat Up Time

Post-cure general purpose resins in just 60 seconds or cure engineering resins in less than 15 minutes with just 60 seconds required to heat to 60 °C (230 V version).

Consistent, Validated Results

48 LED array and convective heating system ensure uniform UV and heat exposure, delivering 14.5 mW/cm² irradiance and a maximum temperature of 100 °C.

Post-Cure Large Form 4 Prints

Designed to fit any part on the Form 4, enabling curing of parts up to 200 x 125 x 245 mm on a 235 mm turntable.

Easier than Ever

Sleek new design with pre-programmed cure cycles, an easily cleaned glass turntable, and side-hinged door to allow easy access within a compact footprint.
