Form Wash V2 (Form 4) - Automated Wash Cycler

Product SKU: FH-WA-02

Available Stock:
Loading...

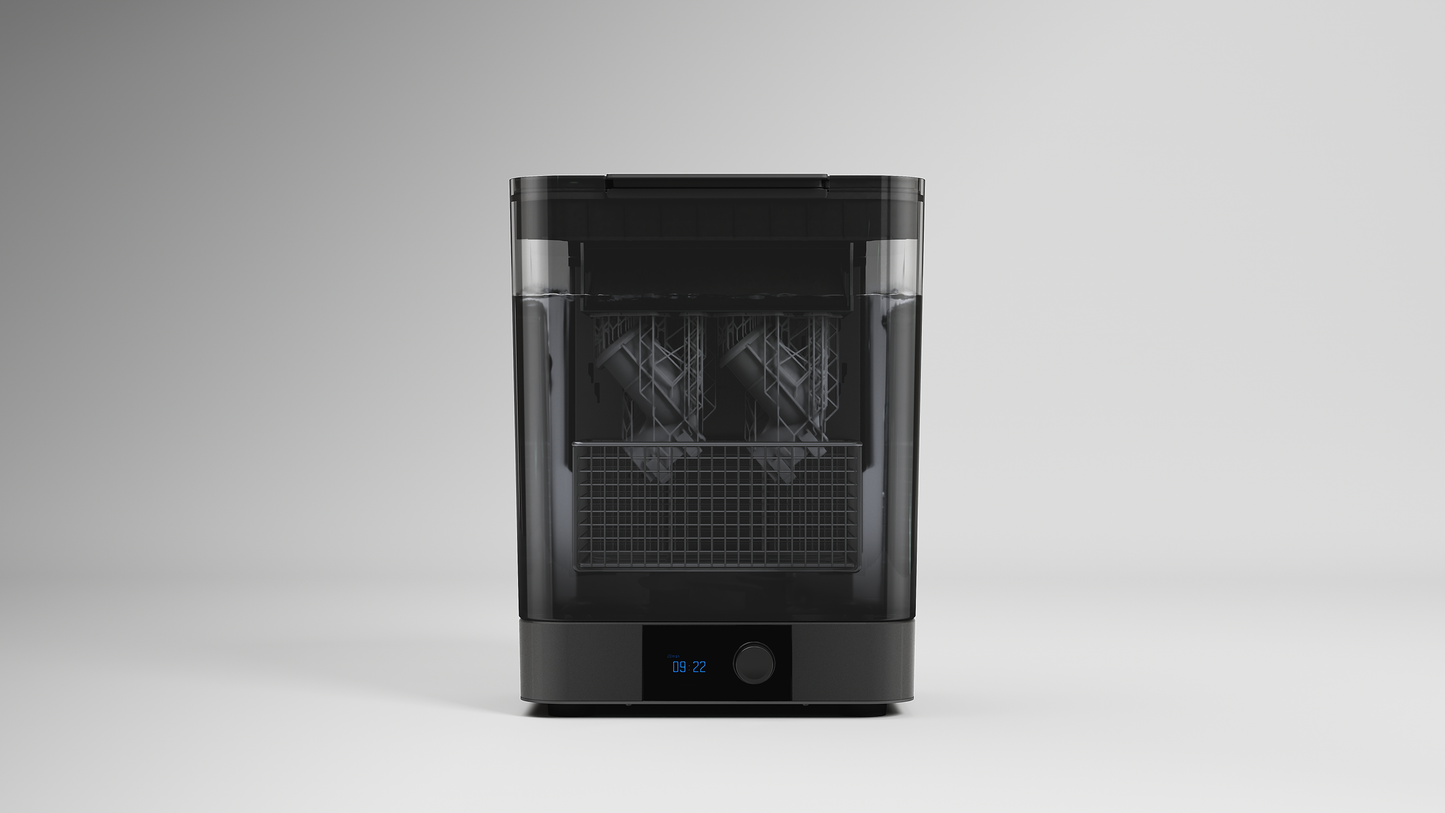

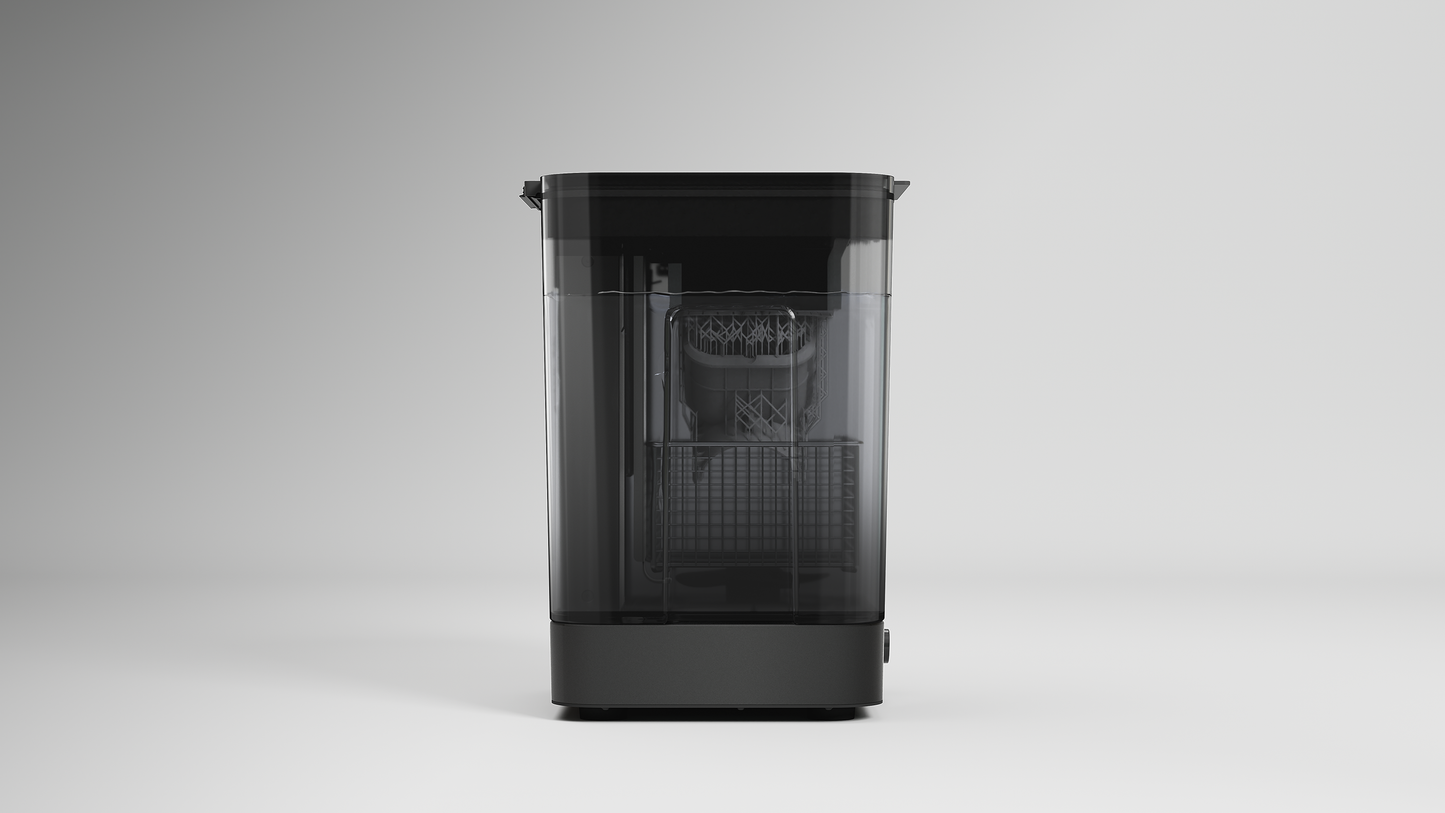

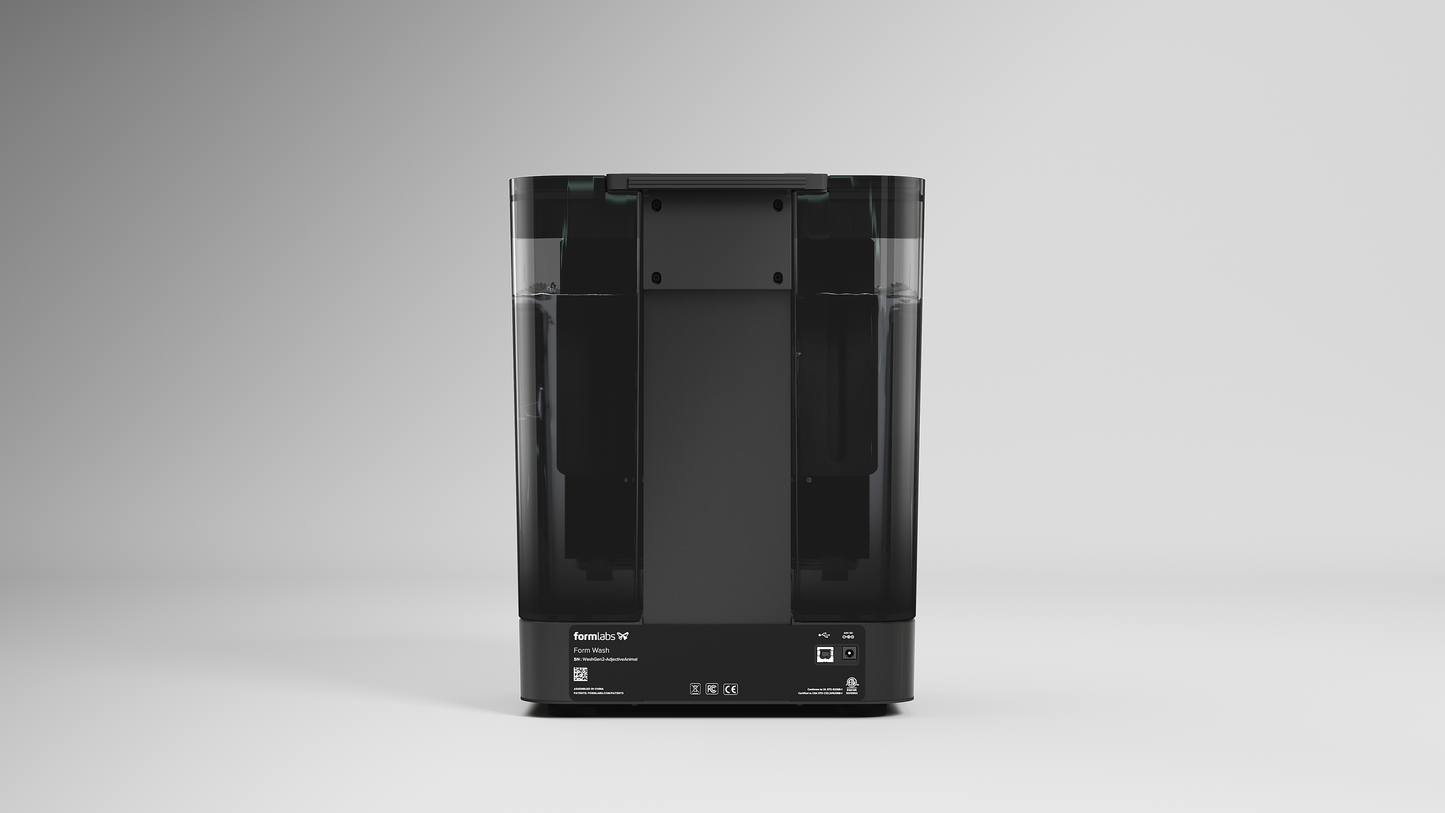

Formlabs Form Wash V2

Form Wash automatically cleans printed parts thoroughly and efficiently with IPA or alternative solvents. Keep parts directly on the Build Platform as you transition them from the printer to Form Wash, or remove parts and place them in the wash basket. Parts are precisely and thoroughly agitated in solvent with an impeller, getting every nook and cranny perfectly clean, automatically for the appropriate time. When washing completes, the Form Wash automatically raises parts out of the IPA so they can air dry.

Automate Cleaning With Form Wash

Adaptable to Build Platforms
Seamlessly switch between build platforms with adjustable platform mounts, configurable at various heights and widths.


Flexible Solvent Volume
Tailor the solvent volume to the size and quantity of your parts. Use lower solvent quantities for smaller parts and builds to increase resource efficiency.

Improved Agitation
Let Form Wash auto-clean your parts for the appropriate time thoroughly with 3x more agitation than the previous generation.


Compatible with Variety of Solvents
Our recommendation is using IPA for the best cleaning performance, but alternative solvents such as TPM are also compatible with Form Wash.

Set It and Forget It

Simply set the appropriate time and let Form Wash get to work.


10
MINUTES

Default wash time when using fresh isopropyl alcohol (IPA).


7 - 15
LITERS

Flexible solvent volumes to wash parts of all sizes.


120
PRINTS

Number of prints per IPA refill with regular use. Wash 67% more parts before replacing solvent compared to the previous generation.

What's Included
  • Form Wash (2nd Generation)
  • Wash Bucket
  • Wash Basket
  • Hydrometer
  • 2x Platforms Mounts
Technical Specifications
  • Printer Compatibility:
    Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2
  • Dimensions:
    31.5 x 29.3 x 40.5 cm
    12.4 x 11.5 x 15.9 in
    Height when open: 71.4 cm (28.1 in)
  • Weight:
    8.6 kg (without solvent)
    18.9 lbs (without solvent)
  • Bucket Volume:
    14.4 L
    3.8 US gal
  • Maximum Part Size:
    20 x 14.5 x 19.5 cm
    7.9 x 5.7 x 7.6 in
  • Suggested Operating Environment:
    Suggested 18—28 °C
    Suggested 64—82 °F
  • Agitation Method:
    Magnetically coupled impeller
  • Power Requirements:
    90–240 V
    2.0 A 50/60 Hz
    50 W
  • Compatible Solvents:
    IPA, TPM, Water
