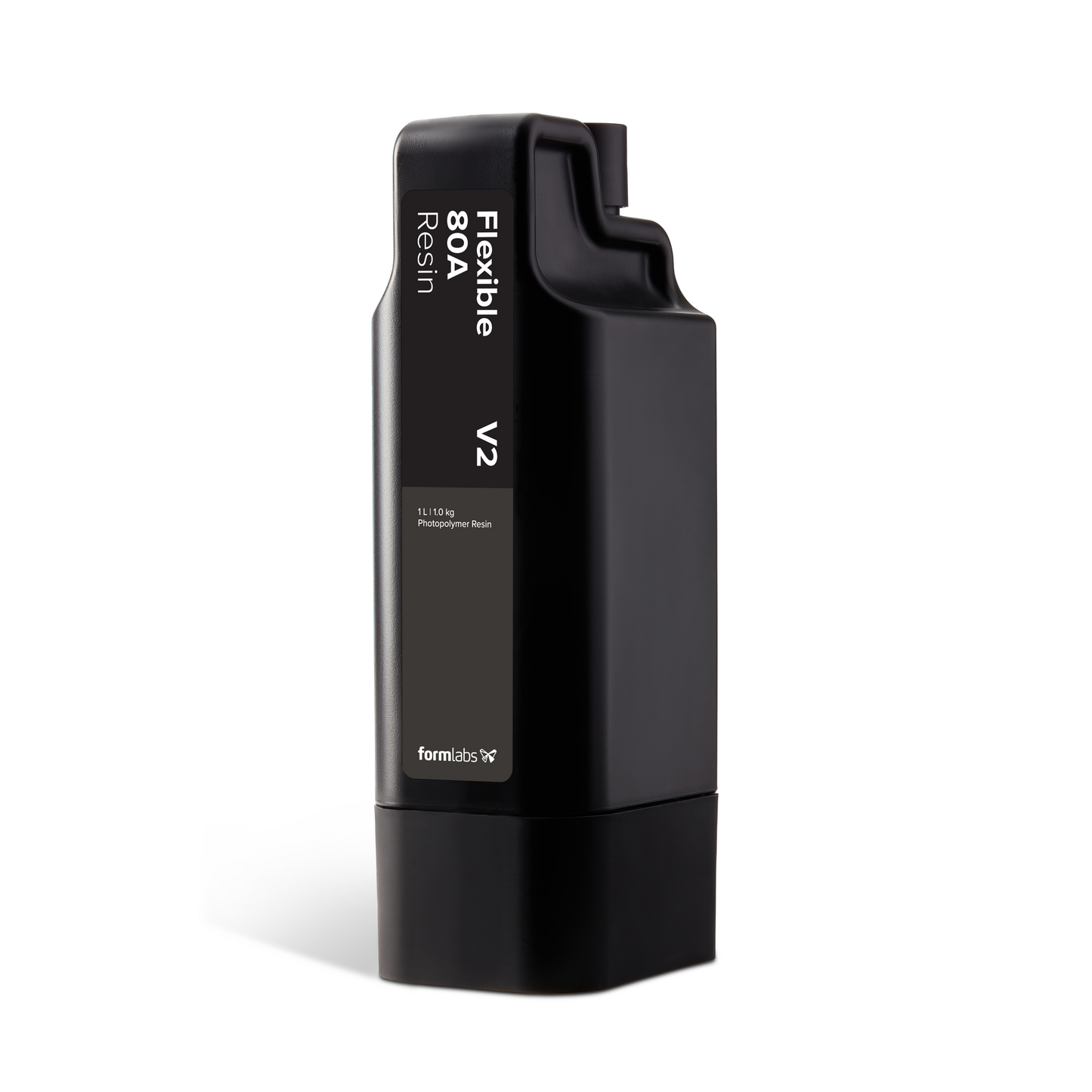

Formlabs Flexible 80A Resin V2 (1 Liter OEM)

Formlabs Flexible 80A Resin V2 (1 Liter OEM)

Formlabs Flexible 80A Resin V2 (1 Liter OEM)

A resilient 3D printing elastomer that rivals 80A cast urethanes, TPUs, and hard rubbers.
SKU:RS-RPS-FL80-02
Size
$1,253.00 CAD
Sale
Sold out

Price

$1,253.00 CAD

Stock

Request a Quote | Email This Page

Formlabs Flexible 80A (1 Liter OEM)  - Form 4

Overview

Flexible 80A Resin V2 is a resilient 3D printing elastomer that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers.

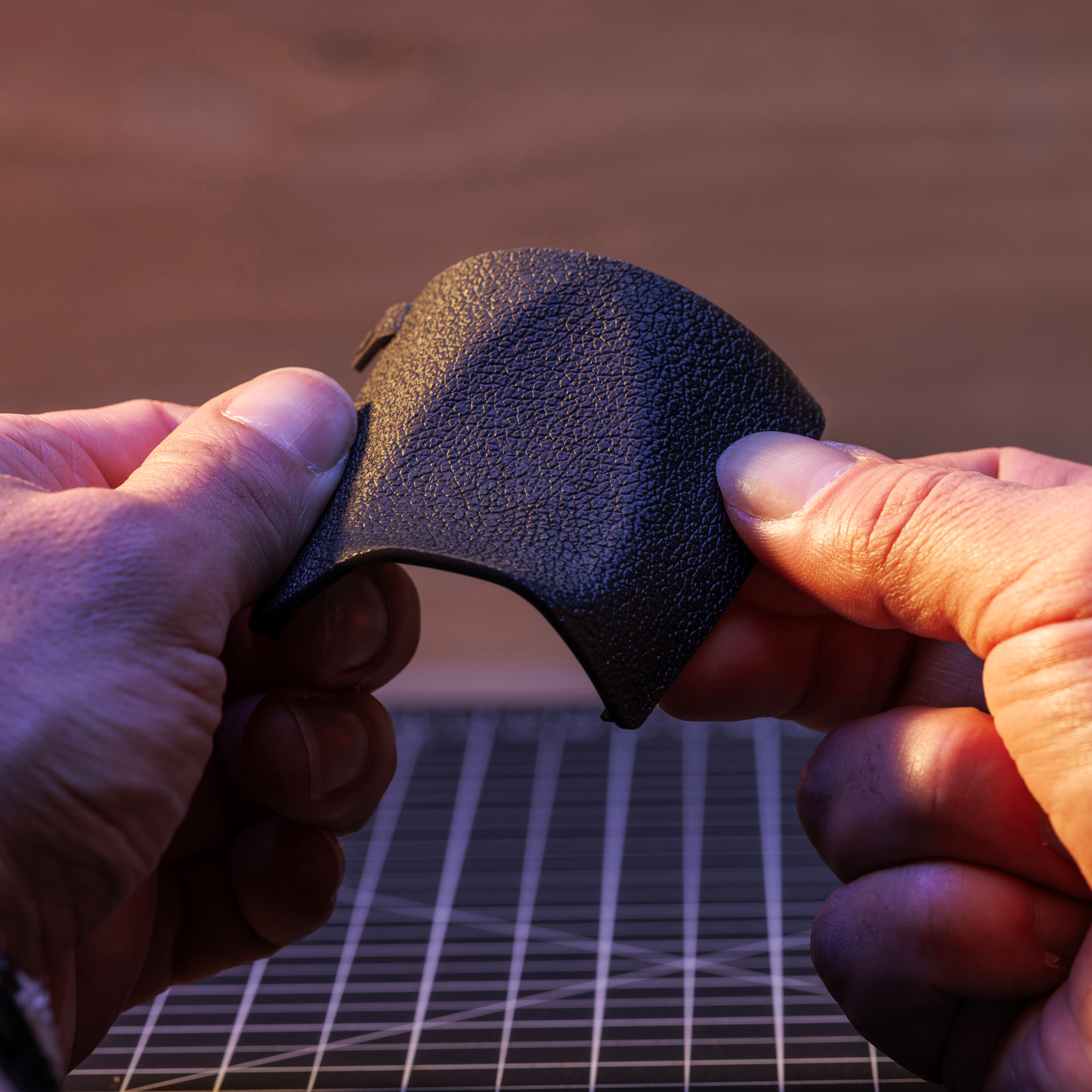

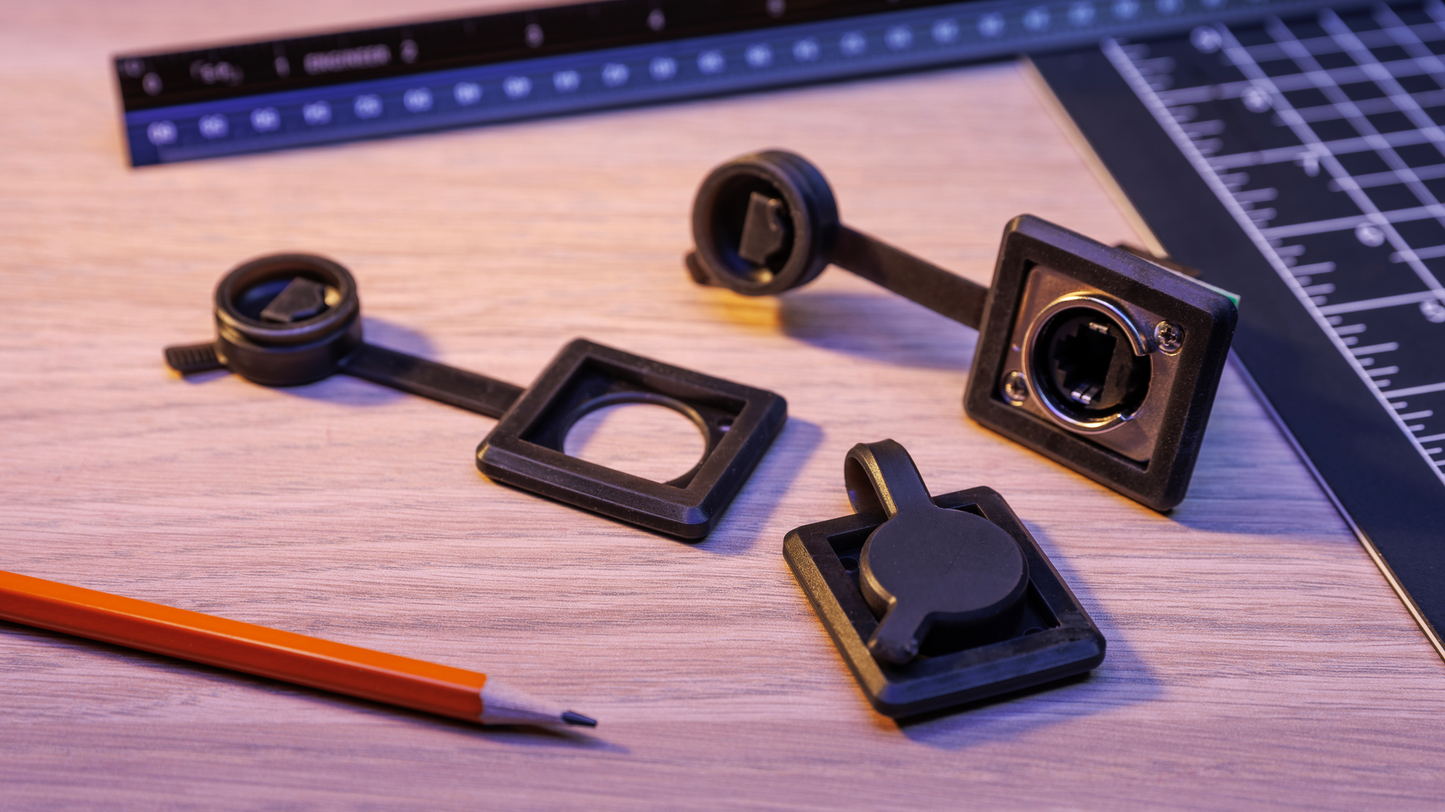

Parts printed in Flexible 80A Resin V2 snap back into place and withstand repeated bending, tension, and compression. Create tear-resistant functional prototypes and end use parts, protect sensitive components with soft inserts and fixtures, or design refined padding and grips with tack-free surfaces and a matte, black finish.

Flexible 80A Resin V2 is a new material formulation that leverages the technology of Form 4 Series printers to deliver 2x higher tear strength, 2x higher elongation at break, 4x higher rebound, and improved aesthetics and aging compared to the previous version.

Resin Details

Flexible 80A Resin V2 is a resilient 3D printing elastomer that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers. Parts printed in Flexible 80A Resin V2 snap back into place and withstand repeated bending, tension, and compression. Create tear-resistant functional prototypes and end use parts, protect sensitive components with soft inserts and fixtures, or design refined padding and grips with tack-free surfaces and a matte, black finish. Flexible 80A Resin V2 is a new material formulation that leverages the technology of Form 4 Series printers to deliver 2x higher tear strength, 2x higher elongation at break, 4x higher rebound, and improved aesthetics and aging compared to the previous version.
Applications

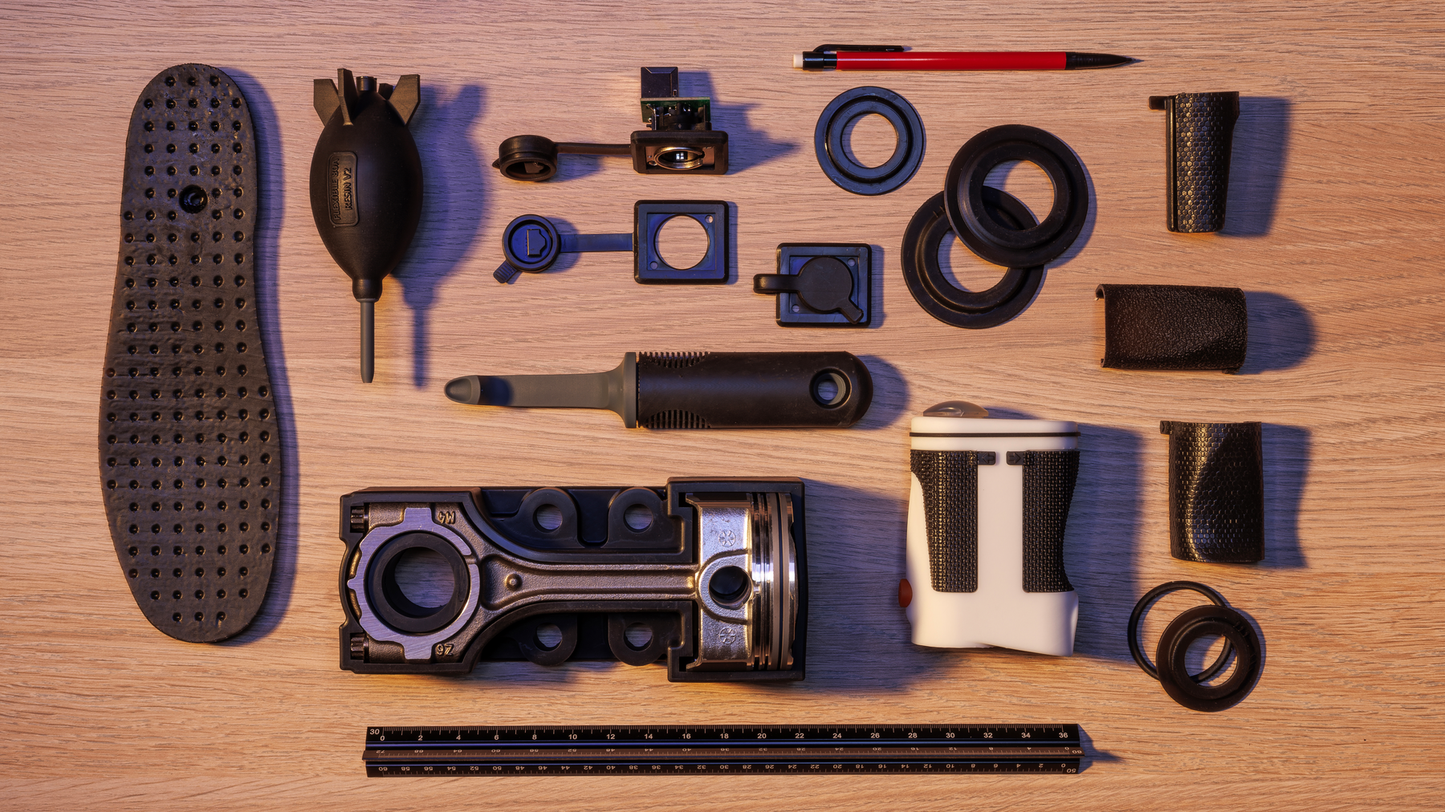

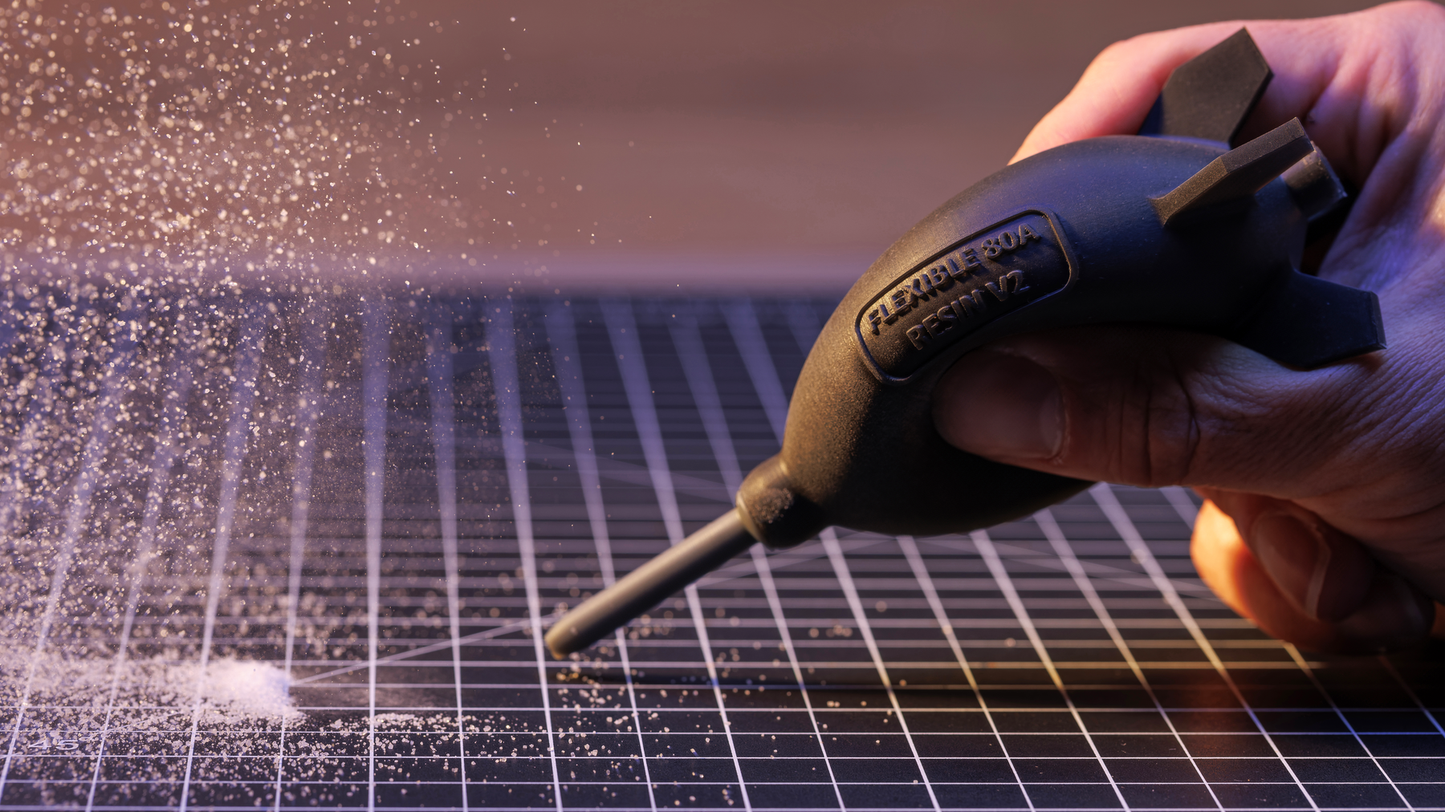

Handles, grips, overmolds; seals, gaskets, masks; cushioning & shock absorption (80A Shore)

Documentation

Elastomeric

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
Tank Compatibility
  • F4
  • F4L
Material Properties
Ross Flexing Fatigue >200,000 cycles (notched, 60° bend, 100/min)
Elongation at Break 120%
Ultimate Tensile Strength 8.9 MPa

Resin Cheat Sheet

Product Flexible 80A Resin V2
Cure Temperature Cure V1: N/A > 70 °C | Cure V2: N/A > 80 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 5 > 5 min
Wash Time 5 minutes + 5 minutes**
Special Notes

Wash

  • Wash parts printed in Flexible 80A Resin V2 in two cycles, preferably using fresh solvent for the second wash.
  • Formlabs does not recommend using Resin Washing Solution to wash parts printed in this resin.

** Parts with two wash times require two wash cycles. For the second wash cycle, use clean solvent. The first wash cycle removes the bulk of the resin, while the second cycle fully cleans the parts.

Cure

  • Form Cure V1: Place dry parts in a glass beaker (or other UV-transparent container) and completely submerge the parts in room temperature water. Place the container inside the Form Cure and post-cure for 5 minutes with no heat. Remove the parts from the container, dry them, then post-cure in air for 5 minutes at 80 °C.
  • Form Cure V2: Place dry parts in a glass beaker (or other UV-transparent container) and completely submerge the parts in room temperature water. Place the container inside the Form Cure and post-cure for 5 minutes with no heat. Remove the parts from the container, dry them, then post-cure in air for 30 minutes at 70 °C.
Extra Abrasive to Tanks --
