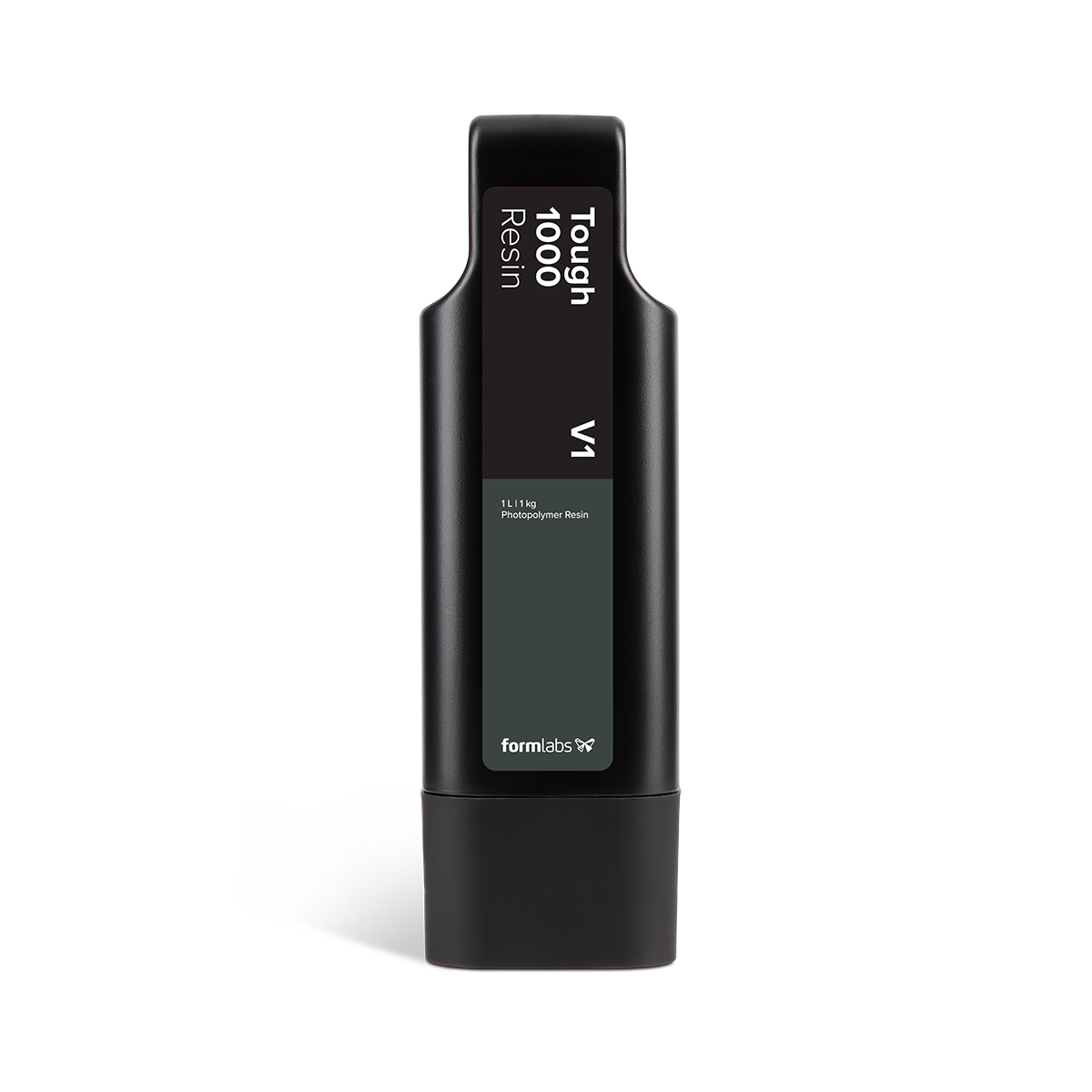

Formlabs Tough 1000 V1 Resin Cartridge (1 Liter OEM) - Form 4

Formlabs Tough 1000 V1 Resin Cartridge (1 Liter OEM) - Form 4

Formlabs Tough 1000 V1 Resin Cartridge (1 Liter OEM) - Form 4

SKU:RS-C2-TO10-01
$214.00 CAD
Sale
Sold out

Price

$214.00 CAD

Stock

Request a Quote | Email This Page

This product is exclusively for use with the Formlabs Form 4

Formlabs Tough 1000 V1 Resin Cartridge (1 Liter OEM) - Form 4

Overview

Tough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.



The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.

Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.

Resin Details

Applications

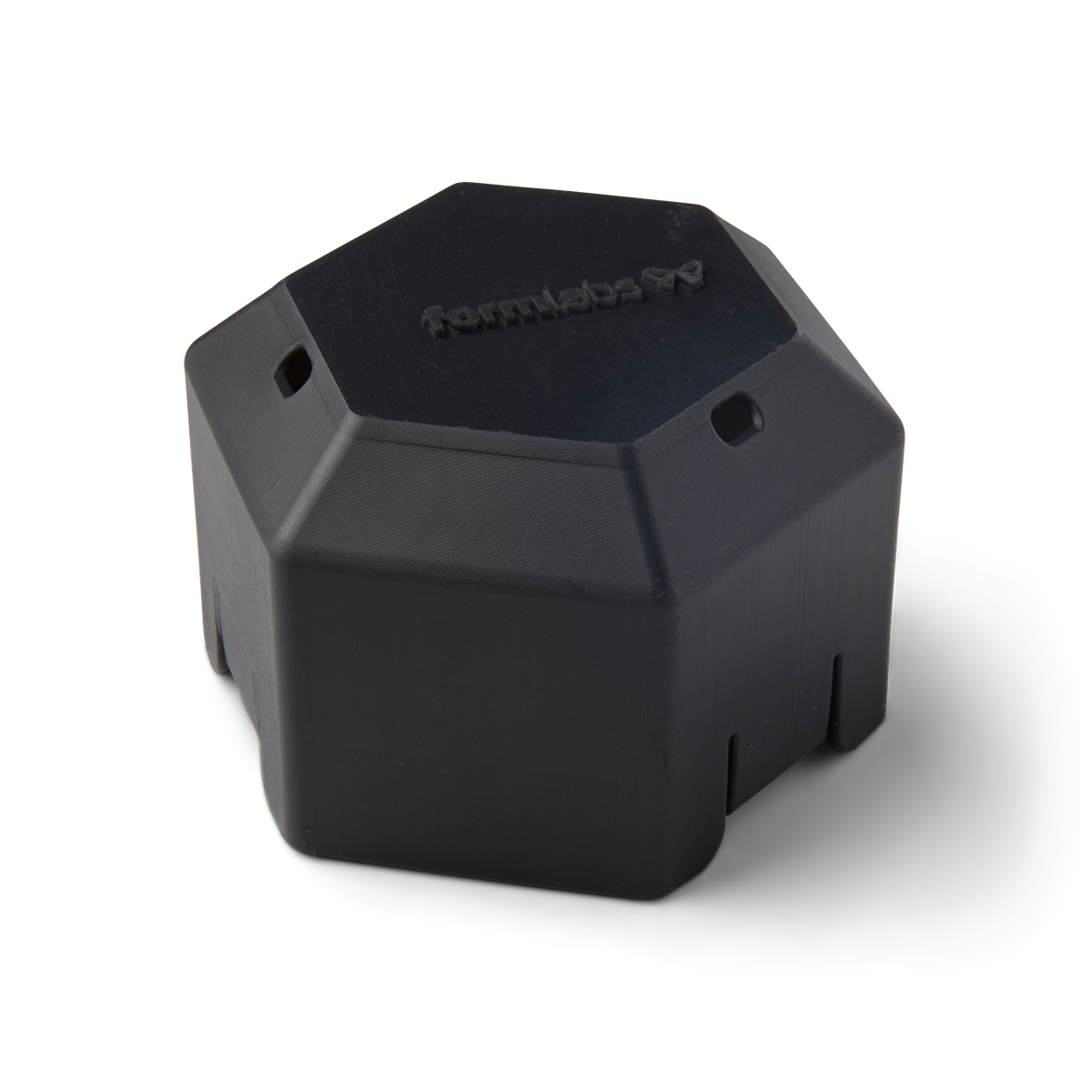

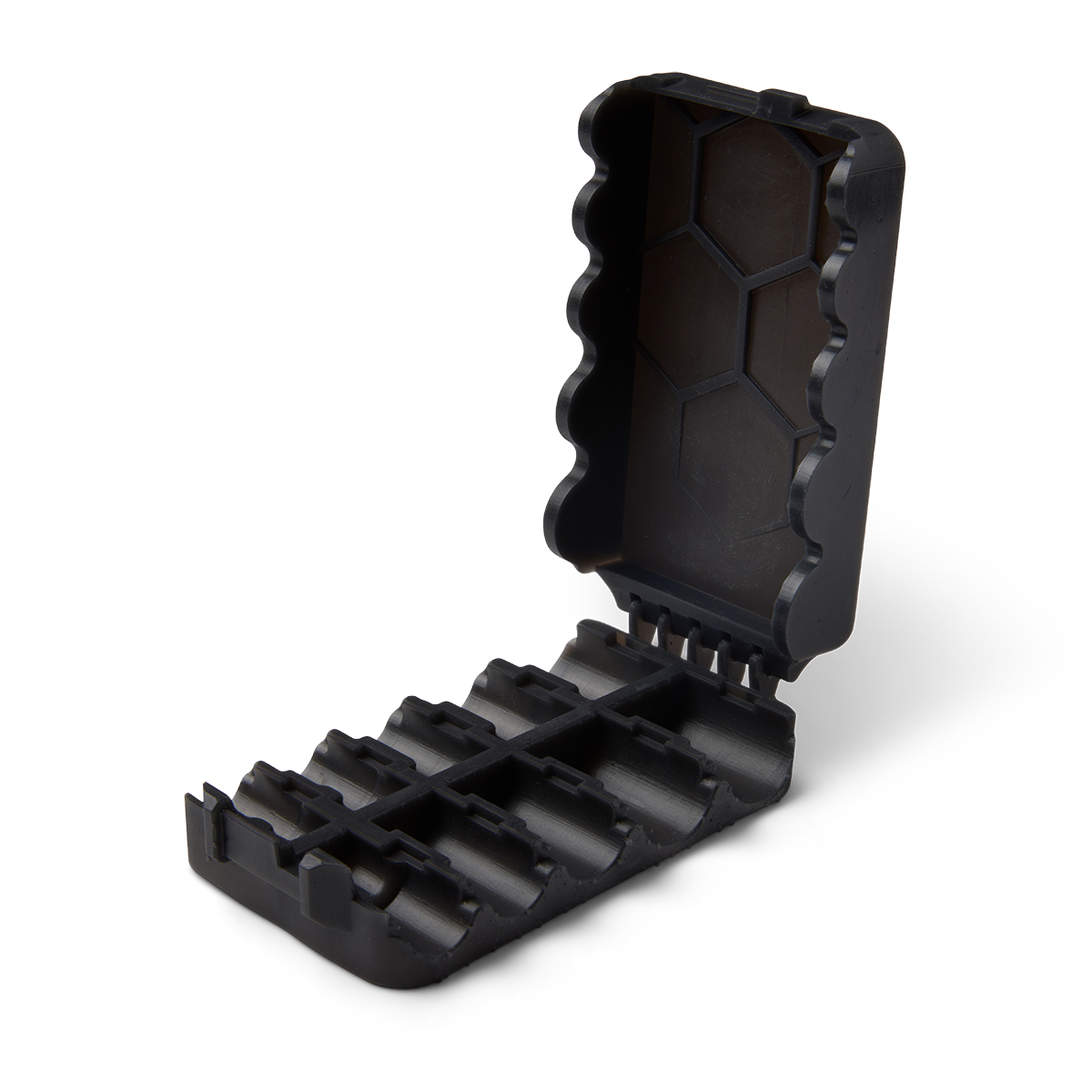

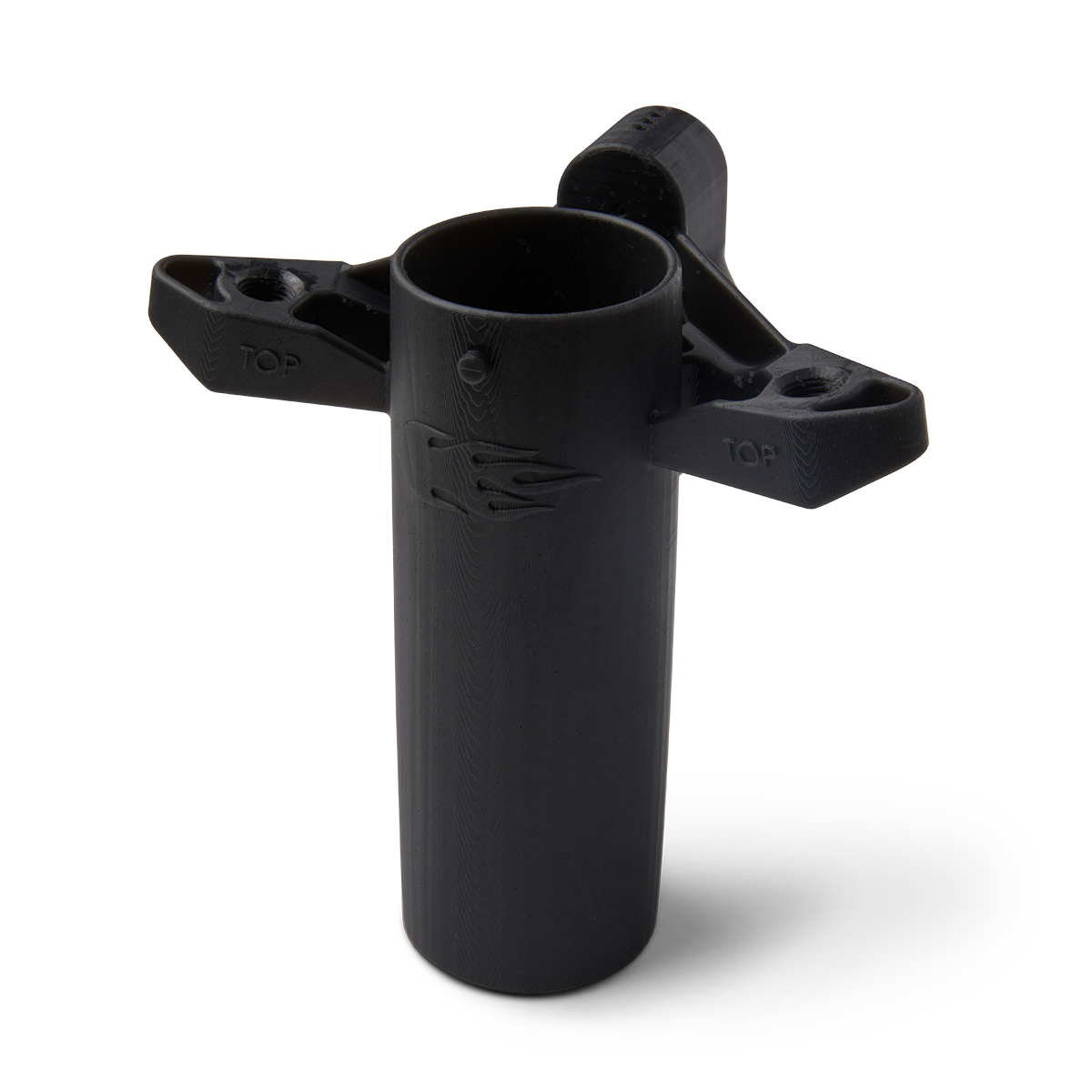

  • Impact-resistant jigs, fixtures, and parts, and squeezable prototypes

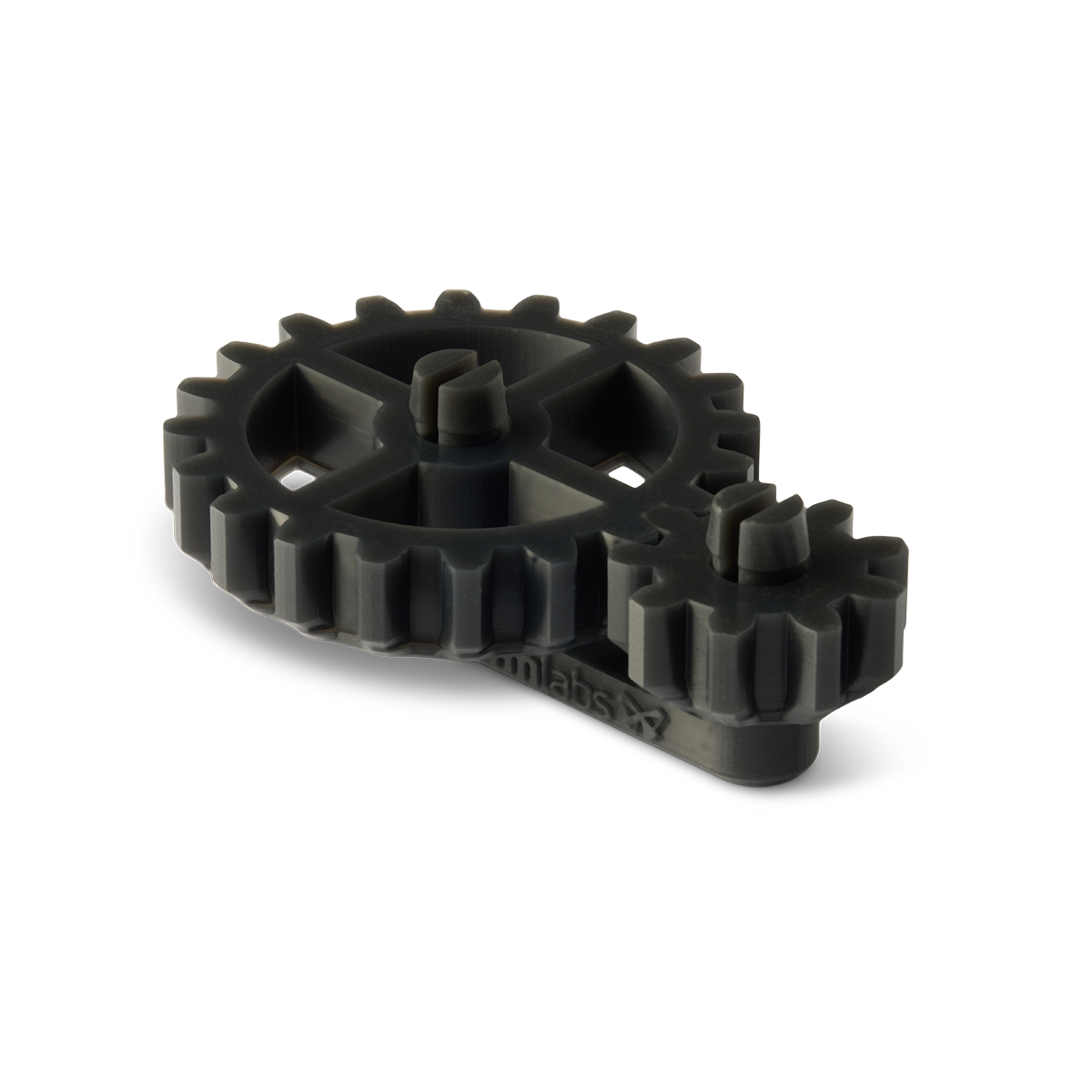

  • Low-friction assemblies, such as gears and ball joints

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • F4
  • F4L
Material Properties
Ross Flexing Fatigue 100000.0 cycles
Gardner at 1/16" (1.9 mm) thickness 14.5 J
Work of Fracture (Wf) 3200.0 J/m
Maximum Stress Intensity Factor (Kmax) 1.94 MPa-m1/2
Gardner at 1/32" (0.97 mm) thickness 13.1 J
Thermal Expansion 168.2 μm/m/°C
Heat Deflection Temp. @ 0.45 MPa 55.3 °C
Notched Izod 72.0 J/m
Flexural Modulus 761.0 MPa
Tensile Modulus 932.0 MPa
Elongation at Break 180.0 %
Ultimate Tensile Strength 26.3 MPa

Resin Cheat Sheet

Product Tough 1000 Resin
Cure Temperature -- / 70 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 12 min
Wash Time 10 minutes + 10 minutes**
Special Notes

Wash

  • Wash parts printed in Tough 1000 Resin in two cycles, preferably using fresh solvent for the second wash.
  • For best surface finish, Formlabs recommends allowing parts printed in Tough 1000 Resin to air dry for at least 30 minutes prior to handling or post-curing. You can also use compressed air to speed up the drying process.
  • Formlabs does not recommend using Resin Washing Solution to wash parts printed in this resin.
  • ** Parts with two wash times require two wash cycles. For the second wash cycle, use clean solvent. The first wash cycle removes the bulk of the resin, while the second cycle fully cleans the parts.

Cure

  • Form Cure V2: Formlabs recommends post-curing for either 12 minutes at 70 °C to reduce surface tack and improve mechanical properties, or for 12 minutes at room temperature to prevent warpage.
Extra Abrasive to Tanks --

Resin Comparison Tool
