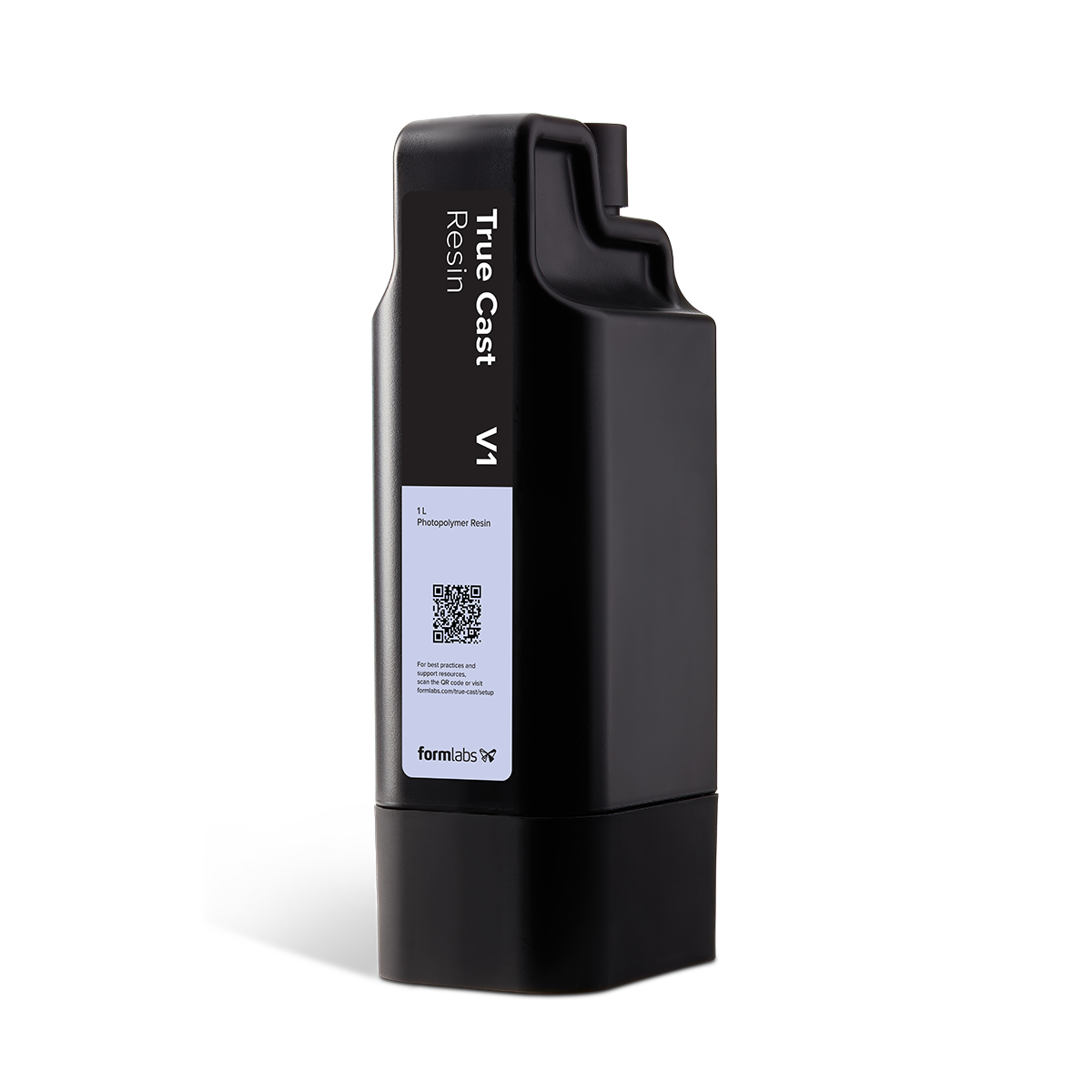

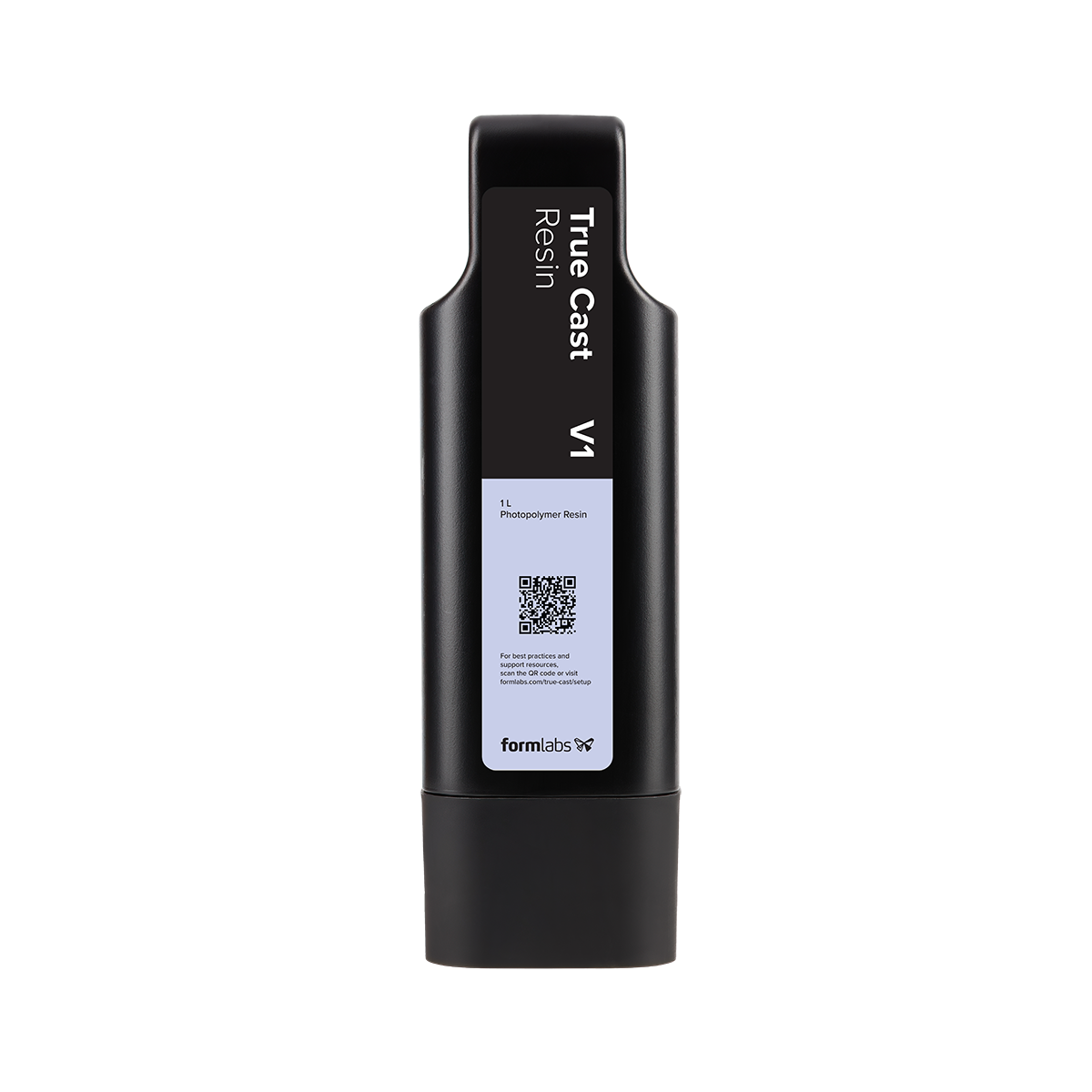

Formlabs True Cast Resin Resin Cartridge ( 1 Liter OEM ) - Form 4

Formlabs True Cast Resin Resin Cartridge ( 1 Liter OEM ) - Form 4

High-precision casting of intricate jewelry and complex engineering components up to 5 mm thick.
SKU:RS-C2-TCLV-01
Size
Regular price $271.00 CAD
Sale
Sold out
Sale price

Price

$271.00 CAD Regular price

Stock

Quantity

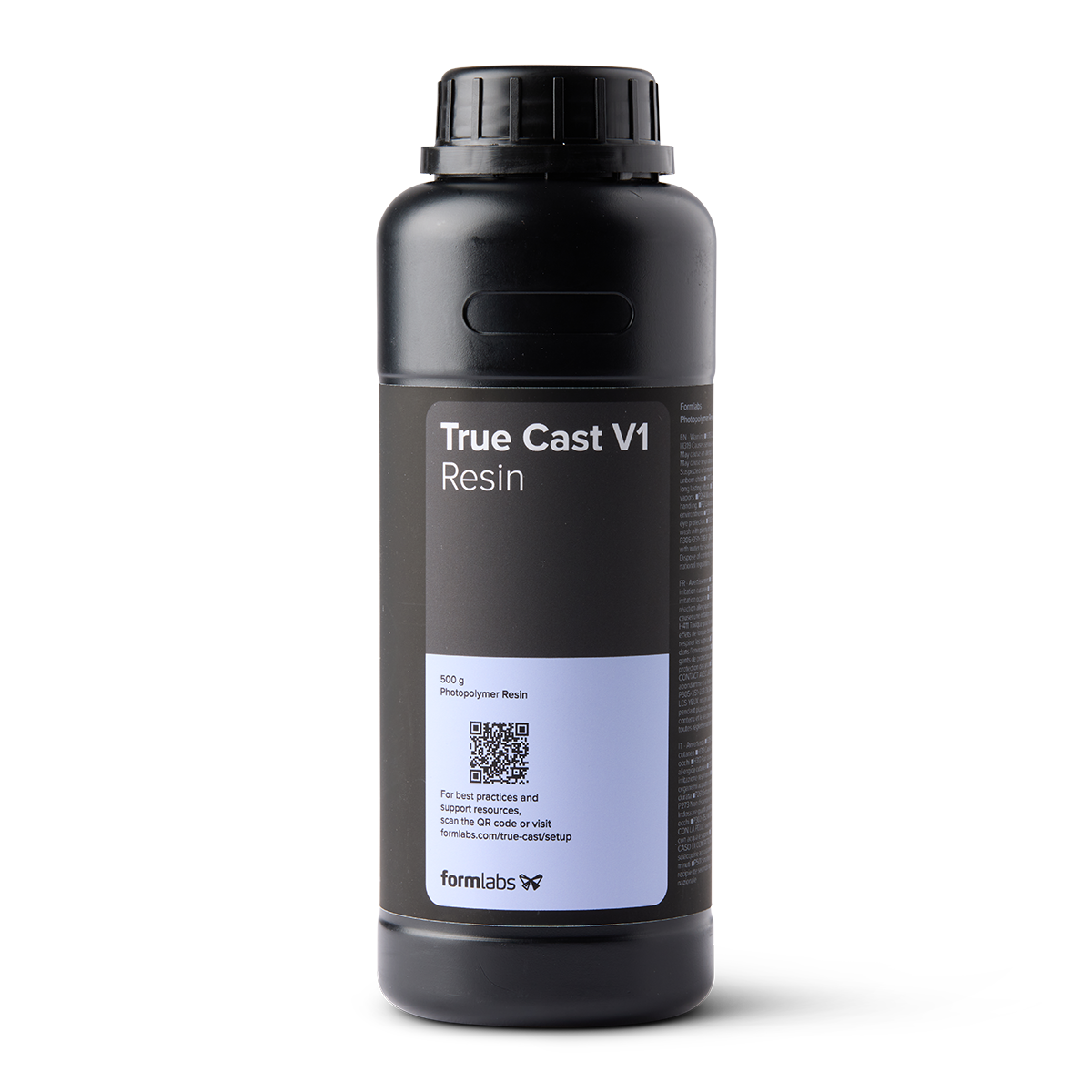

The 500ML bottle of Formlabs True Cast Resin is packaged in a wide-mouth bottle and intended for use on non-Formlabs LCD and DLP printers

Formlabs True Cast Resin Resin Cartridge ( 1 Liter OEM ) - Form 4

True Cast Resin is a wax-filled material designed for precision casting of intricate jewelry to complex engineering components up to 5 mm thick. It delivers highly accurate parts with exceptional detail and smooth surfaces.

Engineered for reliability, quality, and versatility, True Cast Resin integrates easily into a wide range of burnout schedules. Low thermal expansion, minimal shrinkage, and 0.03% ash content ensure clean burnout and consistently excellent casting outcomes.

For fine wire filigree and lightweight jewelry, Castable Wax Resin is recommended to achieve optimal results. For large, demanding engineering parts, Clear Cast Resin is the recommended solution.

Resin Details

True Cast Resin is a wax-filled material designed for precision casting of intricate jewelry to complex engineering components up to 5 mm thick. It delivers highly accurate parts with exceptional detail and smooth surfaces. Engineered for reliability, quality, and versatility, True Cast Resin integrates easily into a wide range of burnout schedules. Low thermal expansion, minimal shrinkage, and 0.03% ash content ensure clean burnout and consistently excellent casting outcomes. For fine wire filigree and lightweight jewelry, Castable Wax Resin is recommended to achieve optimal results. For large, demanding engineering parts, Clear Cast Resin is the recommended solution.
Applications

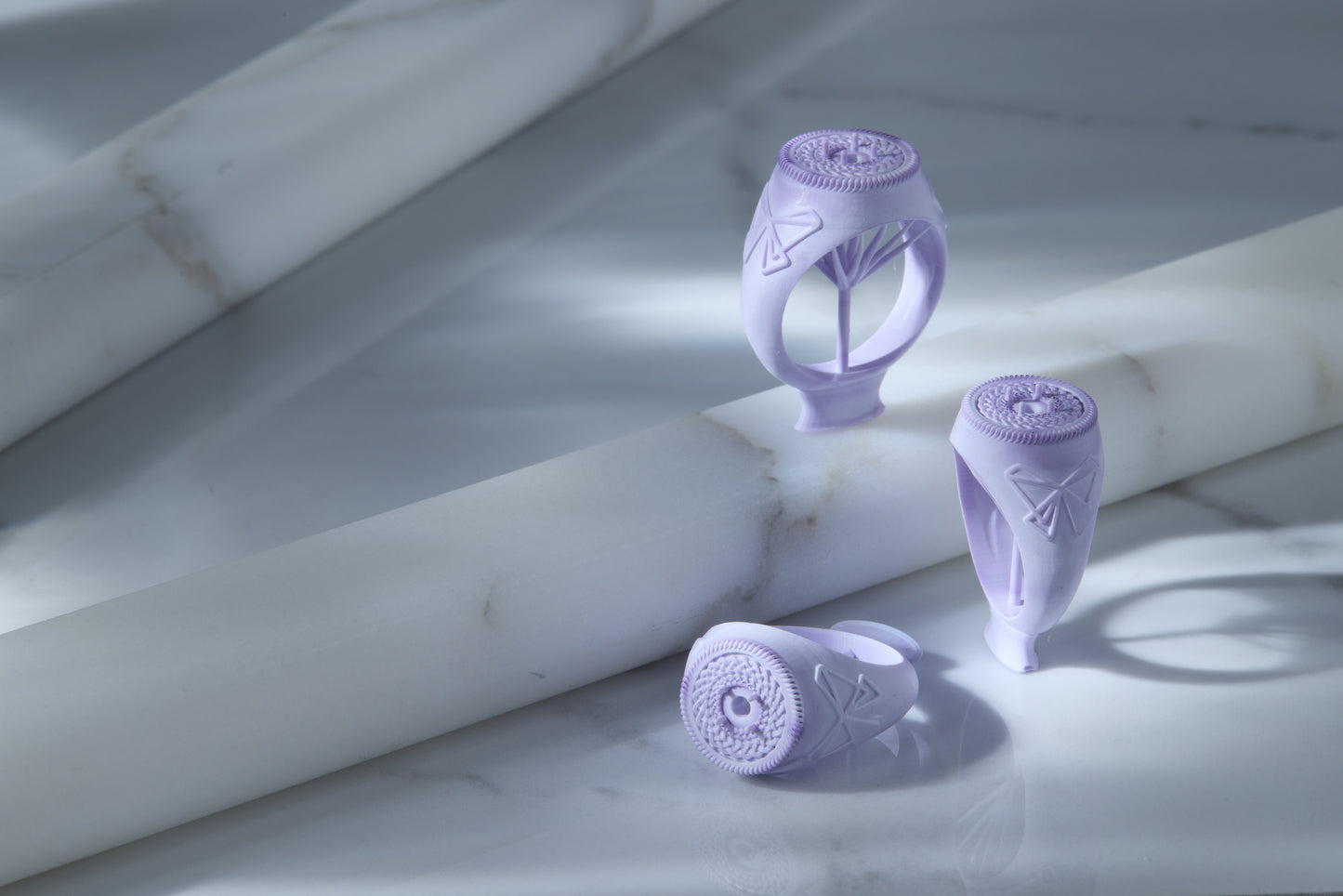

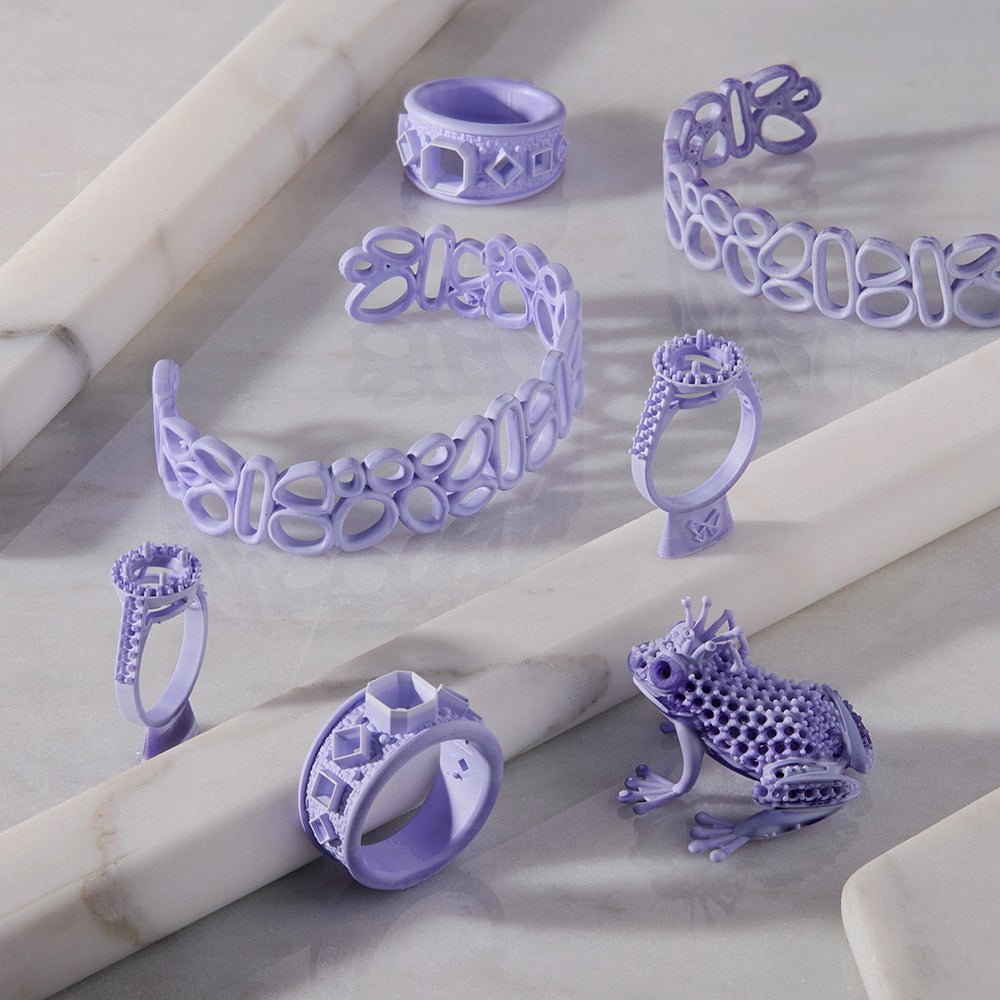

  • Medium to heavy jewelry
  • Medallions

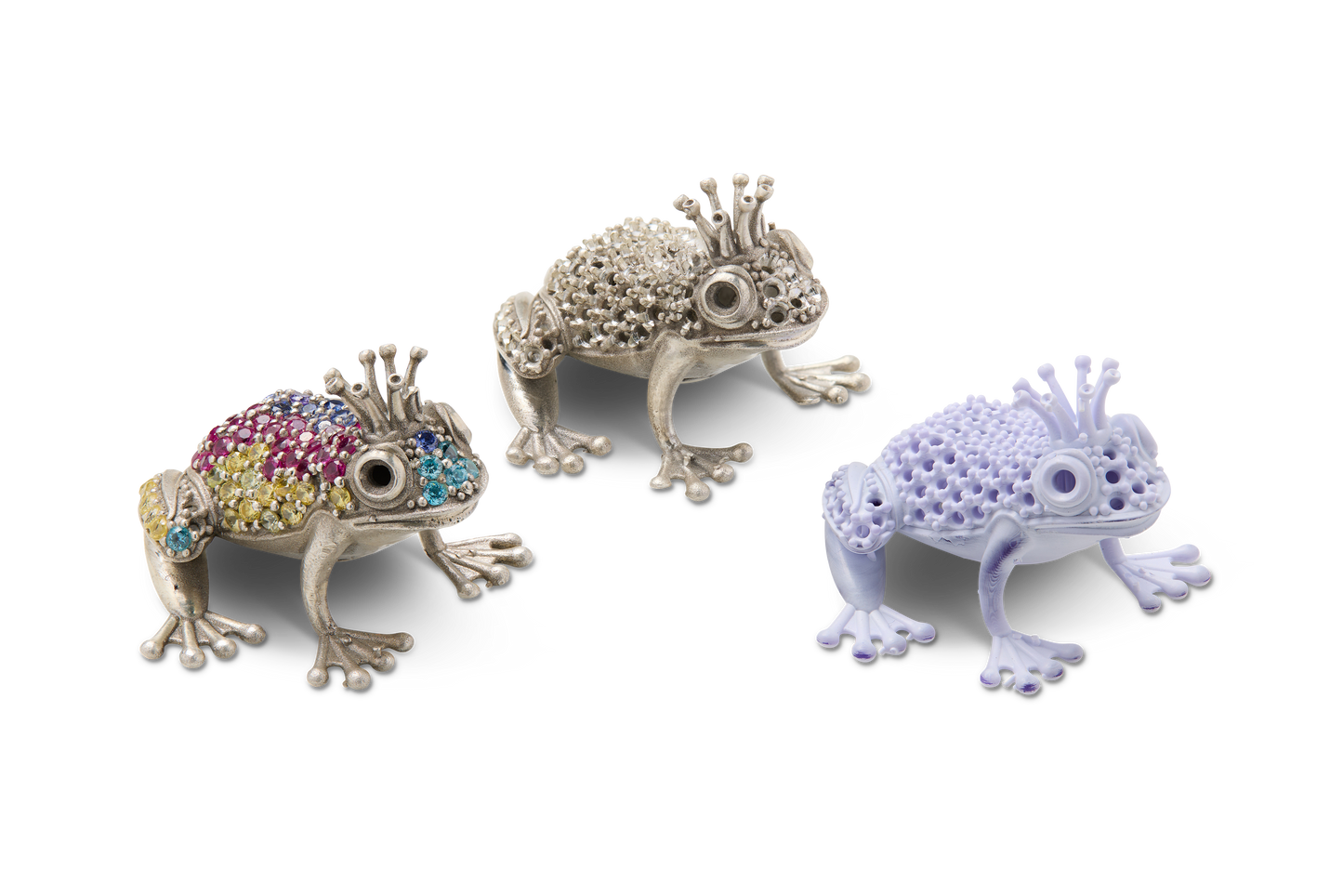

  • Figurines
  • Small engineering components up to 5 mm thick

Documentation

Casting

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform
Tank Compatibility
  • F4
Material Properties
Thermal Expansion 174.1 μm/m/°C

Resin Cheat Sheet

Product True Cast Resin V1
Cure Temperature -- °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2)
Wash Time 5 minutes
Special Notes

Wash

  • Wash with IPA or ≥91% ethyl alcohol, then spray with fresh solvent after the wash cycle.
  • Dry with compressed air.

Cure

  • True Cast Resin does not require post-curing, although Formlabs recommends post-curing to reduce defects during the casting process.
  • Sand down remaining touch tips with 1000 grit sandpaper after post-curing.
Extra Abrasive to Tanks --
