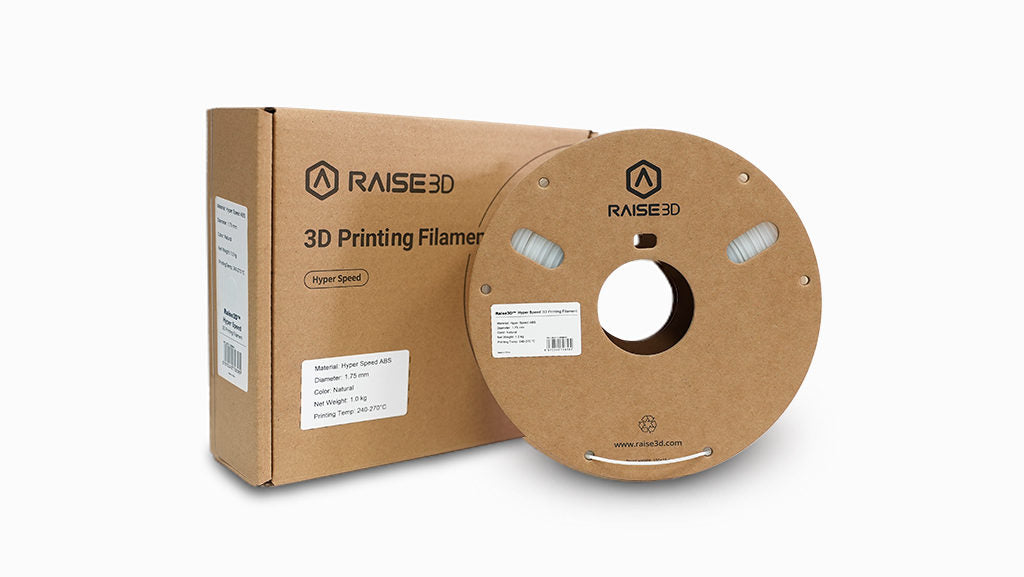

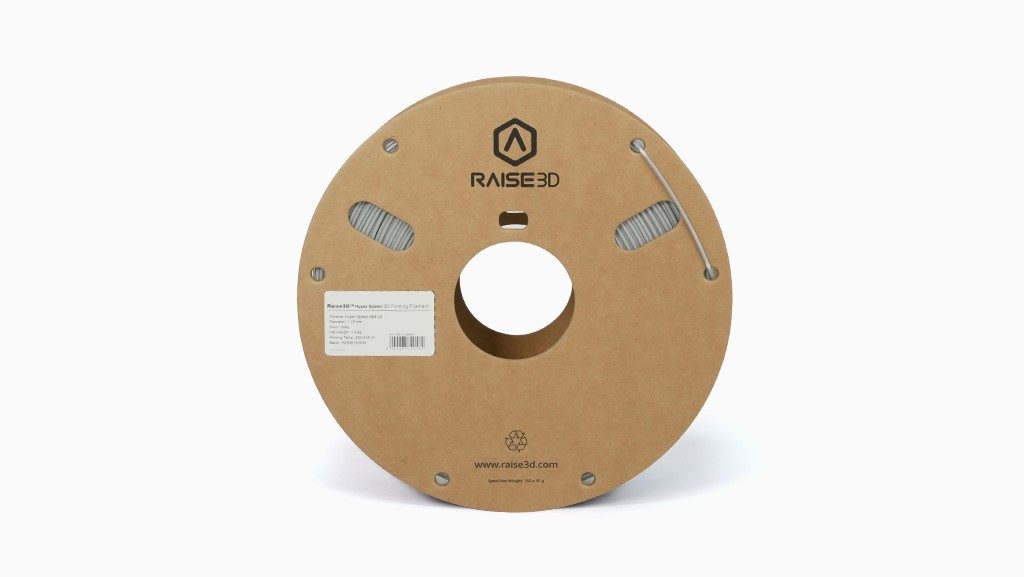

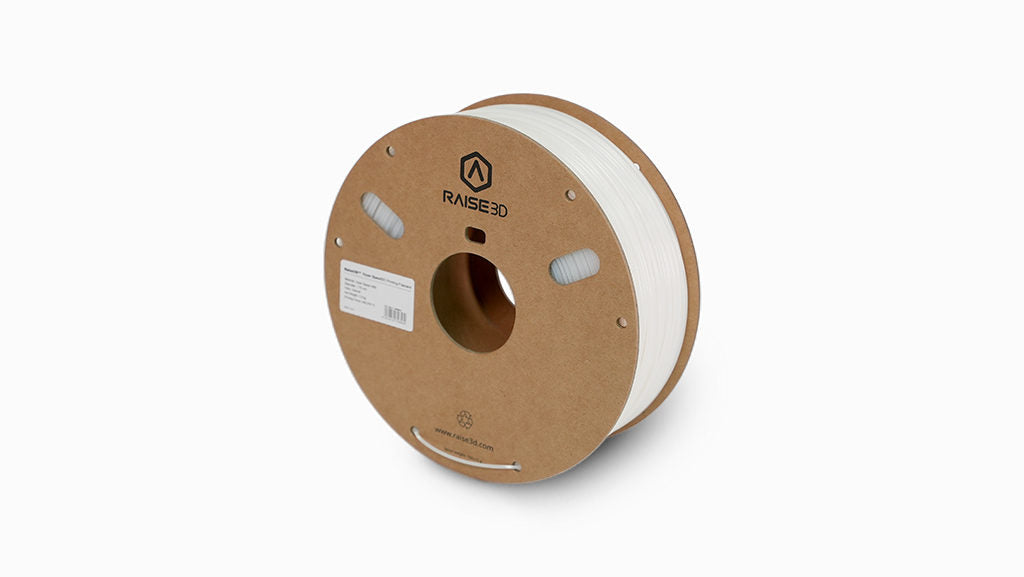

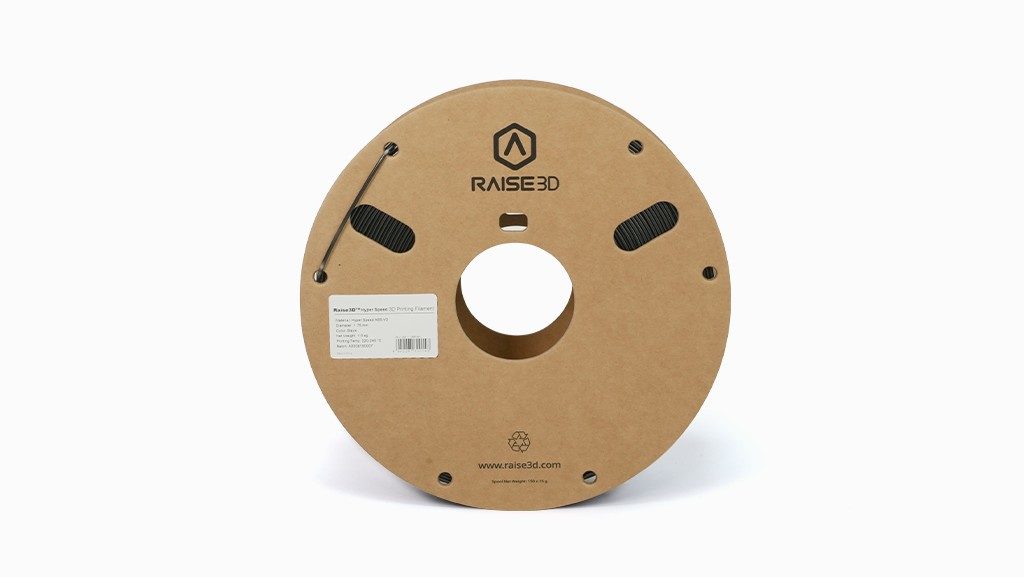

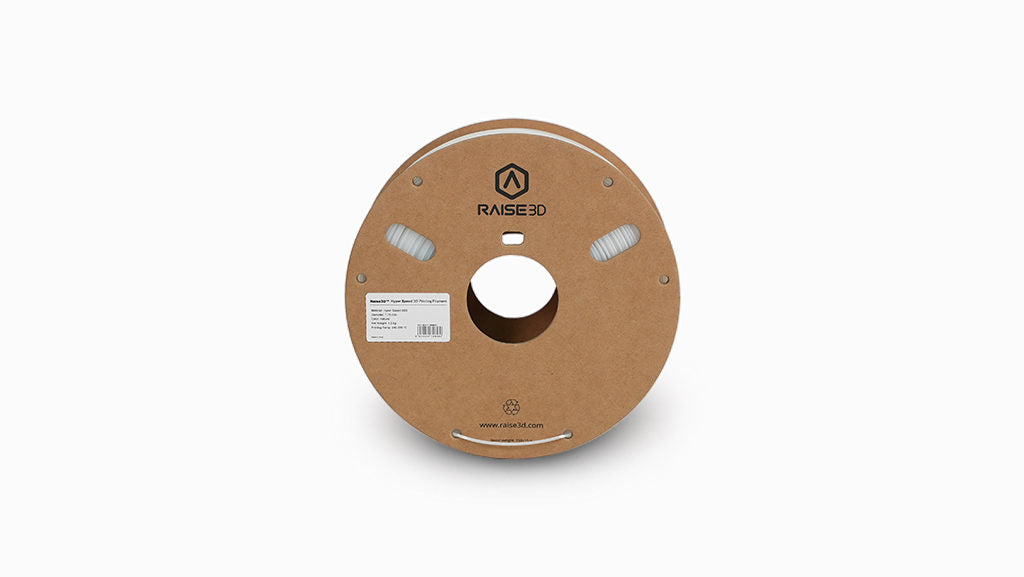

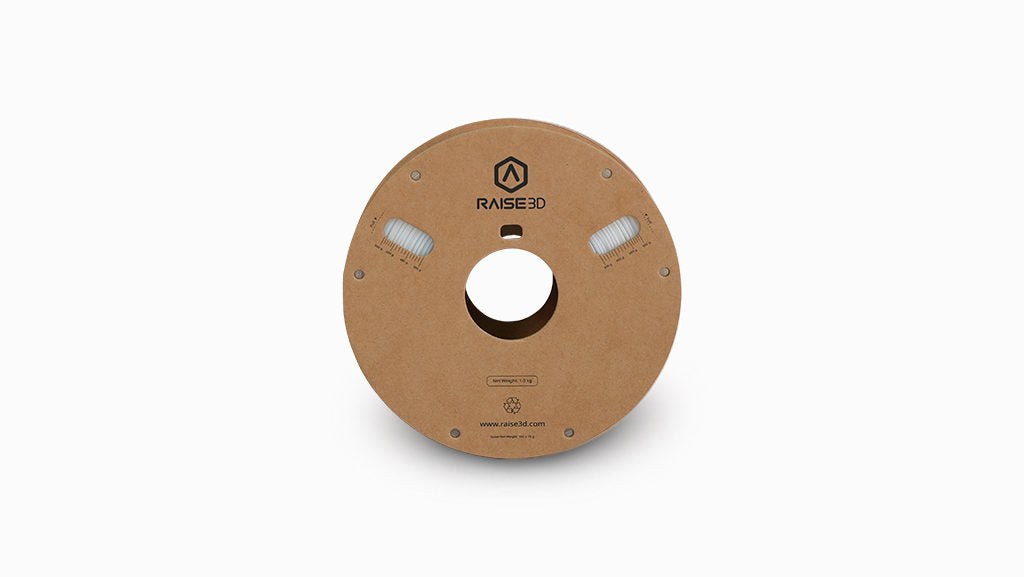

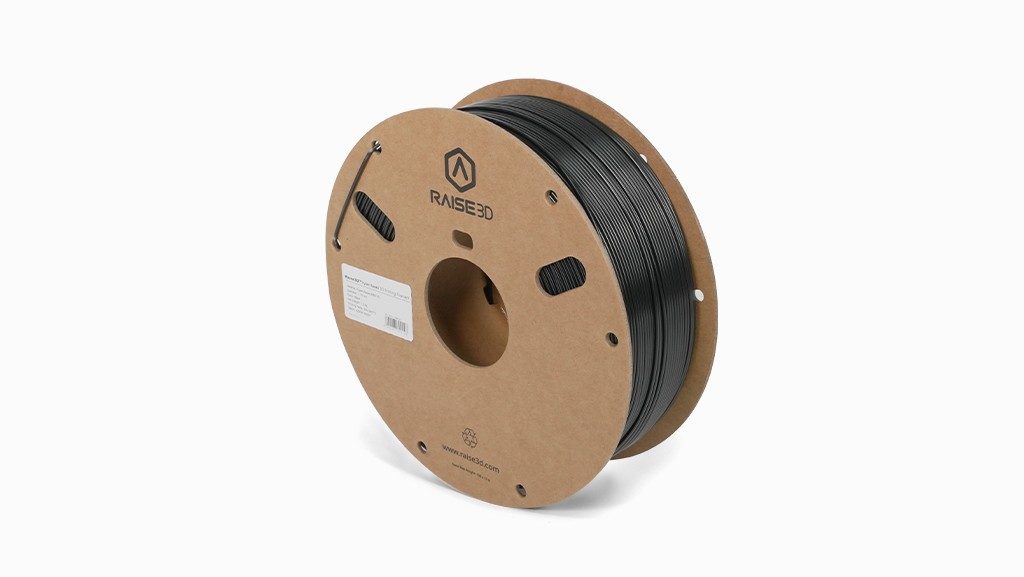

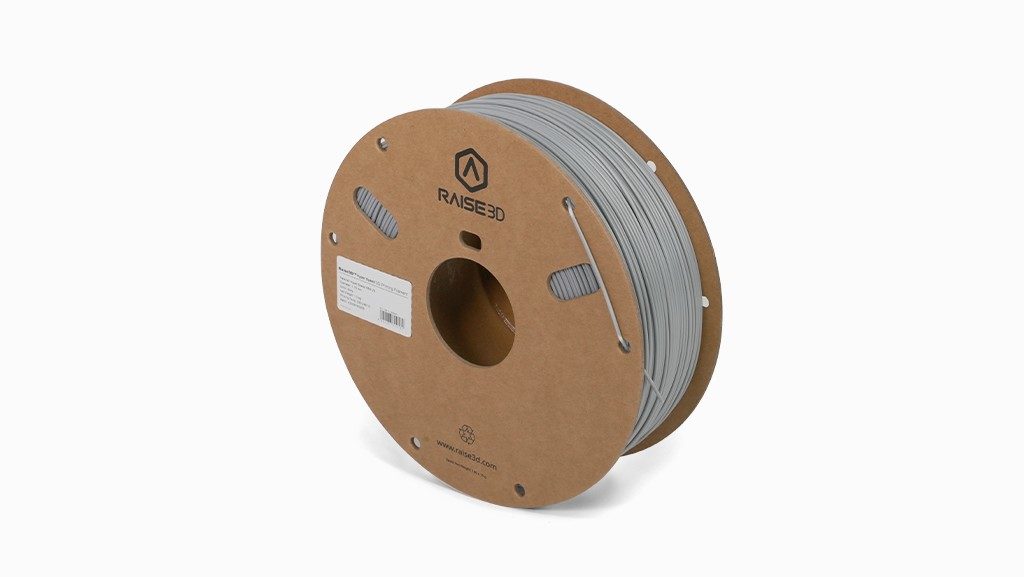

Raise3D Hyper Speed ABS Filament - 1.75mm (1kg)

Raise3D Hyper Speed ABS Filament - 1.75mm (1kg)

Raise3D Hyper Speed ABS Filament - 1.75mm (1kg)

High-speed ABS filament with improved flow, strength, and reduced warping.
Color
SKU: [S]5.11.19115A01
$52.00 CAD
Sale
Sold out

Price

$52.00 CAD

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Raise3D Hyper Speed ABS 1.75mm Filament (1KG) is an advanced ABS filament optimized for high-speed 3D printing with Raise3D’s Hyper FFF® technology. Designed with improved melt flow and cooling characteristics, it enables faster printing while maintaining strong layer bonding, low warping, and excellent dimensional stability. Hyper Speed ABS delivers the durability, heat resistance, and post-processing capabilities expected from ABS, making it ideal for functional prototypes, tooling, and production parts.
Applications
  • Prototyping and design
  • Jigs and Fixtures
  • Manufacturing aids
  • End-use parts

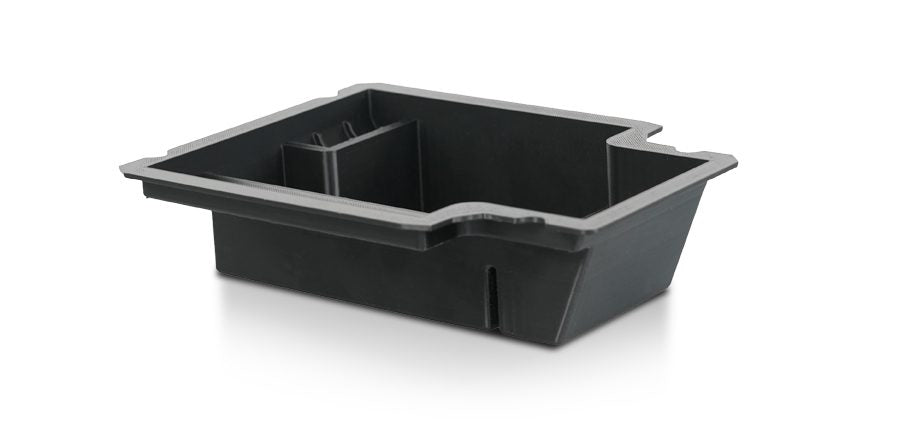

  • Housings and enclosures

Documentation

Prone to Shrinking.

See TDS for Details

Intermediate Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Technical Specs

Overview
Net Weight 1kg
Surface Finish Smooth / Glossy
Material Compatibility
Material Diameter / Thickness 1.75mm

Links

Certificate of Compliance

Raise3D-Filament Compliance With Reach

How to Import Slicing Profile to ideaMaker

Notes

  • Please use the latest ideaMaker Version for Hyper Speed ABS filament.
  • It is recommended to close the printer door and top cover during the printing process to minimize surface defects resulting from heat dissipation.
  • For better bed adhesion and less chance of part warpage, adding a brim or raft is recommended.

Product Highlights

Top Features

Hyper Speed ABS filament is specifically designed to be used with the Hyper FFF® solution from the Hyper Speed filament line. When printing at high speeds, the regular ABS filament is rapidly fed into the heat block, and the polymer has very little time to go from a solid to a molten state, which can cause nozzle clogging and poor bonding quality between layers. Additionally, the regular ABS filament can be subject to warpage and delamination of the printed part during high-speed printing without a heated chamber.

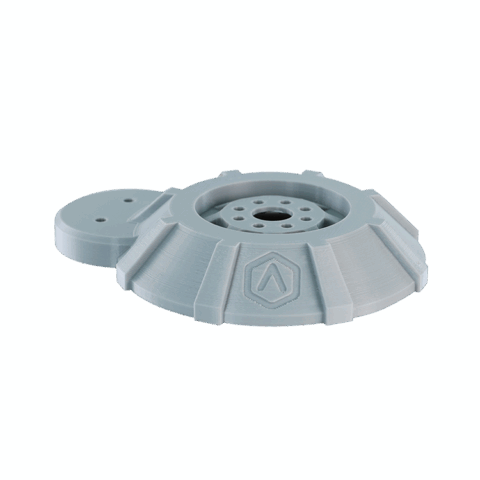

With optimized molecular weight and stiffness, Hyper Speed ABS filament is capable of printing at the speed of up to 300 mm/s thanks to its faster melting and homogenous cooling, which results in a lower temperature gradient and lower inner stress of printed part. Hyper Speed ABS filament exhibits superior heat resistance compared to Hyper Speed ABS filament. With almost no warpage and improved interlayer bonding, Hyper Speed ABS filament is also perfectly suitable for many functional prototyping parts, tools and fittings with many different possibilities for post-processing and finishing methods (e.g., polishing and acetone vapor smoothing).

  • High Speed FFF printing
  • Warp-free parts
  • Improved interlayer bonding
  • Heat resistance up to 77°C (HDT@0.45 MPa)
  • Excellent impact resistance
  • Higher dimensional stability
  • Ready for polishing and acetone vapor smoothing

 Benefits

  • High Speed Printing
  • Easy Post-processing
  • Easy to Print

Recommended Print Settings

  • Nozzle temperature (°C): 220-260℃
  • Build platform temperature (°C): 80℃
  • Layer height (mm): 0.15-0.2 mm
  • Printing speed (mm/s): 50-300 mm/s
  • Cooling fan: On
  • Drying temperature (°C): 50℃
