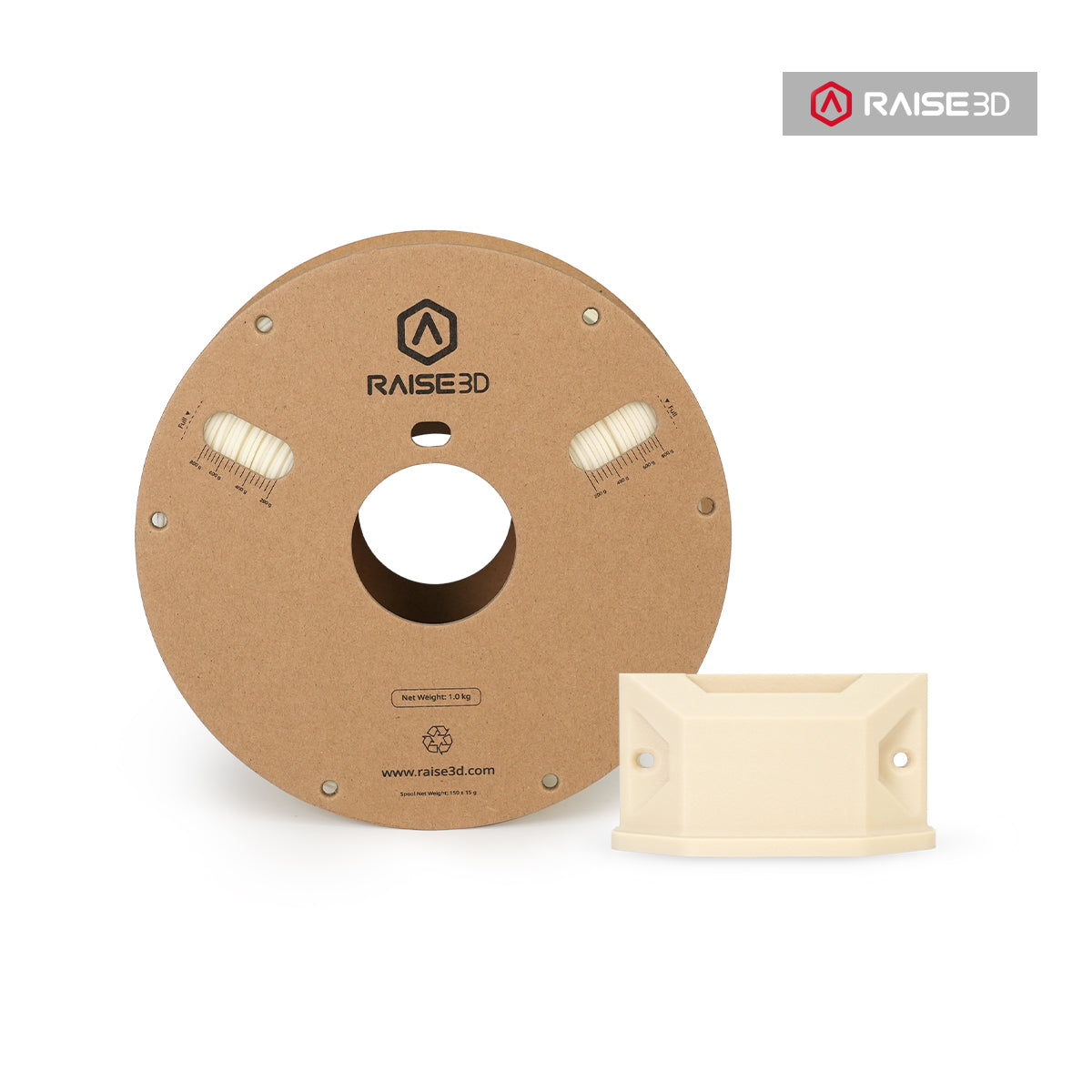

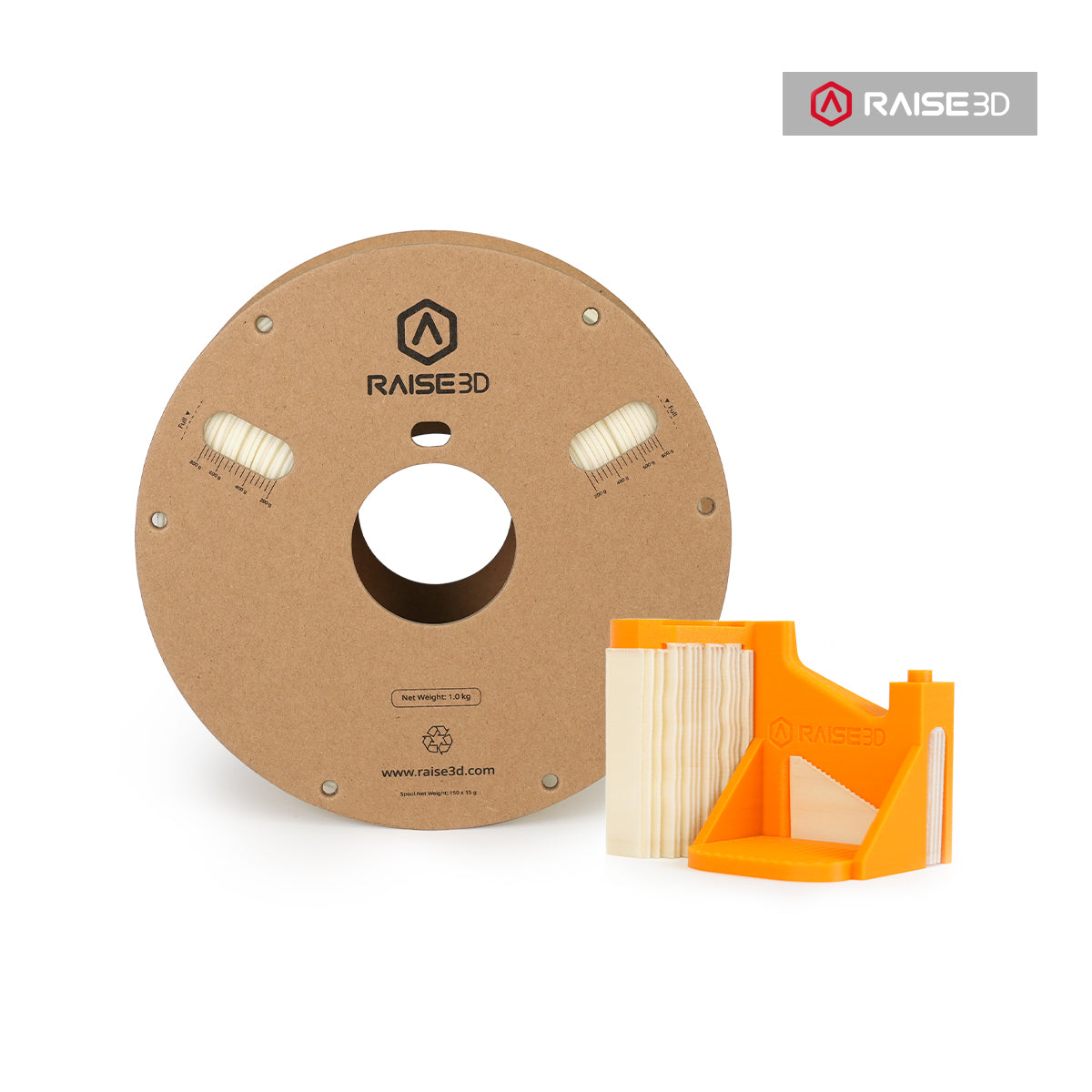

Raise3D Industrial PET Support Filament - 1.75mm (1kg) - Natural

Raise3D Industrial PET Support Filament - 1.75mm (1kg) - Natural

Raise3D Industrial PET Support Filament - 1.75mm (1kg) - Natural

Dedicated PET support filament for complex prints and easy, reliable support removal.
SKU: [S]5.11.19038A01
$87.00 CAD
Sale
Sold out

Price

$87.00 CAD

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Raise3D Industrial PET Support 1.75mm Filament (1KG) is a specialized support material designed for use with PET-based and engineering-grade filaments. It provides reliable support for complex geometries, overhangs, and intricate features while enabling cleaner part surfaces and easier post-processing. Engineered for professional workflows, PET Support helps improve print accuracy and reduce manual support removal time in demanding applications.
Applications
  • Support material for PET CF& PET GF
  • For large overhangs and cavities
  • Easy to remove
  • Smooth and clean support interface

Documentation

Support Material

Made for dual nozzle printing

Technical Specs

Overview
Net Weight 1kg

Product Highlights

Top Features

A cost effective break-away support material designed for composite filaments.

Raise3D Industrial PET Support Filament is a break-away support material specially designed for FFF printing with fiber reinforced filaments. In contrast to printing supports using the same material, PET support filament is easier to remove and allows for detailed surface quality and dimensional accuracy. Compared to water soluble support materials, the lower moisture absorption and the performance-cost ratio of PET support both make it an ideal alternative to BVOH or PVA.

  • Cost effective
  • Easy and fast removal with tools
  • No special post-processing required
  • Broad compatibility with other printing filaments

Printing Guide

Recommended Print Settings

  • Nozzle temperature (°C): 260℃-300℃
  • Bed temperature (°C): 60-80℃
  • Layer height (mm): 0.1-0.25 mm
  • Printing speed (mm/s): 35-120 mm/s
  • Cooling fan: ON
  • Drying temperature (°C): 70-80℃ for 8-12 hours

Printing Notifications:

  • It is recommended to use a hardened steel nozzle, tungsten steel, or ruby nozzle to avoid nozzle abrasion.
  • Dry PET Support at 70-80°C for 8-12 hours before printing, as low moisture content is crucial for final printed part quality.
  • PET Support is sensitive to moisture and should be stored and used under dry conditions (Surrounding humidity below 15%).
