Raise3D Tool Steel Nozzle w/ WS2 Coating

Product SKU: [S]5.02.12031A03

Available Stock:
Loading...

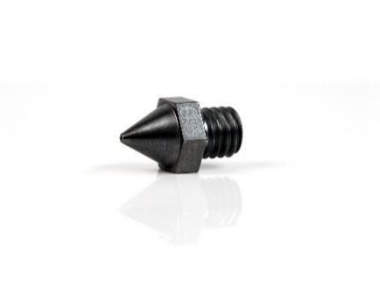

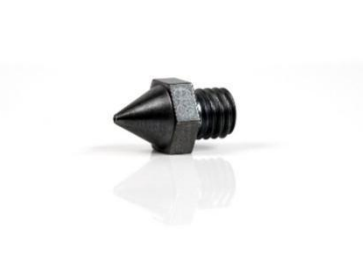

Raise3D Tool Steel Nozzle with WS2 Coating

Raise3D Tool Steel nozzles for the Pro2 and E2 printer series. Coated in WS2 for abrasive material printing. Various sizes at 0.4mm / 0.6mm / 0.8mm.

Technical Specs
Technical Data Sheet
  • Nozzle Diameters: 0.4mm / 0.6mm / 0.8mm
  • Maximum Printing Temperature: 450°C
  • Low friction coefficient as 0.03 with WS2 Coating; restrain to filament accumulation; being stable in chemical properties; being non-toxic, non-corrosive and insoluble
  • Good lubrication and anti-abrasive performance under the highest temperature at 450℃
  • Ultra low thrust for filament fluidity
  • Mohs Hardness: 7.8
  • Coefficient of Heat Conductivity: 26W/m.k
  • CTE: 12μm/m. °C
Compatible Filaments
  • In addition to being suitable for normal filaments, the nozzle is also especially suitable for those composite filaments with abrasive additives such as carbon fiber, steel, wood, boron carbide, tungsten, phosphorescent pigment, etc., and those high-temperature-resistant filaments such as PEEK, PEKK, PEI, PSU, PPSU.
