SHINING 3D EXMeasure - 3D Inspection & Measurement Software

SHINING 3D EXMeasure - 3D Inspection & Measurement Software

PTB-certified 3D inspection & measurement software with GD&T evaluation and reporting.
SKU:EXMeasure-1YR
Subscription Length
$979.00 CAD
Sale
Sold out

Price

$979.00 CAD

Stock

Request a Quote | Email This Page

No refunds or exchanges are allowed after the software has been ordered. Please purchase carefully.

Product Details

EXMeasure brings PTB-certified measurement tools into a clear, streamlined workspace. Import scan and CAD data, align models, analyze deviations, evaluate key dimensions and GD&T inspection, and create professional reports - all in one connected workflow. Backed by Shining3D's 20+ years of 3D scanning experience and 300+ patents, EXMeasure is included free for one year with every EinScan Trak purchase, and is also available as a standalone license.

Technical Specs

Links

Mfg product page: https://us.einstar.com/products/exmeasure-software

Shipping Instructions

No Shipping - digital software license

Notes

Notes on Licensing:

- No trial version is currently offered.
- Licensing is activated via the SnLock tool; manufacturer license support: license@shining3d.com.
- Compared to the full SHINING3D Inspect package, EXMeasure does not support scan mesh import, probing, 3D local/2D comparison, section creation, feature-from-CAD creation, several advanced feature types (slot, polygon, rectangle, plate, surface, polyline), CSV report export, or the Application module - see the comparison table at the bottom of the page for full detail.

Product Highlights

Top Features

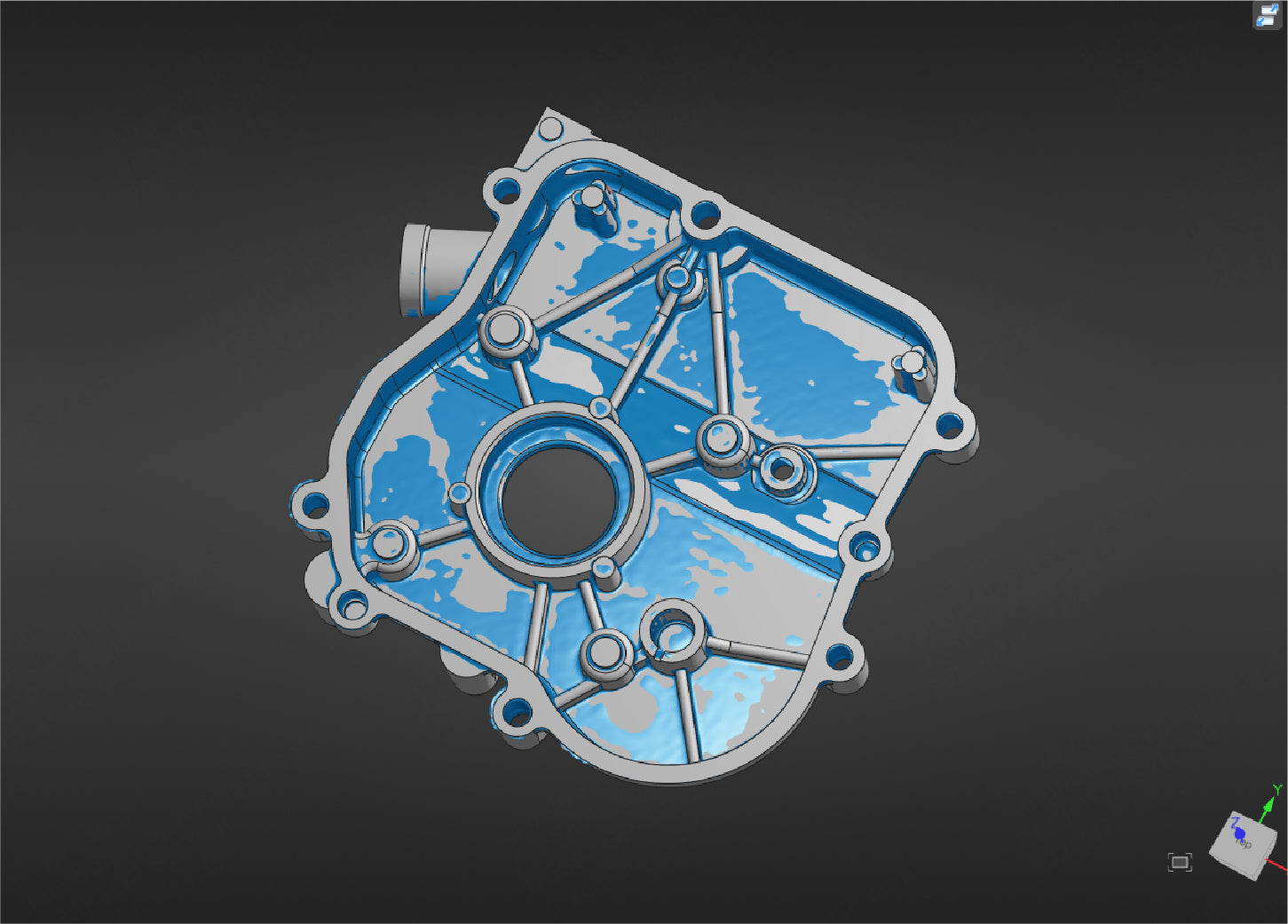

One-Click Best Fit

A tile-based interface streamlines routine measurement tasks, aligning scan and reference data to a best-fit position with a single click.

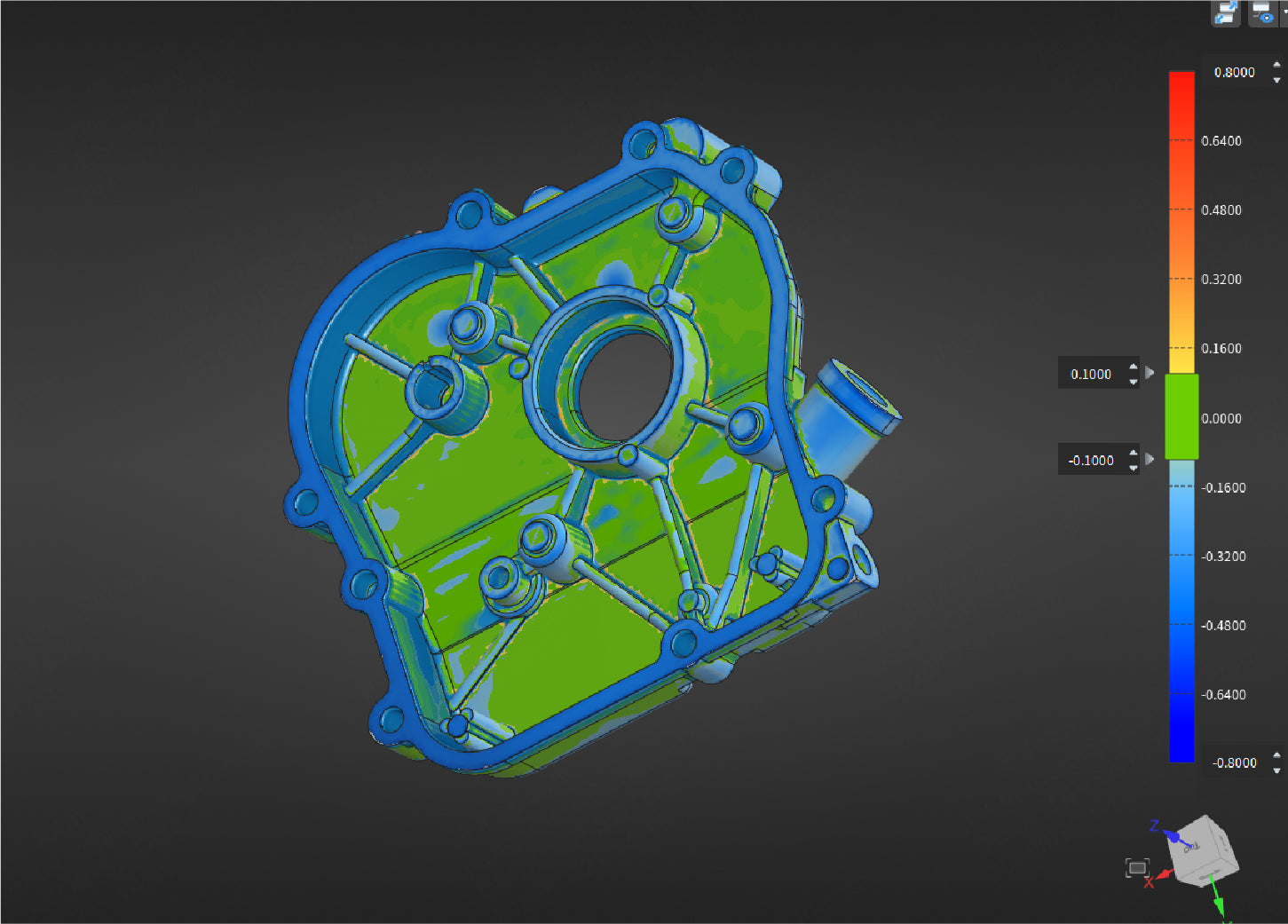

Full-Field 3D Comparison

Generate full-field color deviation maps with customizable tolerance bands to instantly visualize how a scanned part compares to its reference model.

Essential GD&T Evaluation

Set up datums and evaluate straightness, flatness, circularity, cylindricity, parallelism, and perpendicularity directly against your part geometry.

Precise Measurement

A virtual caliper measures diameters, distances, and angles directly on 3D data without physical contact.

1. Import & Manage

Load reference and measurement models; create, open, and save projects.

2. Align

Use best-fit, transformation, manual, or coordinate-system alignment to get the alignment you want.

3. Compare & Measure

Analyze deviations, dimensions, GD&T, area, volume, and caliper distances.

4. Report

Organize results with snapshots, 3D views, tables, and PDF export.

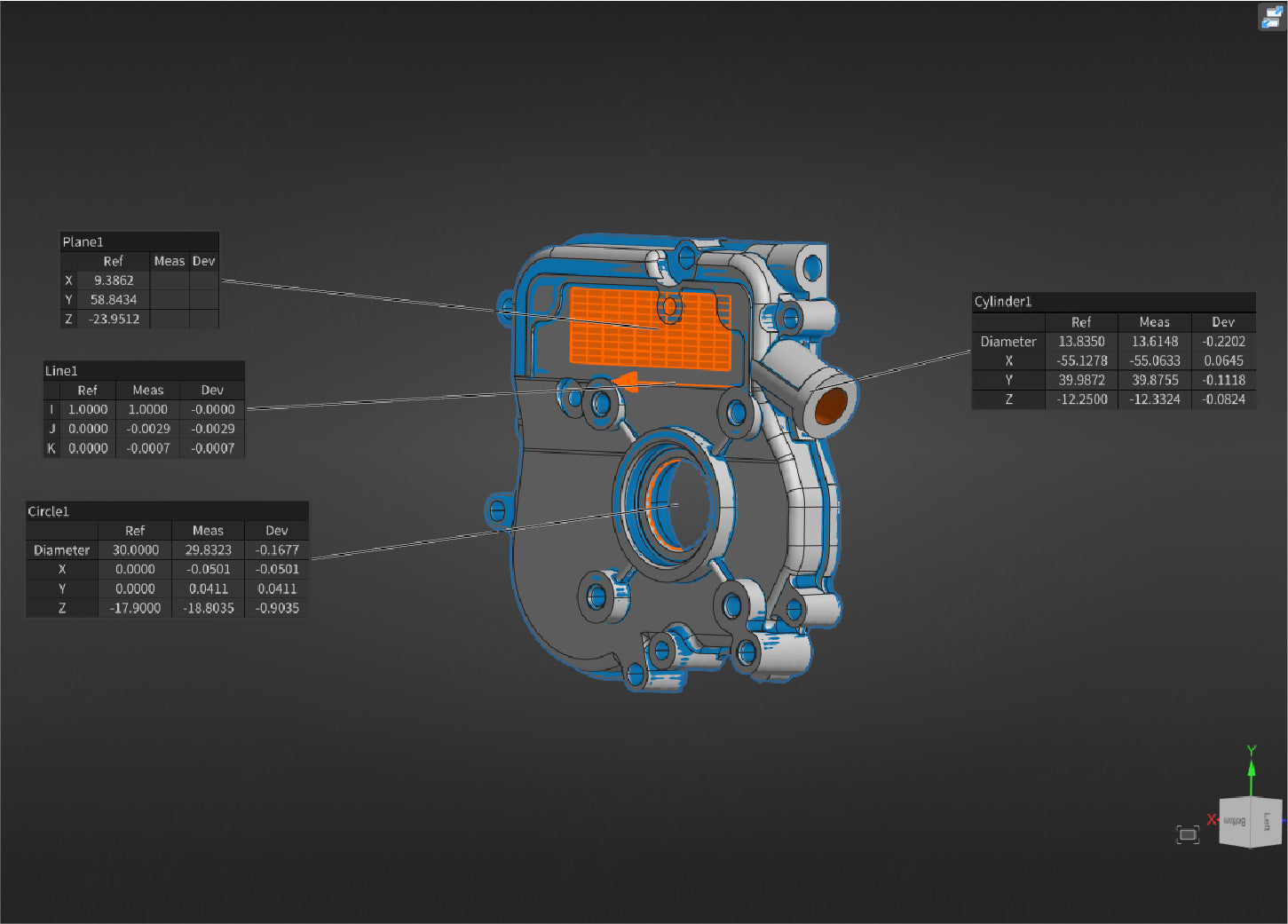

EXMeasure Versatile Feature Construction

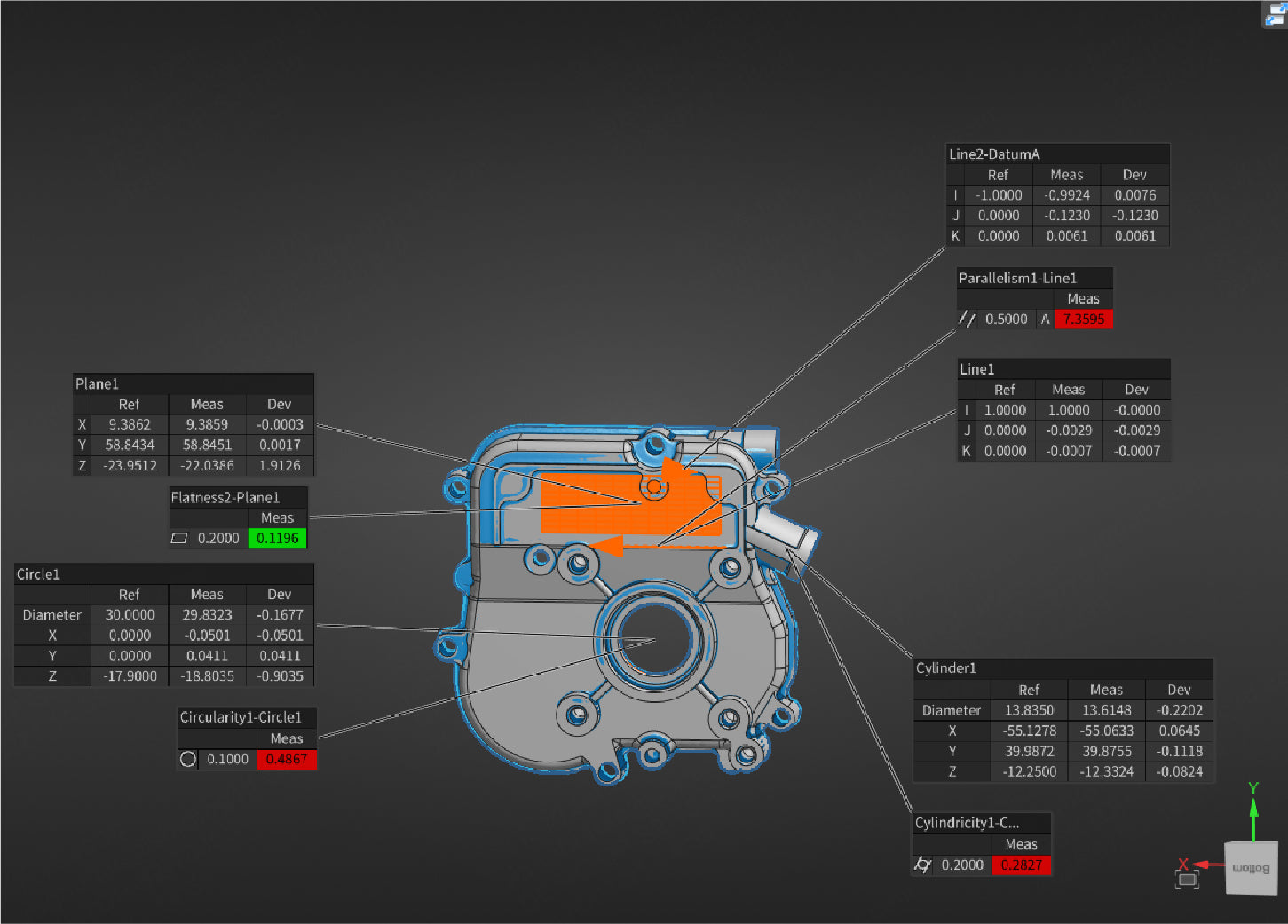

EXMeasure Essential GD&T Evaluation

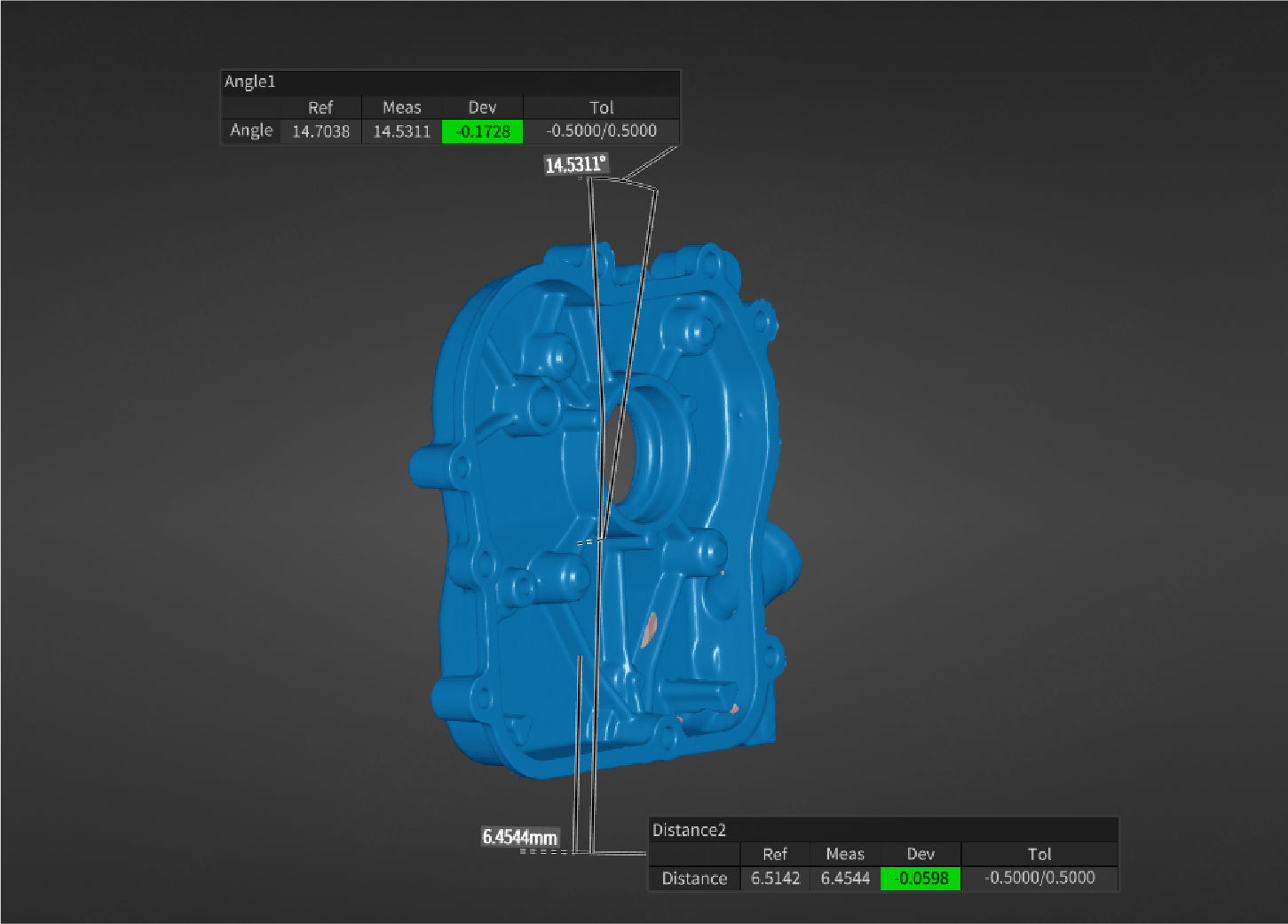

EXMeasure Precise Measurement

EXMeasure brings PTB-certified measurement tools into a clear, streamlined workspace. Import scan and CAD data, align models, analyze deviations, evaluate key dimensions and GD&T inspection, and create professional reports — all in one connected workflow.

Backed by Shining3D's 20+ years of 3D scanning experience and 300+ patents, EXMeasure is included free for one year with every EinScan Trak purchase, and is also available as a standalone license for use with compatible scan and CAD data.

Feature SHINING3D Inspect EXMeasure
Import/Export Functions ✓ ✓ (Repair and reference point not supported)
Project Functions ✓ ✓ (Template not supported)
Scan Mesh ✓ ✗
Probing Functions ✓ ✗
Alignment ✓ ✓
3D Comparison ✓ ✓
3D Local Comparison ✓ ✗
2D Comparison ✓ ✗
Section Creation ✓ ✗
Create Features from CAD ✓ ✗
Point / Line / Plane / Circle / Sphere / Cone / Cylinder Feature Creation ✓ ✓
Slot / Regular Polygon / Rectangle / Plate / Surface / Polyline Feature Creation ✓ ✗
Inspection Module ✓ ✓
Measurement Module ✓ ✓
Report Functions ✓ ✓ (CSV format not supported)
Application Module ✓ ✗
Tree View Functions ✓ ✓
