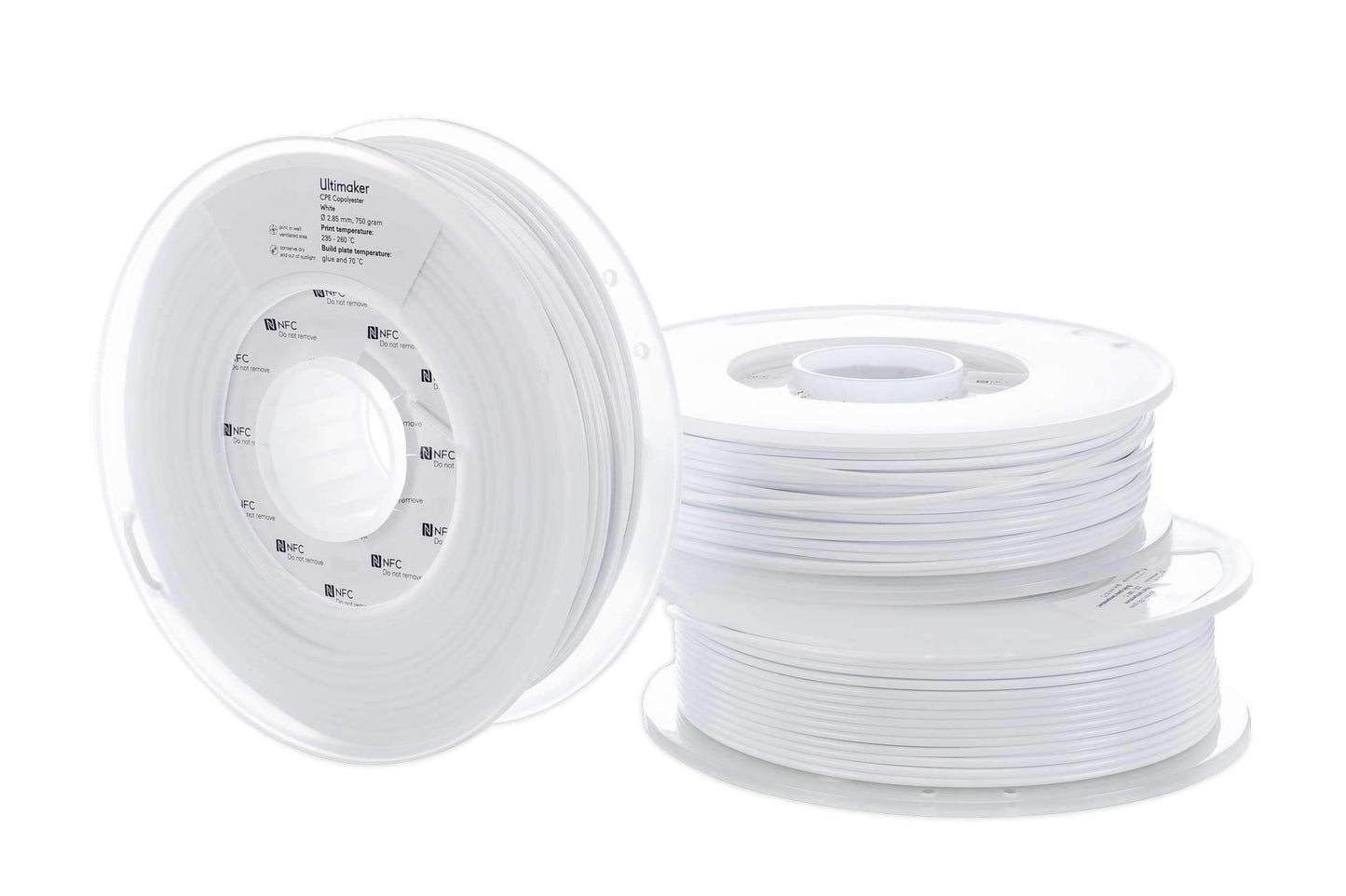

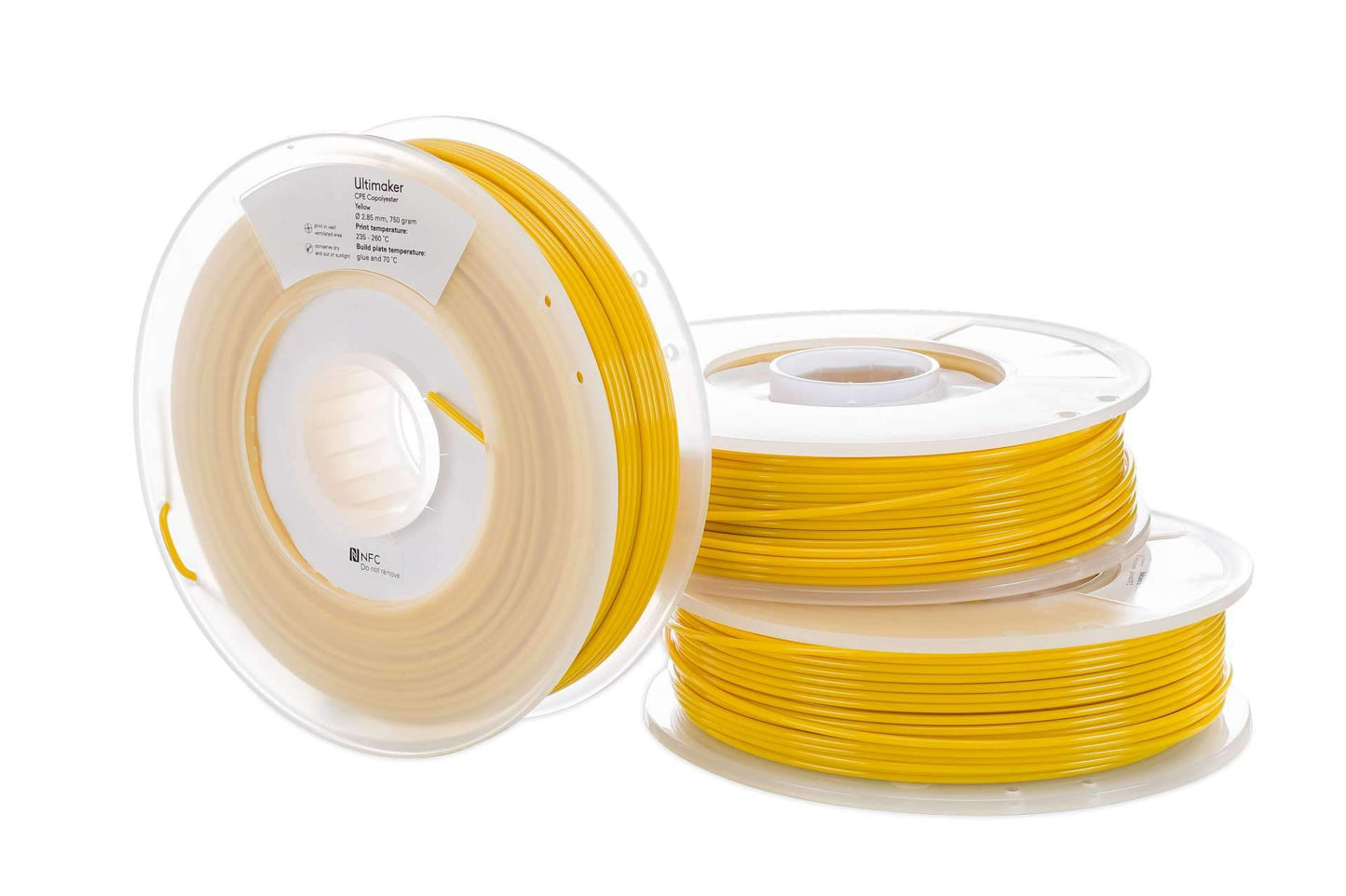

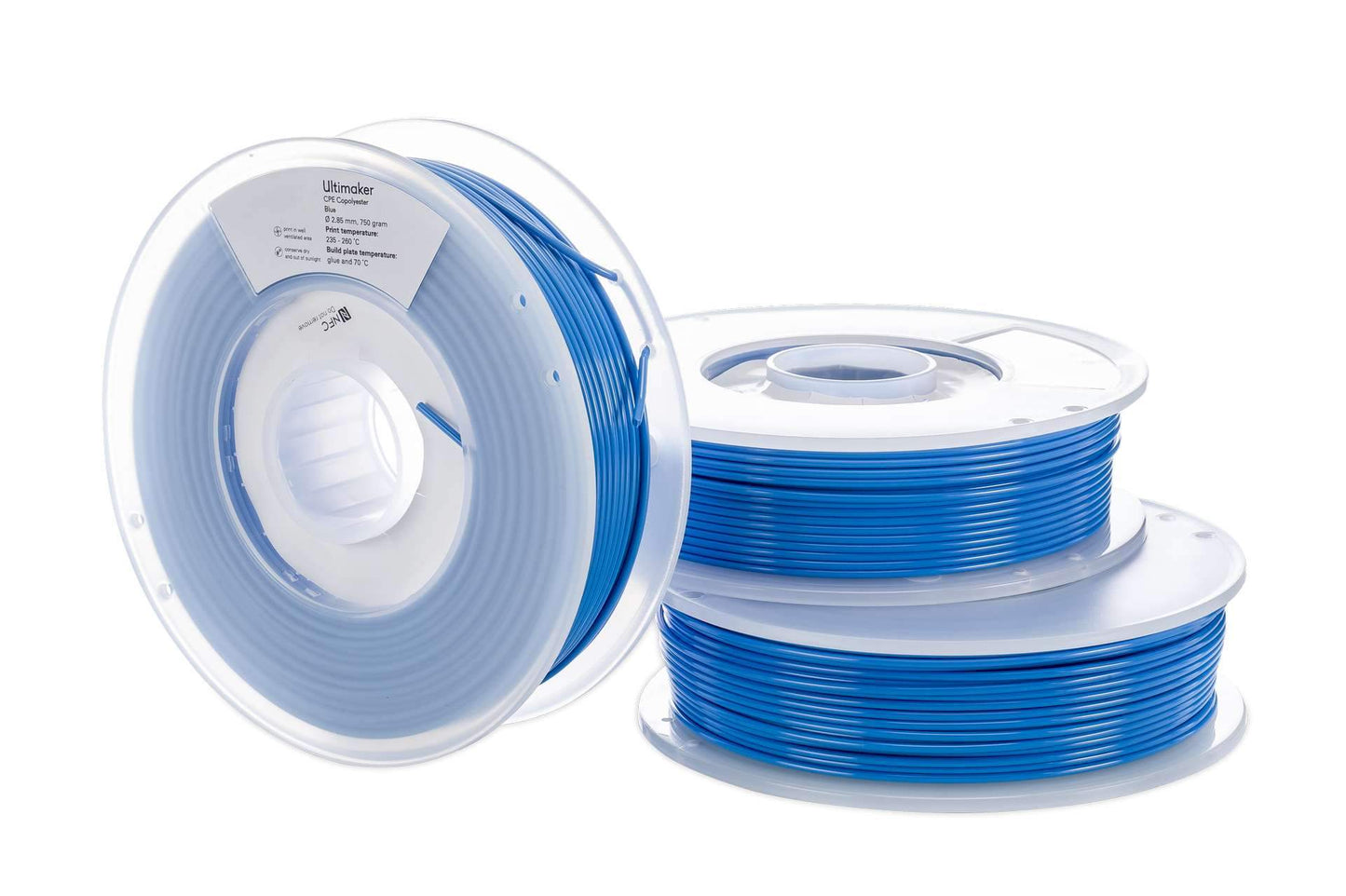

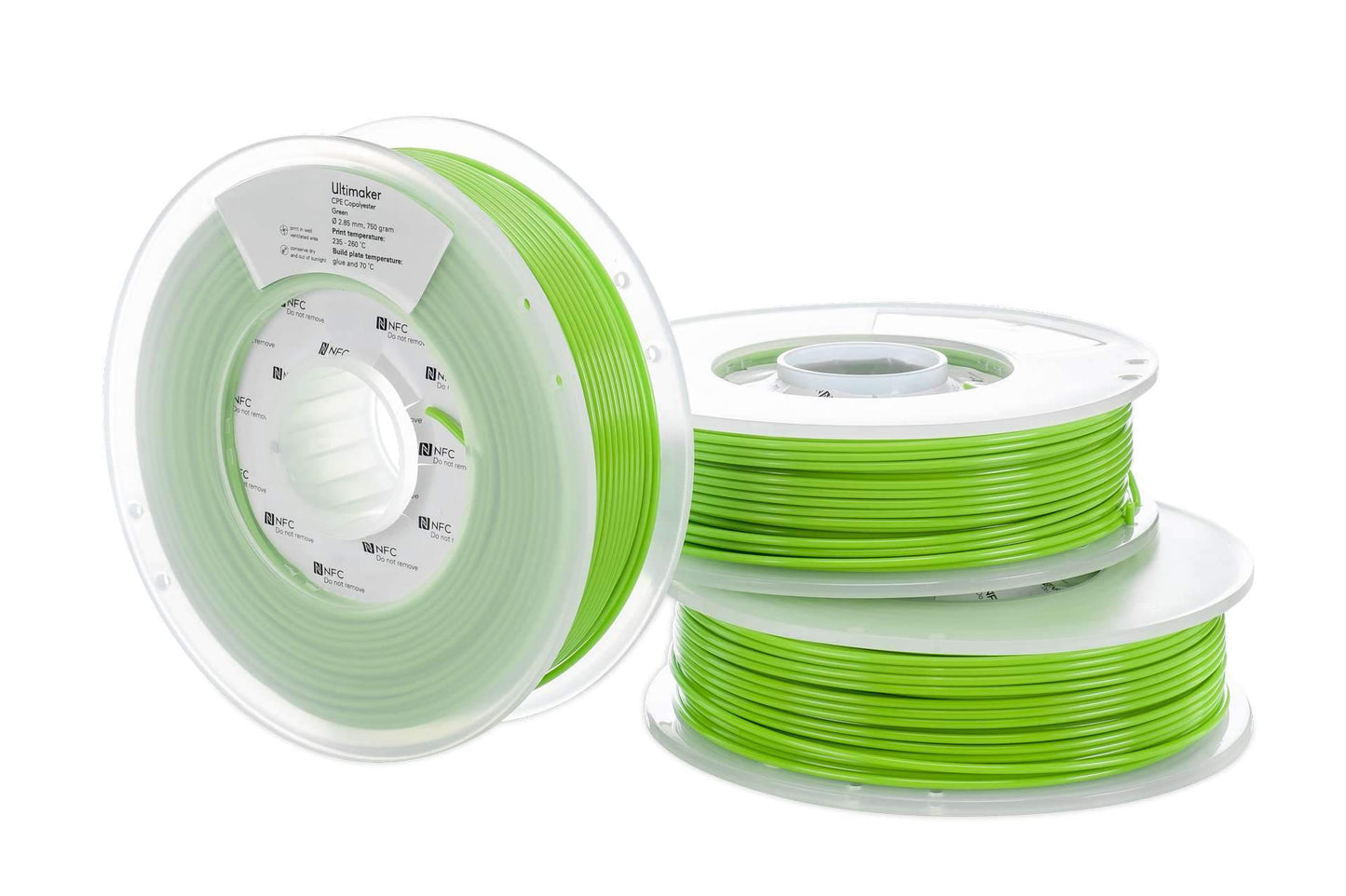

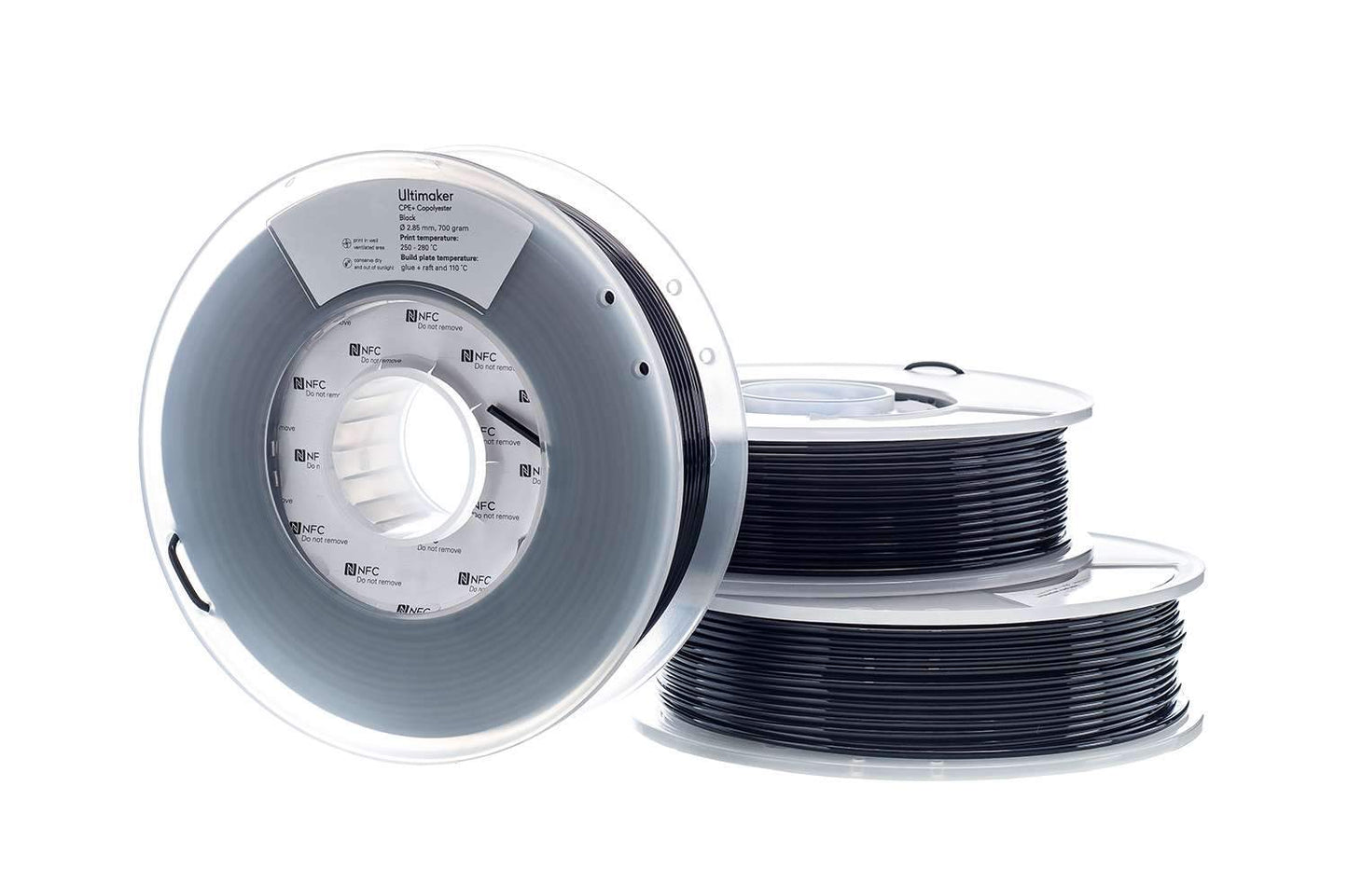

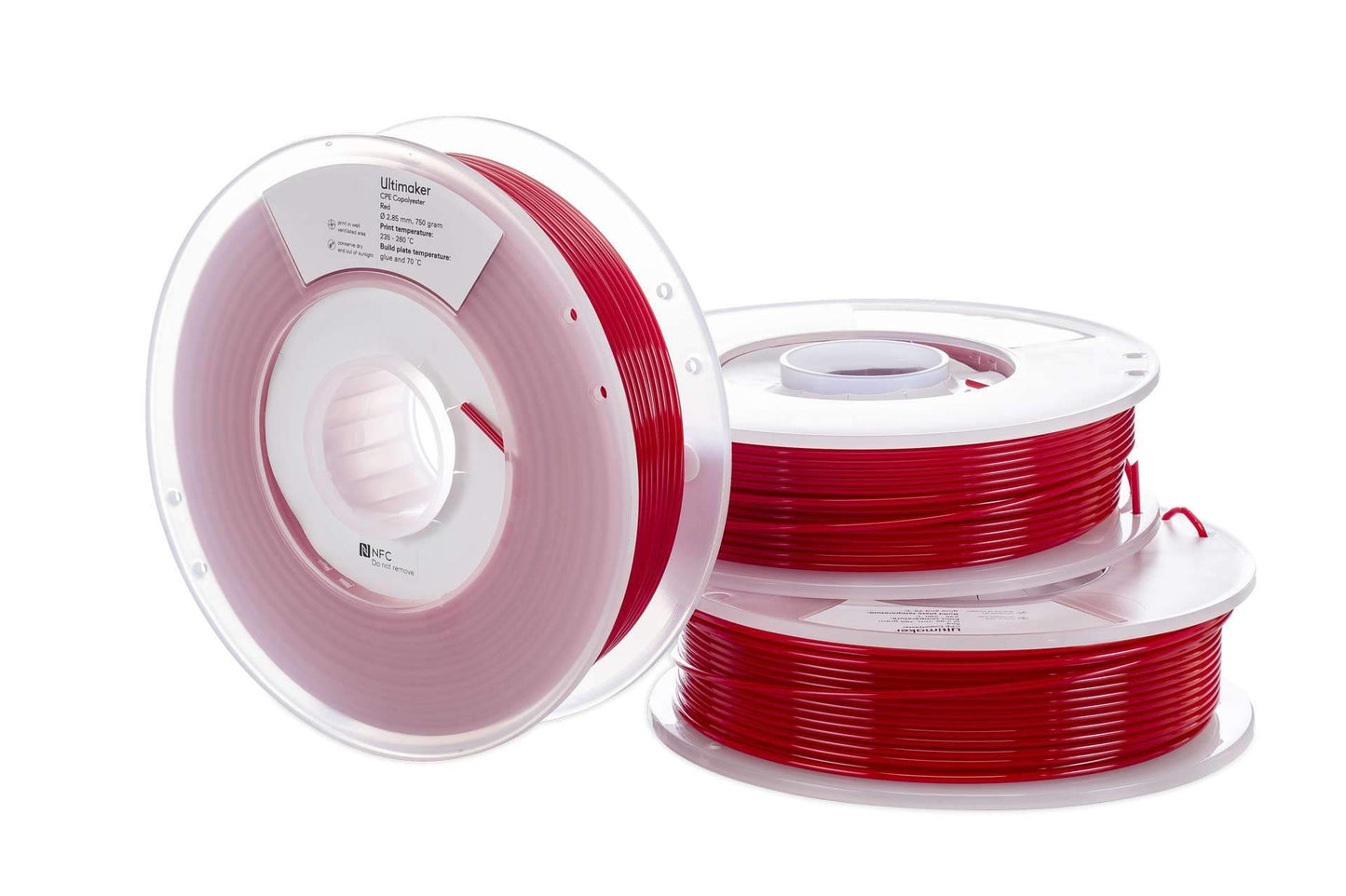

UltiMaker CPE Filament

UltiMaker CPE Filament

UltiMaker CPE Filament

Durable CPE filament with chemical resistance, strength, and reliable engineering performance.
Colour
SKU: 1632
$79.00 CAD
Sale
Sold out

Price

$79.00 CAD $98.00

Stock

Request a Quote | Email This Page | Add to Wishlist

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
UltiMaker CPE 1.75mm Filament (Engineering) is a co-polyester filament designed for durable functional parts requiring strength, chemical resistance, and dimensional stability. It offers a balanced combination of toughness, low moisture absorption, and temperature resistance, making it a reliable alternative to standard PLA and PETG for professional applications. CPE provides consistent print quality and is ideal for prototypes, mechanical components, and parts exposed to demanding environments.

Documentation

Intermediate Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Technical Specs

Overview
Net Weight 1kg
Material Compatibility
Material Diameter / Thickness 2.85mm

Notes

Shop3D.ca Notes

CPE+ is a straight upgrade to CPE, but requires a little bit more tuning and specific settings to print well. It provides good layer adhesion and a higher glass temp so if you need to print parts that are chemical resistant, or watertight, this is your best bet! In general, CPE+ is a well rounded material with good print characteristics, strength, and mechanical properties.

CPE+ is a little bit more challenging to print than PLA, but not as difficult as Nylon. It doesn't warp as much and doesn't have moisture issues. Compared to regular CPE, the glass temp is much higher so there is much higher tolerance for temperature deformations.

We recommend CPE+ for people who are looking at a general engineering material. CPE if you want color options.



Product Highlights

Top Features

CPE (co-polyester) materials are chemical resistant, tough and demonstrate good dimensional stability. It is a preferred choice for both functional prototypes and mechanical parts. While both CPE and CPE+ provide similar performance characteristics, CPE+ provides the added benefit of higher temperature resistance and increased impact strength.

UltiMaker's CPE+ can be compared to Colorfabb HT in properties and characteristics.

Adaptable and versatile

CPE material can be used in a range of different situations depending on your performance needs. Print functional prototypes or custom end-use parts.

Reliable, chemical resistant parts

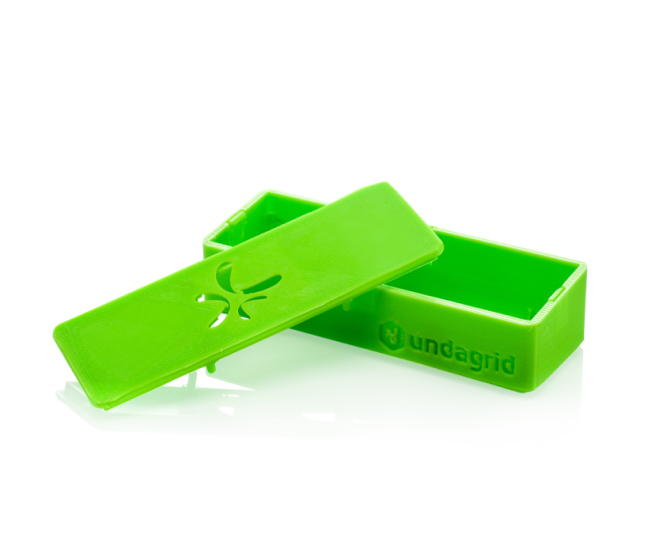

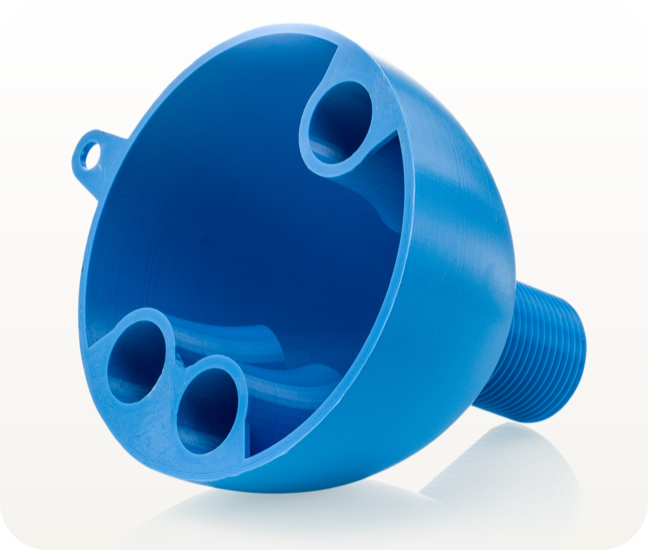

S series CPE is a great choice for custom mechanical parts that require chemical resistant properties.

Complex geometries are easy

UltiMaker CPE for S series is tough and dimensionally stable, for functional prototypes that require rigorous testing before a production phase.

Print Settings

  • Print speed: 35-50mm/s
  • nozzle temp: 260 C
  • Bed Temp: 110C
  • Fan = 25%
  • Flow = 105%
  • Bed material: Adhesion Sheets on glass (advanced printing kit)
  • Door: Yes (advance printing kit)
  • Adhesion Method: Brim or Raft for large parts

Reasons to choose UltiMaker CPE

  • Excellent chemical resistance
  • Excellent toughness and dimensional stability
  • Good interlayer adhesion, especially when using the front door add-on
  • Low levels of ultrafine particles (UFPs) and volatile organic compounds (VOCs)
  • Ideal for short-run manufacturing and functional prototypes

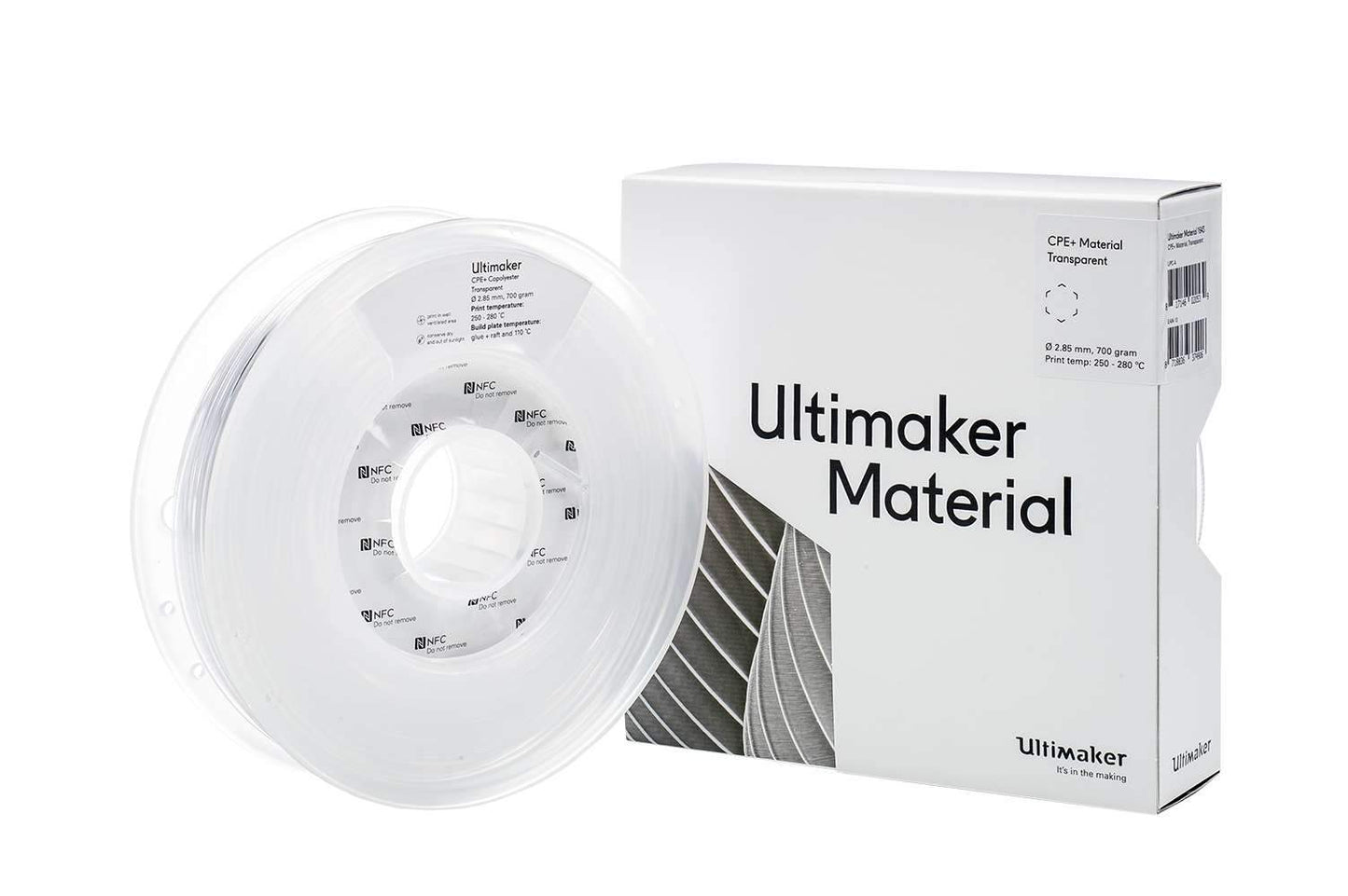

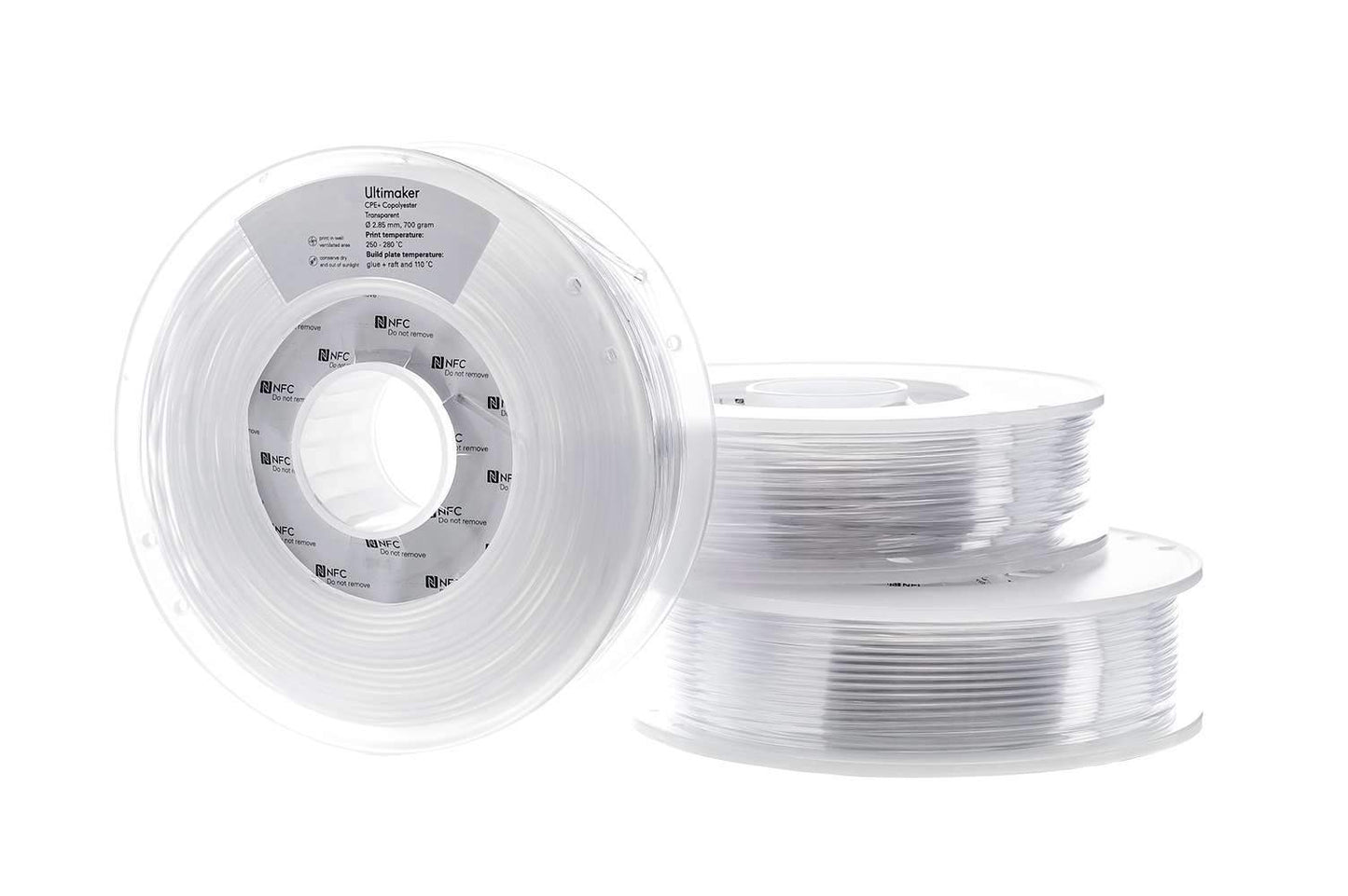

  • Transparent filament option available

Differences between UltiMaker CPE and CPE+

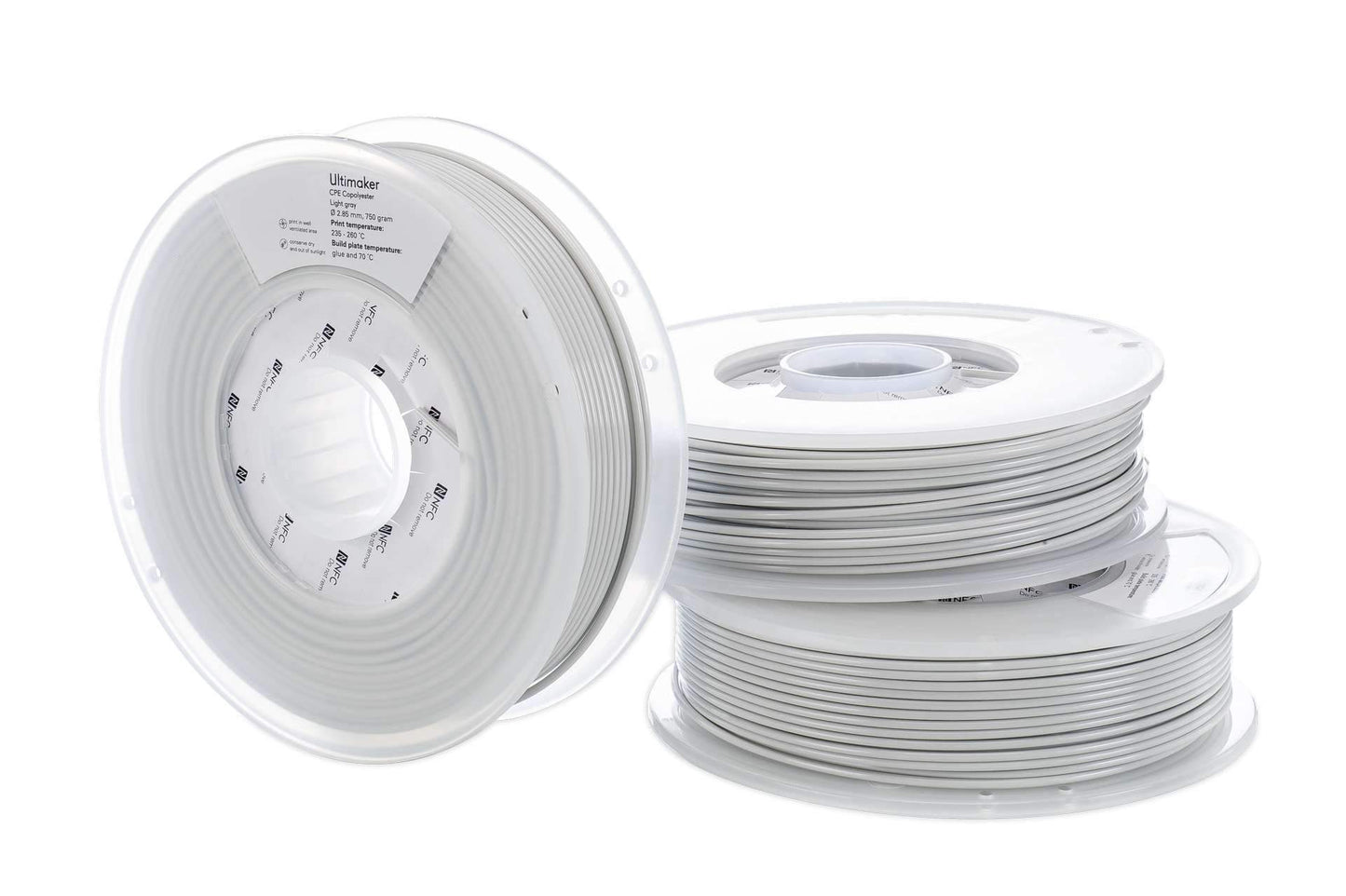

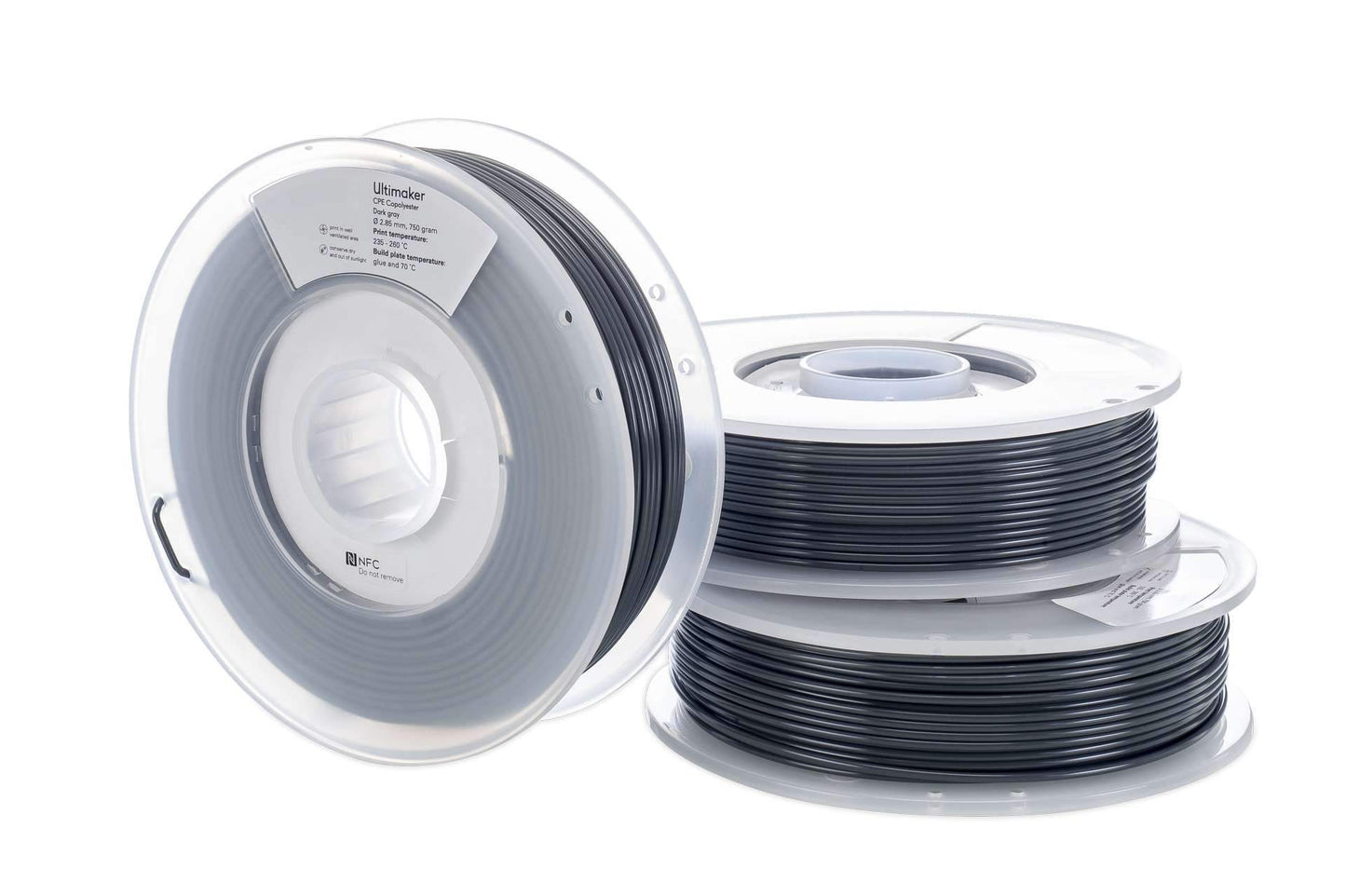

  • CPE is available in a wide range of colors to choose from, including grayscale for more professional looking models.
  • CPE’s tensile and flexural strength are higher, whilst CPE+ is formulated to be up to 10 times tougher.
  • CPE+ features a temperature resistance of up to 100 ºC when compared to CPE, which is only resistant up to 70 º
  • CPE has a better build plate adhesion than CPE+, but you won’t notice the difference when using the stickers supplied in our Advanced 3D Printing Kit.
