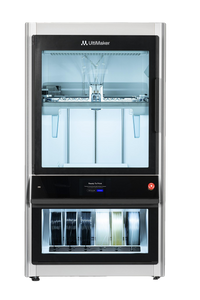

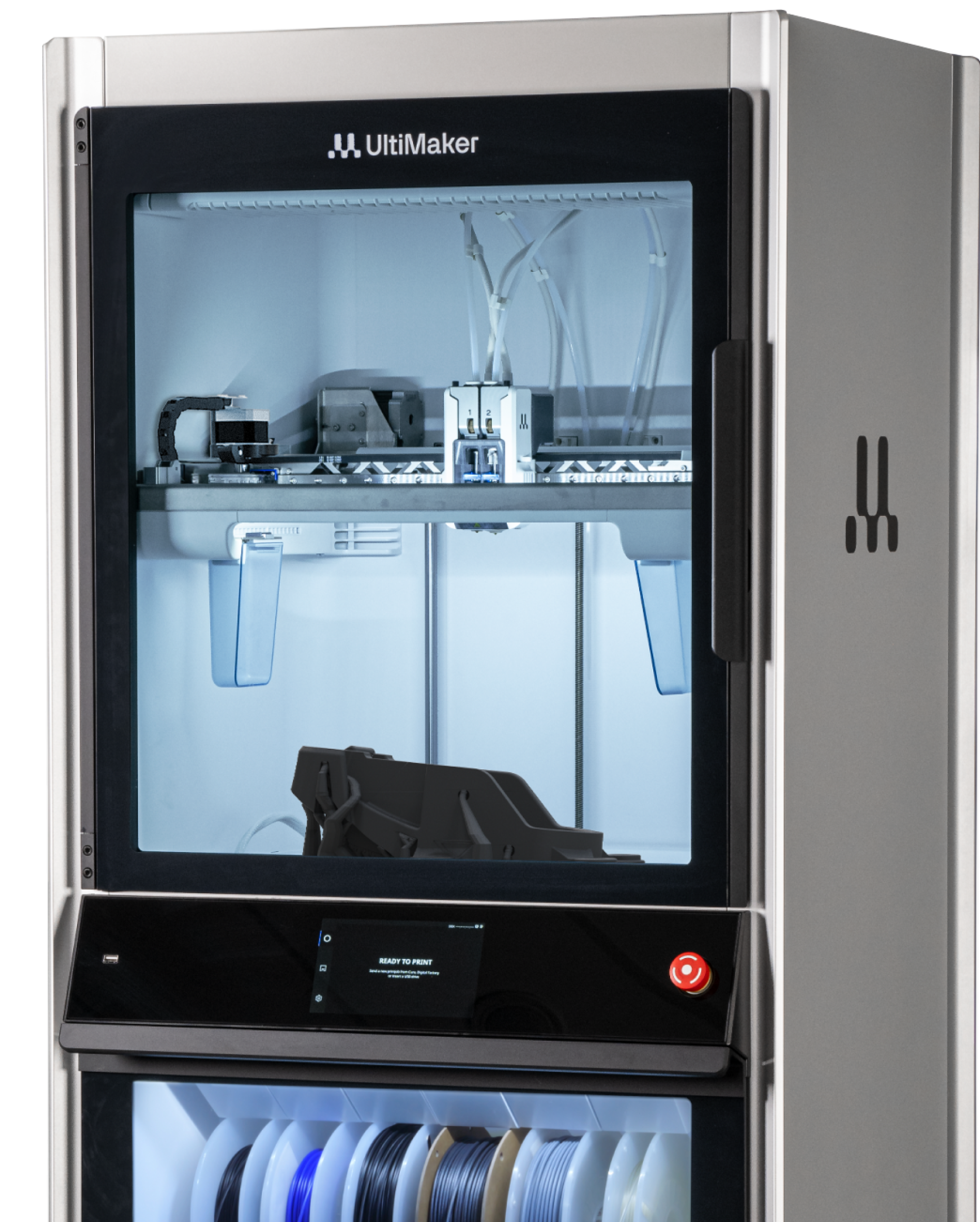

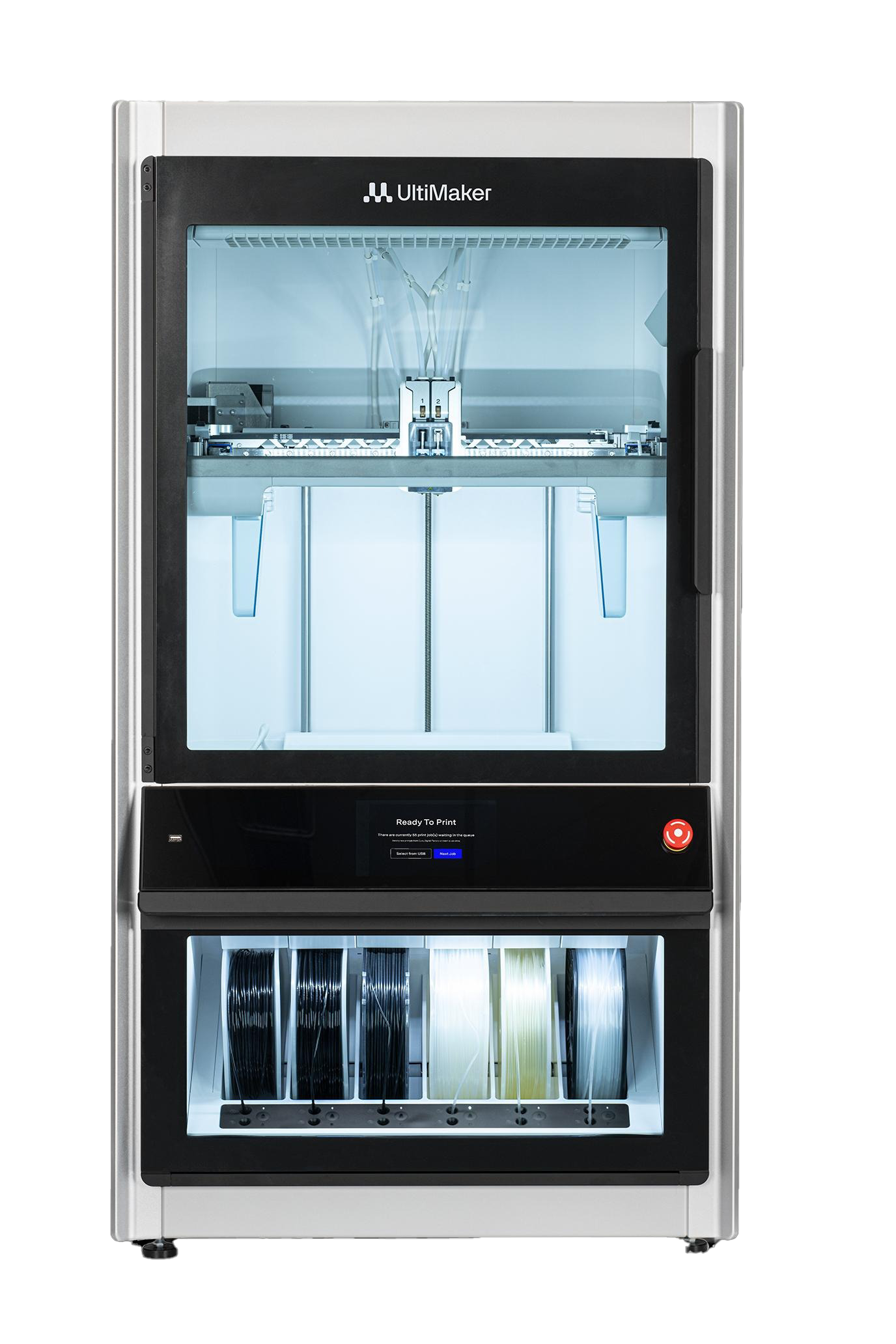

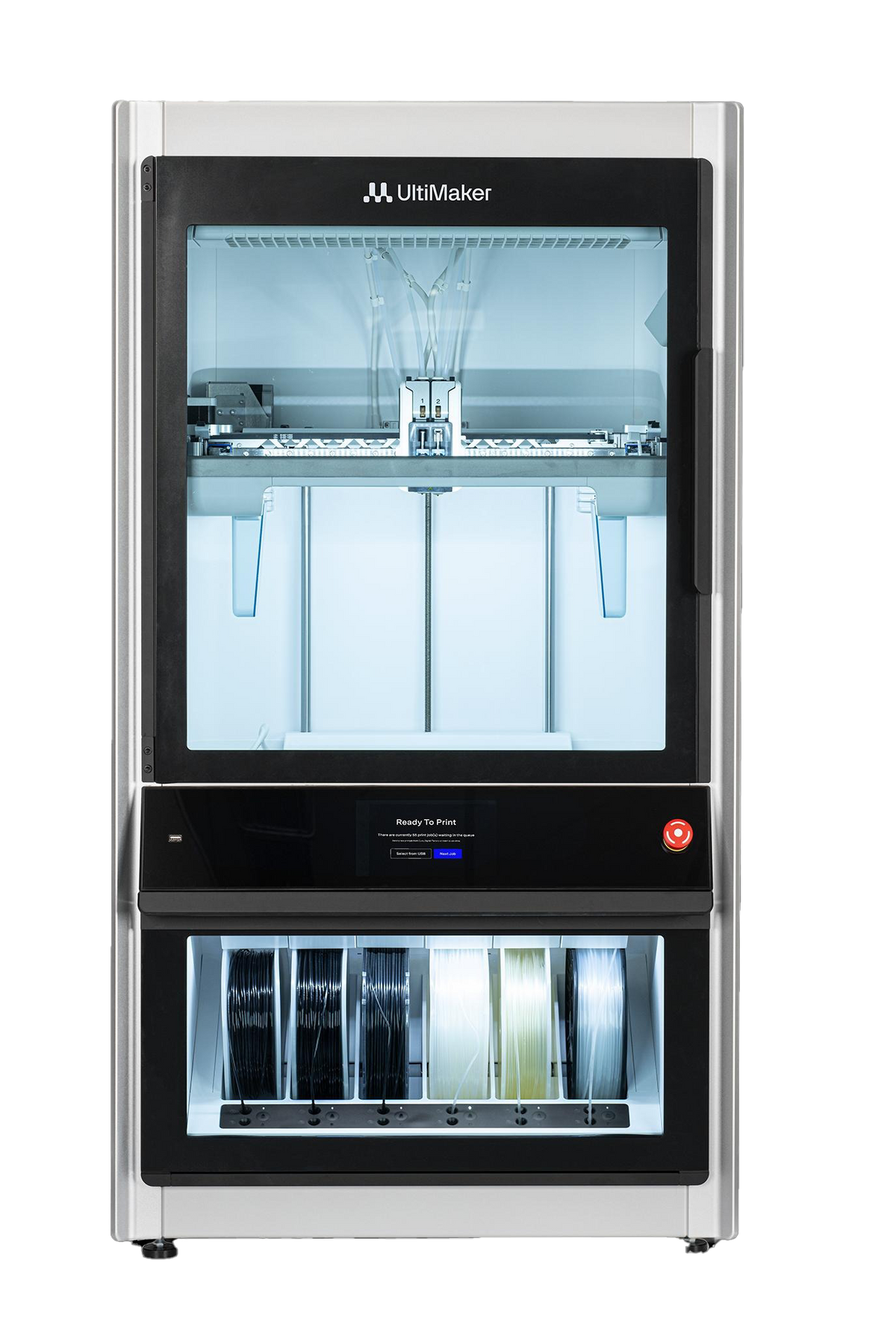

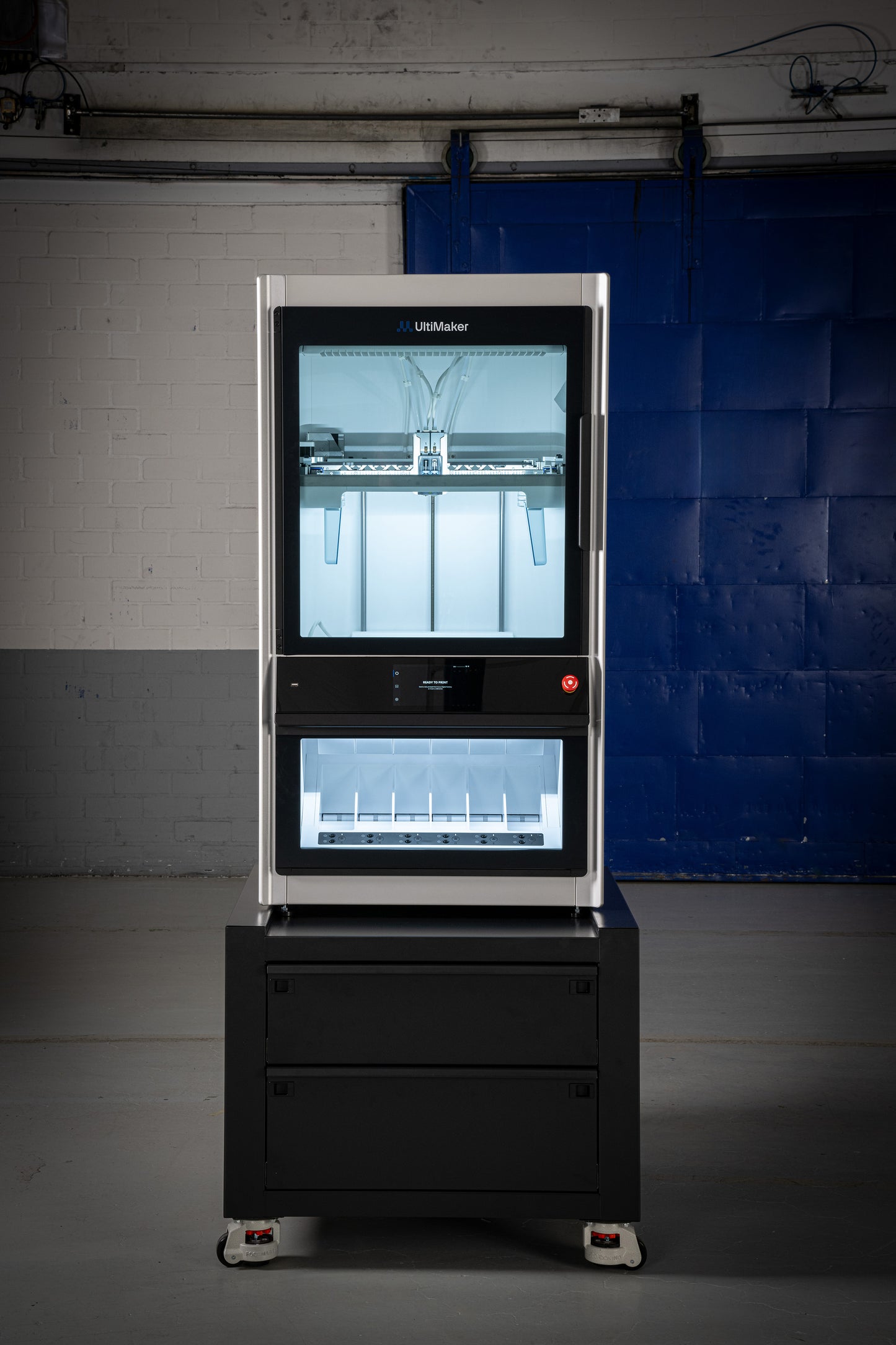

UltiMaker Factor 4+

UltiMaker Factor 4+

UltiMaker Factor 4+

Ultimaker's industrial-grade 3D printer, designed to take manufacturing to new levels of efficiency.
SKU: 62-239910
$33,499.00 CAD
Sale
Sold out

Price

$33,499.00 CAD $27,651.18
Free Delivery does not apply for this order.

Stock

Request a Quote | Email This Page | Add to Wishlist

Product Details

The Ultimaker Factor 4+ is an industrial-grade platform that delivers up to twice the speed of alternative industrial platforms while bringing robust, high- performance printing to continuous factory production for the manufacturing and defense industries.

Technical Specs

Overview
Build Volume / Work Area (L× W× H) Single material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
Dual material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
Number of Extruders 2
Material Compatibility
Compatible Materials 14+ UltiMaker materials 250+ UltiMaker Marketplace materials
Material Diameter / Thickness 2.85 mm
Dimensional Tolerance ±0.2 length nominal feature ±0.2% mm,
Features
Maximum Nozzle Temperature 280 °C (536 °F): Print core AA, BB, DD 300 °C (572 °F): Print core CC 340 °C (644 °F): Print core HT
Auto Leveling / Calibration Yes

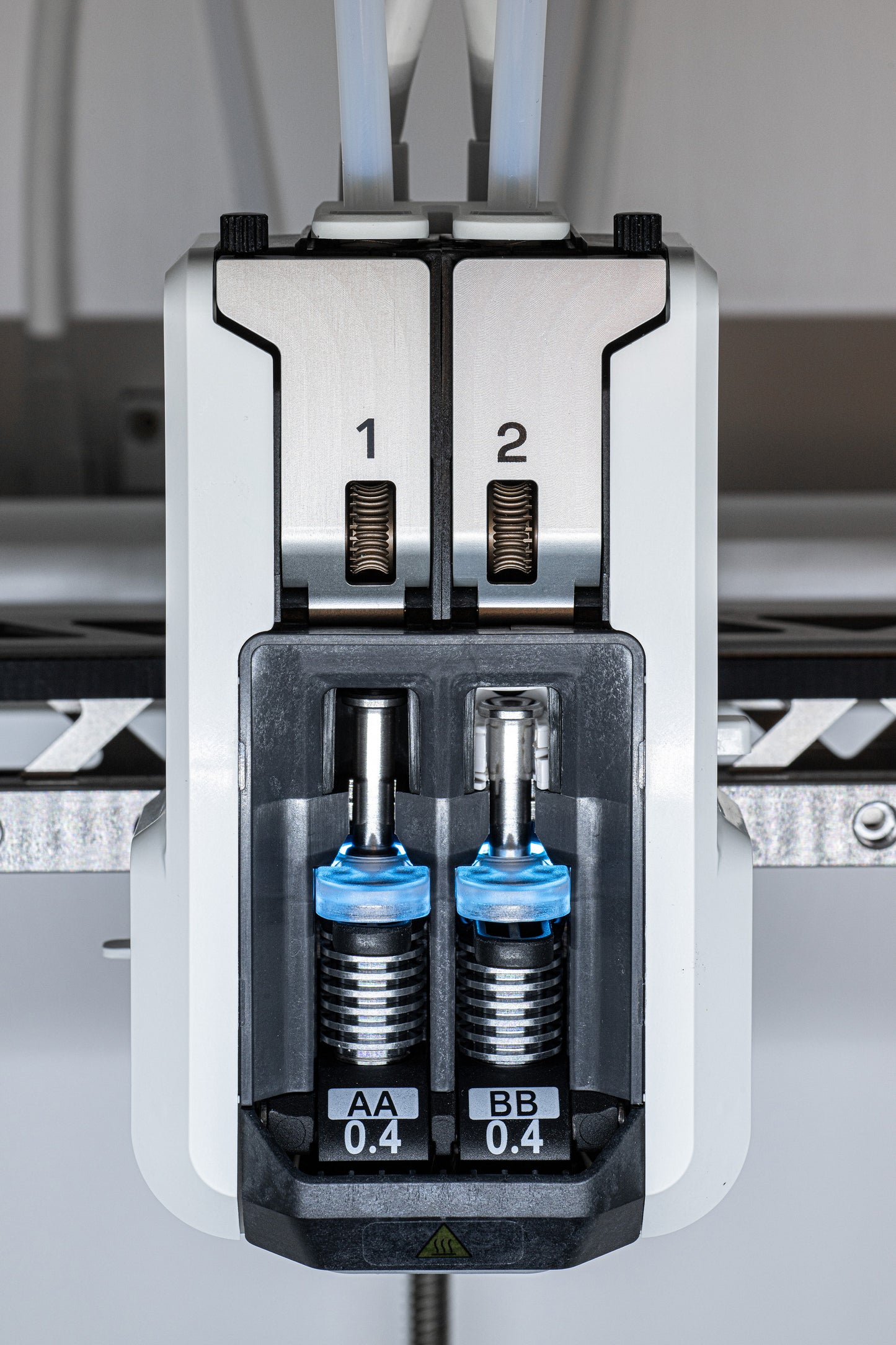

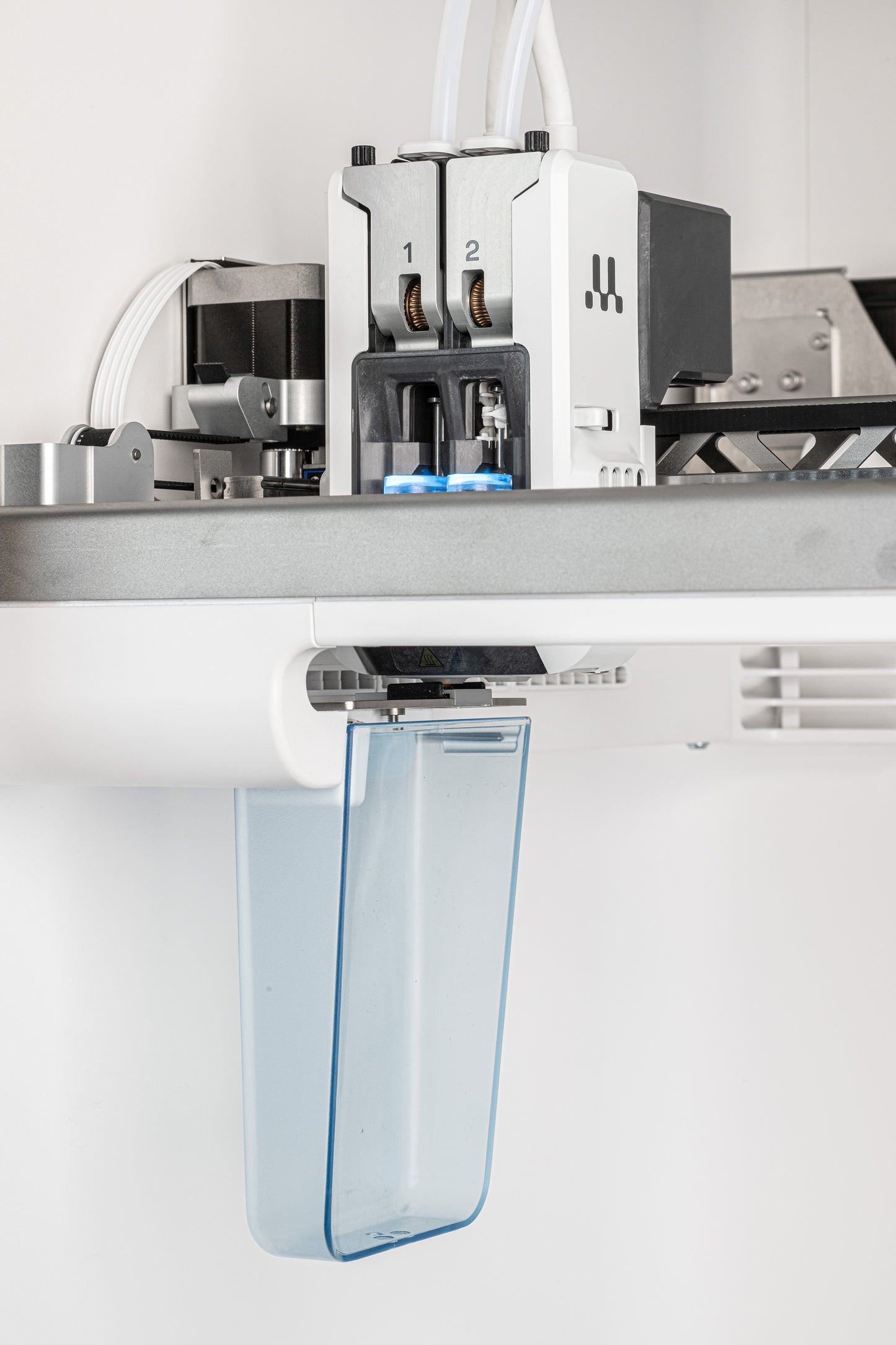

Extruder Type Dual-extrusion, direct drive print head with unique auto-nozzle lifting system and swappable print cores
Supported Nozzle Diamete Print core AA (0.25 mm, 0.4 mm, 0.8 mm) Print core BB (0.4 mm, 0.8 mm) Print core CC (0.4 mm, 0.6 mm) Print core DD (0.4 mm) – available in selected regions Print core HT (0.6 mm)
Platform & Motion System
Build Plate Compatibility Ultimaker PEI-coated flexible build plate
Maximum Bed Temperature 120 °C (248 °F)
Chamber Heating Actively controlled up to 70 °C(158 °F) with nozzle plane temperature uniformity within: ± 3 °C (5.4 °F) for temperatures < 50 °C (122 °F) ± 5 °C (9 °F) for temperatures < 70 °C (158 °F)
Camera HDR (high dynamic range) 1920 x 1080 px HD camera
Door Sensor Yes
Auto Calibration Extrusion flow Closed loop flow compensation
Software & Workflow
Supported File Types UltiMaker Cura: STL, OBJ, 3MF Printable formats: G, GCODE, UFP, STEP
Typical Power Consumption 100 – 240 V AC, 50 – 60 Hz max., 6A

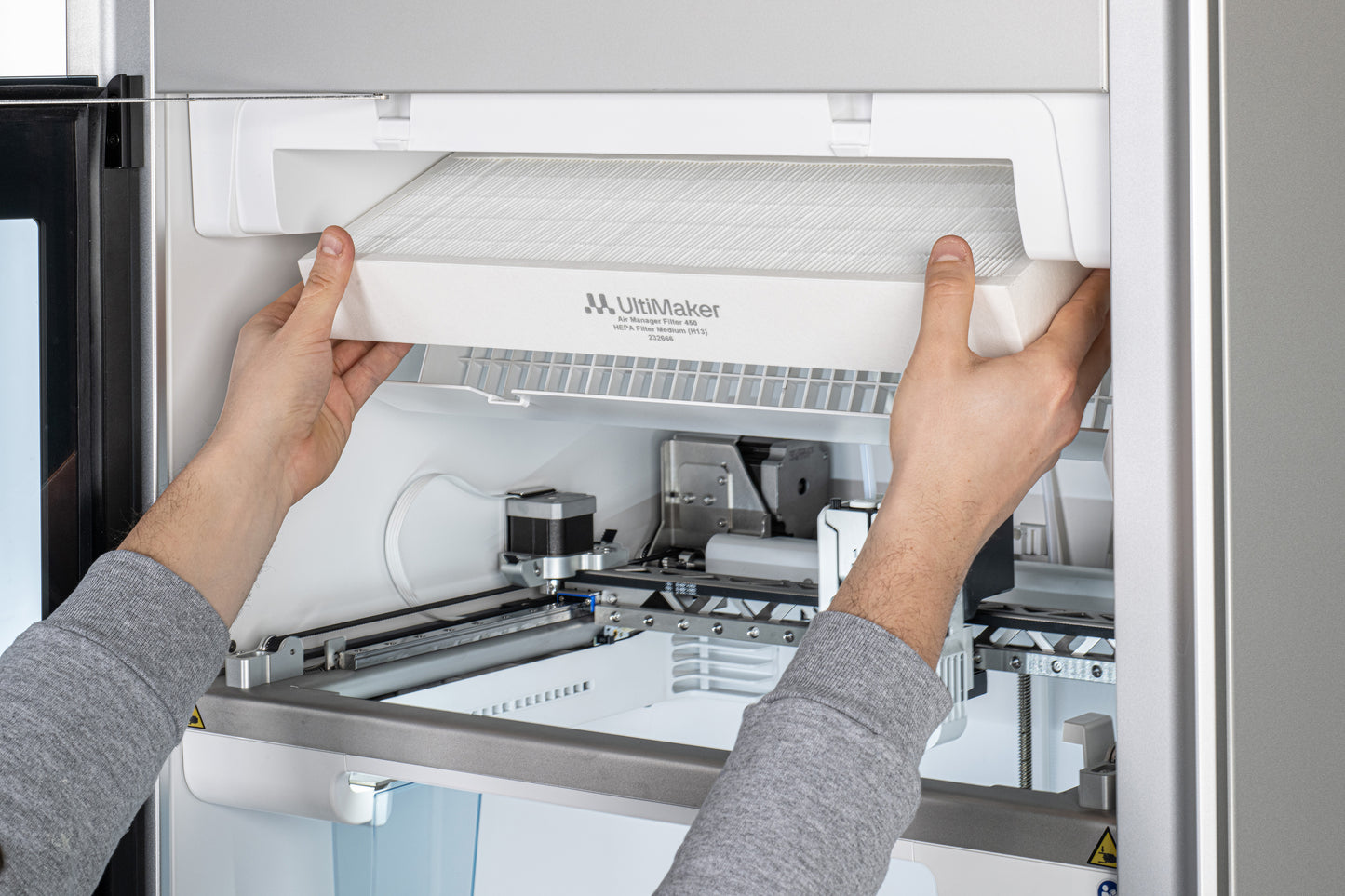

Air Filtration HEPA H13

What's in the Box

UltiMaker Factor 4
  • Print core AA 0.4 mm (2×)*
  • Flexible build plate
  • Power cable (region-specific)
  • Purge bucket (2×)
  • Nozzle cover (2×)
  • USB stick
  • Wire cutters
  • XY calibration guide
  • Tough PLA (750 g spool)
UltiMaker Factor 4 Plus
  • Print core AA+ 0.4 mm (2×)*
  • Print core CC+ 0.6 mm (1×)
  • Flexible build plate
  • Power cable (region-specific)
  • Purge bucket (2×)
  • Nozzle cover (2×)
  • USB stick
  • Wire cutters
  • XY calibration guide
  • Adhesion stick
  • TRACE activation code
  • Tough PLA (750 g spool)
Additional information
  1. Each printer also includes a quick start guide, a safety and warranty information booklet, and important information about the flexible build plate.
  2. The AA and AA+ print cores are pre-calibrated and already installed in the print head.
  3. The flexible build plate is not in the accessory box, but is placed underneath the build platform.
  4. The Factor Series printers ship with all items required to start a print.

Links

3D Printer

FFF Technology

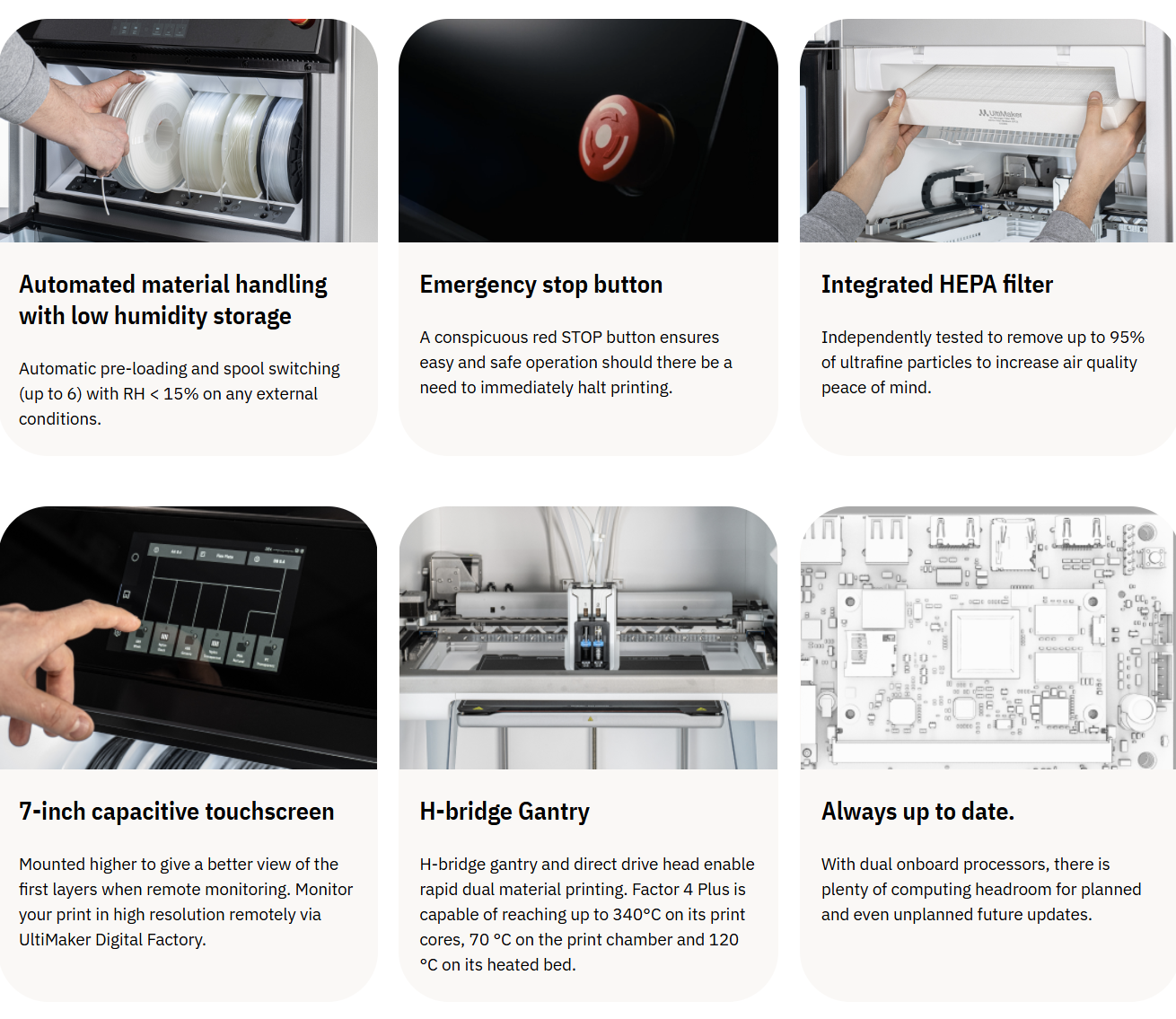

Product Highlights

Top Features

The seamless, powerful upgrade that your production workflows demand.

  • Triple-insulated build chamber

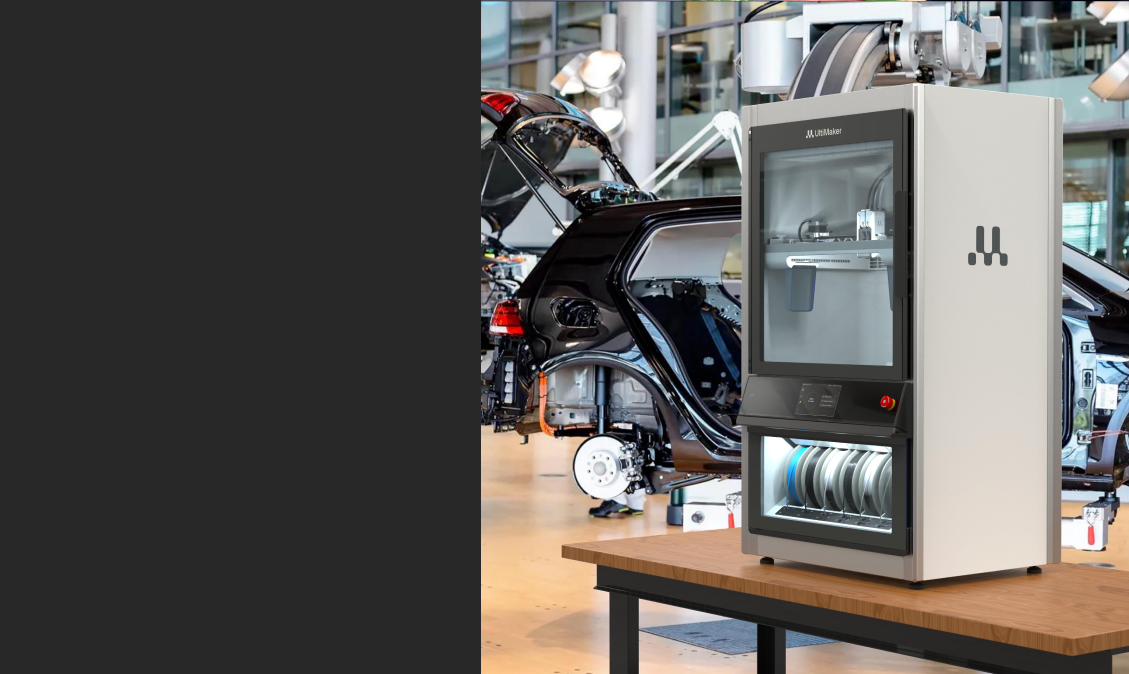

  • Direct dual extrusion

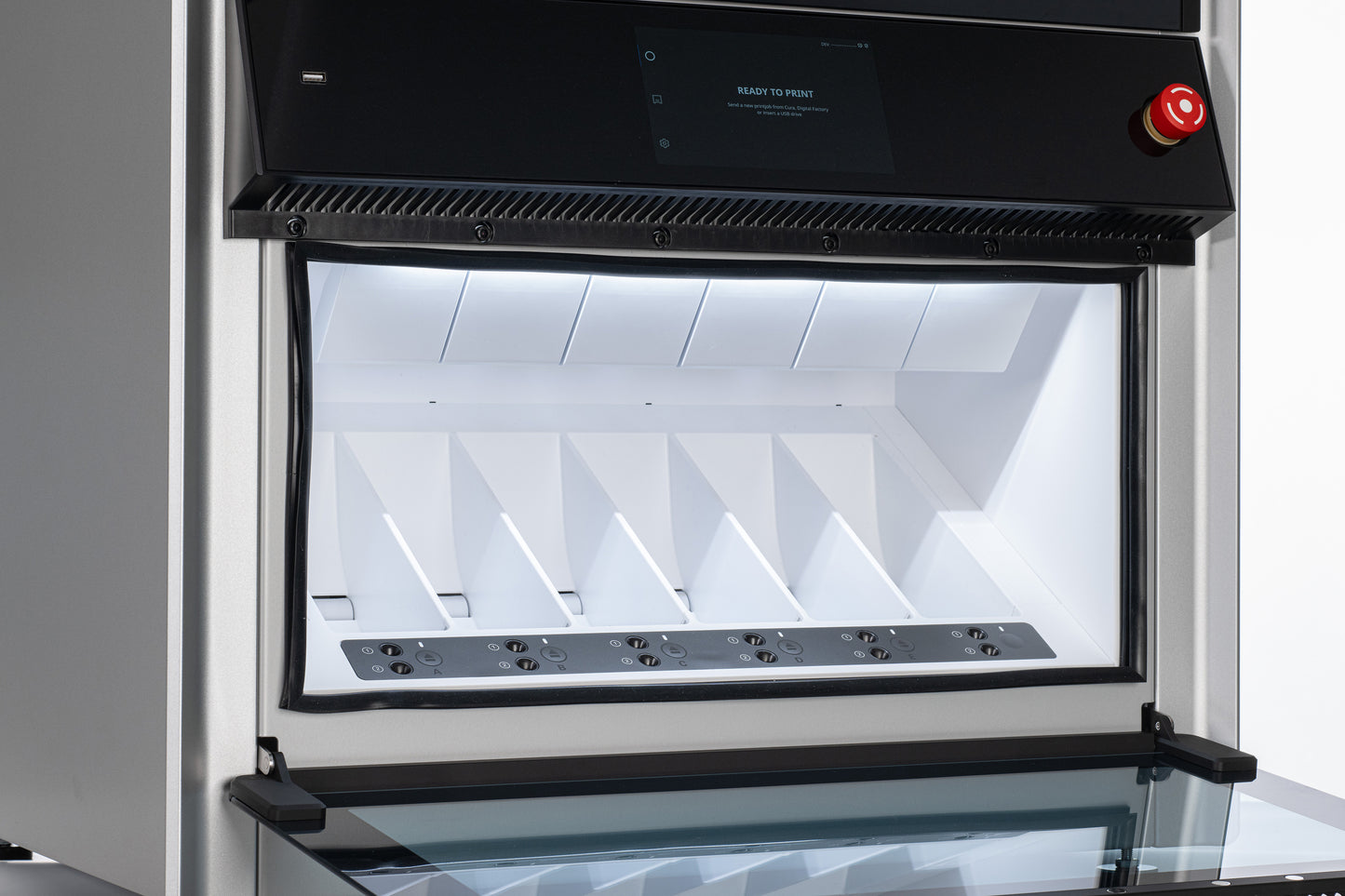

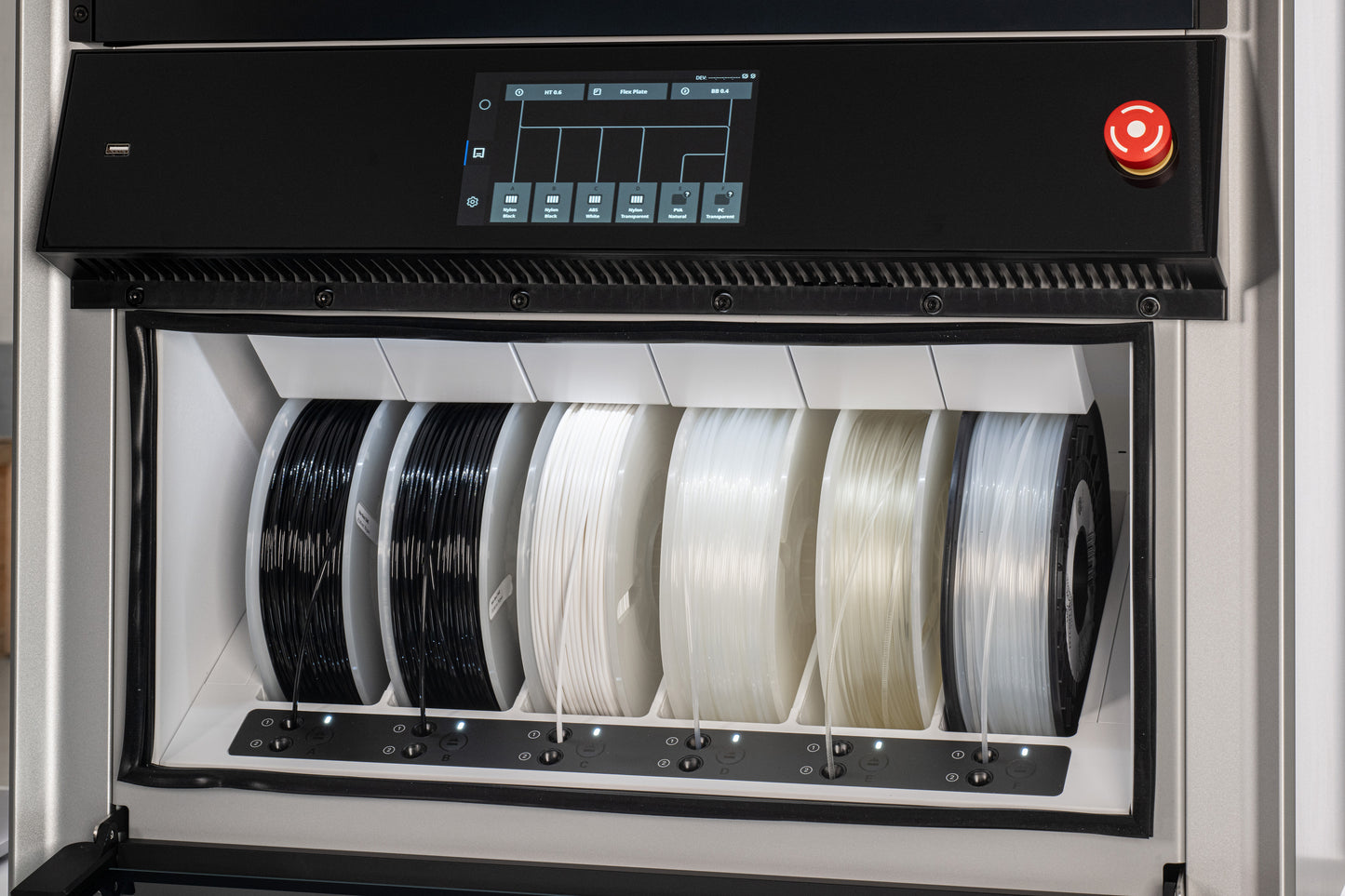

  • Automated material handling system
  • Temperature-controlled Design
  • Actively temperature controlled build volume up to: 70 °C, heated bed up to: 120 °C

Built on more than 13 years of UltiMaker legacy – dedicated to innovation, accessibility, and openness.

UltiMaker TRACE: Technical Reporting And Certification Engine

Total print transparency for strict compliance standards.

Go beyond basic monitoring to provide the level of traceability required for rigorous industrial compliance. Throughout the entire print job, TRACE continuously logs and analyzes four key parameters. By monitoring this specific dataset in real time, the engine can instantly detect minor thermal or volumetric deviations that might affect part quality, layer adhesion, or mechanical performance.
