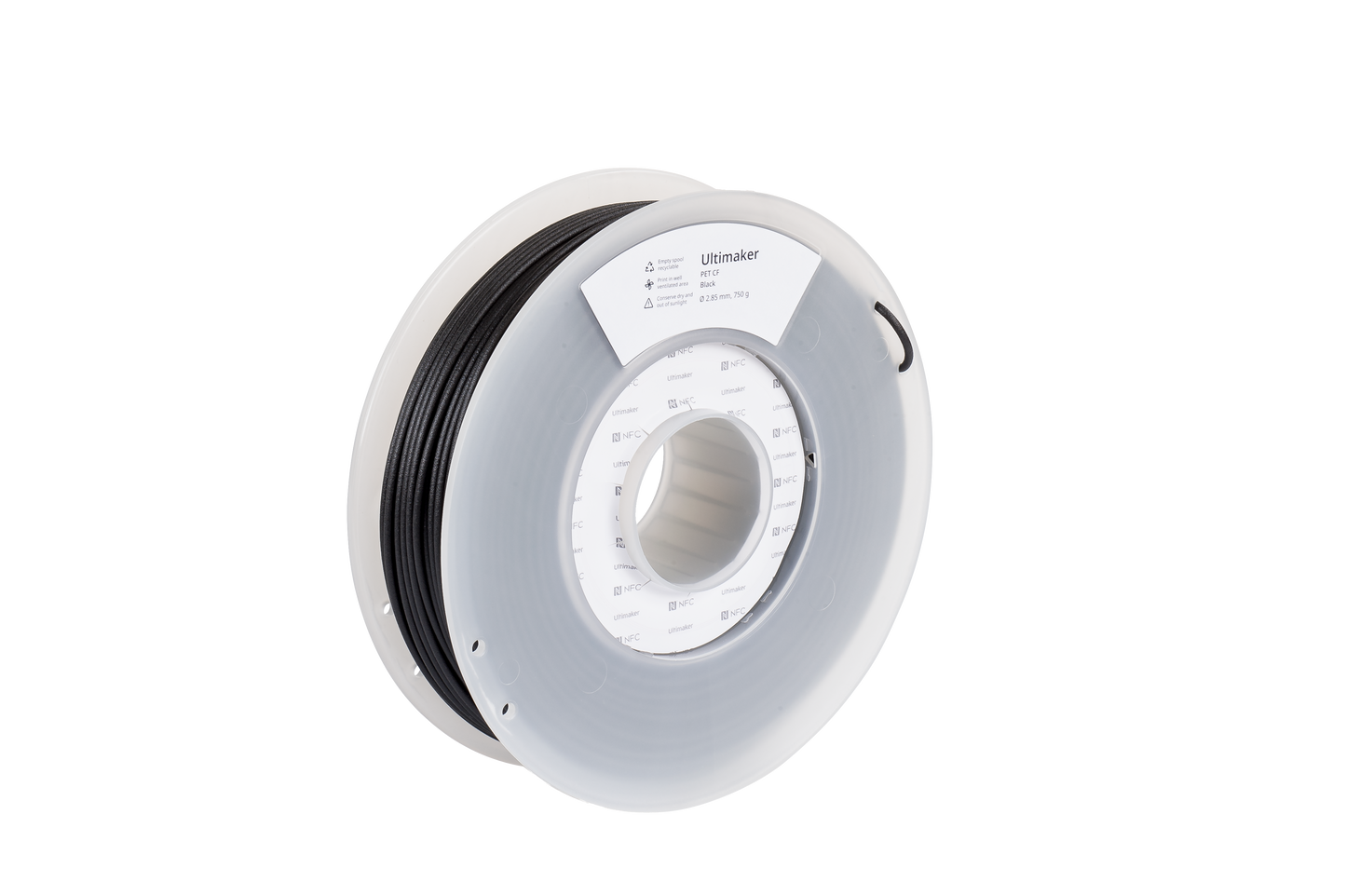

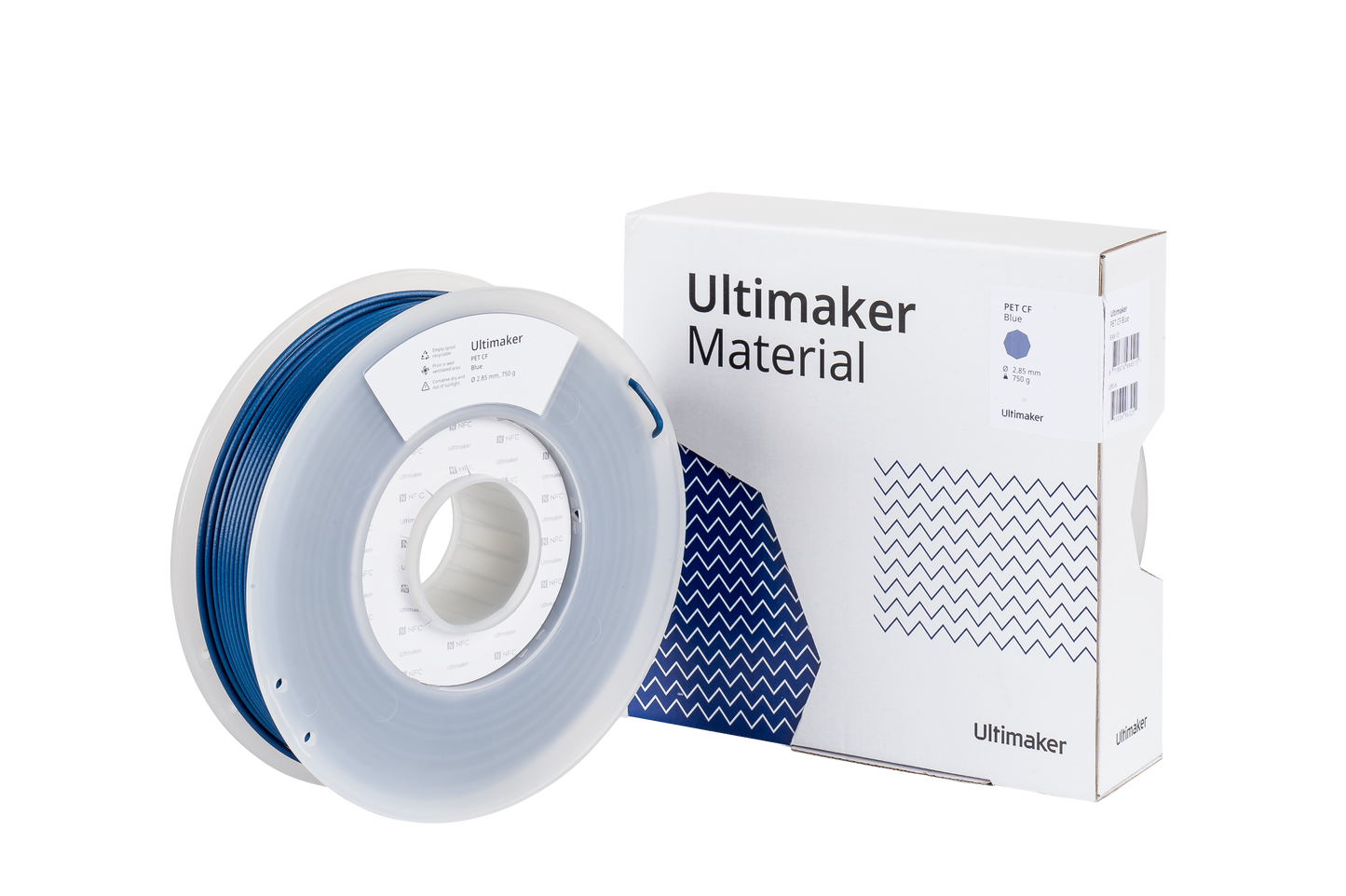

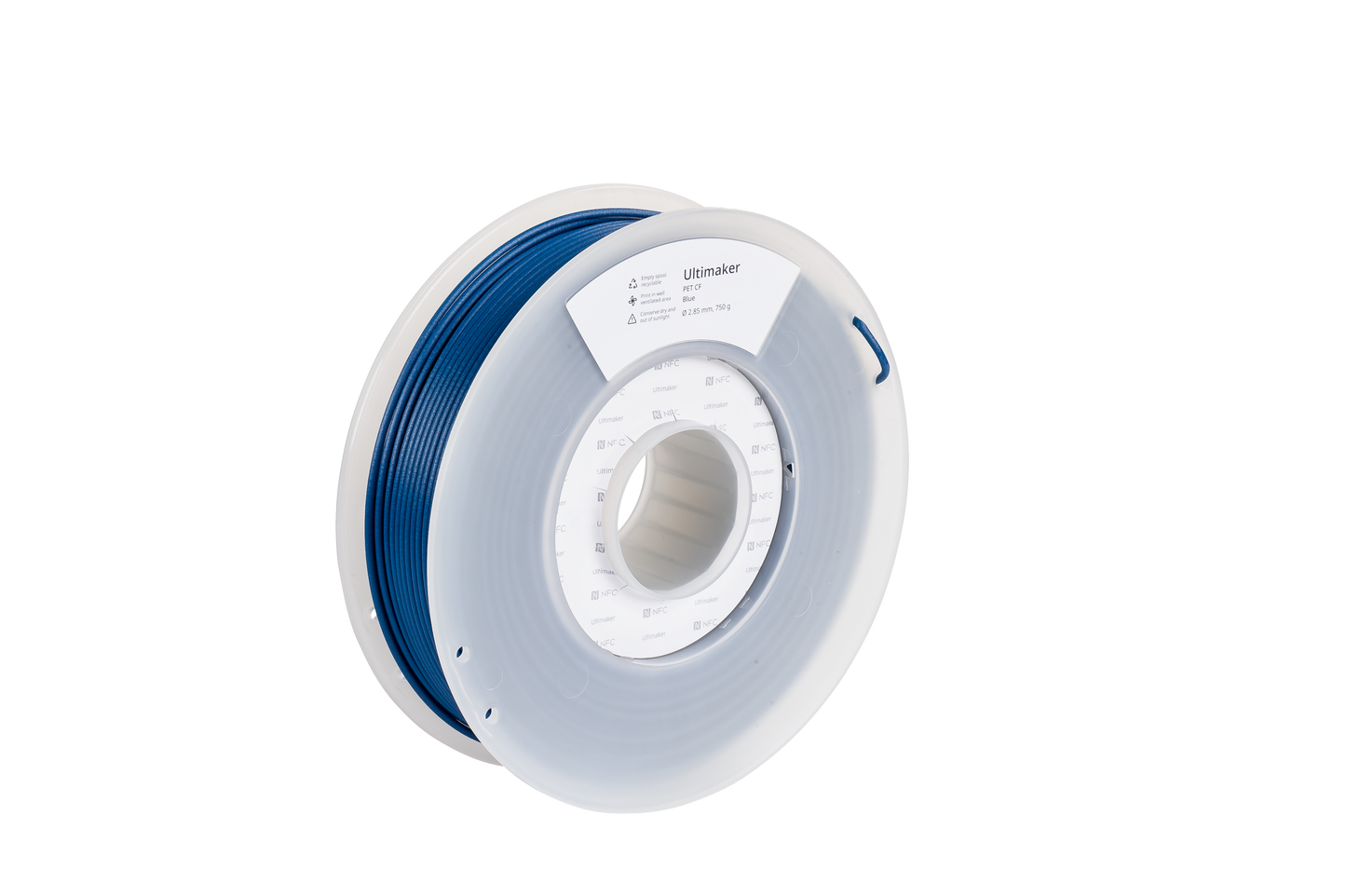

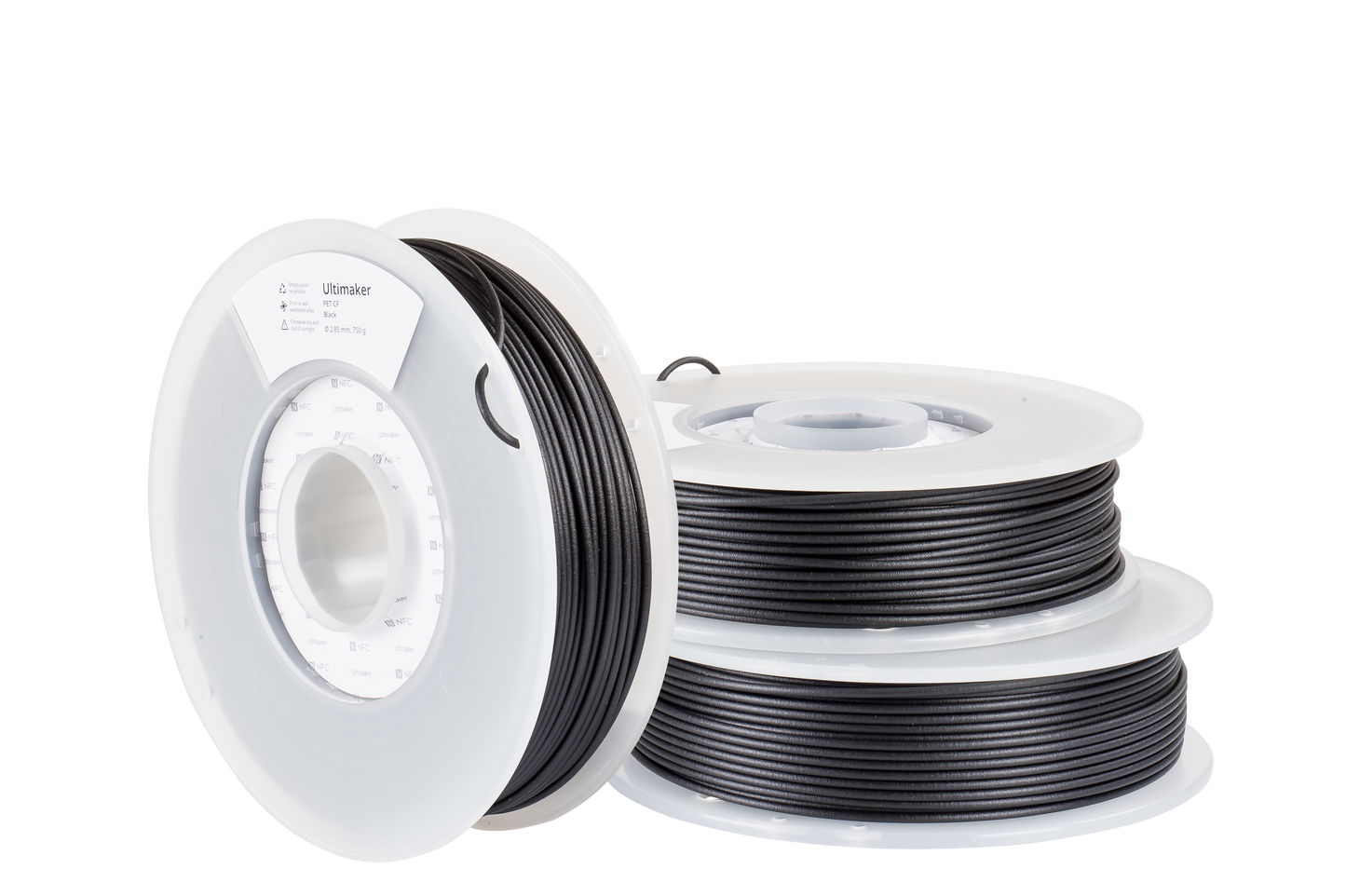

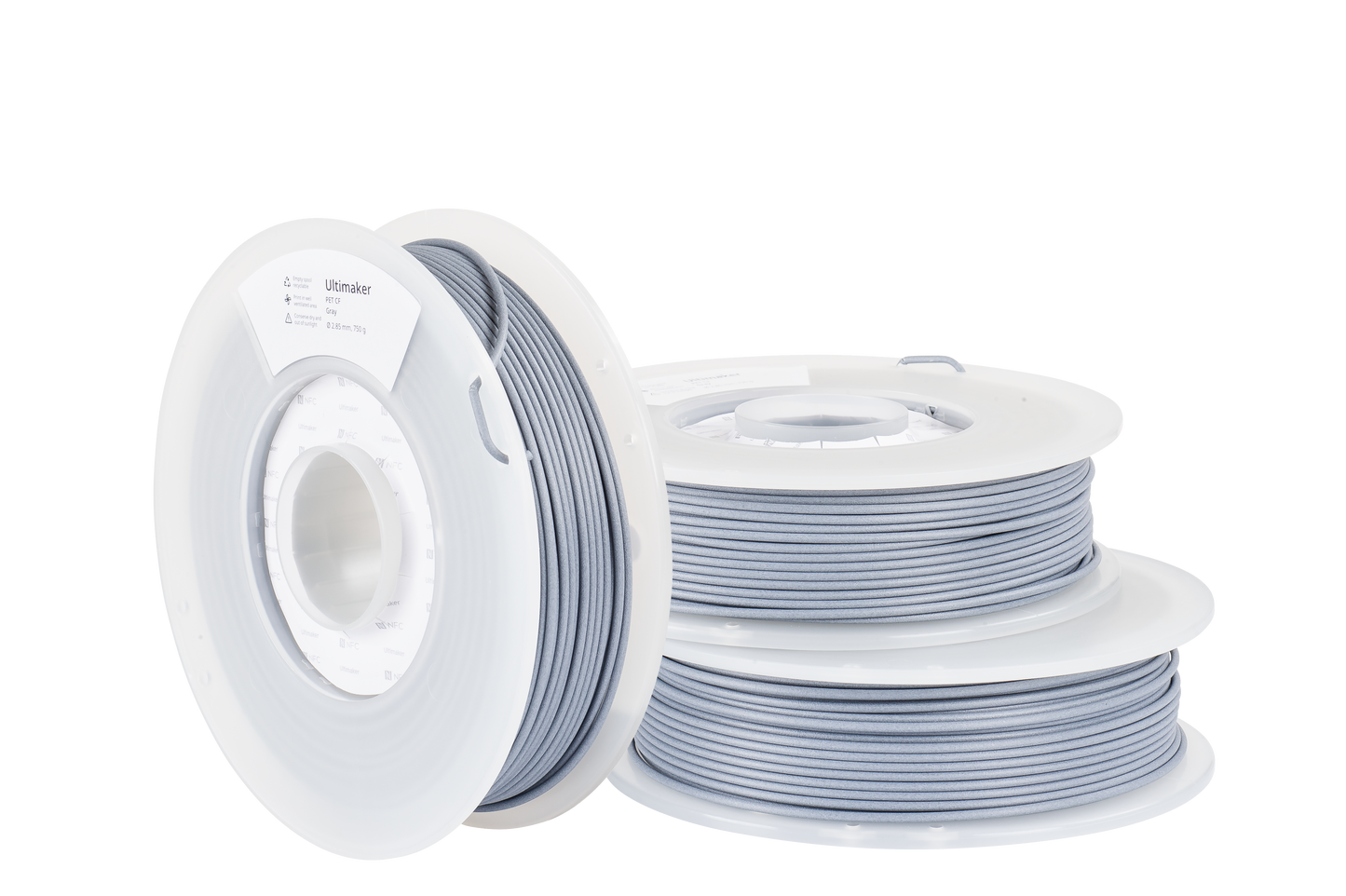

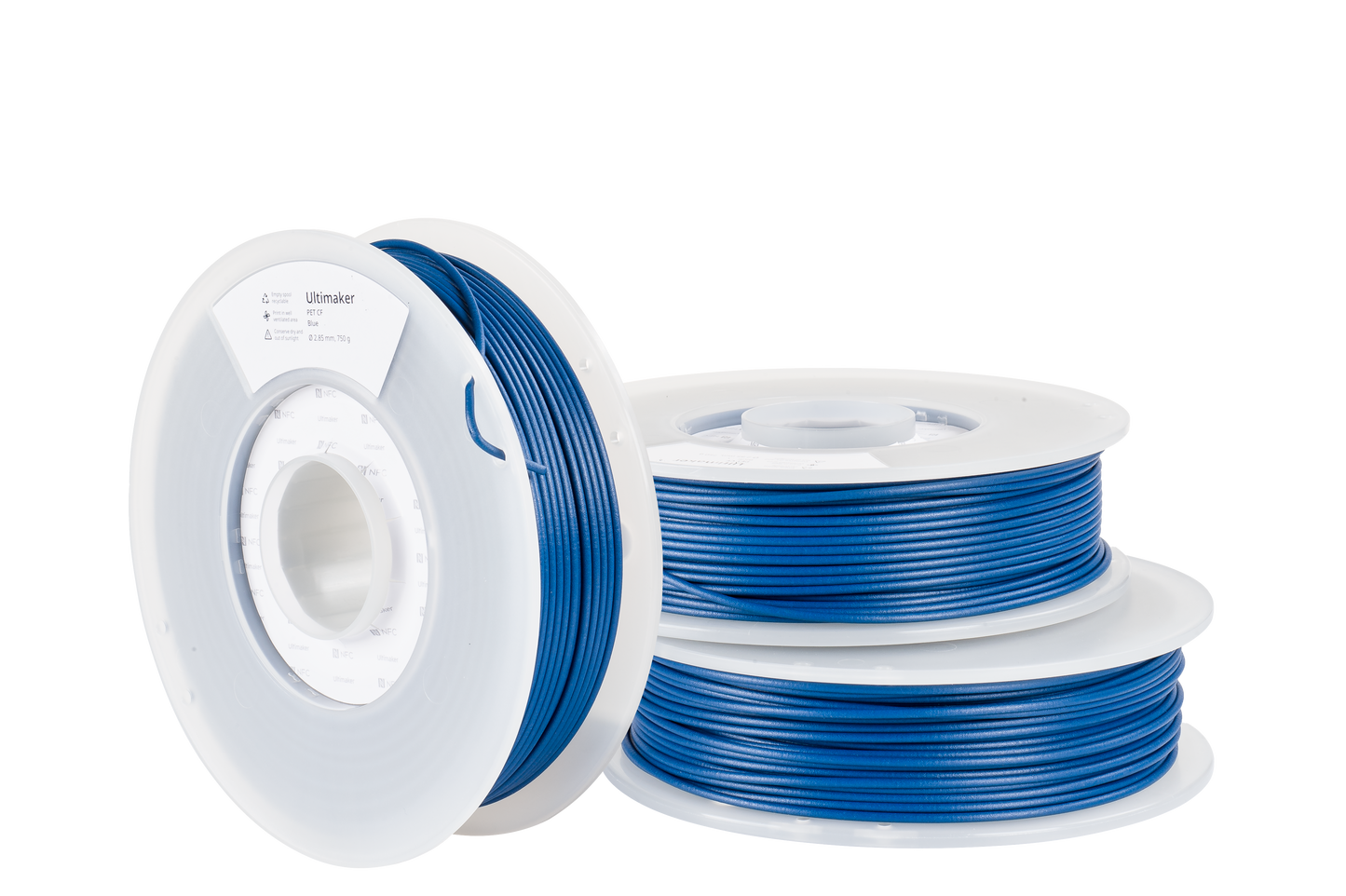

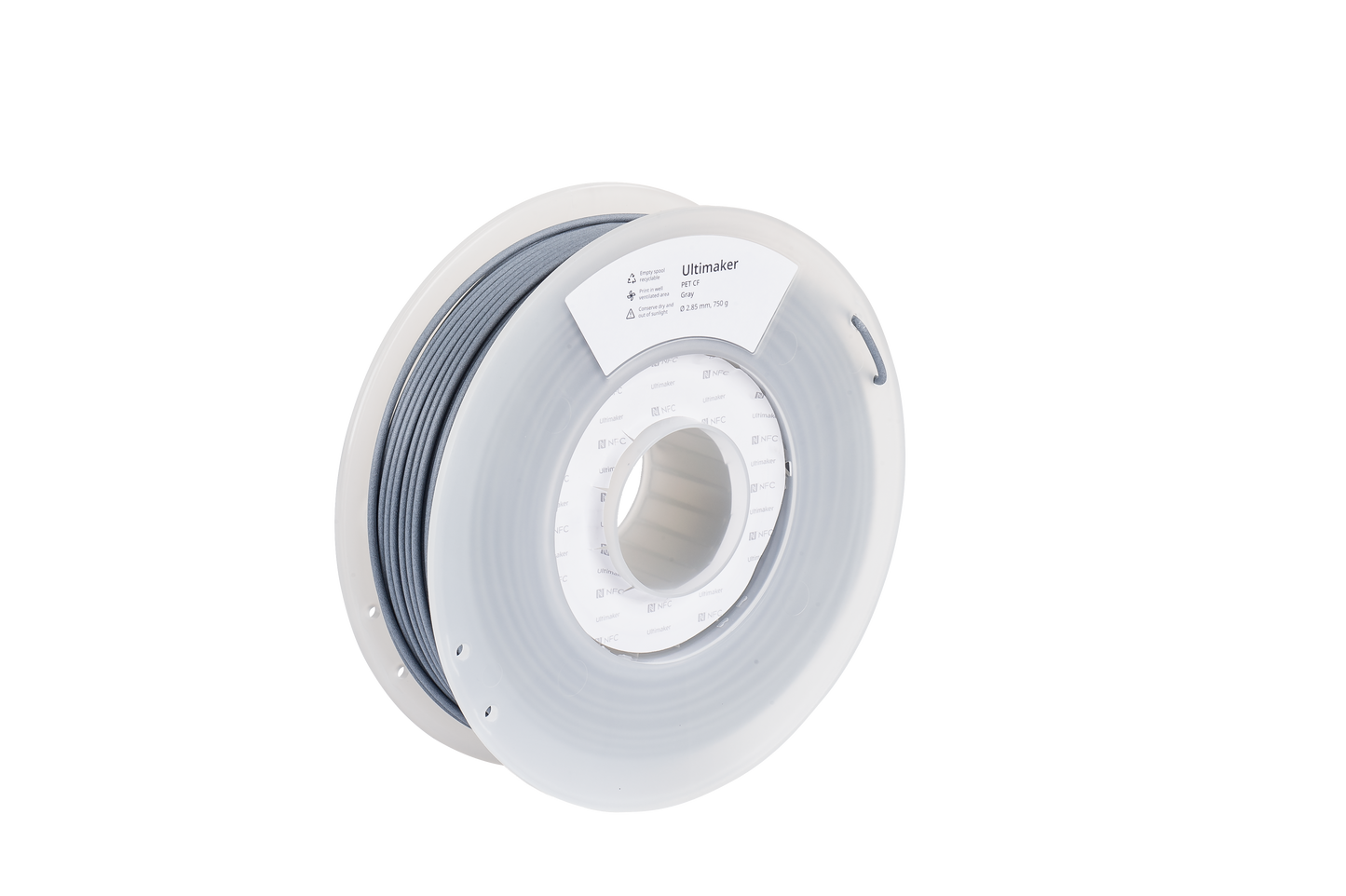

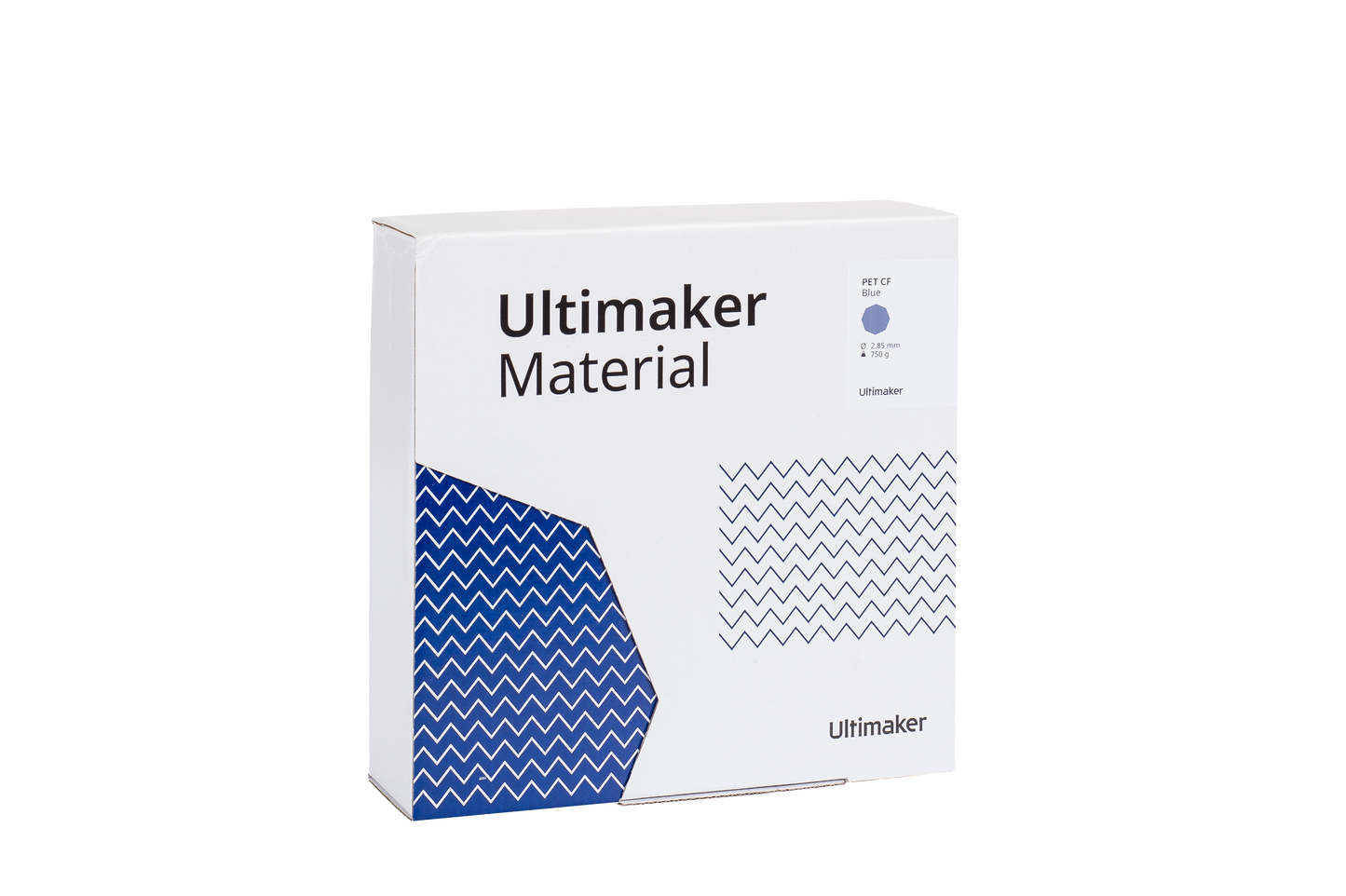

UltiMaker PET CF Filament

Carbon fiber PET filament with high stiffness, strength, and dimensional stability.

SKU:234504

Color

Black Grey Blue

$201.00 CAD

Sale

Sold out

Price

$201.00 CAD ~~$197.00~~

Stock

Request a Quote | Email This Page

A CC Core is needed to print with UltiMaker PET CF Filament.

Shipping Instructions

If stock is not listed in a Shop3D location, it will be shipped directly from a Canadian distributor warehouse with a longer lead time. Any concerns, please contact our sales team.

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.

UltiMaker PET CF 1.75mm Filament is an engineering-grade PET filament reinforced with carbon fiber for applications requiring exceptional stiffness, strength, and dimensional accuracy. It combines the chemical resistance and low moisture absorption of PET with the rigidity and lightweight performance of carbon fiber, making it ideal for durable functional parts and precision engineering applications. PET CF delivers excellent surface quality and reliable performance for tooling, prototypes, and end-use components.

Applications

Functional prototypes
Structural brackets and mounts
Industrial tooling and fixtures
Mechanical components
Robotics parts
Automotive components

Documentation

Intermediate Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Open Chamber/Active Cooling Recommended

Recommended for best results

Abrasive Material

A hardened nozzle is Required

Technical Specs

Show advanced specs

Overview
Function	Filament
Net Weight	750 g
Material Compatibility
Material Diameter / Thickness	2.85 mm

Print Settings

Nozzle Temperature

265-270 °C

Build Platform Temperature

80°C

Layer Height

0.20 mm

Printing Speed

40-70 mm/s

Cooling Fan

0-50%

Drying Settings

70°C for 10-20 hours

Adhesion

Recommended

Product Highlights

Top Features

Use UltiMaker PET CF to create high-performance applications, from functional prototypes to manufacturing aids and replacement parts. UltiMaker PET CF comes in multiple colors, is easy-to-use, and is versatile. Making it the perfect choice for composite printing on UltiMaker S series printers for a wide range of applications.

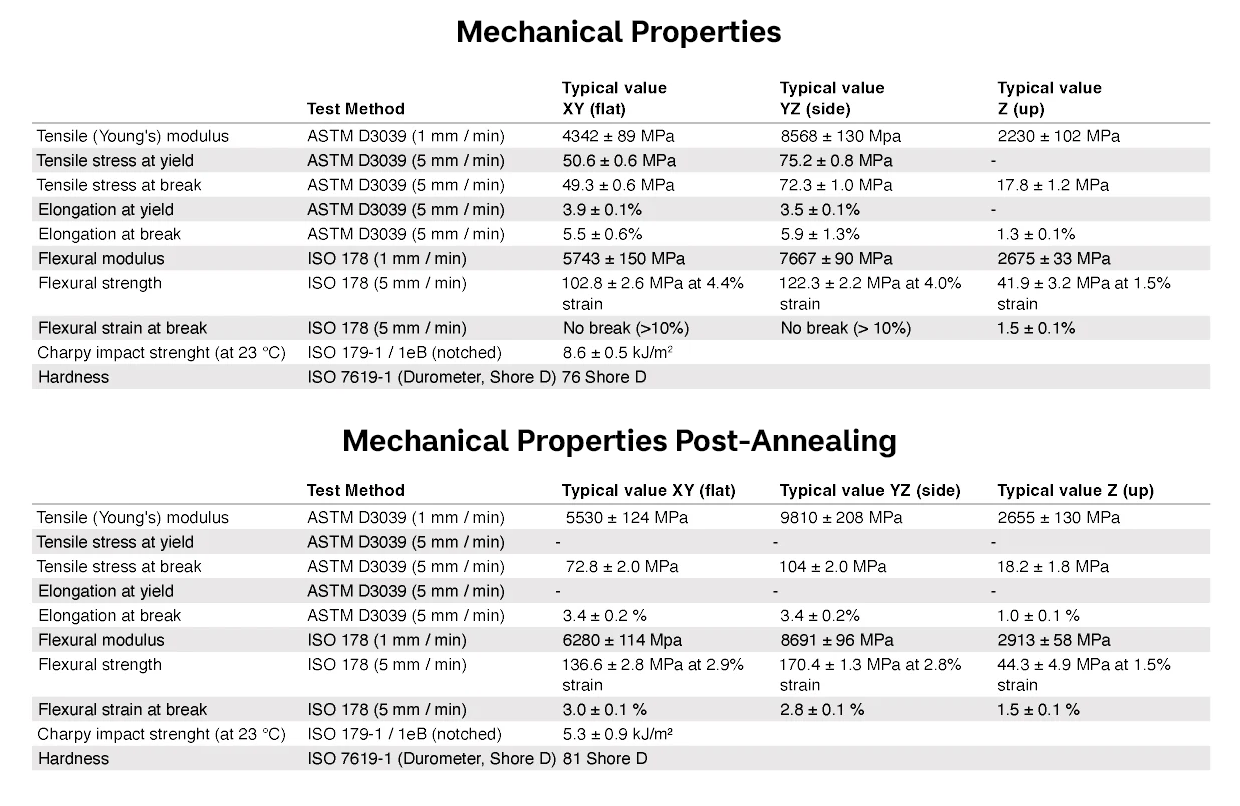

PET CF material properties

Print Core: CC, CC+, HT
Spool weight: 750 g
Filament diameter: 2.85 mm
Hardness: 76 Shore D (annealed 81 Shore D)
Impact strength: 8.6 kJ/m² (annealed 5.3 kJ/m²)
Thermal resistance: 76°C (annealed 181°C)

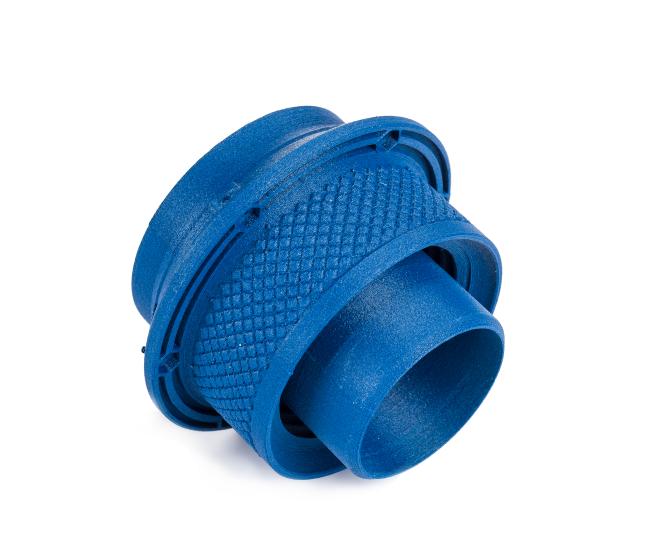

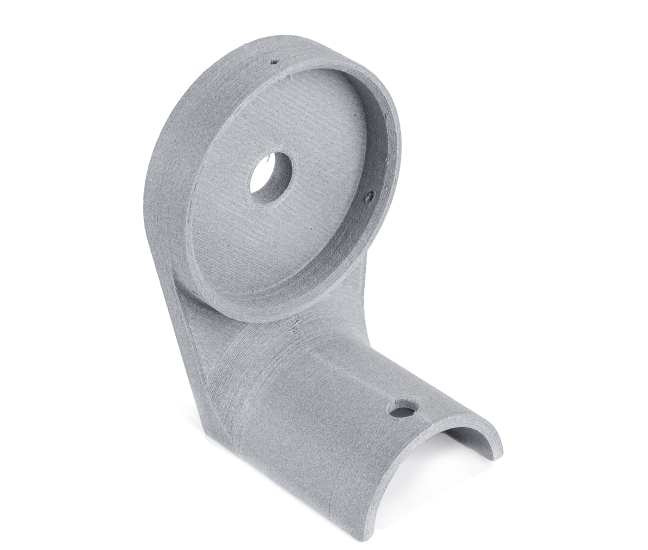

PET CF 3D printing applications

Functional prototyping

Create functional prototypes with high-performance properties including impressive strength, stiffness, and temperature resistance. Use an engineering-grade material for your engineering prototypes.

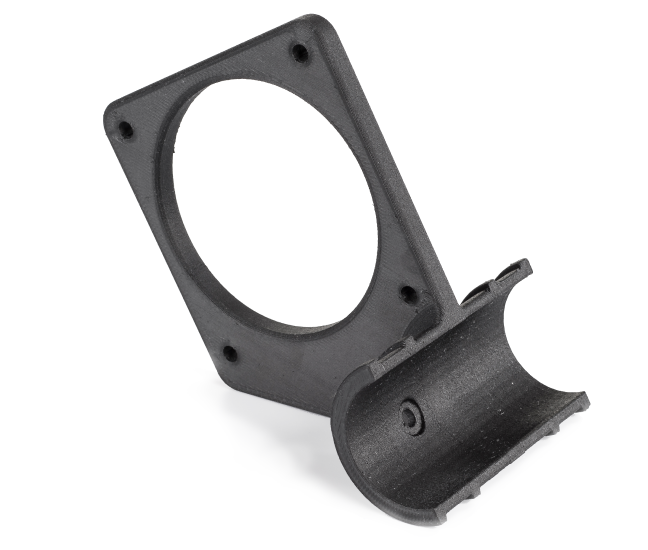

Tooling and fixtures

UltiMaker PET CF is the perfect material for your manufacturing needs. It provides the performance and versatility for a wide range of applications: such as jigs, fixtures, and end-of-arm tooling.

Replacement parts and auxiliary components

UltiMaker PET CF is the perfect solution for replacing broken or hard-to-source parts. You no longer need to shut down a production line for days or weeks while waiting for a replacement. Instead, you can print a new part using PET CF, even when you need it to be strong or temperature-resistant.
