UltiMaker PVA Removal Station

Product SKU: 220999

Available Stock:
Loading...

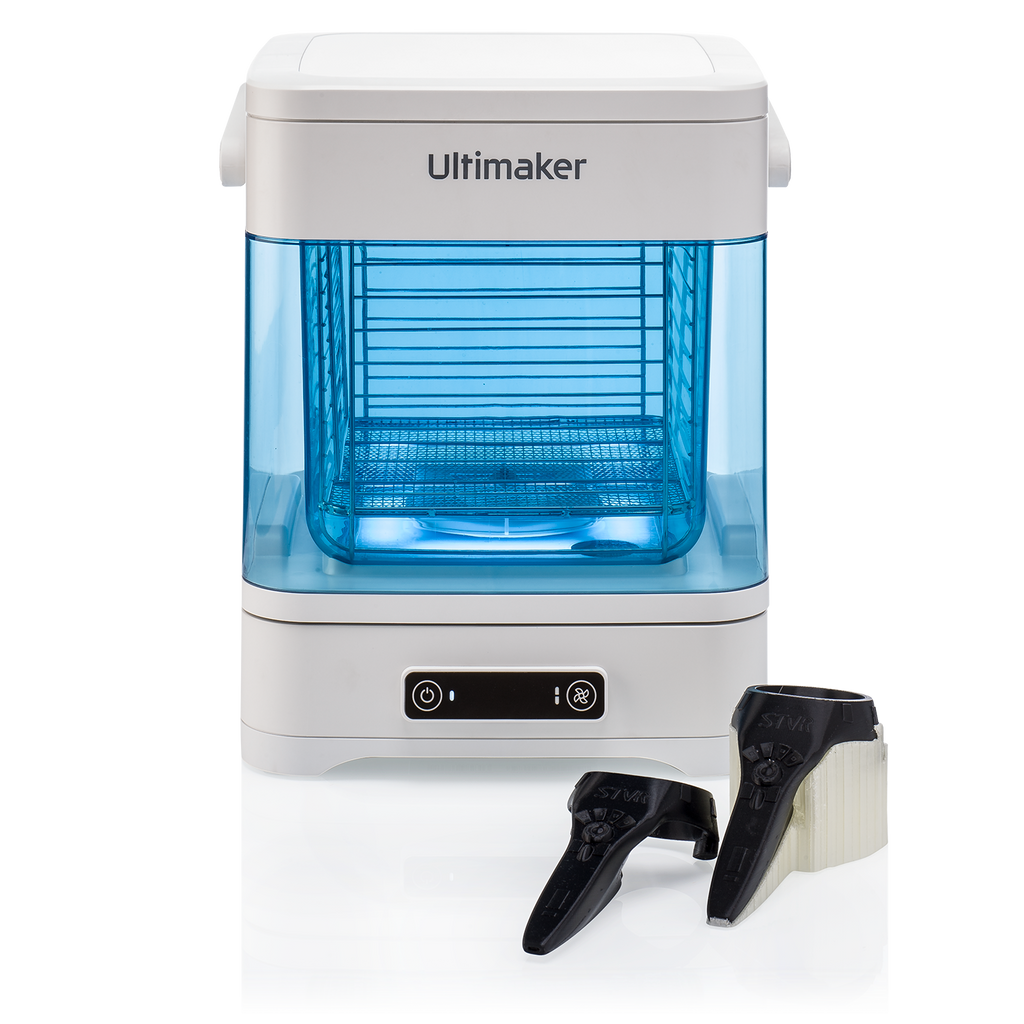

UltiMaker PVA Removal Station

Make printing complex designs faster and easier. The UltiMaker PVA Removal Station dissolves support material quickly and effectively, keeping operator time to a minimum and increasing productivity.

Overview

Remove PVA up to 4x Faster

Shrink your post-processing time

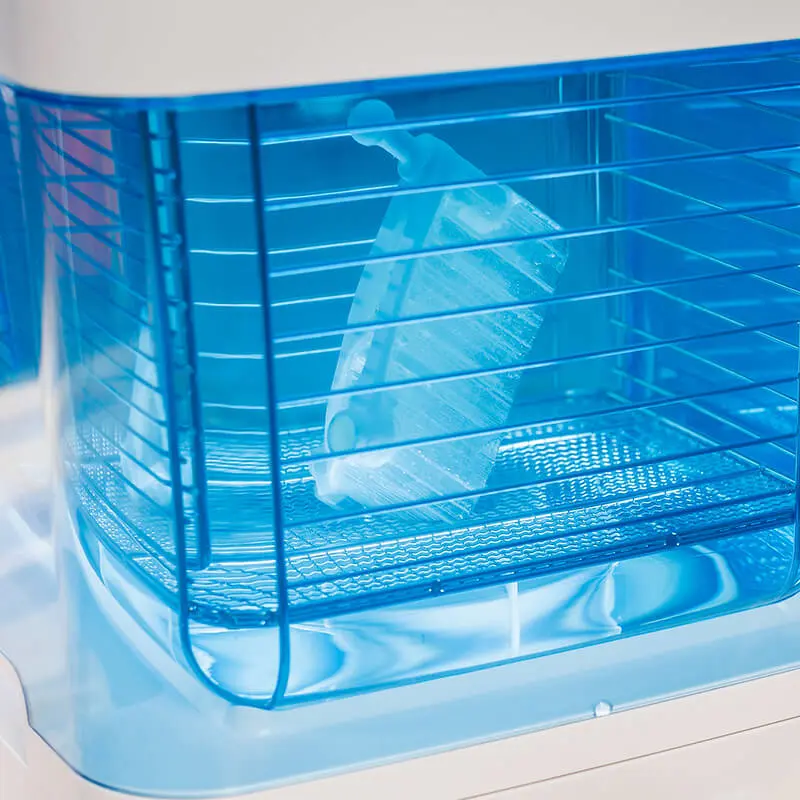

High-speed water circulation driven by a magnetic rotor removes PVA up to four times faster than motionless water, even from hard-to-reach cavities. So you have your parts post-processed and ready to use as soon as possible.


Low effort, higher productivity

Reduce operator time up to 80%

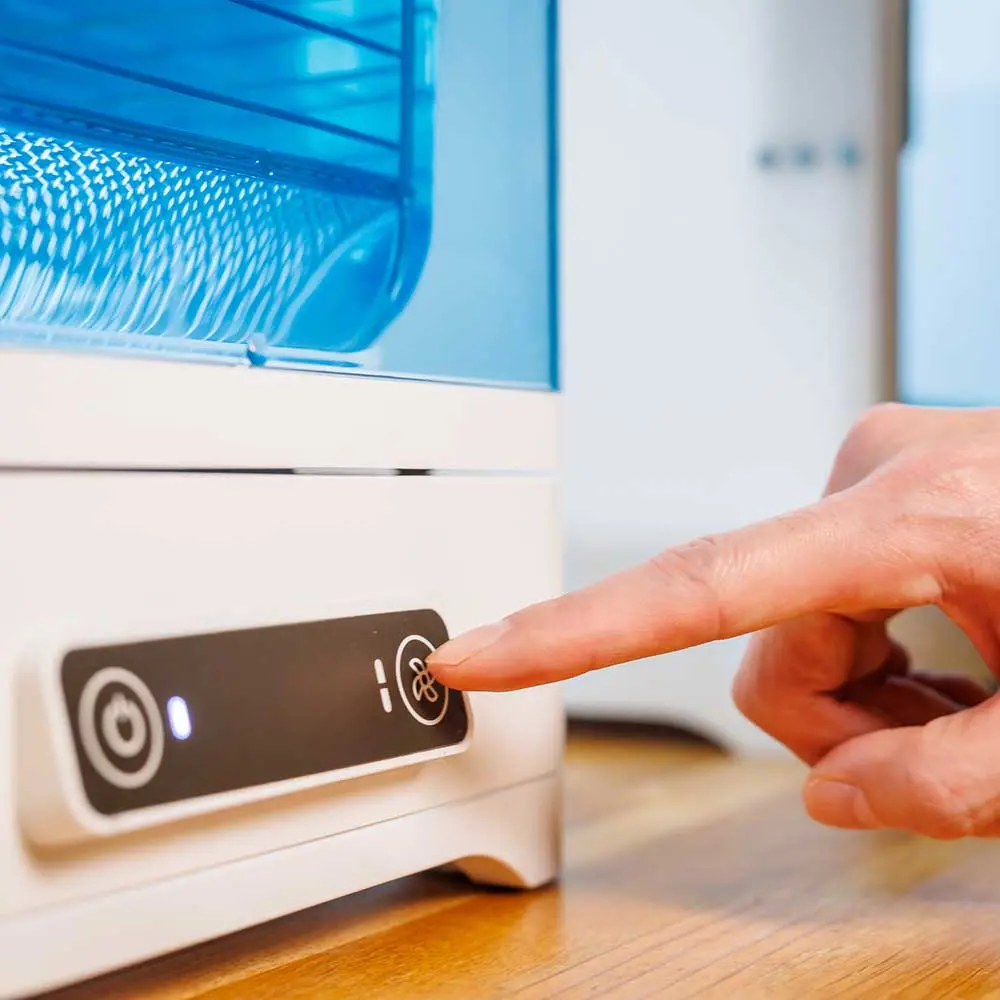

The UltiMaker PVA Removal Station requires only a few minutes of operator time per print, with minimal maintenance needs. Just press the start button, leave it to do its job, and collect your print when it's ready.


Key Features

Technical Specifications

  • Container Volume: 13.7 liters (3.6 US gal)
  • Maximum Part Size: 200 x 230 x 165mm (7.8 x 9 x 6.4 in)
  • Supported Materials: Optimized for: PLA and PVA Also suitable for: PETG, Tough PLA, Nylon, or CPE in combination with PVA (Also supports equivalent third-party materials)
  • Supported Solvents: Water
  • Rotor Speed: 225 RPM (normal) or 100 RPM (low)
  • Operating Sound: 50 DBA
  • Dimensions: 303 x 325 x 374 mm - (11.9 x 12.8 x 14.7 in)
  • Dimensions With Handle Extended: 303 x 325 x 528 mm - (11.9 x 12.8 x 20.8 in)
  • Net Weight: 6.35kg - (9.3 lbs)
  • Container Weights: 4.2 kg - (9.3 lbs)
  • shipping weight: 8.5kg - (18.7 lbs)

Your design-to-print workflow, simplified

Using the PVA Removal Station in 3 Easy Steps

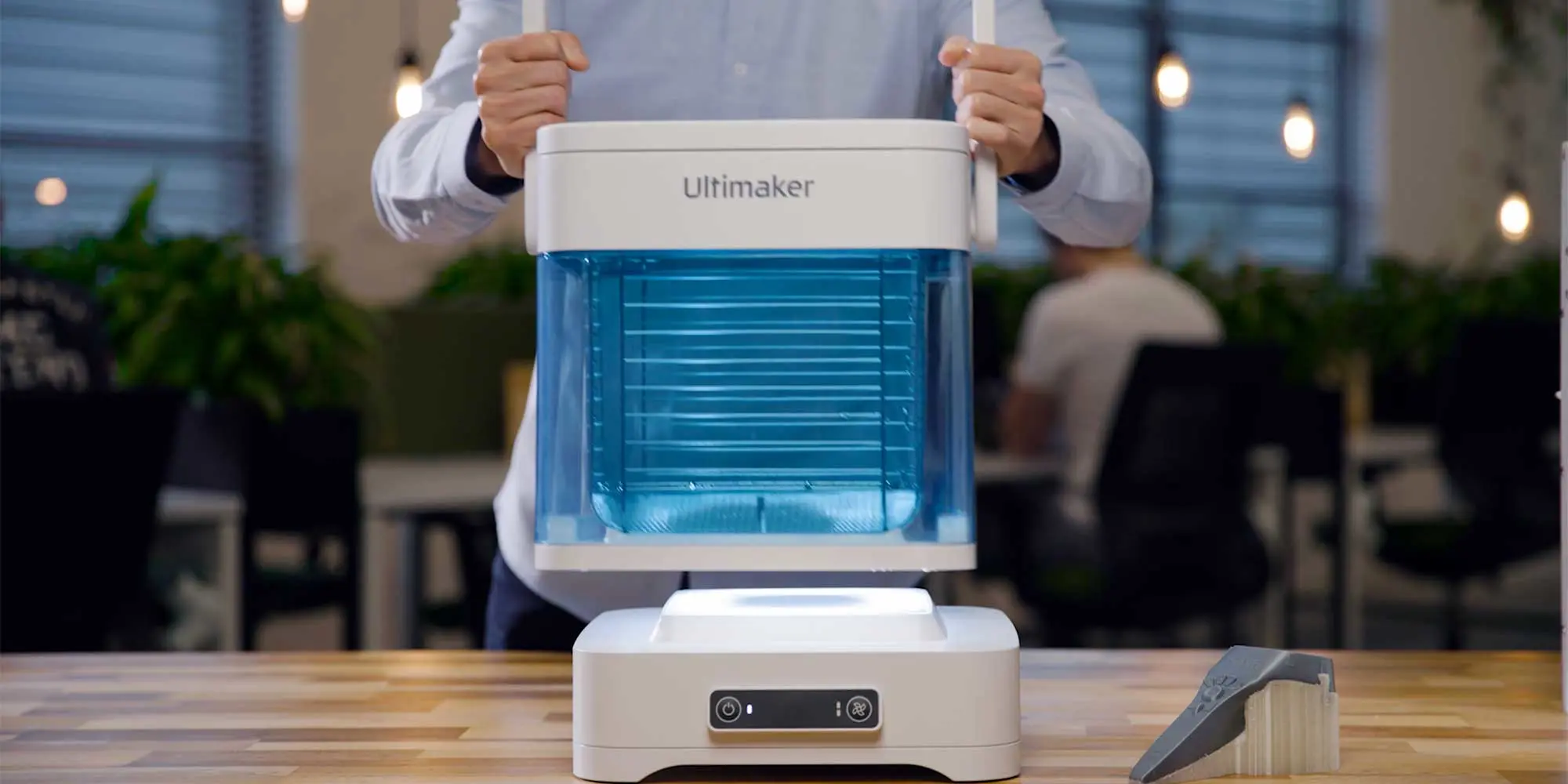

Fill

Fill the container with tap water, place it back on the docking station, and place your 3D print inside.

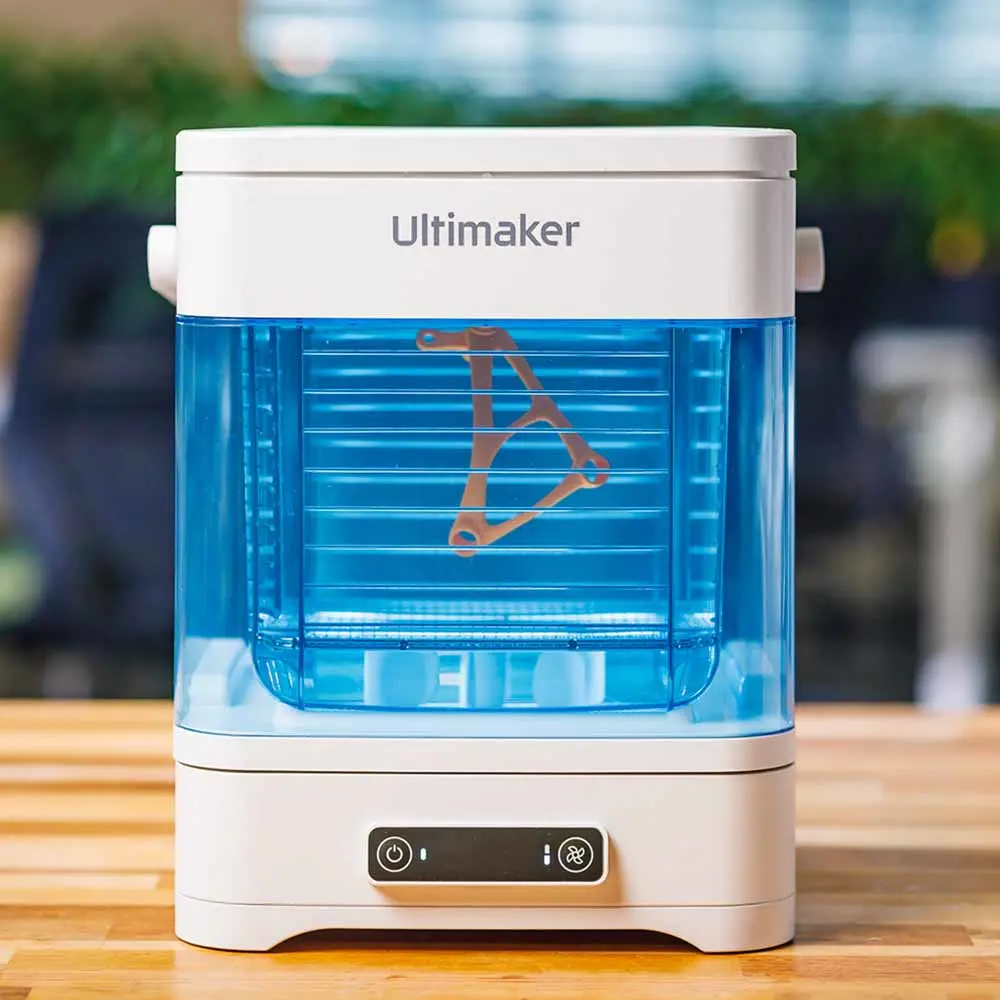

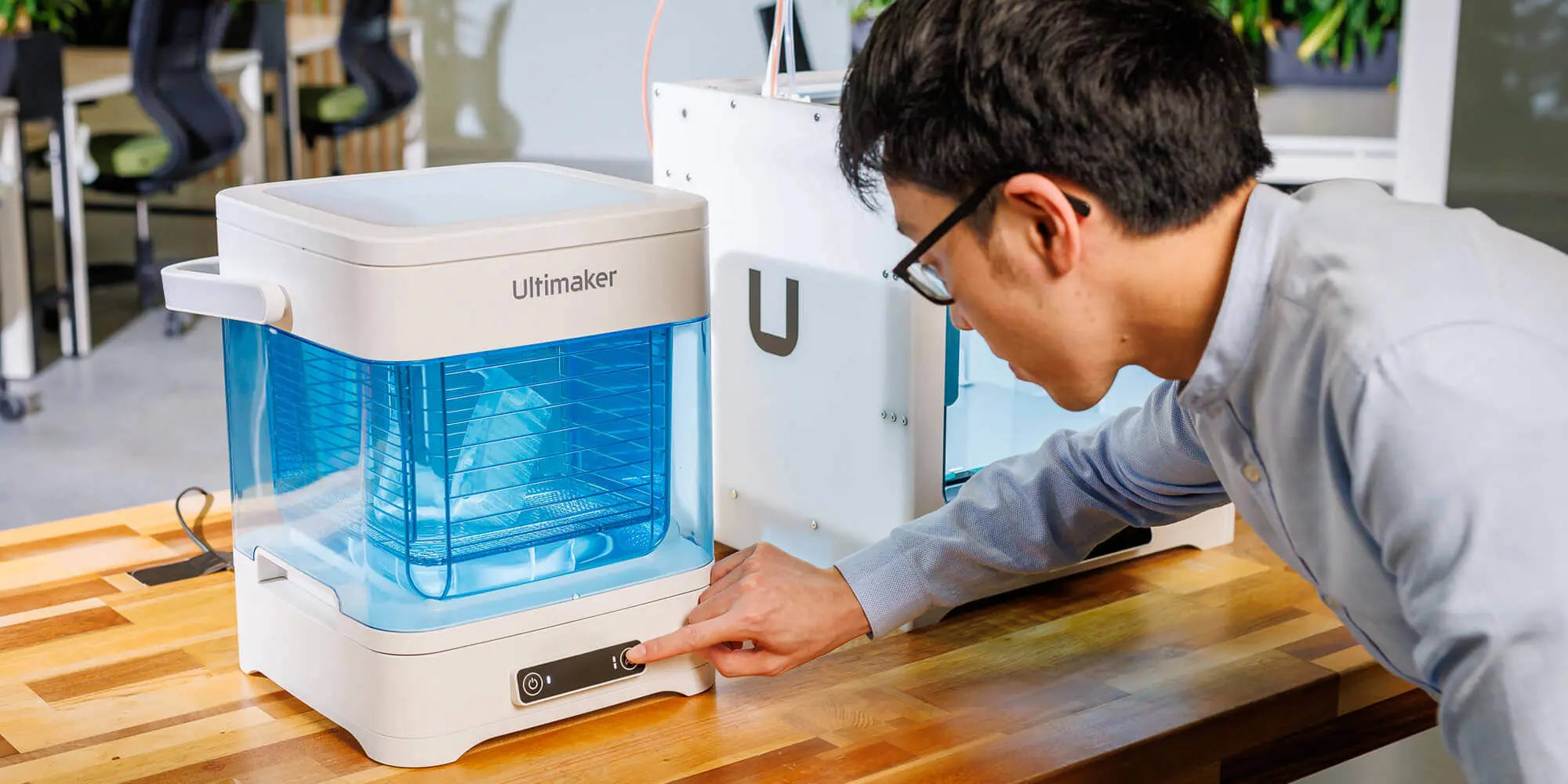

Dissolve

Start the PVA removal process with the touch of a button. Let the PVA dissolve, typically within 1-8 hours, while you get on with your day

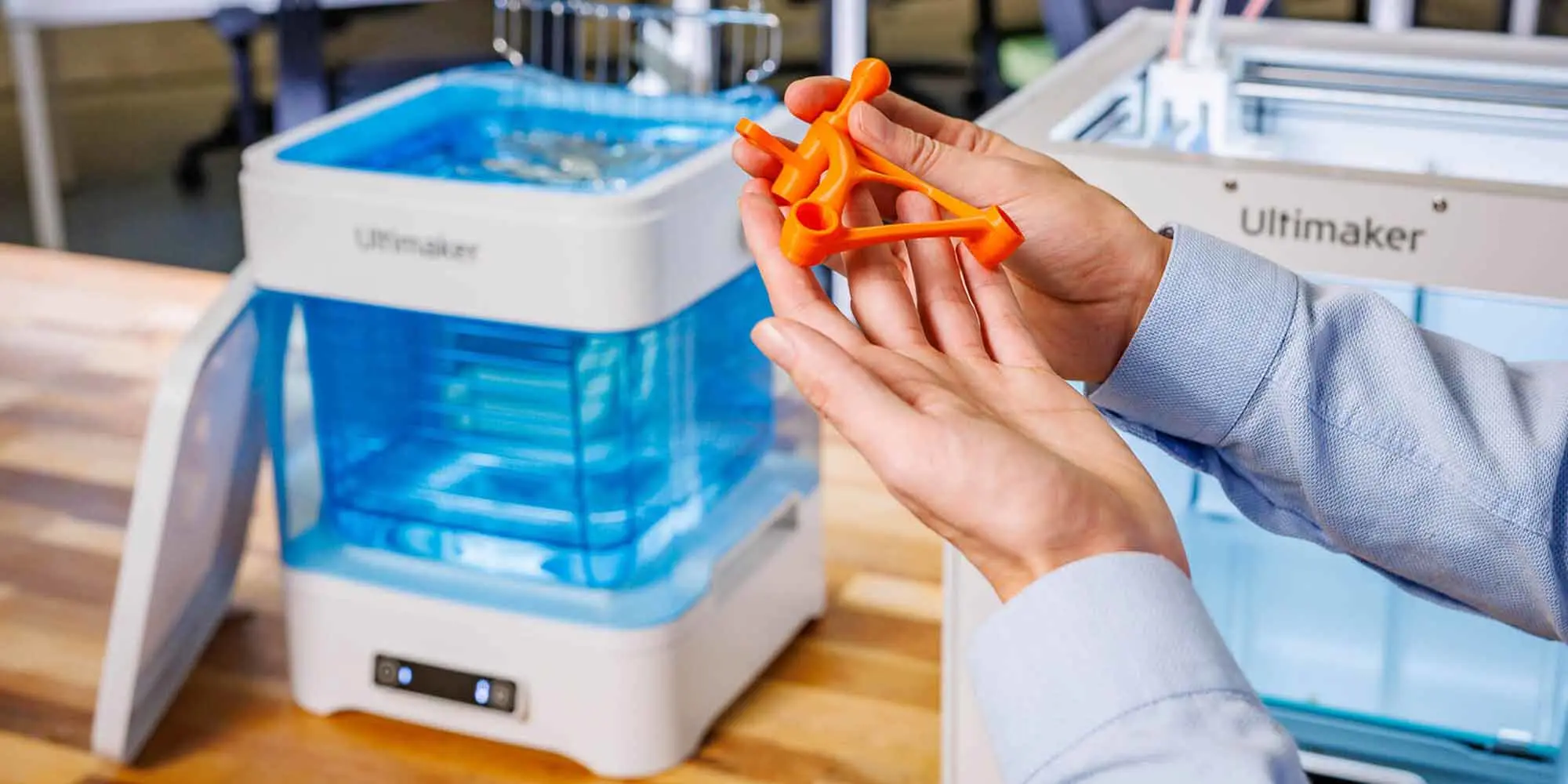

Remove and Repeat

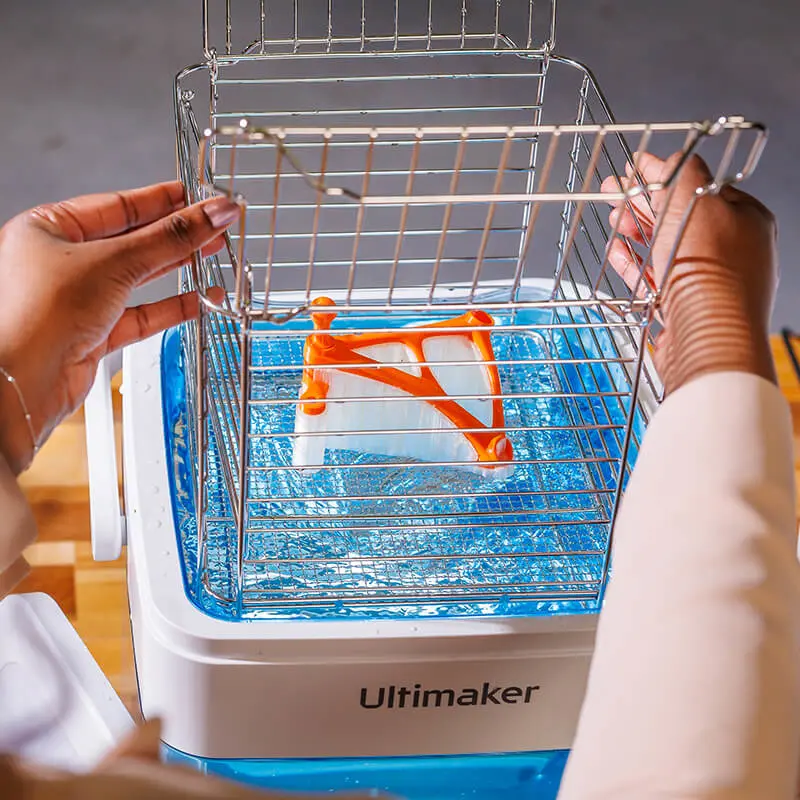

Raise the basket and remove your print. Water can be safely disposed of down the drain, then refilled ready for the next print
