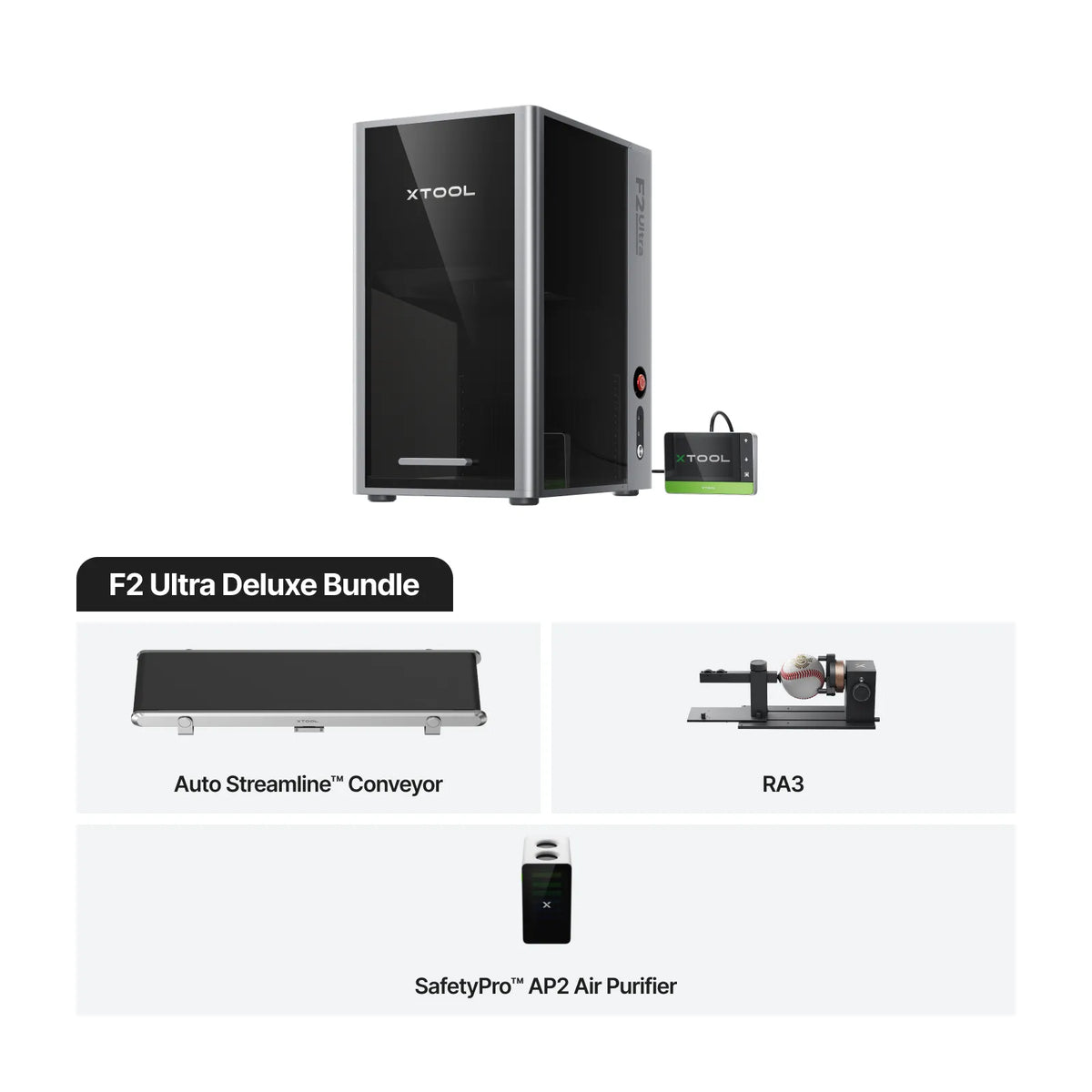

xTool F2 Ultra Deluxe Bundle contents - dual laser

xTool F2 Ultra Deluxe Bundle - 60W MOPA Fiber & 40W Diode Laser Engraver

xTool F2 Ultra Deluxe Bundle - 60W MOPA Fiber & 40W Diode Laser Engraver

60W MOPA fiber + 40W diode dual-laser AI engraver bundled with conveyor, rotary, and air purifier.
SKU:xTool F2 Ultra Deluxe 60W
Laser Configuration
$8,359.00 CAD
Sale
Sold out

Price

$8,359.00 CAD
This product will be shipped direct from our supplier. Contact us for details.

Stock

Request a Quote | Email This Page

Product Details

xTool F2 Ultra Deluxe Bundle pairs the first 60W MOPA + 40W diode dual-laser desktop system with AI with three key accessories: the Auto Streamline Conveyor for continuous batch runs, the xTool MagSwap RA3 Rotary for cylindrical engraving, and the xTool SafetyPro AP2 Air Purifier with SuperCyclone filtration. The 60W MOPA fiber laser unlocks 100+ consistent colors on stainless steel and titanium, while the 40W diode laser handles wood, acrylic, leather, and other everyday materials. Dual 48MP AI cameras deliver 0.2mm positioning accuracy, and an 8.6" x 8.6" work area (expandable with the included conveyor) processes at speeds up to 15,000 mm/s, all managed through xTool's XCS software with 500+ one-click material presets.

Laser Cutter

Technical Specs

Overview
Footprint (L× W× H) Product Size: 11.57'' × 16.88'' × 20.51'' (294 mm x 429 mm x 521 mm)
Net Weight F2 Ultra: 47lb (21.6kg) F2 Ultra(single): 45lb (20.8kg) - excluding additional accessories
Cutting Area 8.6" × 8.6" (220 mm × 220 mm) | 8.6" × 19.6" (with conveyor) (220 mm × 500 mm)
Laser Class Class 4
Material Compatibility
Compatible Materials Metal: gold, silver, aluminum, stainless steel, platinum, titanium, brass | Non-metal: wood, acrylic, plastic, slate, glass, paper, cardboard, leather
Performance

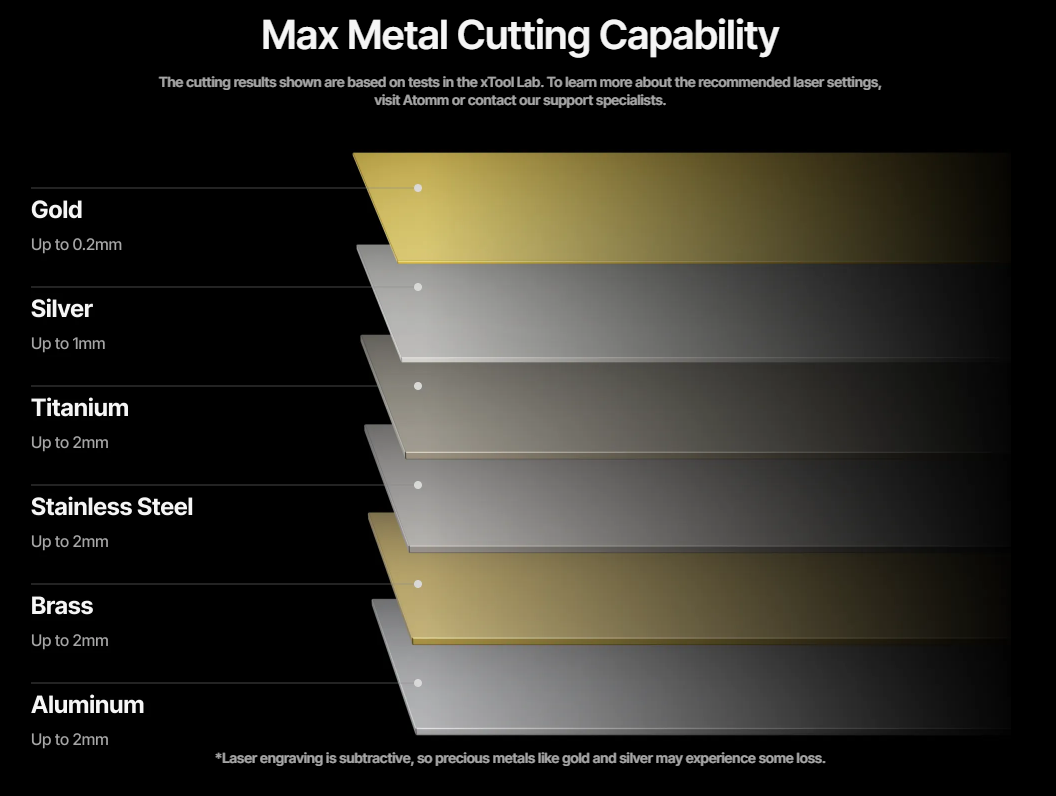

Maximum Cutting Thickness Basswood: 0.91" (23mm) in Multiple Passes | Acrylic: 0.79" (20mm) in Multiple Passes | Brass/Stainless Steel/Aluminum/Titanium: 2mm | Silver: 1mm | Gold: 0.2mm
Speed & Productivity
Maximum Speed 590.55 ips (15,000 mm/s)
Software & Workflow
Supported File Types SVG, DXF, JPG, JPEG, PNG, BMP, TIF
Connectivity
Connectivity USB / Wi-Fi / IP
Power
Typical Power Consumption Max Input Power: 400W
Input Voltage: 100-240V AC, 50/60Hz
Safety and Compliance
Certifications Class 4 Laser Safety Classification
Warranty and Support
Manufacturer Warranty 12 months

What's in the Box

  • F2 Ultra Machine
  • Touchscreen Controller
  • Pipe
  • Power Adapter & Cable
  • USB Cable
  • Key
  • Slatted Panel (for cutting)
  • L-Shaped Positioning Piece (for batch work)
  • Lint-Free Cleaning Cloth
  • Screwdriver
  • Sample Materials
  • Quick Start Guide and Safety Instructions
  • Auto Streamline Conveyor
  • xTool MagSwap RA3 Rotary
  • xTool SafetyPro AP2 Air Purifier

Documentation

Links

Manufacturer product page (60W MOPA Only Deluxe Bundle): View

Manufacturer product page (60W MOPA + 40W Diode Deluxe Bundle): View

User guide: View

Safety

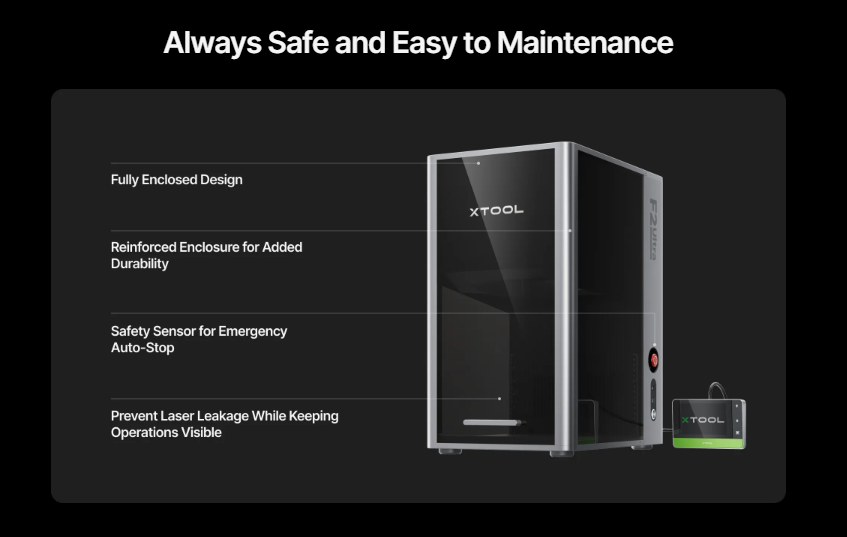

Class 4 laser product. Full enclosure design with eye-protection cover and fire safety stop minimizes laser leakage risk. This bundle includes the xTool SafetyPro AP2 Air Purifier for fume and odor filtration.

Product Highlights

Top Features

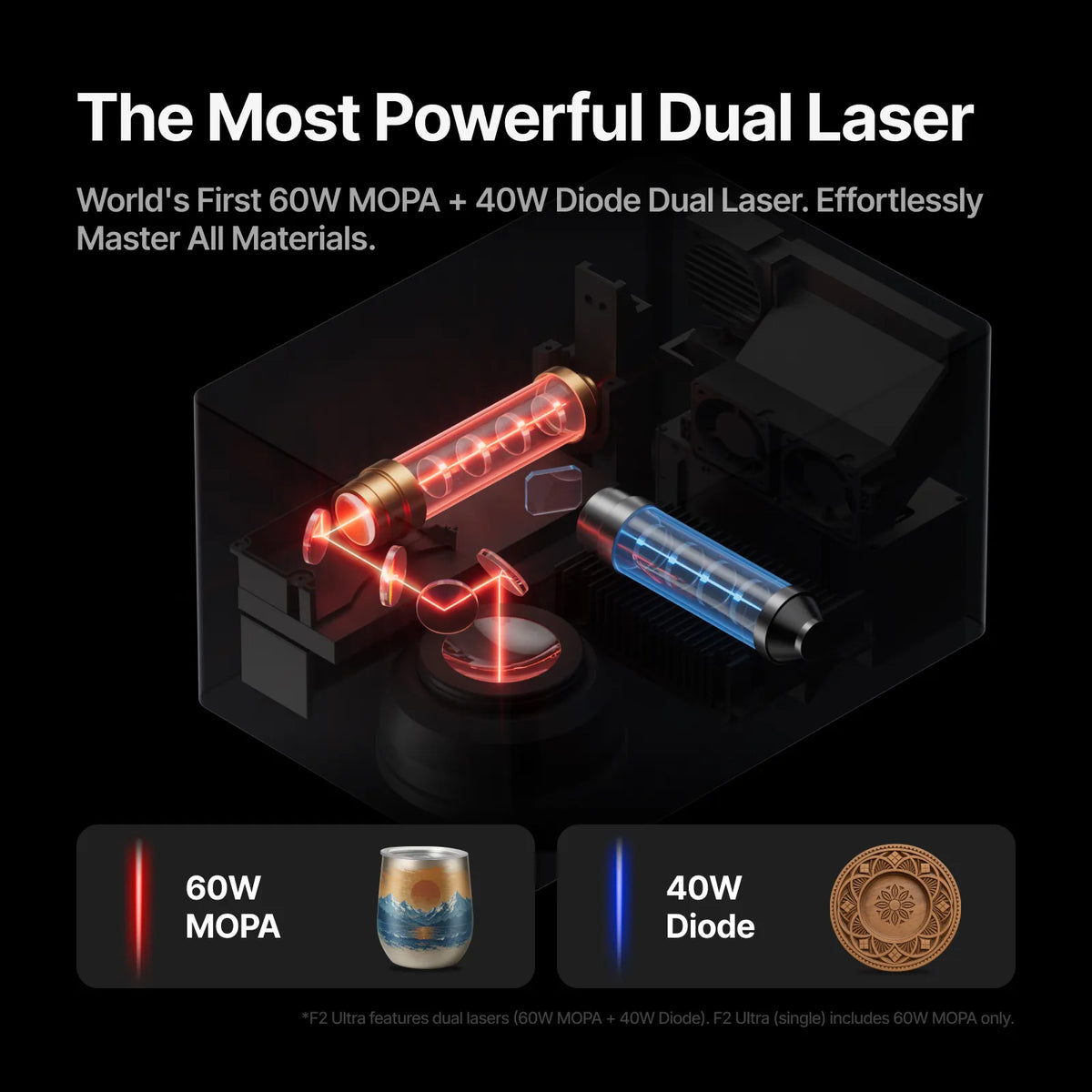

Dual Laser Capability

The 60W MOPA fiber laser enables color engraving on metals with over 100 consistent colors across stainless steel and titanium. The 40W diode laser processes non-metals and cuts thicker materials.

All-Metal Capability

Precision pulse width and frequency control lets you color engrave, emboss, and cut brass, stainless steel, and more. MOPA technology delivers 3D engraving up to 5x faster than 20W fiber alternatives.

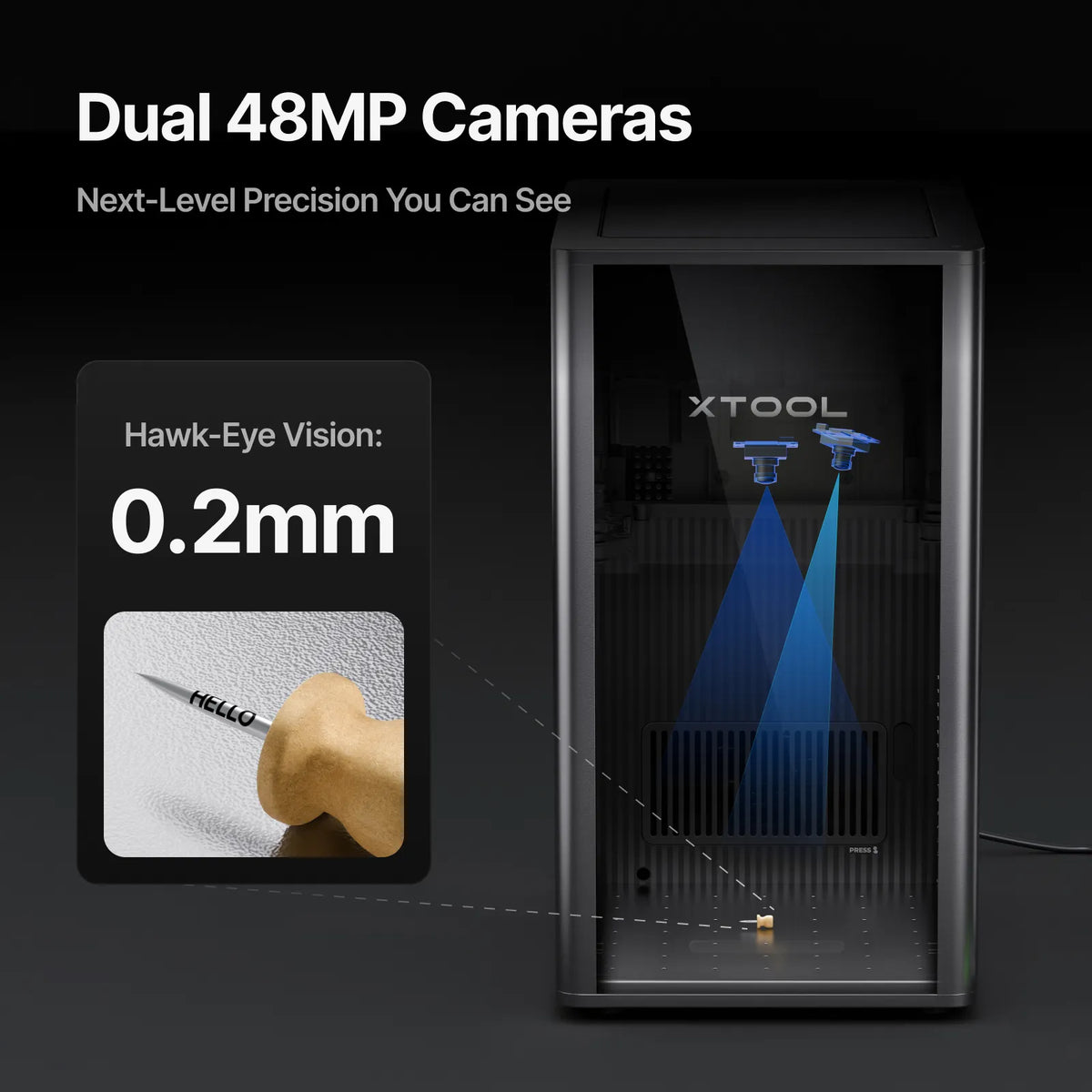

Dual Camera System

Two 48MP cameras with 0.2mm accuracy - a 60% improvement over single-camera configurations - let you preview placement precisely before processing.

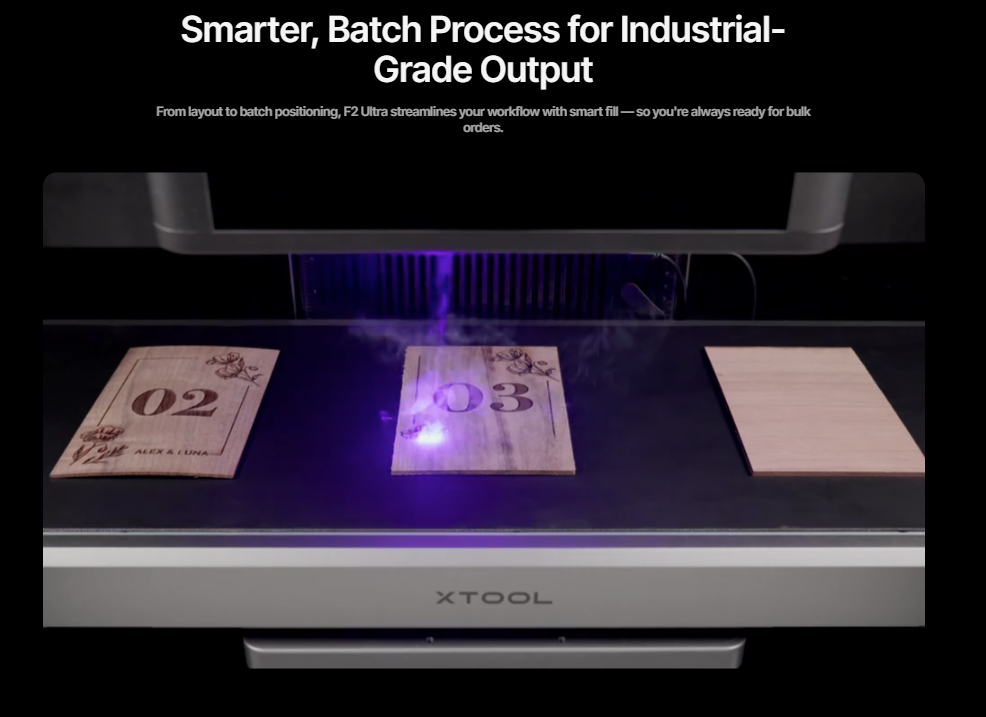

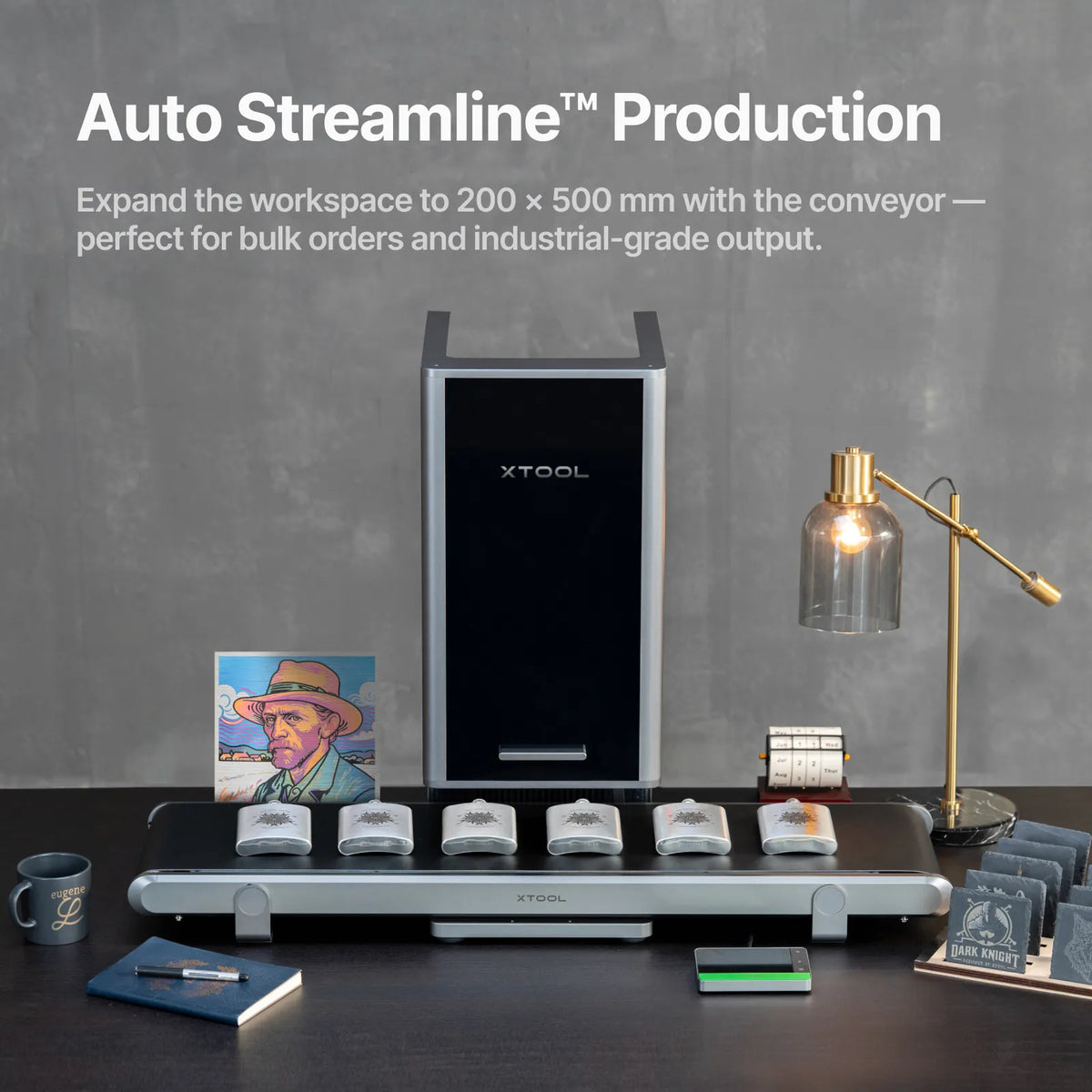

Auto Streamline Conveyor (Included)

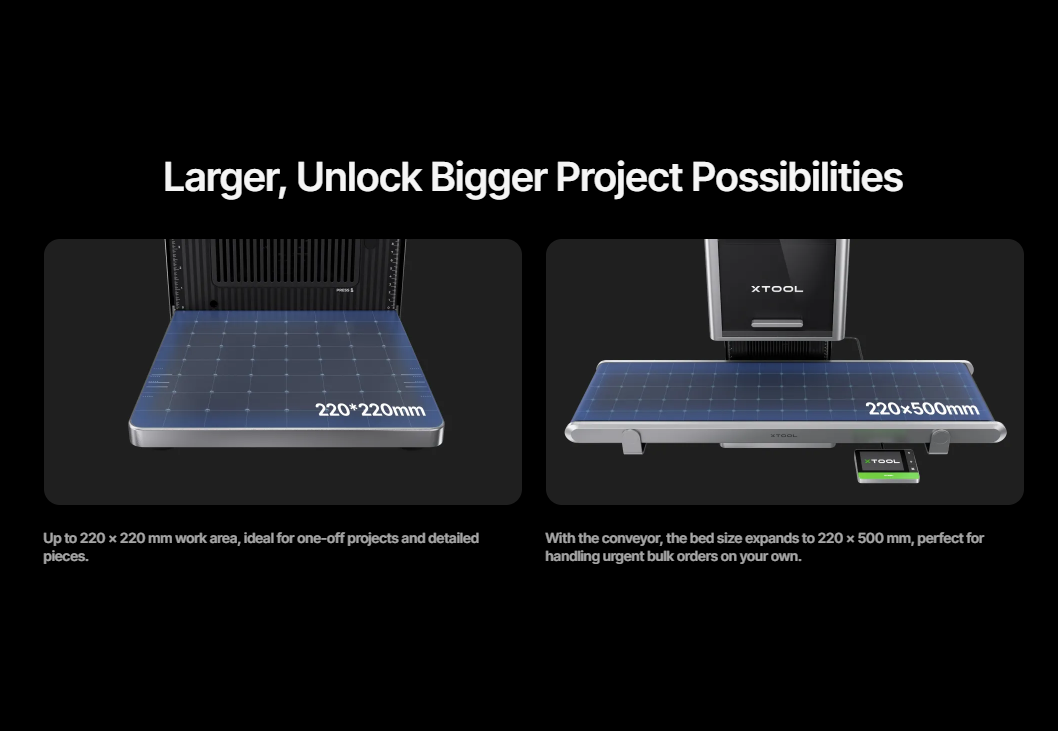

Extends the work area to 8.6" x 19.6" for continuous batch engraving runs without repositioning material.

MagSwap RA3 Rotary (Included)

Quick-swap rotary attachment for engraving cylindrical items like tumblers, rings, and bottles.

SafetyPro AP2 Air Purifier (Included)

6-layer SuperCyclone filtration system removes fumes, dust, and odor for safer indoor operation.

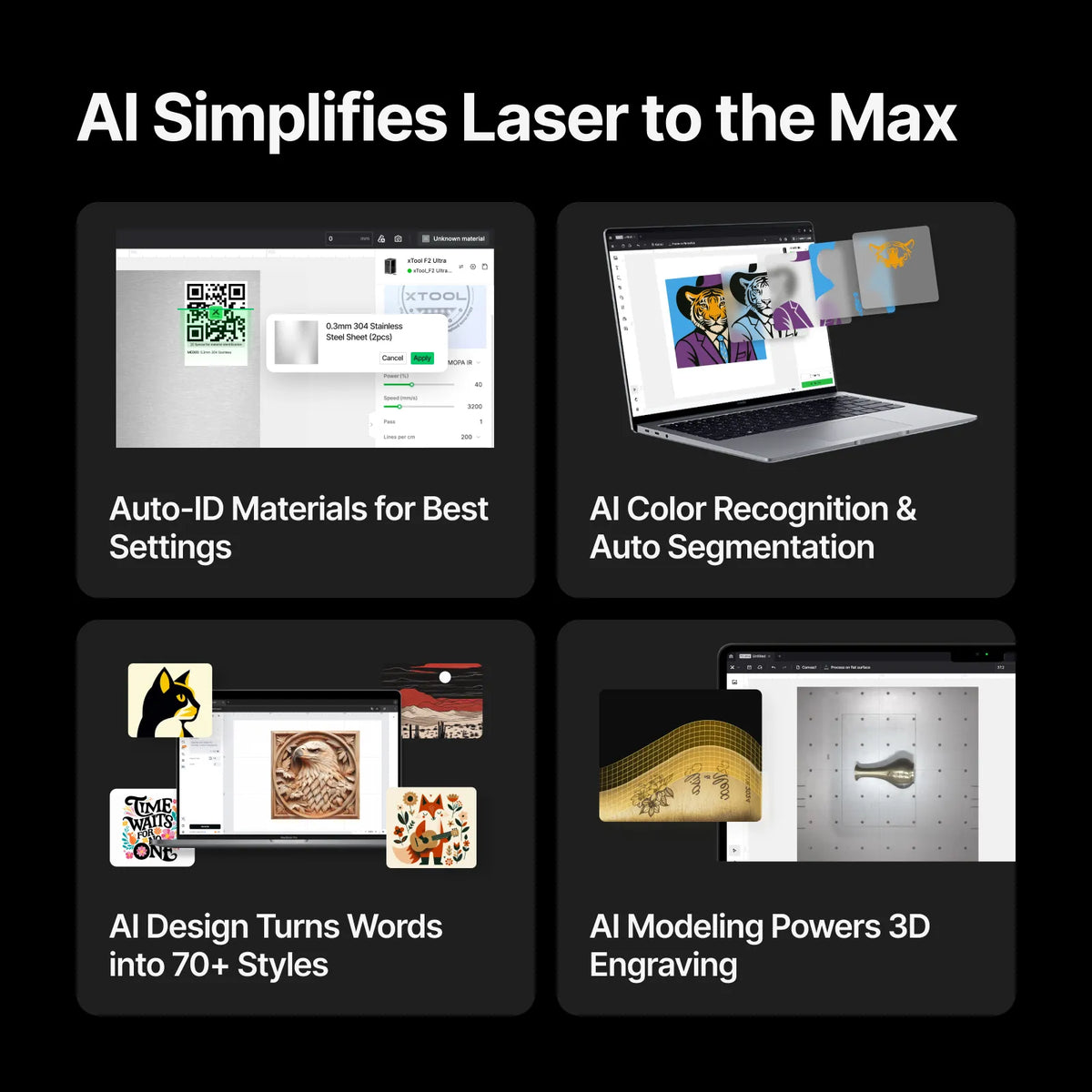

AI Integration

Built-in color recognition for image segmentation, design generation in 70+ styles, smart 3D modeling for irregular surfaces, and automatic material detection with parameter optimization.

Technical Specifications

Performance

  • Laser Type: 60W MOPA fiber + 40W diode (dual-laser configuration only)
  • Laser Spot Size: 0.03 x 0.03mm (MOPA) / 0.08 x 0.1mm (Diode)
  • Laser Safety Class: Class 4
  • Positioning Accuracy: 0.2mm (dual 48MP AI cameras)
  • Max Work Speed: 15,000 mm/s

Dimensions

  • Machine Size: 294 x 429 x 521mm
  • Weight: 21.6kg (47 lb) - machine only
  • Work Area: 220 x 220mm (8.6" x 8.6"); expandable to 220 x 500mm with included conveyor
  • Max Processing Height: 150mm (max rotary diameter 150mm)

Power

  • Max Input Power: 400W
  • Input Voltage: 100-240V AC, 50/60Hz

Software & Connectivity

  • Supported Design Files: SVG, DXF, JPG, JPEG, PNG, BMP, TIF
  • Software: xTool XCS (500+ one-click material presets)
  • Connection: USB (Type-A/Type-C), Wi-Fi, IP
  • Operating System: Windows, macOS

Bundle Accessories

  • Auto Streamline Conveyor - extends work area for continuous batch runs
  • xTool MagSwap RA3 Rotary - for cylindrical item engraving
  • xTool SafetyPro AP2 Air Purifier w/SuperCyclone - 6-layer fume filtration

xTool F2 Ultra Deluxe Bundle pairs the first 60W MOPA + 40W diode dual-laser desktop
