Raise3D Hyper Speed Upgrade Kit (Pro3 Series Only)

Raise3D Hyper Speed Upgrade Kit (Pro3 Series Only)

Raise3D Hyper Speed Upgrade Kit (Pro3 Series Only)

Upgrade kit for enabling Hyper Speed printing on Raise3D Pro3 Series 3D printers.
SKU:[S]3.01.1.024.058A01
$547.00 CAD
Sale
Sold out

Price

$547.00 CAD $685.00

Stock

Request a Quote | Email This Page

Product Details

Raise3D Hyper Speed Upgrade Kit (Pro3 Series Only) enhances compatible Raise3D Pro3 Series 3D printers with Hyper Speed printing capabilities, enabling significantly faster print speeds while maintaining excellent print quality. Designed to work with Raise3D Hyper Speed filaments, the kit includes the components required to optimize printer performance for high-speed production, rapid prototyping, and engineering applications. Ideal for businesses looking to increase productivity, the Hyper Speed Upgrade Kit helps reduce print times, improve workflow efficiency, and maximize the performance of Pro3 Series printers without compromising reliability.

3D Printer

Technical Specs

Product Information

Hyper FFF™ is a system engineered for efficiency and performance, which will increase the yield rate of FFF printing without any loss of printed part quality. The Hyper Speed Upgrade Kit (Pro3 Series Only) is the first product from Raise3D's Hyper FFF technology. With the upgrade, the printing speed of a Pro3 Series 3D printer is boosted from an average of 50-80mm/s to 200-350mm/s, and acceleration is boosted from 1000mm/s2 to 10000mm/s2, with no loss of accuracy or part quality.

With Hyper Speed Upgrade Kit installed, your Pro3 Series printer becomes capable of hyper-speed printing. The full upgrade kit consists of not only hardware, but also filament and software. To successfully achieve boosted speed with consistent quality, the specialized line of filaments and the latest version of ideaMaker are essential.

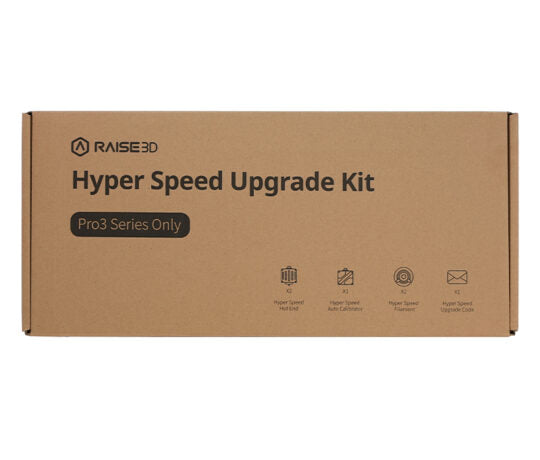

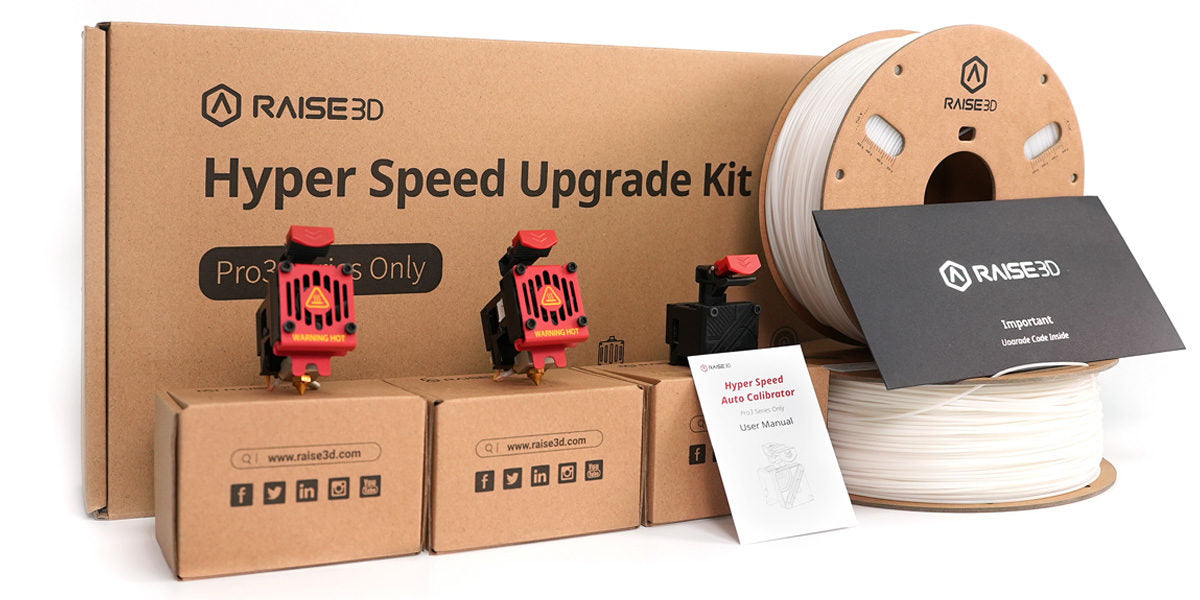

What's in the Box

  • Upgrade Letter
  • Software Upgrades
  • Two Hyper Speed Hot Ends 0.4mm (Pro3 Series Only)
  • Hyper Speed Auto Calibrator (Pro3 Series Only)
  • A Spool of Hyper Speed PLA (White, 1.75mm)

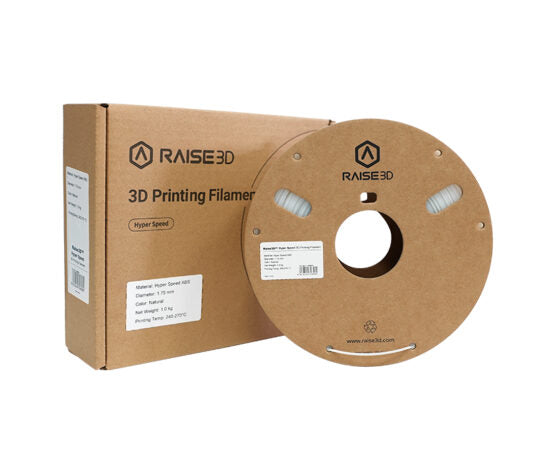

  • A Spool of Hyper Speed ABS (Natural, 1.75mm)

Notes

  • The Hyper Speed Upgrade Kit is a game changing add-on for Raise3D Pro3 3D printers.
  • Dramatically increases the print speed up to 3x - 5x with virtually no tradeoff.
  • Fully backwards compatible, allowing you to use materials available on hand at double or triple the speed. Alternatively, you can use the new Hyperspeed materials to get an even bigger boost.
  • Amazingly, print quality and part strength are not compromised by the improved speeds. Installing the Kit is as easy as swapping hotends and updating the firmware. With no permanent changes to your machine, it is a non-invasive, easy, one time procedure.
  • The simple and power prospect of being able to produce up to 3x - 5x faster makes the Hyper speed upgrade kit an absolute "no brainer" if you own or are considering owning a Raise3D Pro3.

Product Highlights

Top Features

Active Vibration Cancellation Algorithm

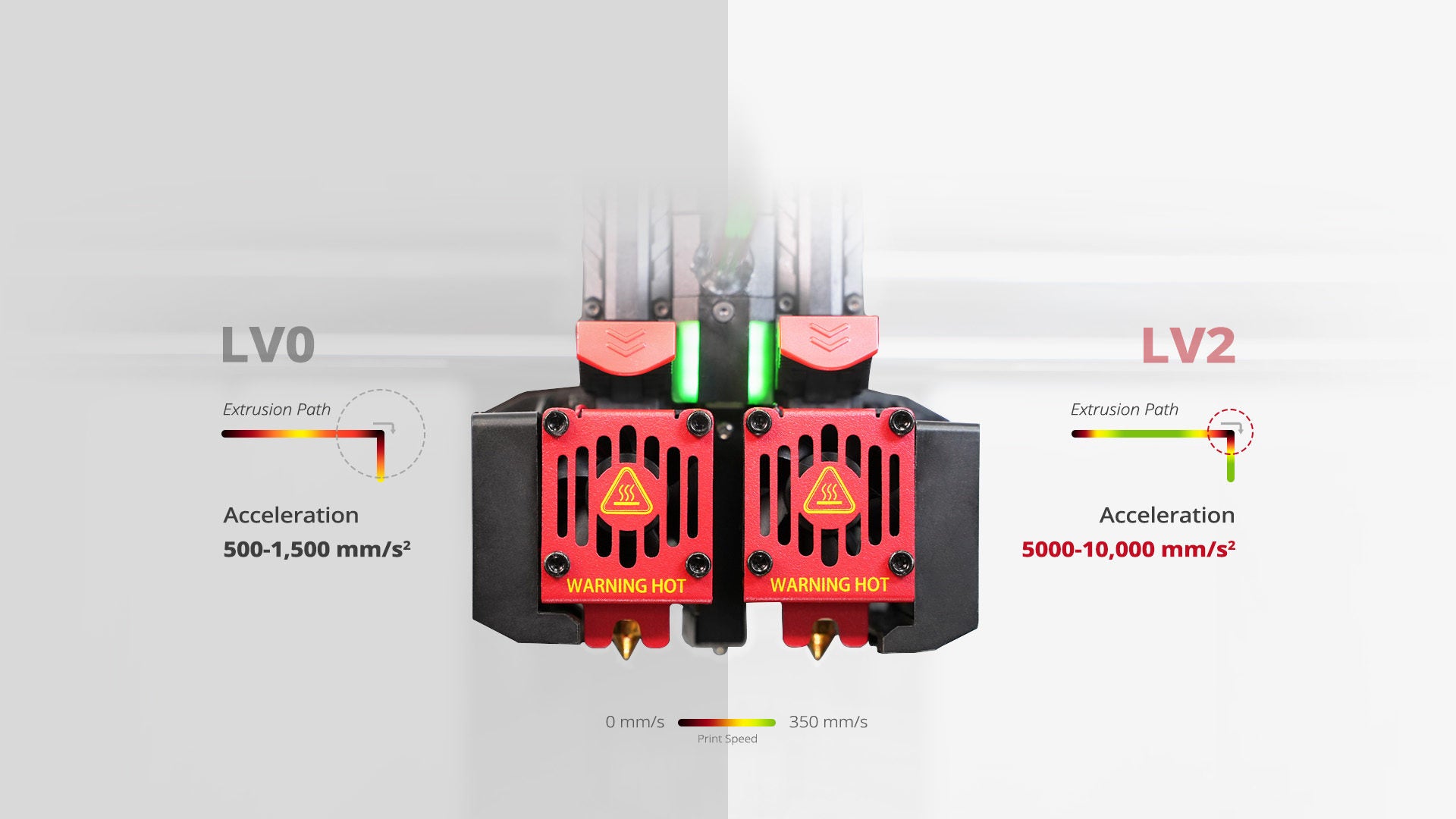

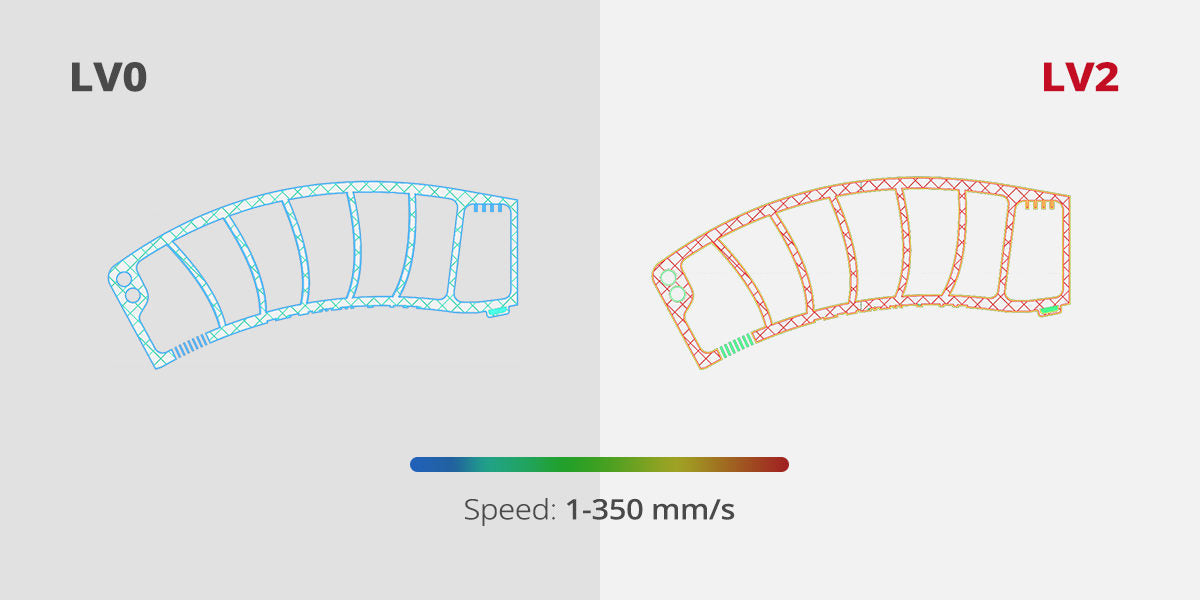

The core of the Hyper FFF™ technology is the active vibration cancellation algorithm. The algorithm will calculate an optimized acceleration pattern and absorb the excessive amount of vibration whenever the printer head makes any high-speed change in direction.

By measuring the natural frequency of the extruder head, the processor will divide the single acceleration command into two equivalent accelerations, in order to generate two reverse vibration waves, which in turn cancel their own vibration during the reverse phase, so the printer head manages to minimize its own friction and shaking using the same hardware.

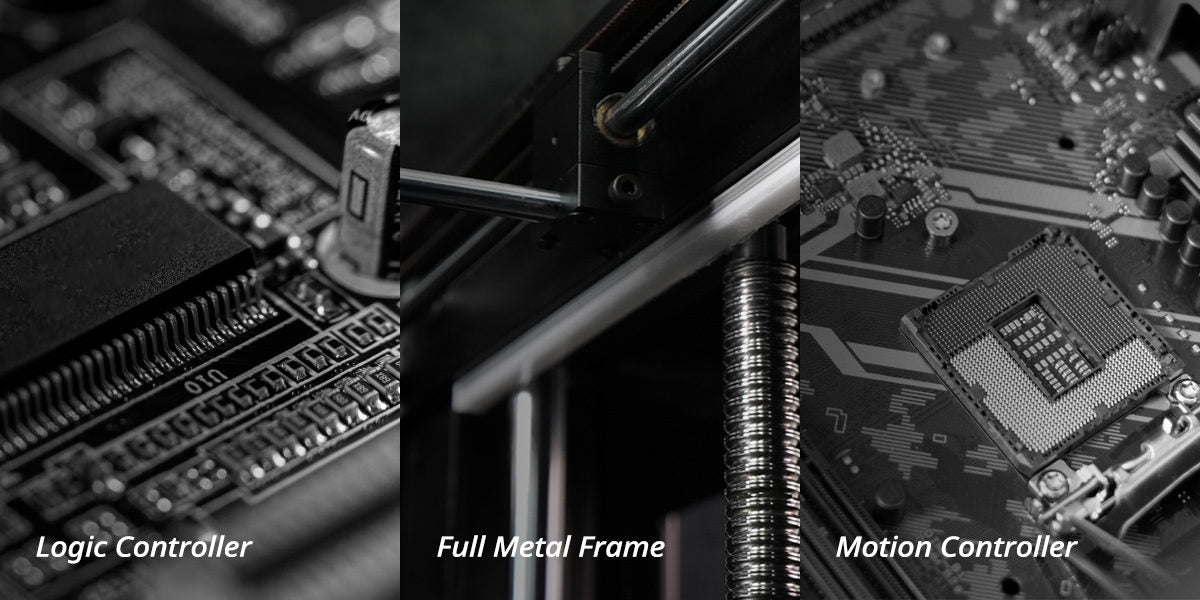

Hardware

When it comes to high-speed printing, the role of hardware is fundamental in delivering high-quality printing results, despite the extremely high printing speeds.

The Pro3 Series’ strong and stable frame ensures high dimensional accuracy and excellent surface quality, withstanding the effects of extremely high acceleration and high speeds. Additionally, its advanced onboard processors can handle over six hundred thousand steps per second and implement the active vibration cancellation algorithm on Pro3 Series 3D printers.

But this disruptive technology is not just for the Pro3 Series. Raise3D is working to bring it to more printer lines in the future, in such a way that existing customers can also always benefit from it.

Filaments

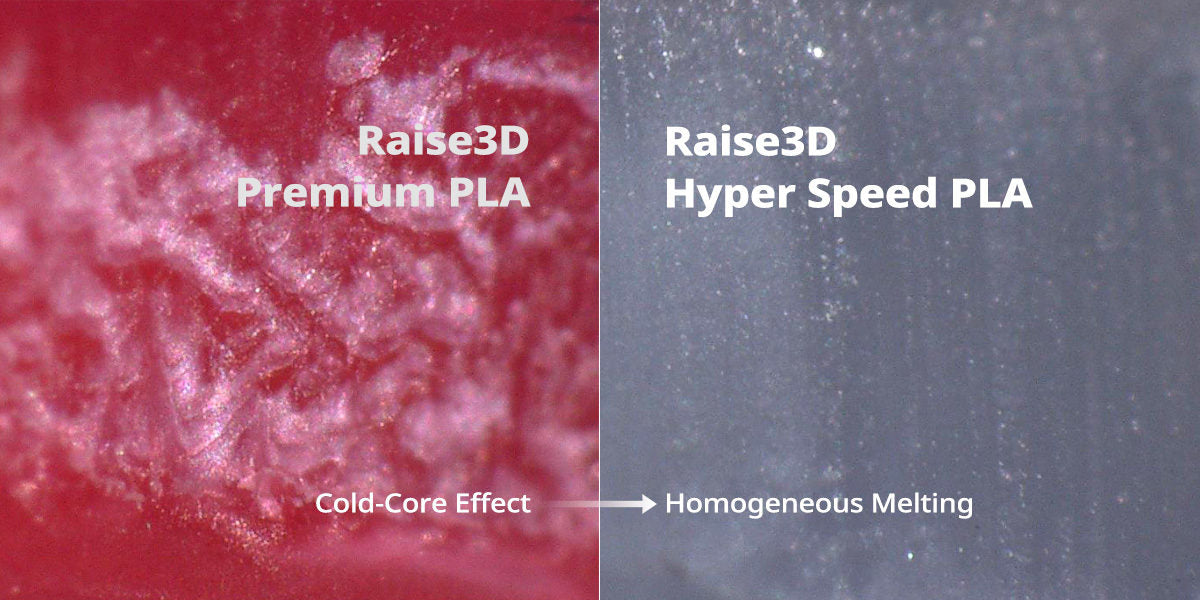

The Hyper Speed line filaments are designed to withstand the higher speeds and yet still maintain high quality.

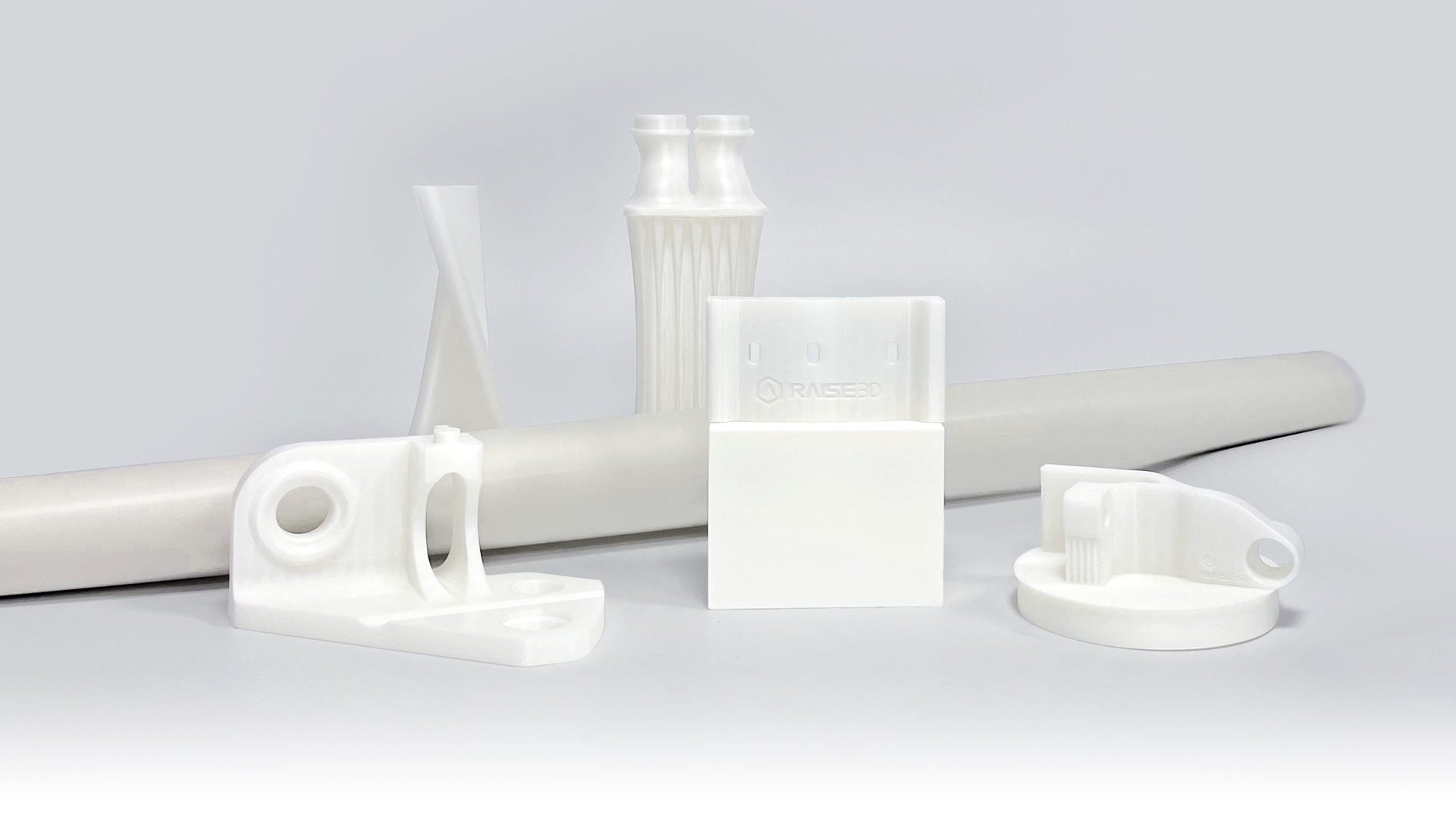

With optimized and balanced molecular weight, Hyper Speed ABS and Hyper Speed PLA have higher flowability and lower heat capacity. Melting and cooling are both faster. As a result, the surface quality of parts printed using Hyper Speed filaments is smooth and most of the sharp details are maintained.

The Hyper Core line filaments will also be launched, designed for industrial and end-use parts production, as well as heavy-duty applications.

Software

Raise3D always constantly develops slicing software for its users to have available the latest filament profiles and make the most of the printer’s potential. The software capability developed by Raise3D is an important component of the Hyper FFF™, to achieve its goal of high speed printing.

A new version of ideaMaker, compatible with Hyper speed printing, is currently finishing development, with a Hyper FFF™-capable Alpha version now available for download here.

Shop3D Tested Materials

V1 Recommended Speed - 100-200mm/s

V2 Recommended Speed - 200-300mm/s

Print Profiles

Print Profile for use with BASF | Ultrafuse® Professional Series PRO1 High Speed PLA Filament

Raise3D Hyper Speed Upgrade Kit (Pro3 Series Only) enhances compatible Raise3D Pro3 Series 3D printers with Hyper Speed printing capabilities, enabling significantly faster print speeds while maintaining excellent print quality. Designed to work with Raise3D Hyper Speed filaments, the kit includes the components required to optimize printer performance for high-speed production, rapid prototyping, and engineering applications. Ideal for businesses looking to increase productivity, the Hyper Speed Upgrade Kit helps reduce print times, improve workflow efficiency, and maximize the performance of Pro3 Series printers without compromising reliability.
